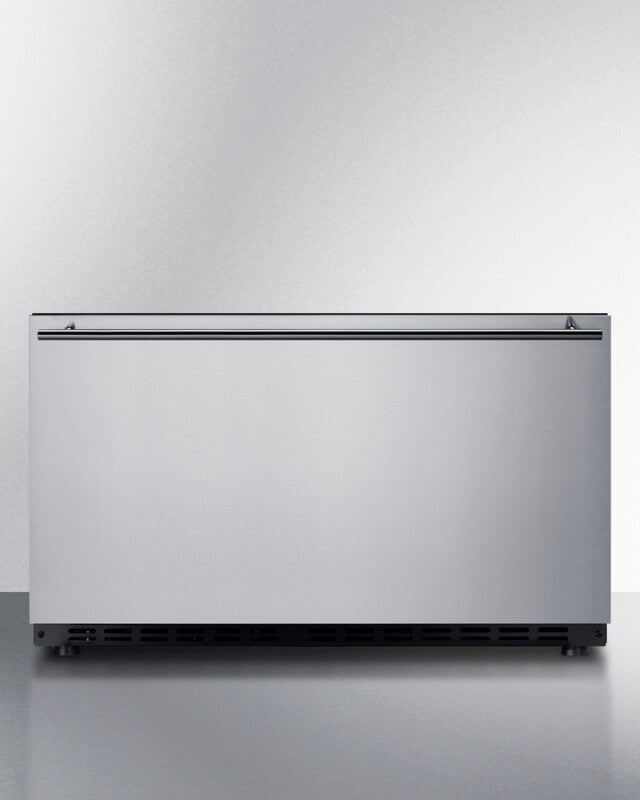

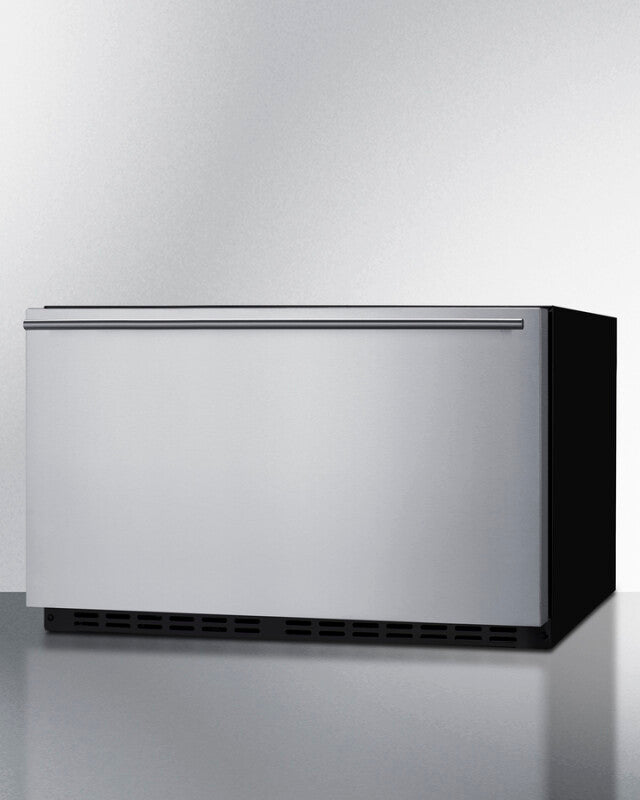

Summit SDR301OS 30" Wide Built-In Outdoor Drawer Refrigerator Black
Sale price
$2,224.93
Regular price
$2,584.97
Save
$360.04
/ 13% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,224.93
Regular price
$2,584.97
Save
$360.04
/ 13% OFF
Product Details for SUMMIT SDR301OS
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & weight
| Width | 29.5 in. |
| Height | 17.75 in. |
| Length | 22 in. |
| Weight | 77 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 6.67 ft³ |
| Dimensional Weight | 82.88 lbs. |
| Total of Cubes | 6.67 ft³ |
| Total of Dimensional Weight | 82.88 lbs. |
Overview refrigerator features dimensions
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.0" (56 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 2.5 cu.ft. (71 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 280.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 77.0 lbs. (35 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088990 |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 34.3 dB |
| Interior Height | 13.0" (33 cm) |
| Interior Width | 23.63" (60 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 23.63" (60 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
Description
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
Product Features
-
30" wide single drawer refrigerator
2.5 cu.ft. all-refrigerator in a single drawer style -

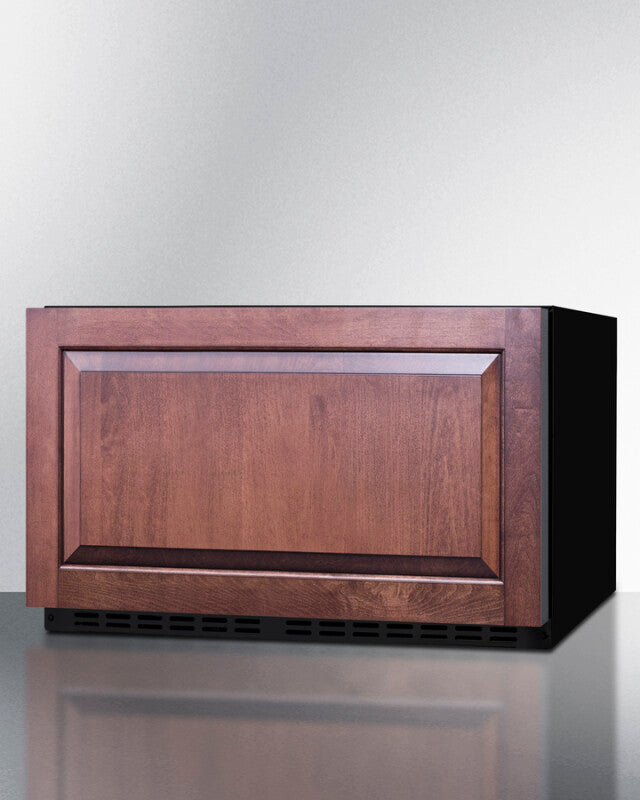

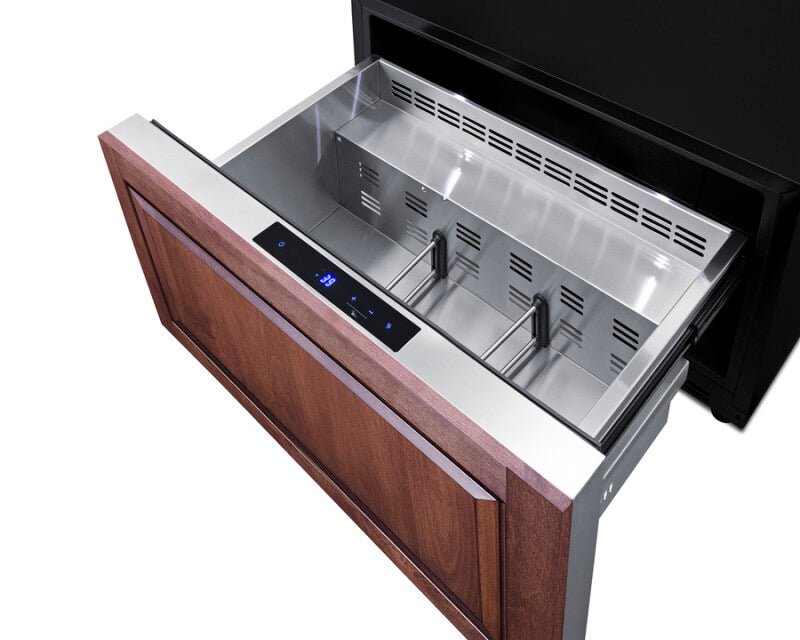

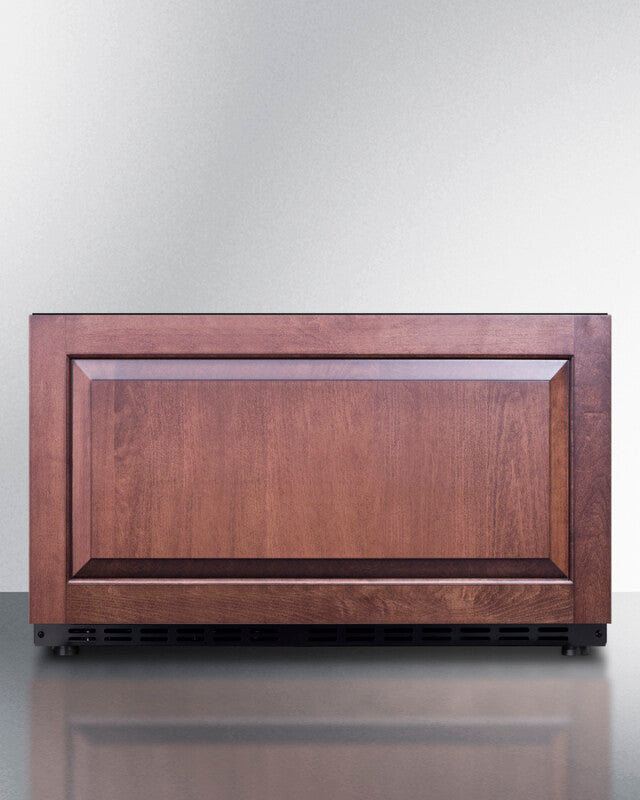

Panel-ready drawer front
Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness) -
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings -

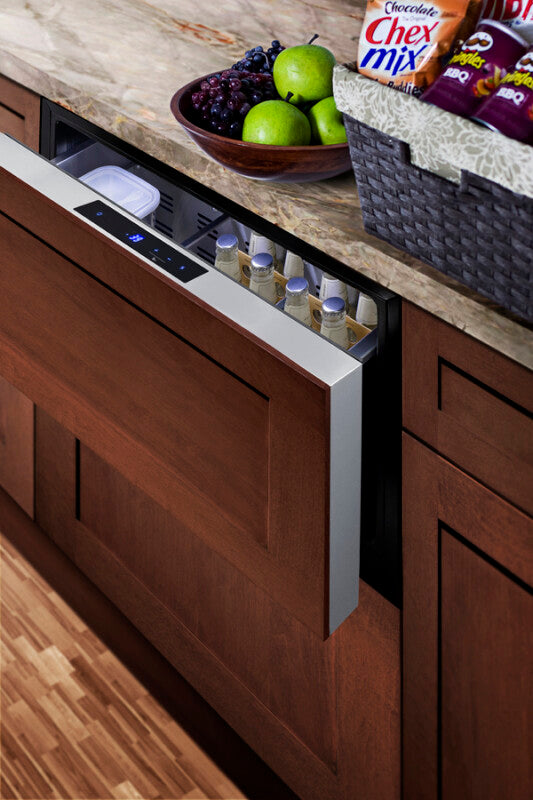

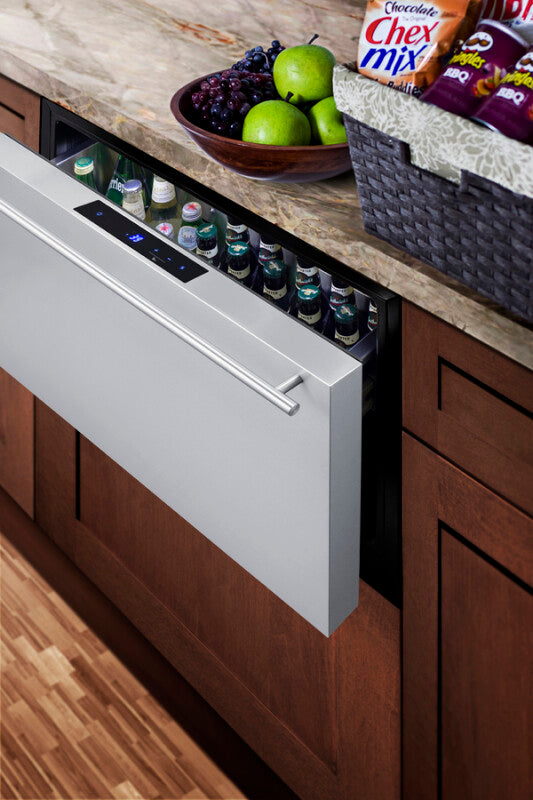

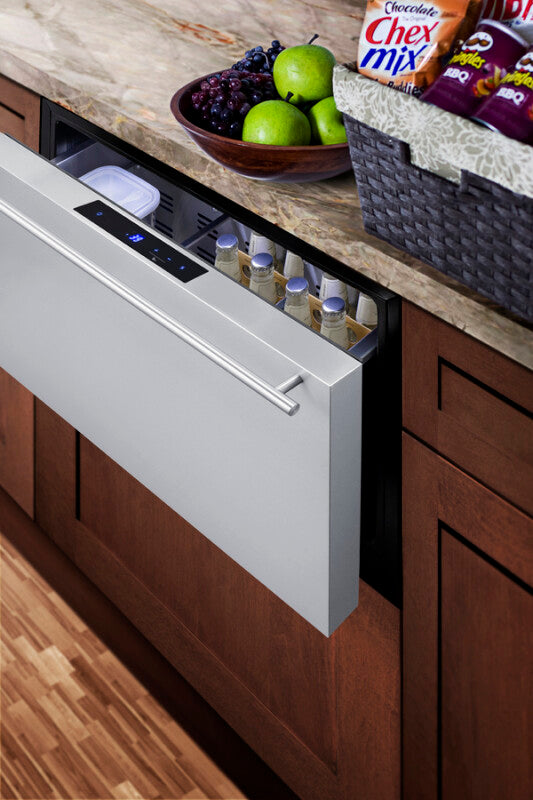

Built-in capable
Front-breathing design allows you to build the drawer into cabinetry -

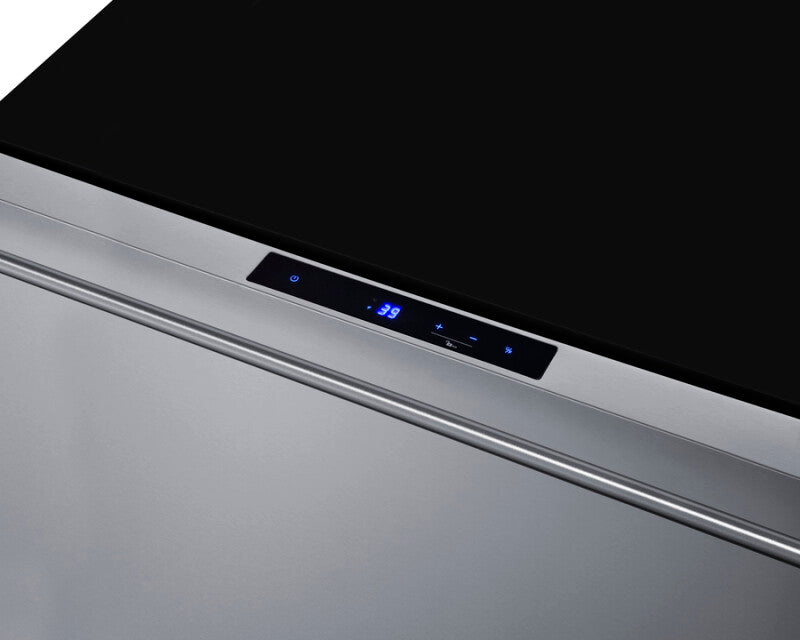

Digital thermostat
Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit -
LED lighting
Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior -
Frost-free operation
Minimum user maintenance with a fully no-frost operation system -

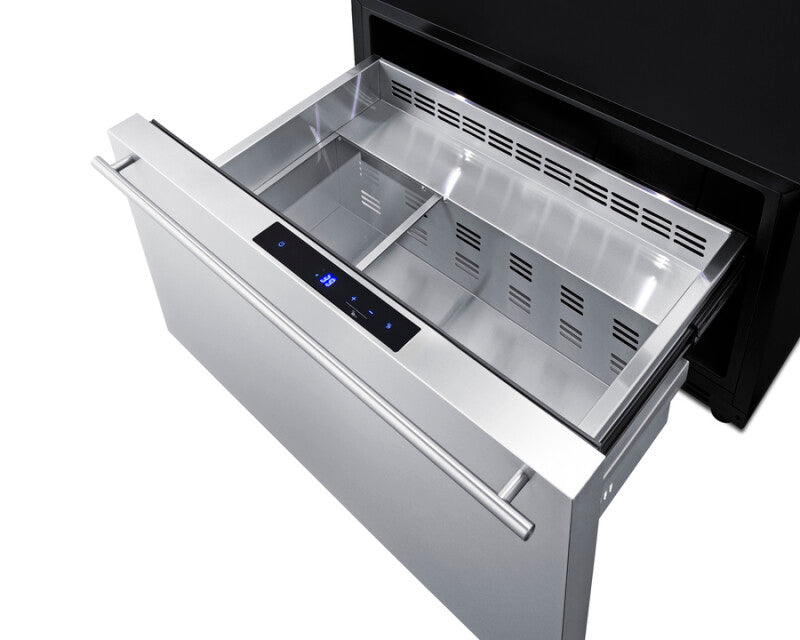

304 grade stainless steel drawer
Drawer front and interior constructed from stainless steel for added durability and easy cleanability -

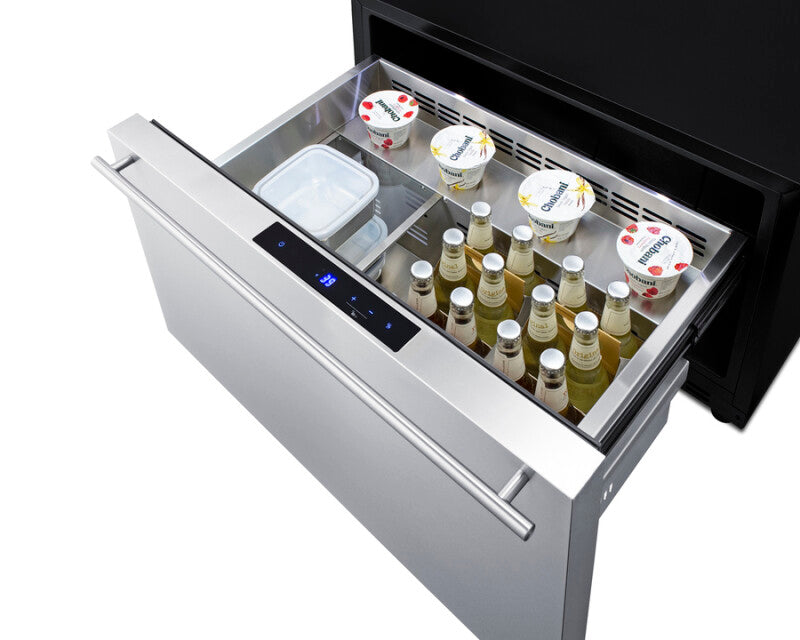

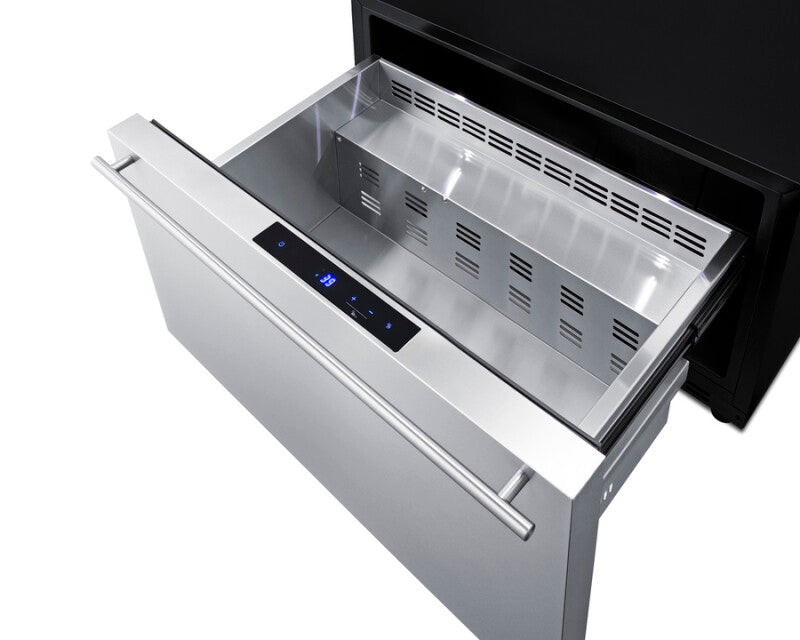

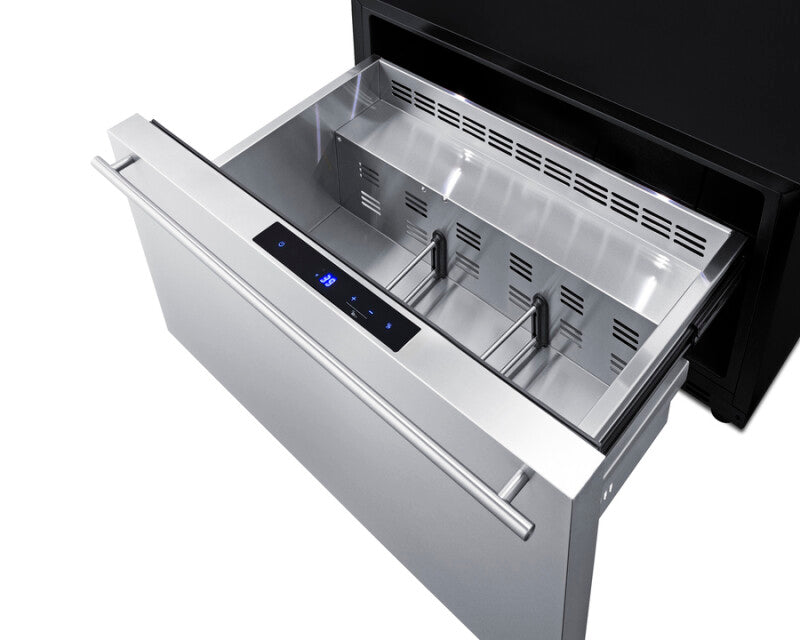

Drawer divider
Removable divider makes it easy to organize stored items -
Internal fan
Fan-forced cooling ensures the unit is evenly cooled -
Glass shelf
Includes one half-sized shelf that lets you create more separation as needed -
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss -
Professional handle
A sleek stainless steel handle adds an elegant touch to any setting -
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range -
Open drawer alarm
Audible alarm will sound if the drawer is left open longer than one minute -
Sabbath Mode
Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours -
Child lock
Disables digital controls after two minutes of activity for added safety -
Sealed back
Space-saving design with no exposed coils for easier cleanability -
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -
Weatherproof design for outdoor use
Durable construction allows safe installation in outdoor kitchens -
Fully finished black cabinet
Allows the unit to be used freestanding
