Product Details for SUMMIT SDHR1534PNRLHD

Technical Details

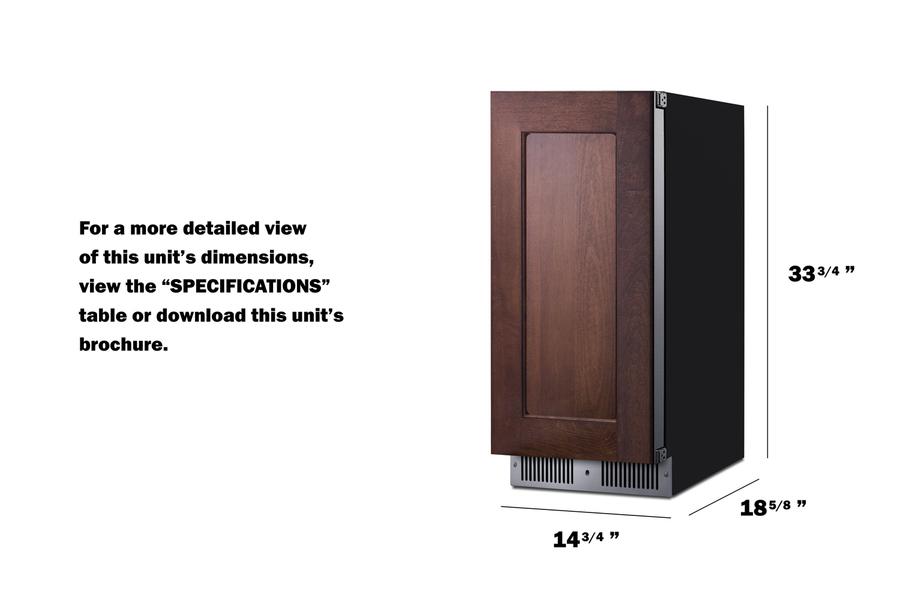

Overview refrigerator features dimensions

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.88" (45 cm)
Depth with door at 90° 32.5" (83 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145754
Sabbath Mode Yes
Door Swing LHD
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 33.6 dB
Interior Height 26.0" (66 cm)
Interior Width 10.63" (27 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.63" (27 cm)
Compressor Step Depth 5.0" (13 cm)

Description

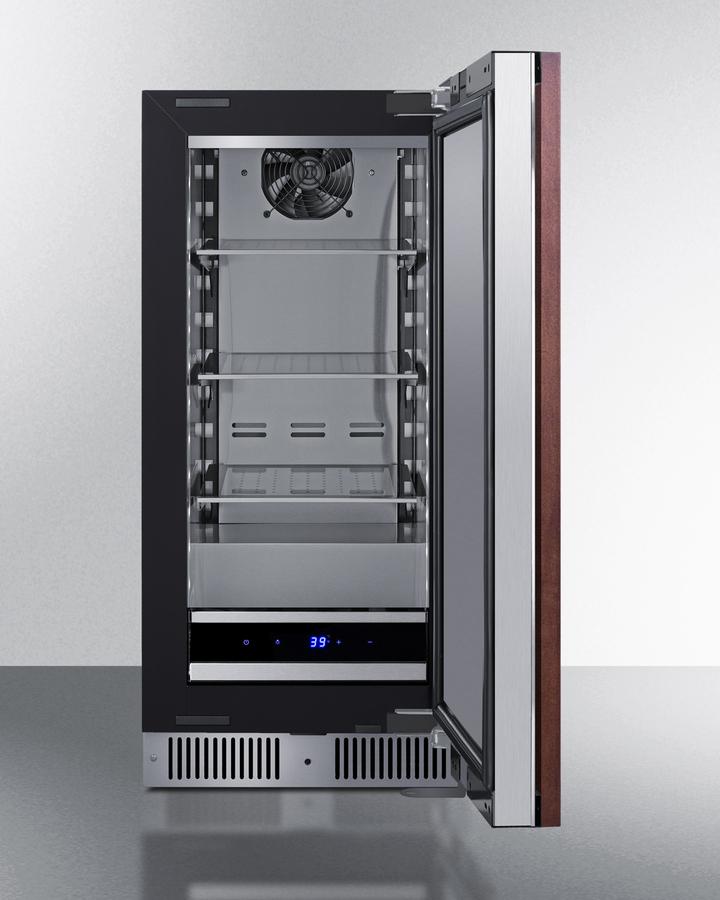

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHR1534PNRLHD is a 15" wide all-refrigerator sized under 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The stainless steel wrapped door features our fully articulating European hinge. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. This model comes with a left-hand door swing. Inside, the unit features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes a cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high-temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during observance periods for up to 96 hours. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.


Product Features

  • 15" Wide All-Refrigerator
    1.7 cu.ft. interior for residential cold storage
  • Less then 18" deep
    Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Built-In capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Versatile design
    Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door

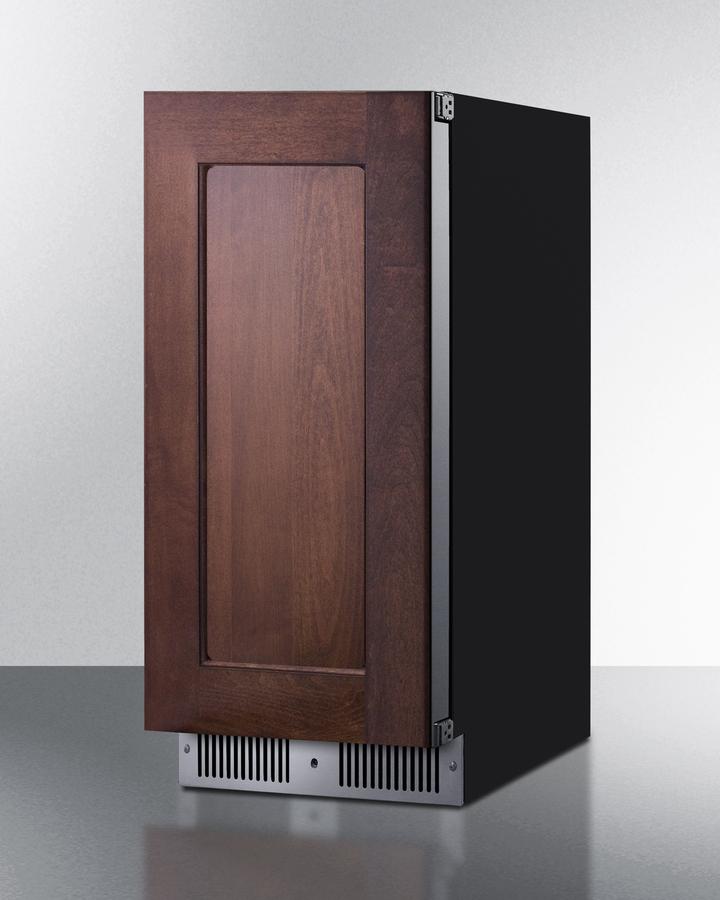

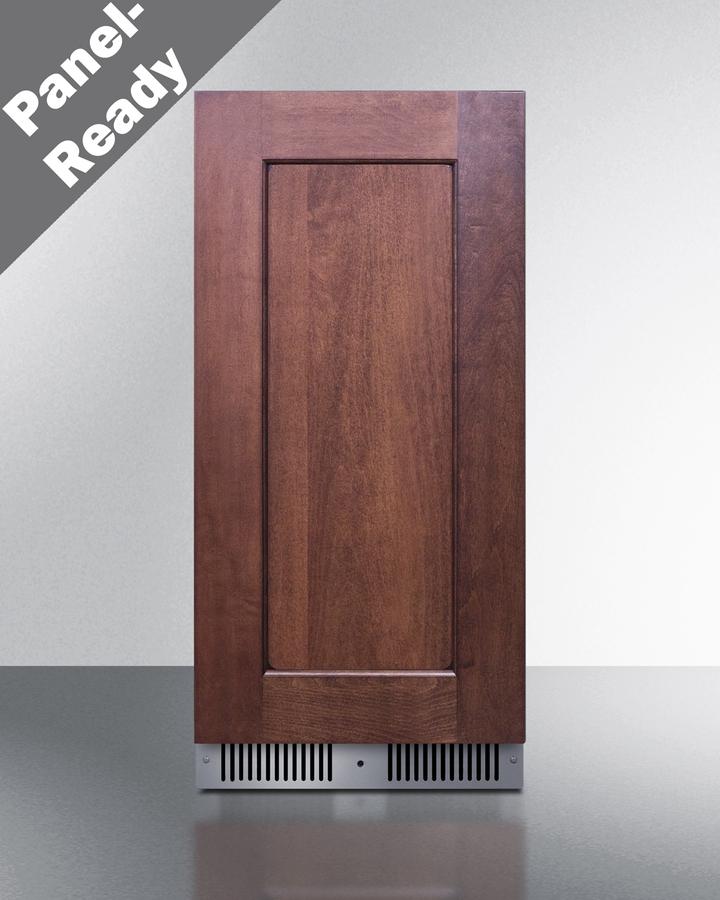

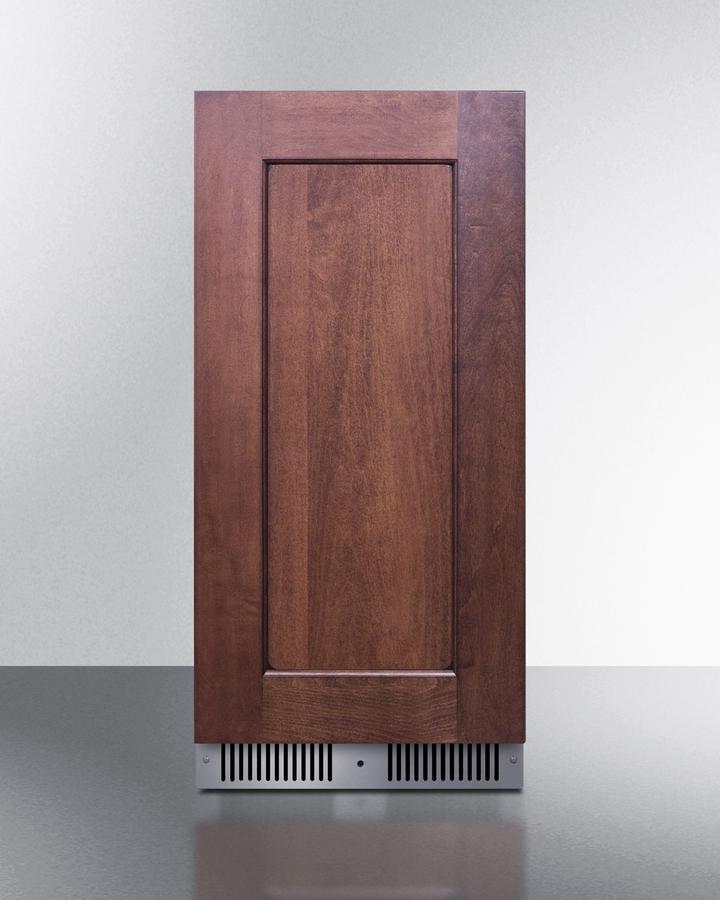

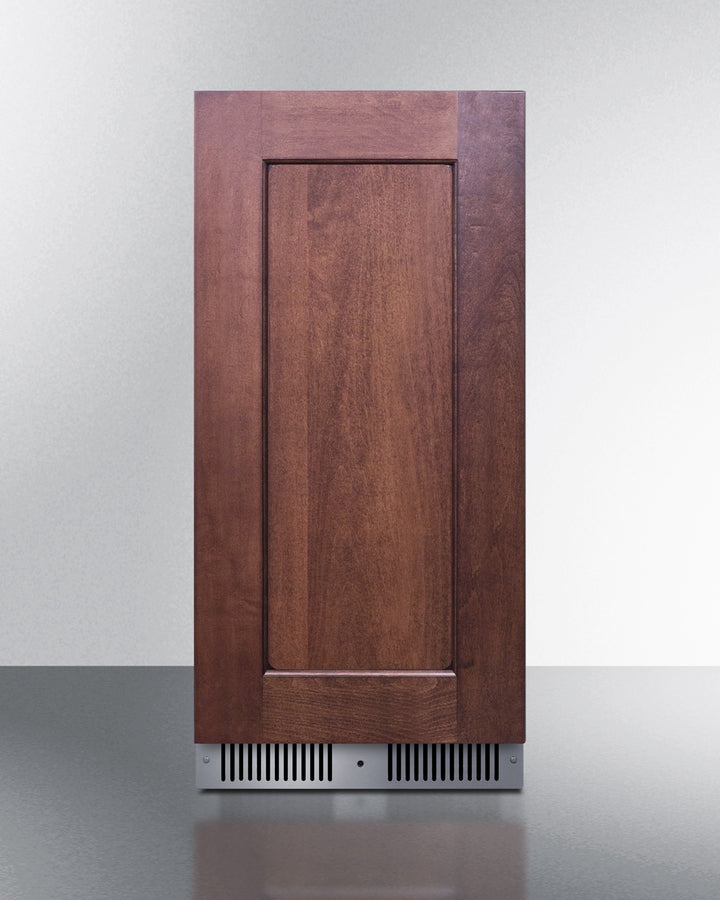

  • Panel-ready door
    European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W

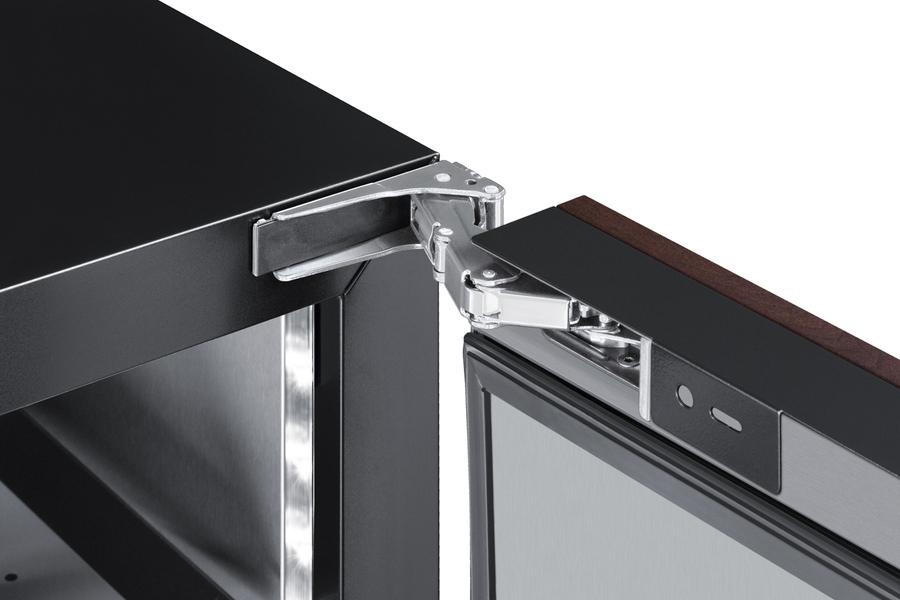

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • Stainless steel interior
    Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)
  • Frost-free operation
    No-frost operation for minimal user maintenance
  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

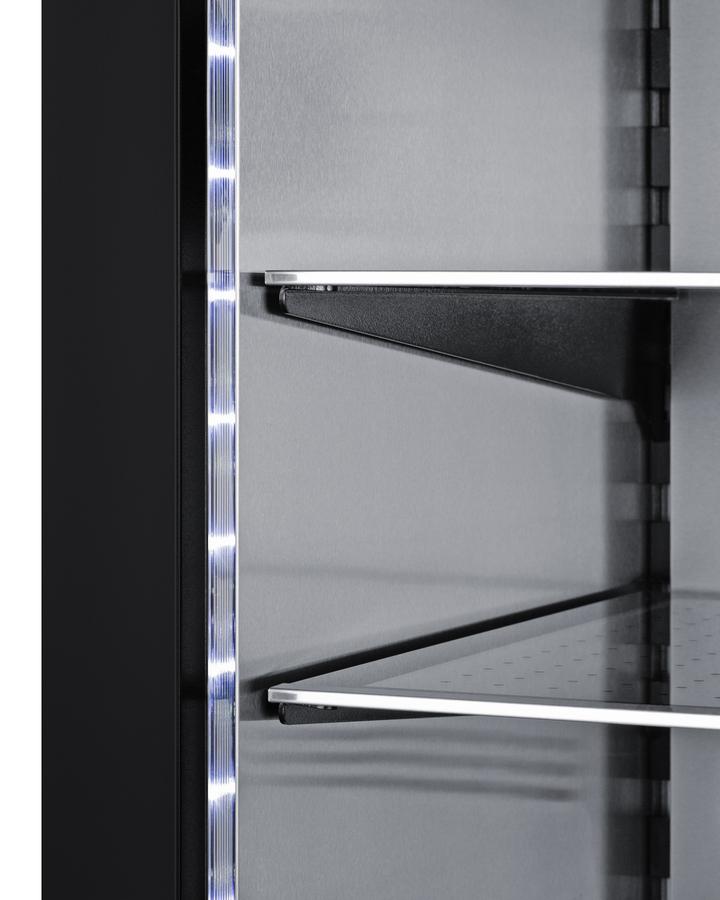

  • Dimmable LED light
    Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • High/low temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Sabbath mode
    Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Temperature memory function
    Unit will retain its last settings when power is restored in the event of power loss

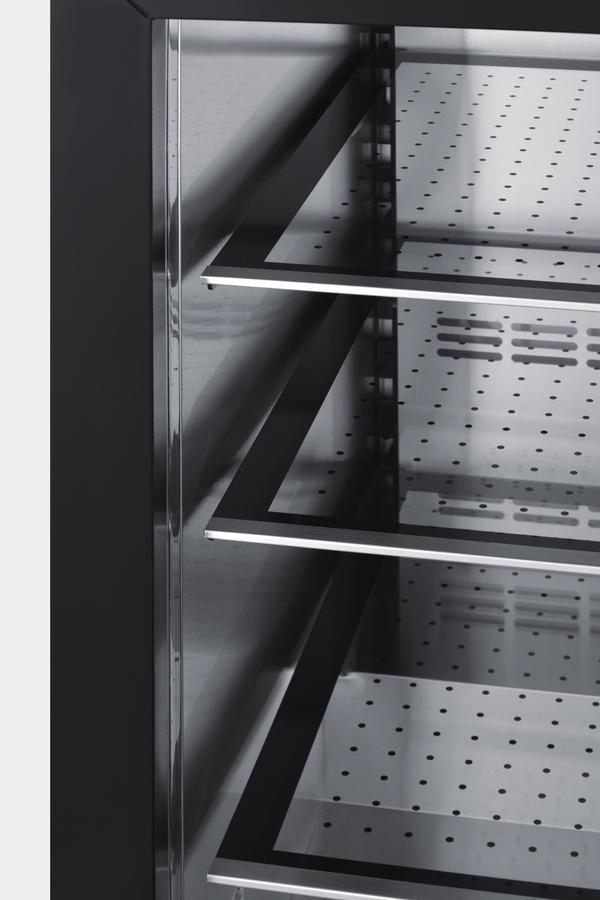

  • Adjustable glass shelves
    Spill-proof shelving for easy cleanup and flexible storage
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Left-hand door swing
    For this unit with a standard right-hand door swing, see model SDHR1534
  • Quiet operation
    Runs under 34 dB for a quiet performance that won't interrupt your conversation
  • 100% CFC free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
