Product Details for SUMMIT SCR610BLSDV1

Technical Details

Overview refrigerator features dimensions

Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 4.88 cu.ft. (138 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101148298
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 37.4 dB
Interior Height 25.0" (64 cm)
Interior Width 19.38" (49 cm)
Interior Depth 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)

Description

Summit Commercial's extensive lineup of beverage centers and refrigerators offers the perfect storage conditions for restaurants and other foodservice establishments. The SCR610BLSDV1 comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The reversible door includes a professional handle, and factory installed lock. A digital thermostat is located in the kickplate for easy temperature management. Inside, the SCR610BLSDV1 utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. This unit includes three cantilevered chrome shelves to ensure flexible storage that accommodates any item size. The interior is taller than many refrigerators in its class, allowing the unit to easily store two rows of 12" high bottles. High temperature and open door alarms offer added protection in busy commercial settings. The SCR610BLSDV1 is ETL-S listed to NSF-7 for use in commercial settings. For this unit with a glass door, see the SCR610BL.


Product Features

  • 24" Wide Commercial Beverage Center
    Solid door all-refrigerator designed for commercial storage
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over a minute
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Sealed back
    Space saving design with easier cleanability
  • Fan-forced cooling
    Internal fan ensures the interior is evenly cooled from top to bottom
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Automatic defrost
    Reduced user maintenance with automatic defrost
  • High temperature alarm
    Alarm sounds if the interior temperature rises out of suggested range
  • Recessed LED lighting
    Efficient and attractive lighting illuminates stored products
  • Commercially approved
    ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Tall interior
    25" high interior accommodates two vertical rows of 12" tall bottles

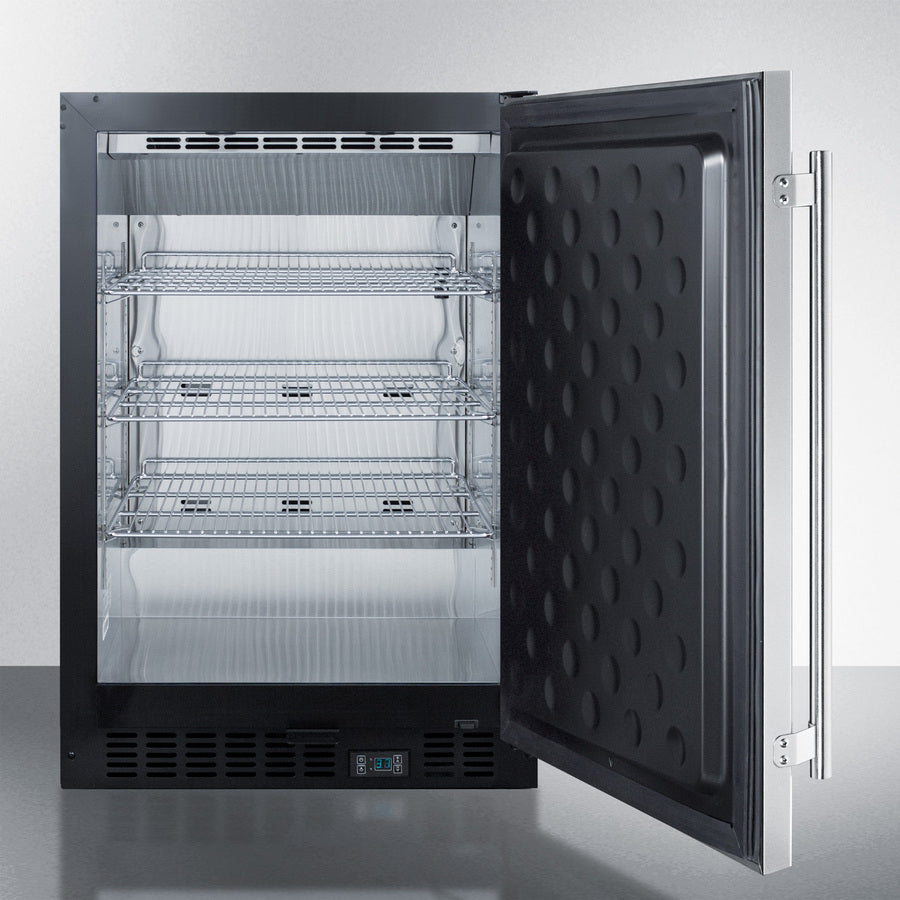

  • Cantilevered chrome shelves
    Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Reversible door
    User-reversible door swing allows for more flexibility in placing the unit
  • Digital thermostat
    Intuitive digital controls ensure easy temperature management
  • Factory installed lock
    Keyed lock for a secure interior
  • Stainless steel interior
    Walls are constructed from stainless steel for added strength and easy cleanup

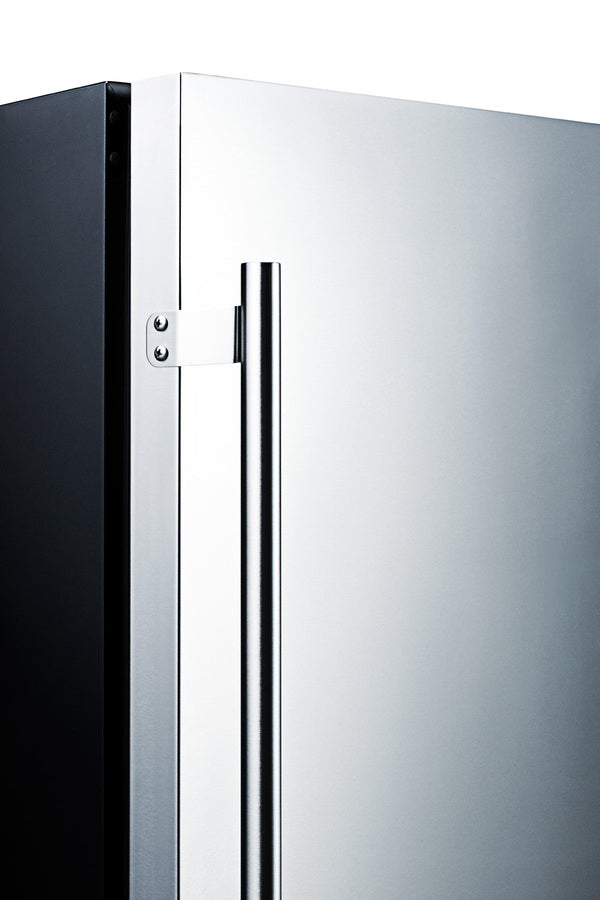

  • Stainless steel door
    Professional finish with a matching handle
  • Built-in capable
    Make the best use of space by installing this unit under the counter and flush with other cabinetry
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
