Product Details for SUMMIT SCR610BLSDRI

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 37.38 in.
Length 23.5 in.
Weight 120 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.01 ft³
Dimensional Weight 149.33 lbs.
Total of Cubes 12.01 ft³
Total of Dimensional Weight 149.33 lbs.

Overview refrigerator features dimensions

Nominal Height 38.0" (97 cm)
Height of Cabinet 37.38" (95 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082905
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Aluminum Sheet Pans & Chrome Shelves
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 37.4 dB
Interior Height 25.0" (64 cm)
Interior Width 19.38" (49 cm)
Interior Depth 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)
Energy Usage/Year 290.0kWh/year

Description

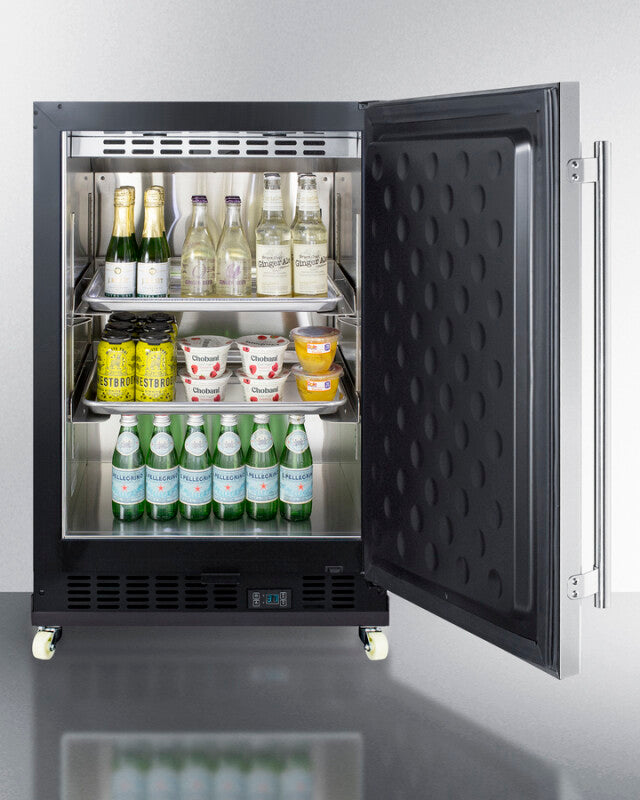

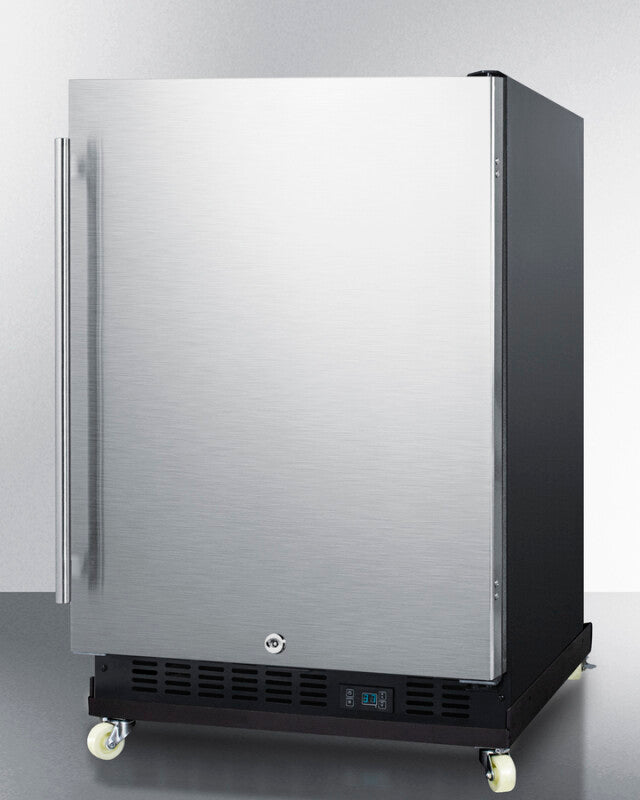

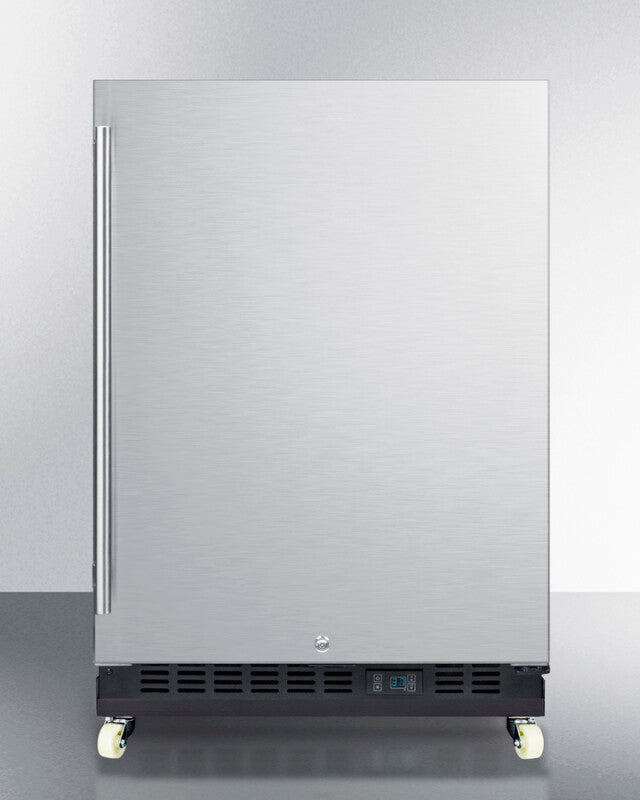

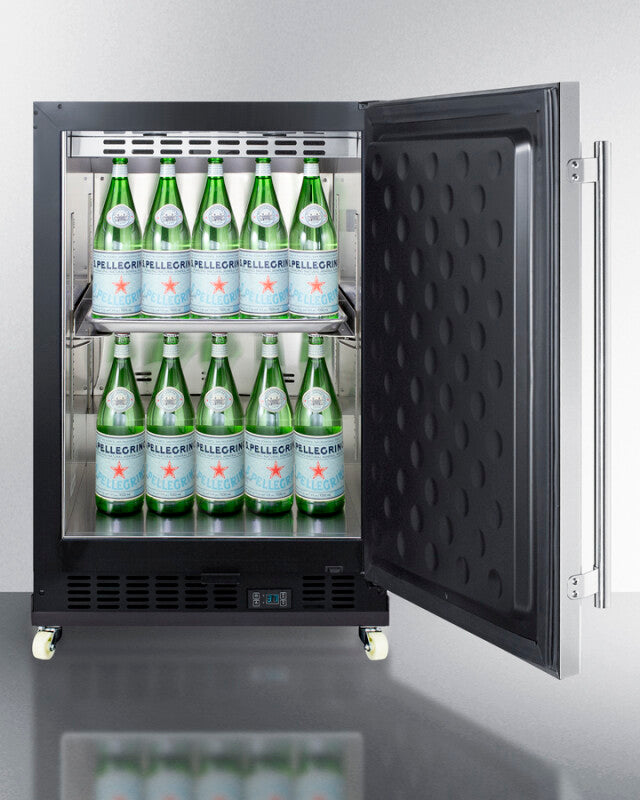

Summit Commercial's line of mini reach-in refrigerators brings versatile convenience to new dining setups, with stainless steel construction for lasting durability and factory-installed dollys to ensure easy portability. The SCR610BLSDRI comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The reversible stainless steel door includes a professional handle and a factory installed lock. This unit comes pre-installed on a dolly with four 3" casters for easy mobility, perfect for restaurants and bars. The dolly can also be removed and reattached as needed. A digital thermostat is located in the kickplate for easy temperature management. Inside, the SCR610BLSDRI utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Its reach-in design allows convenient user access to the interior, with three adjustable U-shaped steel tray holders that can be rearranged on cantilevered clips to accommodate a variety of sizes. This unit comes with three aluminum half-sheet pans, ideal for storing beverages and other sealed items. Three chrome shelves are also included for user convenience. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. High temperature and open door alarms offer added protection in busy commercial settings, while Sabbath Mode allows users to disable certain electrical features during times of religious observance. The SCR610BLSDRI is ETL-S listed to NSF-7 for use in commercial settings. Its reach-in design makes it a great choice for bringing flexible, portable, and convenient beverage storage to commercial settings. For this unit with a glass door, see the SCR610BLRI.


Product Features

  • Commercially approved
    ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Built-in capable
    Make the best use of space by installing this unit under the counter and flush with other cabinetry
  • Reach-in design
    Unique design makes it easy for busy wait staff to access stored contents
  • Convertible use
    Ships on a dolly for easy mobility, but can be removed and installed under cabinets as a built-in refrigerator as needed
  • Heavy-duty tray holders
    Includes three adjustable U-shaped tray holders for strong support of interior trays and sheet pans
  • Factory-installed dolly
    Unit ships on a dolly with four 3" high casters (rear two are locking) to allow easier mobility between the kitchen and dining area

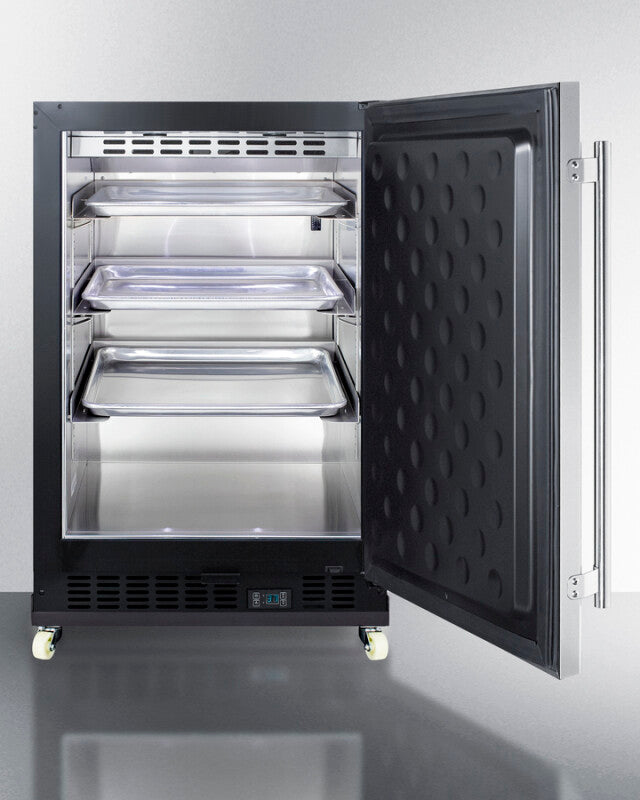

  • Half-sheet aluminum pans
    Three adjustable half-sheet pans make loading and unloading contents easy
  • Three adjustable chrome shelves
    Extra shelves for alternate storage as needed
  • Factory installed lock
    Keyed lock for a secure interior
  • Stainless steel interior
    Walls are constructed from stainless steel for added strength and easy cleanup
  • Digital thermostat
    Intuitive digital controls ensure easy temperature management
  • Reversible door
    User-reversible door swing allows for more flexibility in placing the unit
  • Tall interior
    25" high interior accommodates two vertical rows of 12" tall bottles
  • Recessed LED lighting
    Efficient and attractive lighting illuminates stored products
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over a minute
  • High temperature alarm
    Alarm sounds if the interior temperature rises out of suggested range
  • Automatic defrost
    Reduced user maintenance with automatic defrost
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Fan-forced cooling
    Internal fan ensures the interior is evenly cooled from top to bottom
  • Sealed back
    Space saving design with easier cleanability
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Stainless steel door
    Professional finish with a matching handle
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
