Product Details for Summit SCR610BLCHPNR

Technical Details

Overview

Nominal Height 13.39
Height of Cabinet 13.39
Nominal Width 9.45
Width 9.3
Nominal Depth 9.45
Depth 9.25
Depth with door at 90(degree) 17.91
Capacity 5.0
Bottles 20
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115
Weight 140.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101065502

Wine cellar

Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Shelf Type Steel
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 9.84
Interior Width 1 7.63
Interior Depth 1 6.84
Compressor Step Height 1.48
Compressor Step Width 7.63
Compressor Step Depth 1.82
Temperature Range 36
Sound Level 37.4

Features

  • ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Make the best use of space by installing this unit under the counter and flush with other cabinetry

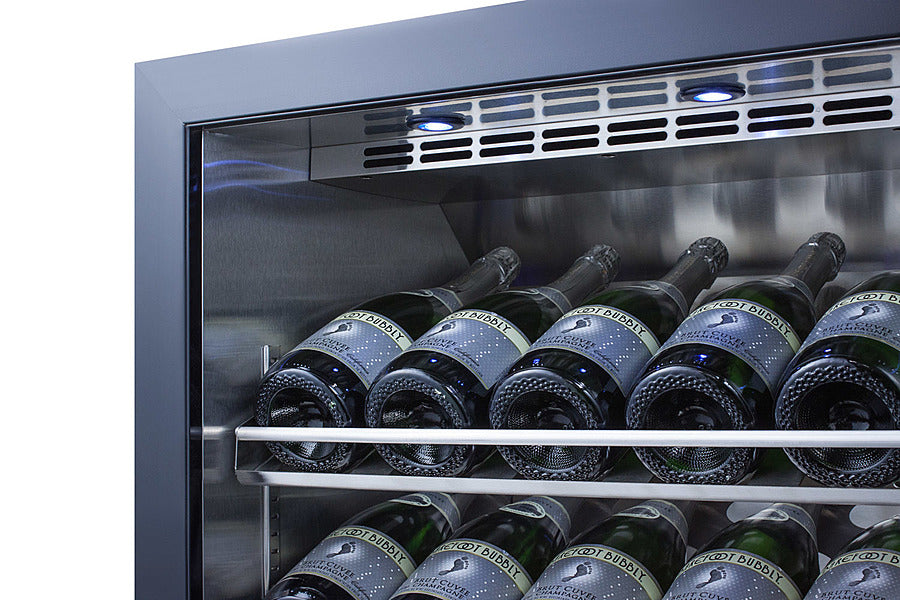

  • Stainless steel shelves are specially sized to store wider wine and champagne bottles
  • Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
  • Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
  • Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Stainless steel trimmed glass door offers a full display of stored items
  • Walls are constructed from stainless steel for added strength and easy cleanup
  • Keyed lock for a secure interior
  • Intuitive digital controls ensure easy temperature management
  • Door ships with a right hand door swing. For a left hand version, add option "LHD"
  • Reduced user maintenance with automatic defrost
  • Internal fan ensures the interior is evenly cooled from top to bottom
  • Space saving design with easier cleanability
  • Allows the unit to be used freestanding
  • Environmentally friendly design without ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

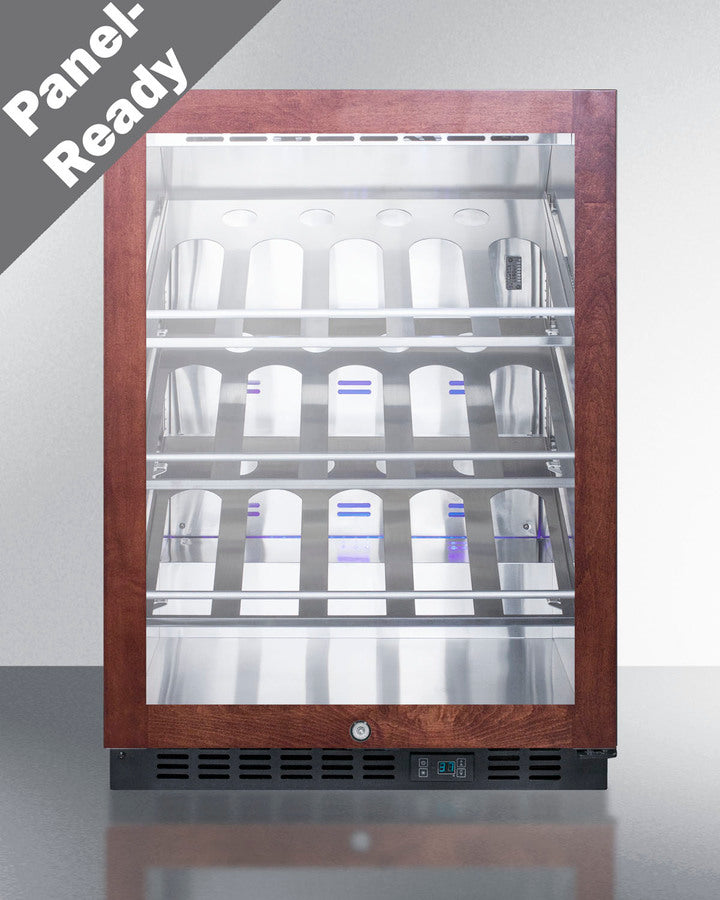

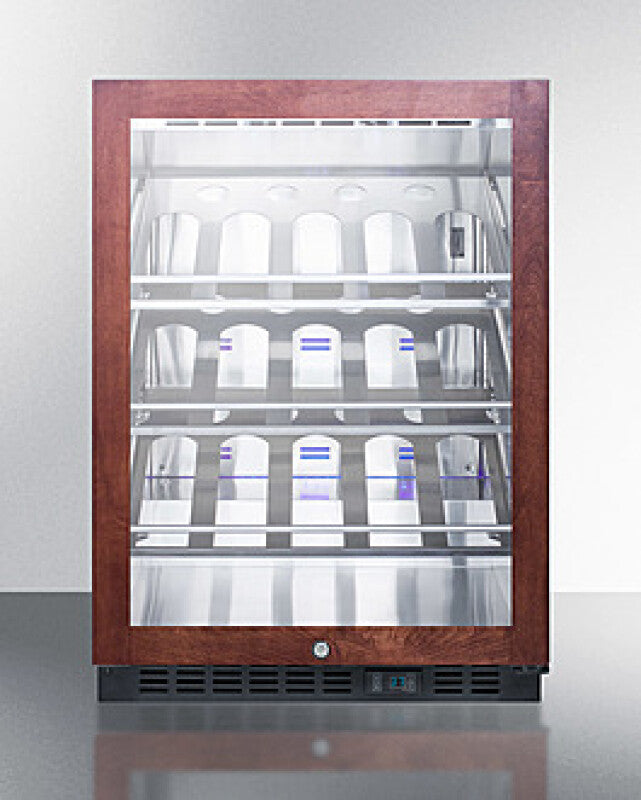

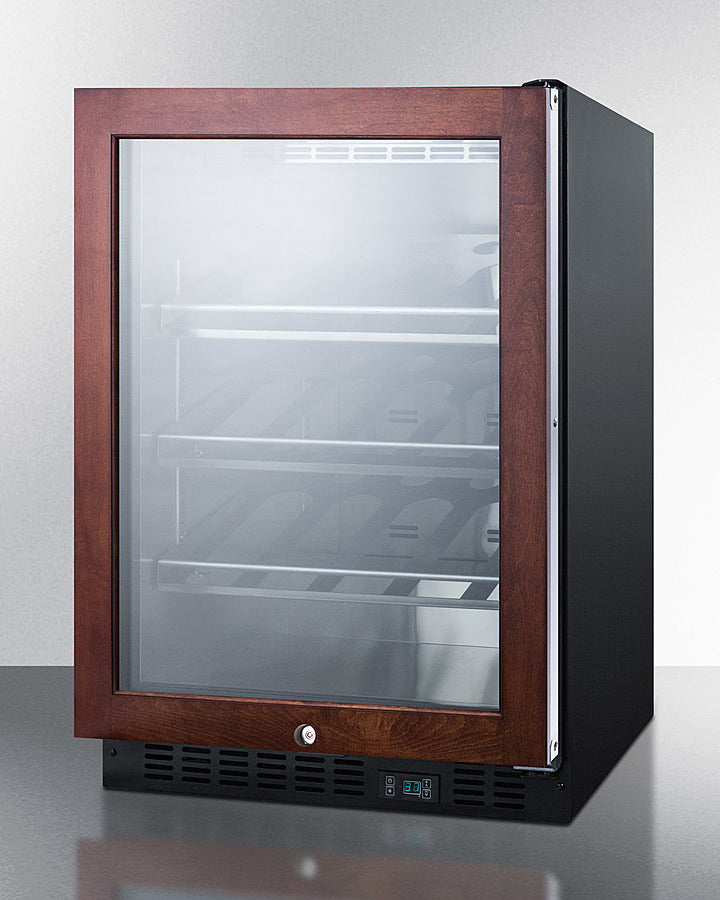

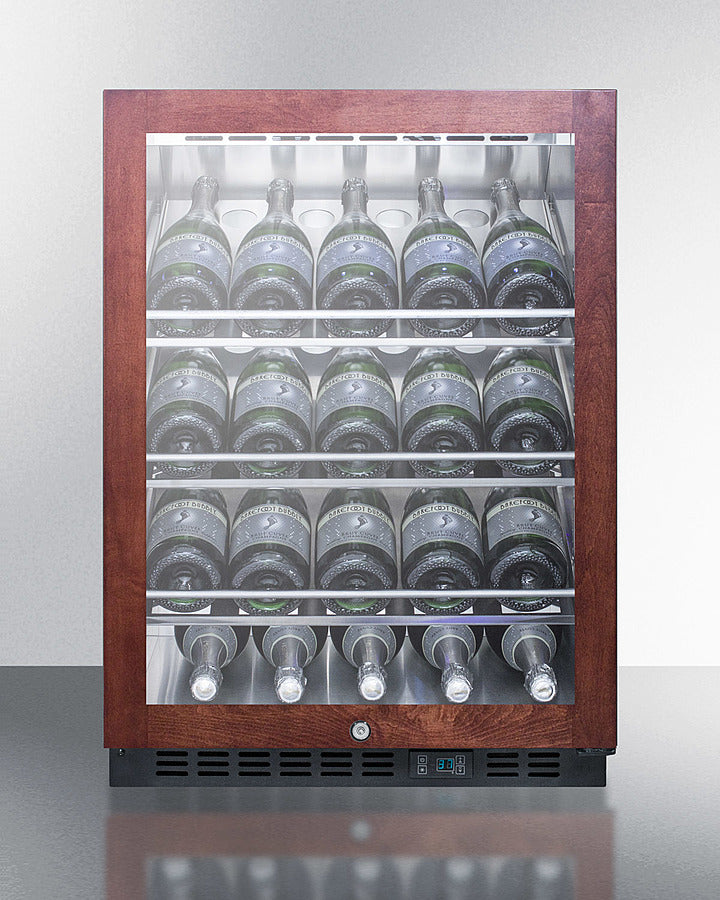

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Users provide their own handle. Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior. With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
