Product Details for SUMMIT SCR610BLCH

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 34 in.
Length 23.5 in.
Weight 140 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.93 ft³
Dimensional Weight 135.83 lbs.
Total of Cubes 10.93 ft³
Total of Dimensional Weight 135.83 lbs.

Overview wine cellar

Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 20 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059945
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.0" (64 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)
Temperature Range 36 to 43ºF
Sound Level 37.4 dB

Description

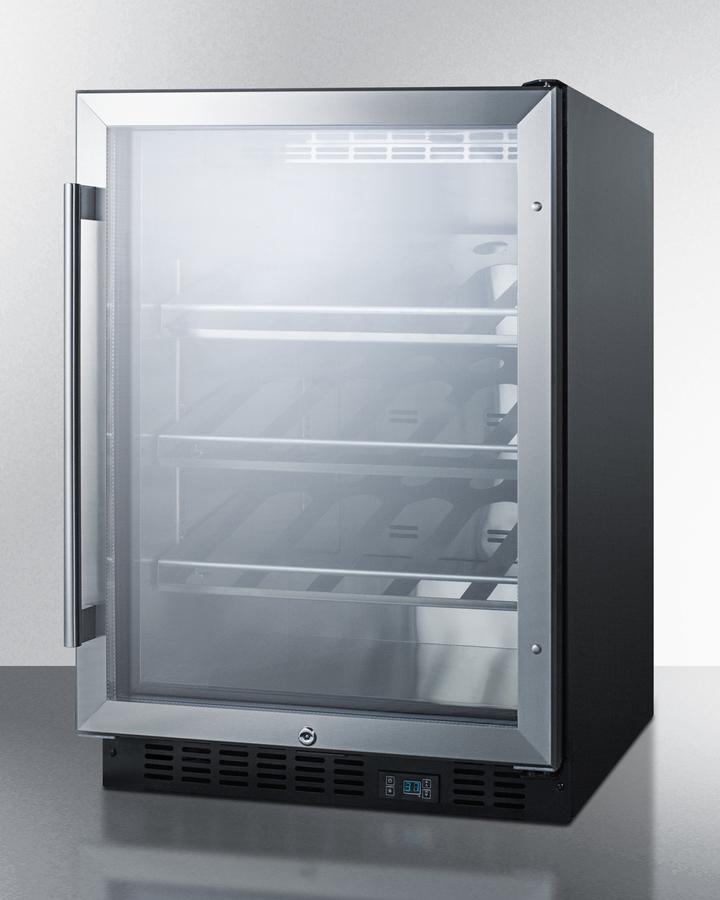

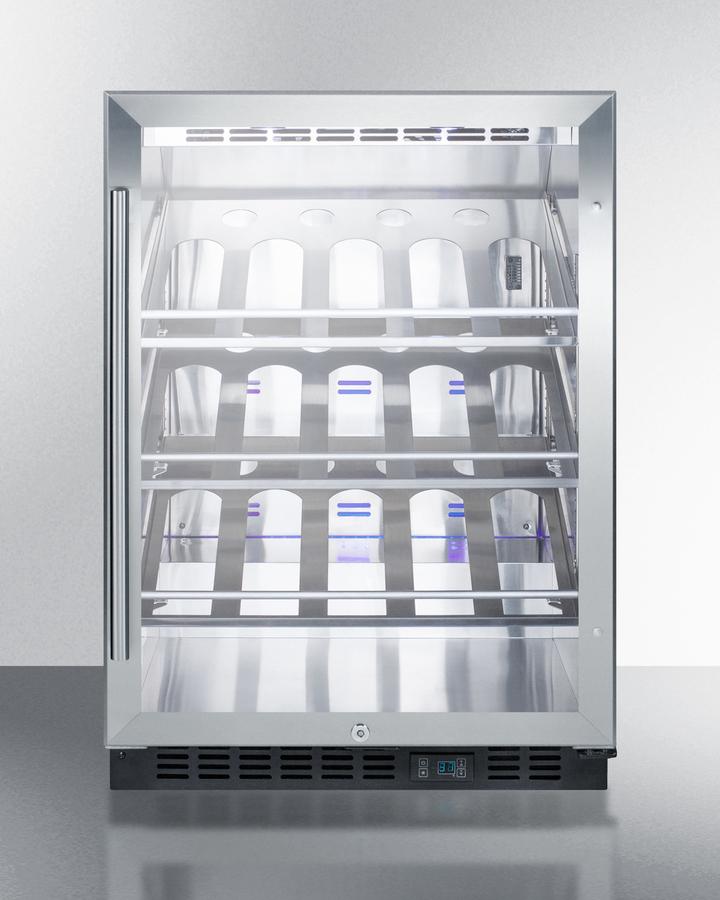

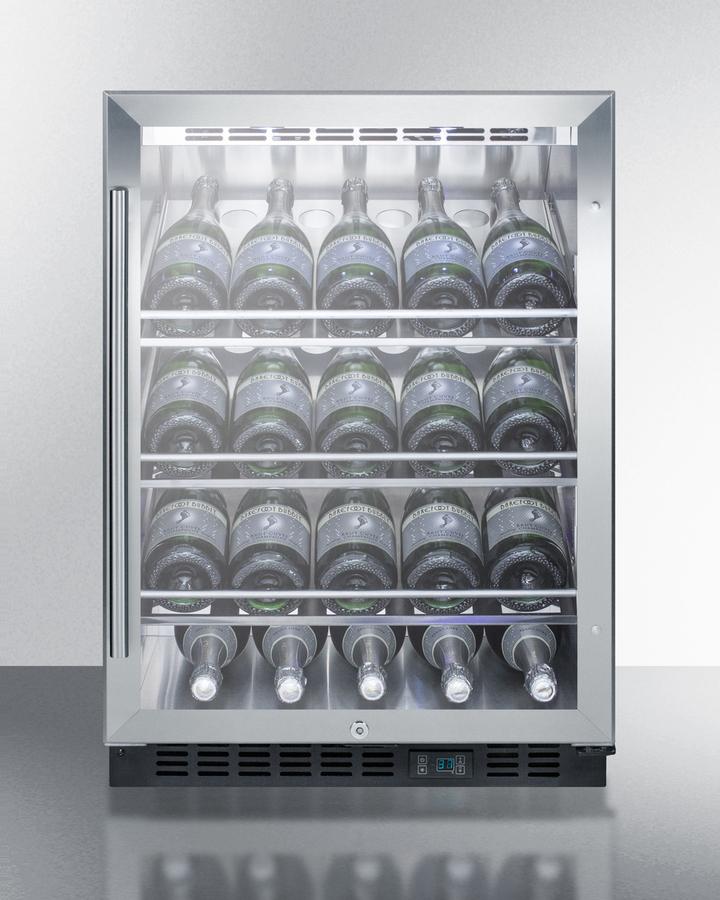

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR610BLCH is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security. Inside, the SCR610BLCH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior. With its unique design and commercial grade construction, the SCR610BLCH is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.


Product Features

  • Bottle display

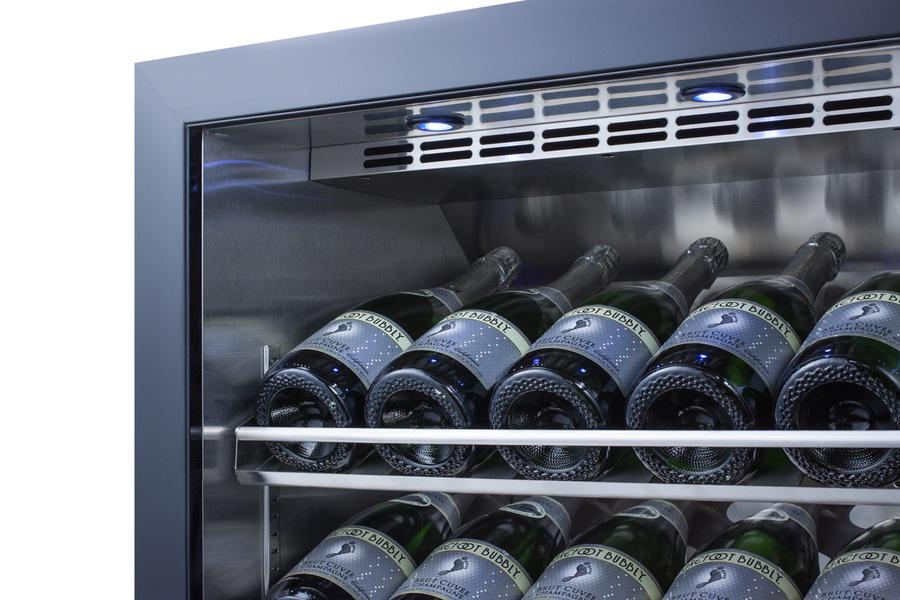

    Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
  • Built-in capable
    Make the best use of space by installing this unit under the counter and flush with other cabinetry
  • Commercially approved
    ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Champagne racks
    Stainless steel shelves are specially sized to store wider wine and champagne bottles
  • Factory installed lock
    Keyed lock for a secure interior
  • Stainless steel interior
    Walls are constructed from stainless steel for added strength and easy cleanup
  • Double pane tempered glass door
    Stainless steel trimmed glass door offers a full display of stored items
  • Digital thermostat
    Intuitive digital controls ensure easy temperature management
  • Reversible door
    User-reversible door swing allows for more flexibility in placing the unit
  • Interior LED lighting
    Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Automatic defrost
    Reduced user maintenance with automatic defrost
  • Professional handle
    Stainless steel handle completes the professional look
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Fan-forced cooling
    Internal fan ensures the interior is evenly cooled from top to bottom
  • Sealed back
    Space saving design with easier cleanability
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
