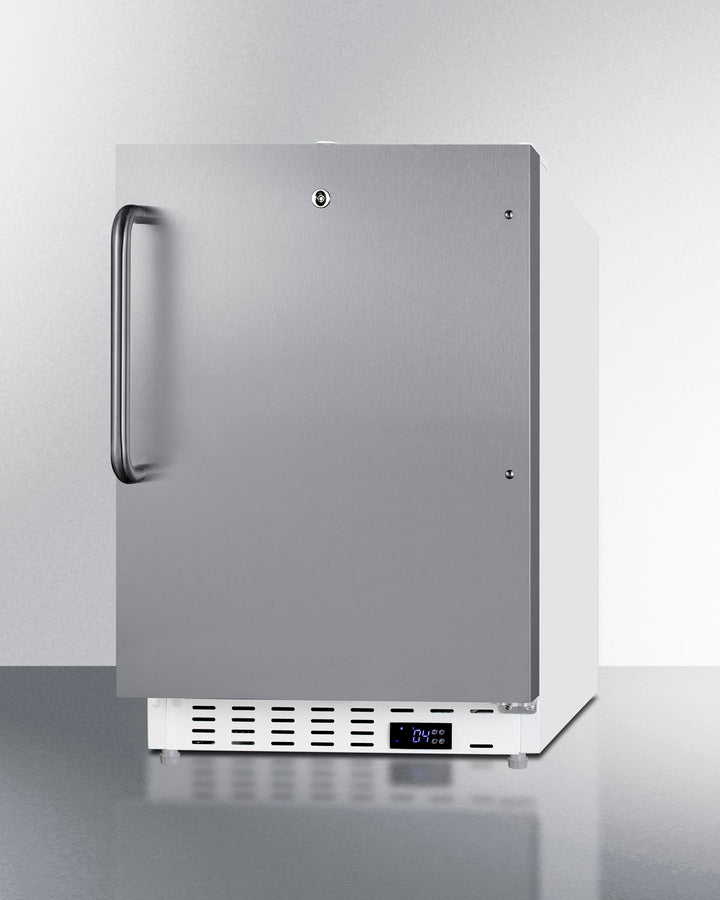

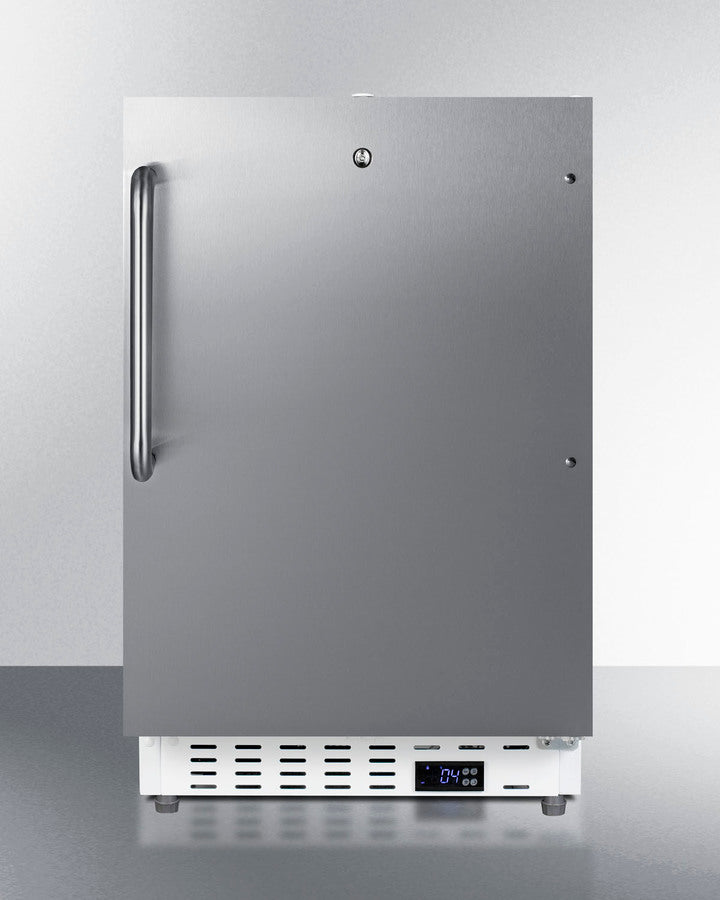

Summit SCR504SSTBADA 21" Wide Built-In Commercial All-Refrigerator, ADA Compliant White
Sale price
$1,407.10
Regular price
$1,604.97
Save
$197.87
/ 12% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,407.10
Regular price
$1,604.97
Save
$197.87
/ 12% OFF
Product Details for SUMMIT SCR504SSTBADA
Technical Details
Overview refrigerator features dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 69.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086132 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2 to 8°C |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
Description
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.
Product Features
-
Commercially listed
ETL-S listed to ANSI-NSF Standard 7 for commercial use -
Flat door liner
Allows for the interior to accept deeper trays -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals -
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment -
Fully finished white cabinet
Allows the unit to be freestanding -
Matching all-freezer
This unit can be paired with the SCF505SSTBADA all-freezer for a complete set -
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance -
Interior light
Front-located LED light ensures entire interior is lit when door opens -
Sealed back
Space-saving design that offers easier cleanability -
Reversible stainless steel door
User-reversible stainless steel door for added flexibility to best accommodate your setting -

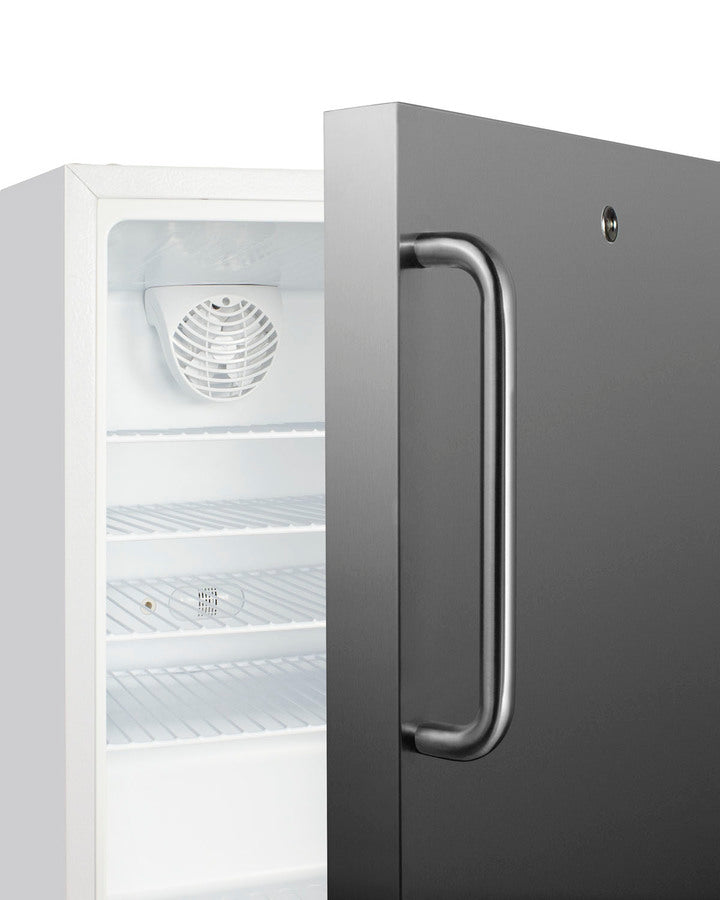

Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom -
Automatic defrost
Reduced user maintenance with an auto defrost system -
ADA compliant design
32" height allows easy installation under lower ADA compliant counters -
Hospital grade cord with 'green dot' plug
Secure three-pronged cord offers a tighter fit in wall sockets -
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute -
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint -
3" thick door
Improved insulation for an efficient performance -

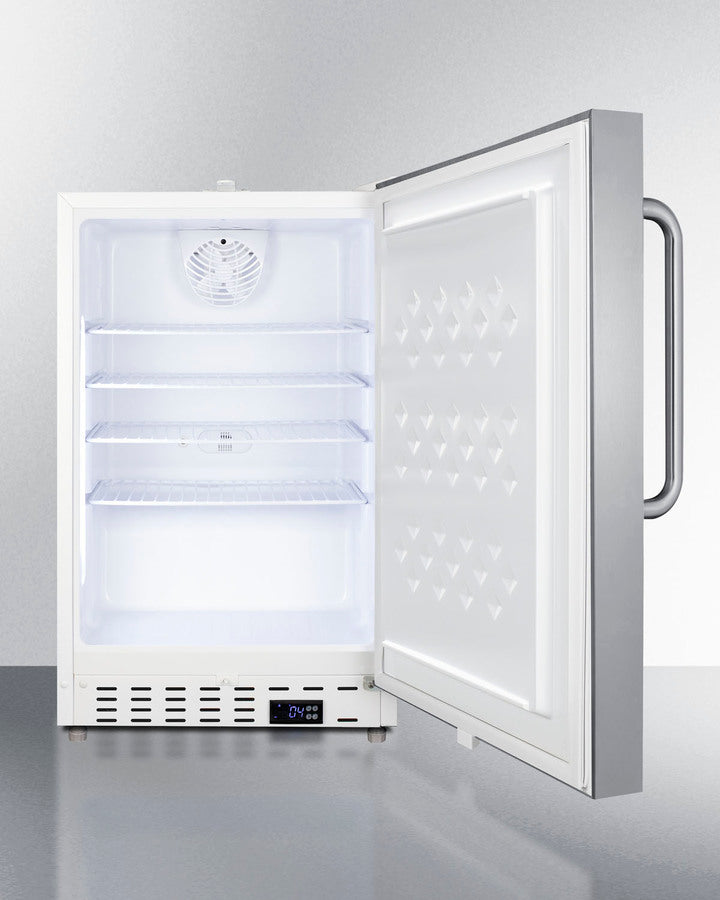

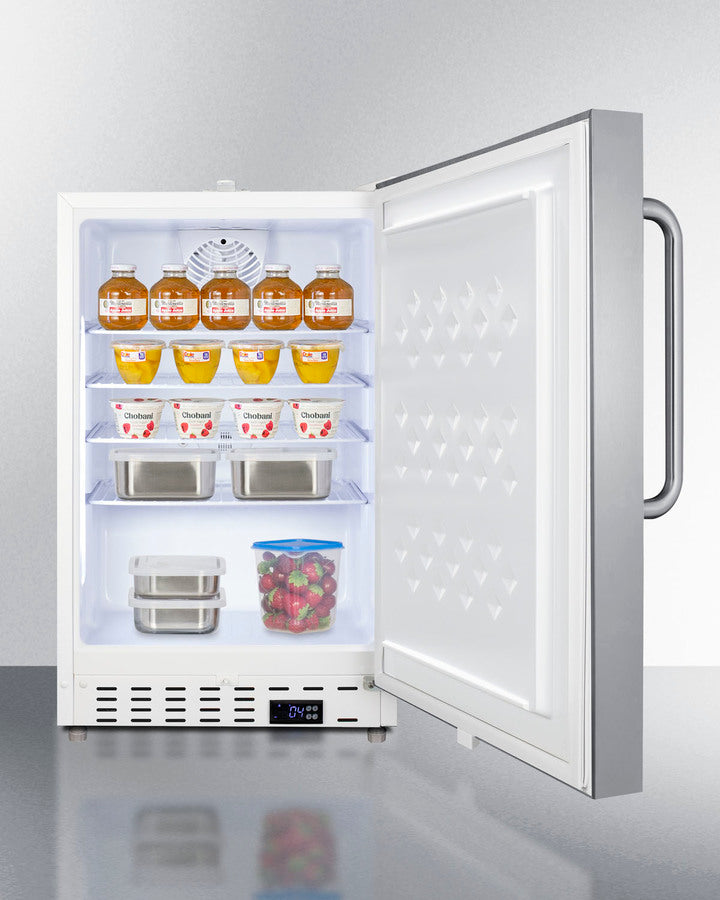

Adjustable wire shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior -

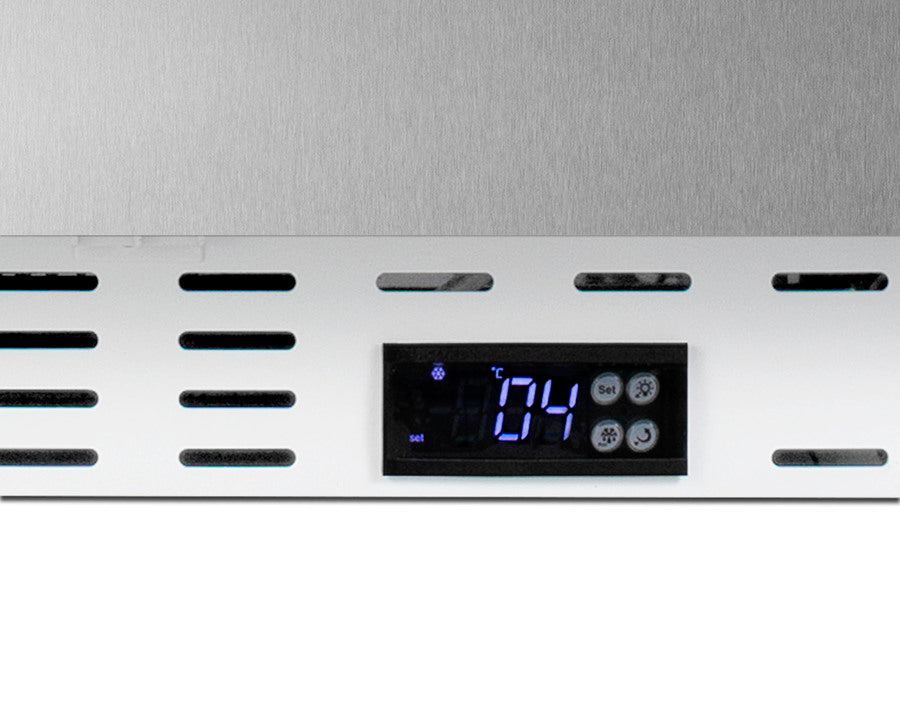

Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius -
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included) -
Professional towel bar handle
Curved handle in brushed stainless steel offer an easier grip and attractive style -
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
