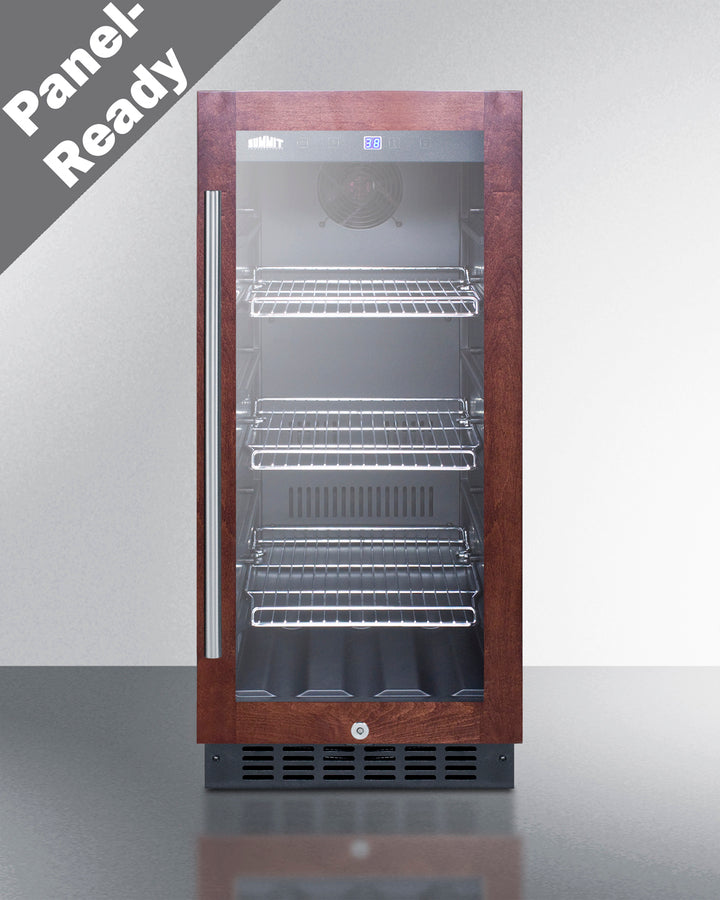

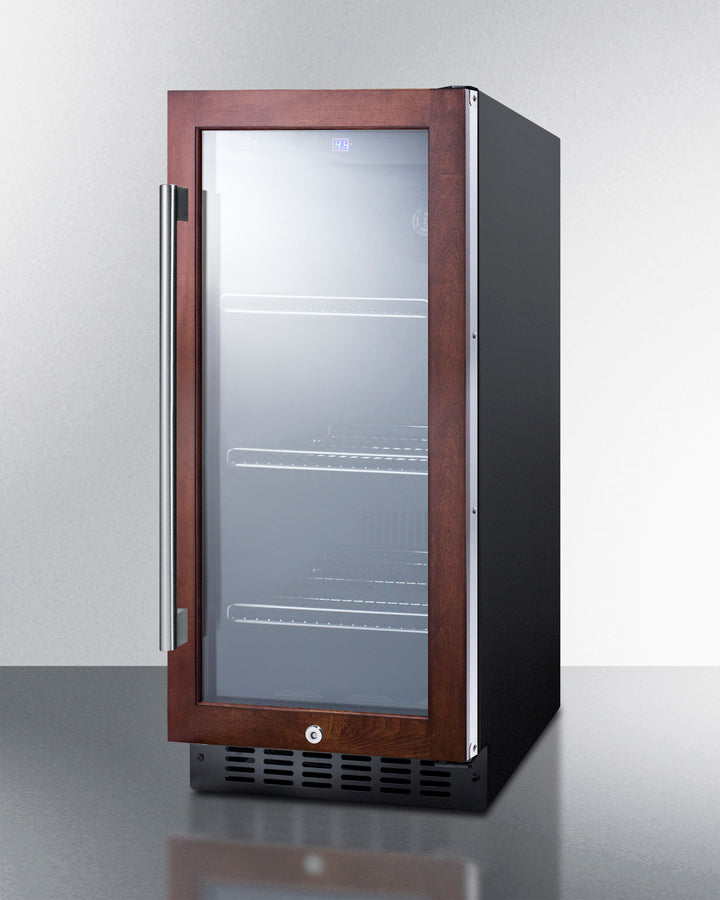

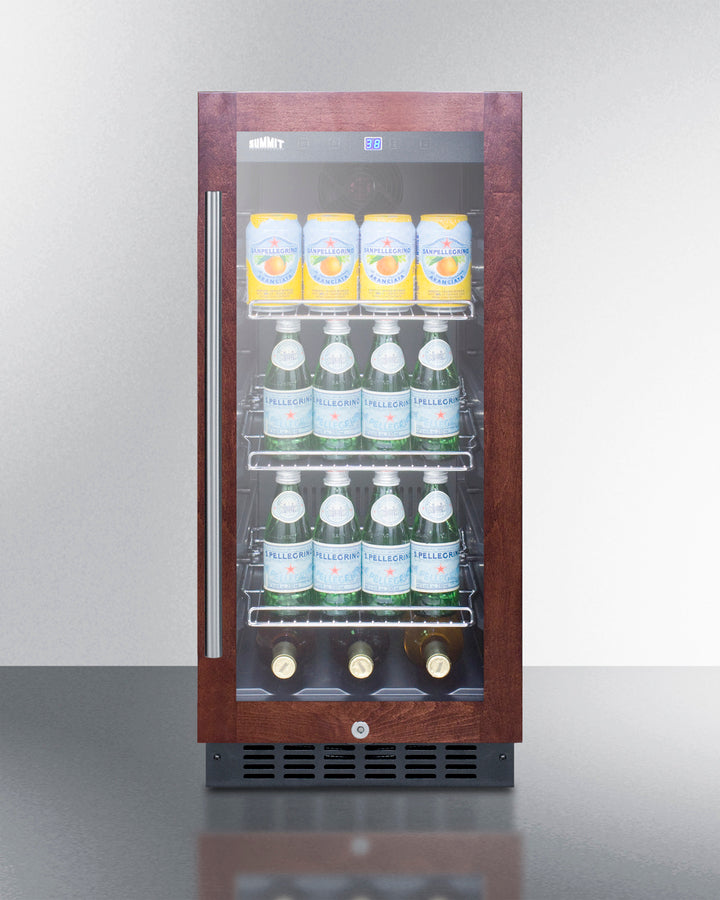

Summit SCR1536BGPNR 15" Wide Built-In Beverage Center (Panel Not Included) Black

Quick Specification More details

Width:
14.75" (37 cm)
Depth:
22.75" (58 cm)
Type:
Specialty Refrigerators

About this product

Commercially approved
Built-in capable
Fully finished black cabinet
Panel-ready door trim

Summer Sale

Clearance

SKU: SCR1536BGPNR | UPC: 761101082868

Summit SCR1536BGPNR 15" Wide Built-In Beverage Center (Panel Not Included) Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.75" (37 cm)
Depth:
22.75" (58 cm)
Type:
Specialty Refrigerators

About this product

Commercially approved
Built-in capable
Fully finished black cabinet
Panel-ready door trim

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SCR1536BGPNR

Technical Details

Overview refrigerator features dimensions

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.88" (86 cm)
Nominal Width	15.0" (38 cm)
Width	14.75" (37 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with door at 90°	36.25" (92 cm)
Capacity	2.45 cu.ft. (69 L)
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	245.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	77.0 lbs. (35 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082868
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	3
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Interior Height	23.5" (60 cm)
Interior Width	10.25" (26 cm)
Interior Depth	16.5" (42 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	10.25" (26 cm)
Compressor Step Depth	4.5" (11 cm)

Description

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters. The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A factory-installed lock offers convenient security as needed. Users provide their own handle. Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Product Features

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness)
Double pane tempered glass door
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves
Slide-out shelves offer attractive and convenient storage for beverages
Factory-reversible door swing
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Flush back
Space saving design
Matching wine cellar
For a complete set, pair this unit with the SWC1535BPNR wine cellar for true beverage storage convenience
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
