Sale price $1,121.72 Regular price $1,319.97 Save $198.25 / 15% OFF

Product Details for SUMMIT SCR1536BG

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 14.75 in.
Height 33.88 in.
Length 22.75 in.
Weight 77 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.58 ft³
Dimensional Weight 81.79 lbs.
Total of Cubes 6.58 ft³
Total of Dimensional Weight 81.79 lbs.

Overview refrigerator features dimensions

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.88" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.45 cu.ft. (69 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101050225
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Interior Height 23.5" (60 cm)
Interior Width 10.25" (26 cm)
Interior Depth 16.5" (42 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.25" (26 cm)
Compressor Step Depth 4.5" (11 cm)

Description

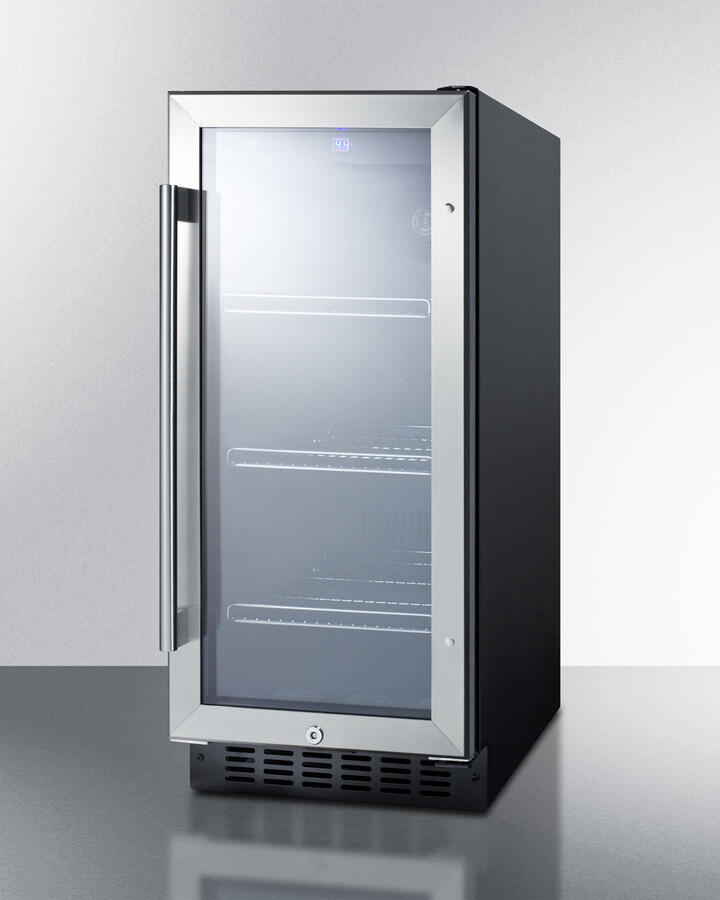

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters. The SCR1536BG is a slim-fitting 14 3/4 inch wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential applications. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also makes it possible to use freestanding. This unit features a user-reversible double pante tempered glass with door with stainless steel trim. A factory-installed lock offers convenient security as needed. Inside, the SCR1536BG includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view inside the black interior. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. Additional features include audible warning alarms for high temperature and open door alerts, Sabbath mode, and a temperature memory function that restores your settings in the event of power loss. With its perfect size and user-friendly features, the SCR1536BG brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535B wine cellar, along with our extended lineup of 15" wide refrigerators, freezers, and icemakers.


Product Features

  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Commercially approved
    ETL-S listed to NSF-7 Standards for use in commercial establishments
  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • Factory installed lock
    Keyed security on the door
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • LED lighting
    Gentle illumination with an on/off switch
  • Glass door with stainless steel trim
    Provides a full display of stored contents with a heat-safe double tempered design
  • Automatic defrost
    Reduced maintenance with the convenience of auto defrost
  • Digital thermostat
    Electronic controls for precise temperature management.
  • Adjustable chrome shelves
    Slide-out shelves offer attractive and convenient storage for beverages
  • Reversible door
    Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
  • Professional handle
    Stainless steel look for added elegance
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over a minute
  • High temperature alarm
    Alerts if the temperature exceeds suggested range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • Flush back
    Space saving design
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
