Product Details for SUMMIT SCR1401LHCHCSS

Technical Details

Dimensions & weight

Width 23.63 in.
Height 69.75 in.
Length 23.75 in.
Weight 270 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 22.65 ft³
Dimensional Weight 281.62 lbs.
Total of Cubes 22.65 ft³
Total of Dimensional Weight 281.62 lbs.

Overview wine cellar

Nominal Height 70.0" (178 cm)
Height of Cabinet 69.75" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 35 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 270.0 lbs. (122 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101065076
Number of Zones 1
Door Swing LHD
Reversible No
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 16.5" (42 cm)
Temperature Range 36 to 68ºF
Interior Height 2 4.5" (11 cm)
Interior Width 2 20.0" (51 cm)
Interior Depth 2 4.5" (11 cm)
Sabbath Mode Yes

Description

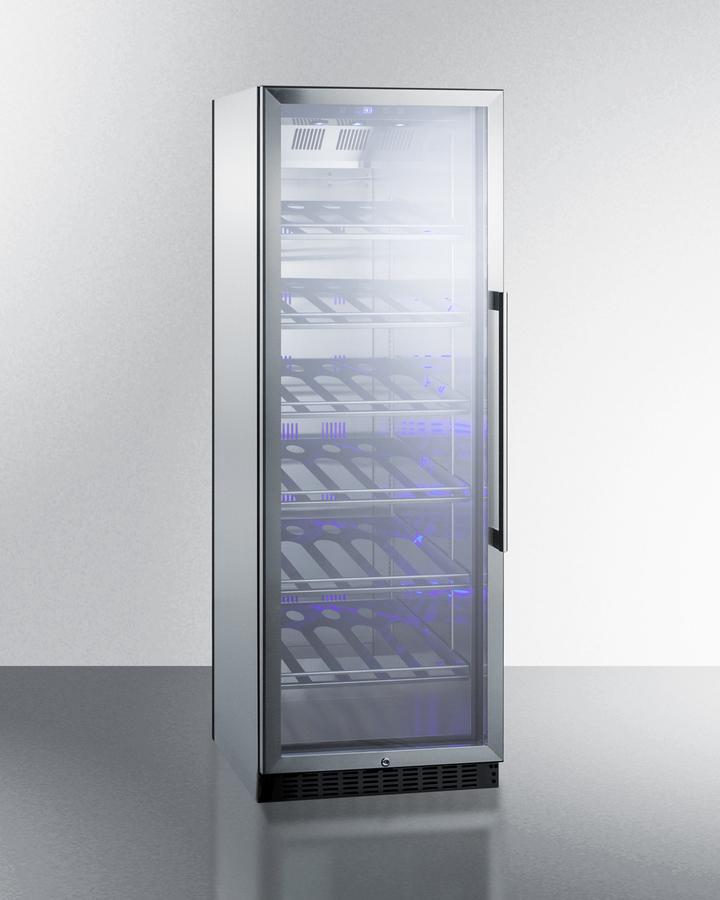

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR1401LHCHCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. It comes with a left hand door swing. For a right hand version, see the SCR1401CHCSS. Inside, the SC1401LHLCHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting. The SCR1401LHCHCSS comes with a fully wrapped stainless steel cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.


Product Features

  • Slim fit
    Just 24" wide and deep for an easy fit in any setting

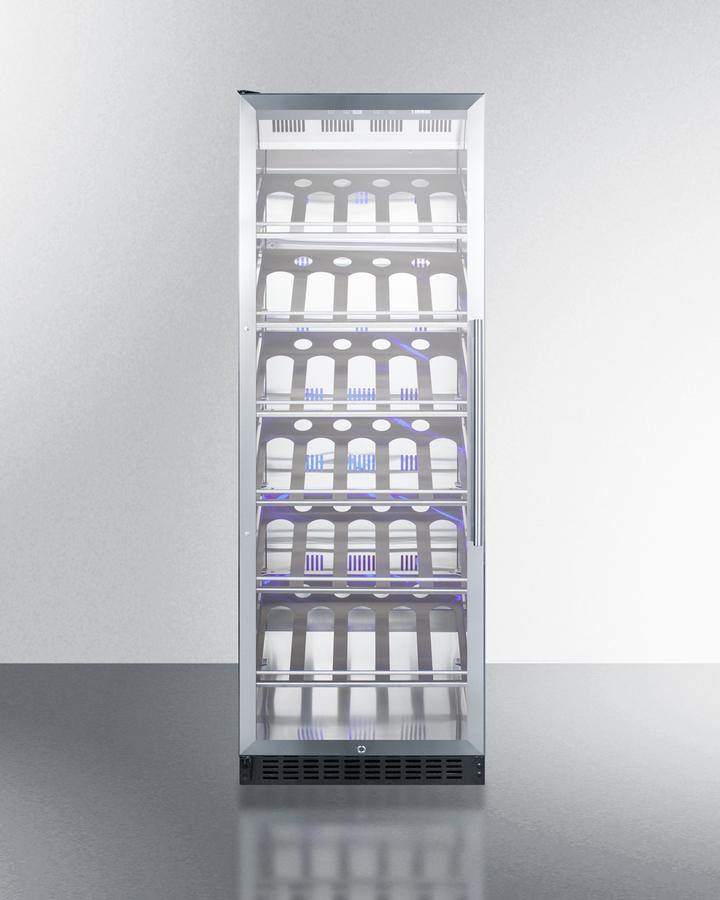

  • Champagne racks
    Stainless steel shelves are specially sized to store wider wine and champagne bottles

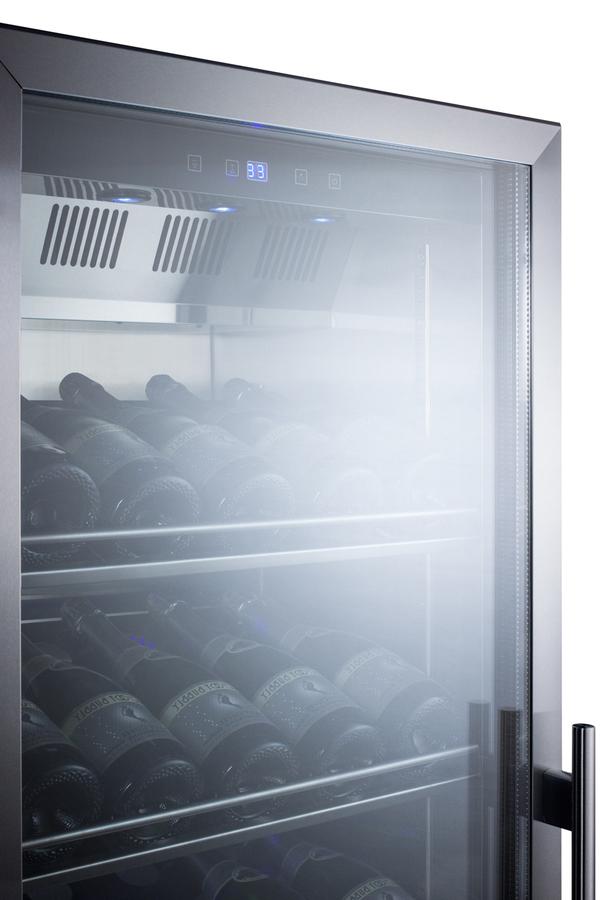

  • Interior LED lighting
    Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Stainless steel interior
    Walls are constructed from stainless steel for added strength and easy cleanup
  • Double pane tempered glass door
    Heat-safe glass door with stainless steel trim offers full display all the way down to the floor

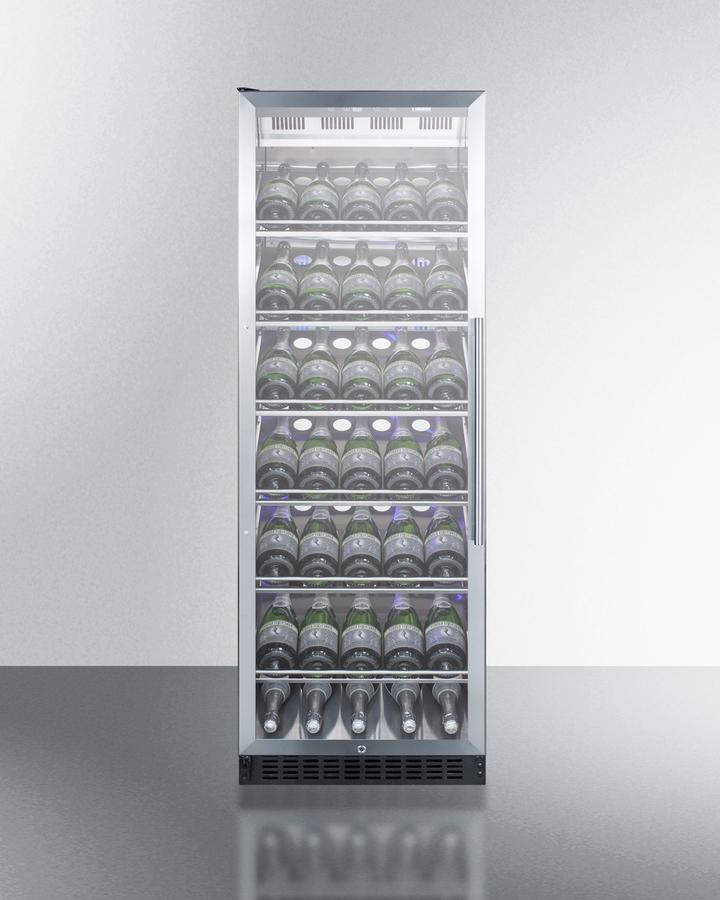

  • Bottle display
    Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels
  • Commercially approved
    Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
  • Digital thermostat
    Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
  • Self-closing door
    Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
  • Frost-free operation
    No-frost convenience requires no manual defrosting
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)
  • High temperature alarm
    Alarm sounds if the interior temperature rises out of suggested range
  • Fan-forced cooling
    Internal fan ensures the interior is evenly cooled from top to bottom
  • Wide temperature range
    Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Professional handle
    Attractive design in stainless steel to complete the look
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Left hand door swing
    For this unit with a right hand door swing, order SCR1401CHCSS
  • Stainless steel wrapped cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Built-in or freestanding
    Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
