Sale price $2,960.00 Regular price $3,849.31 Save $889.31 / 23% OFF

Product Details for Summit SBC58BLBIADAIF

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.6
Height to Hinge Cap 12.7
Nominal Width 9.45
Width 9.3
Nominal Depth 9.06
Depth 8.96
Depth with door at 90(degree) 17.72
Capacity 5.5
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115
Weight 110.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101069654

Kegerator

Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Height with Tap 18.7
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 10.14
Interior Width 8.27
Interior Depth 6.99
Compressor Step Height 2.56
Compressor Step Width 8.27
Compressor Step Depth 2.17
Temperature Range 34

Features

  • Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
  • ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

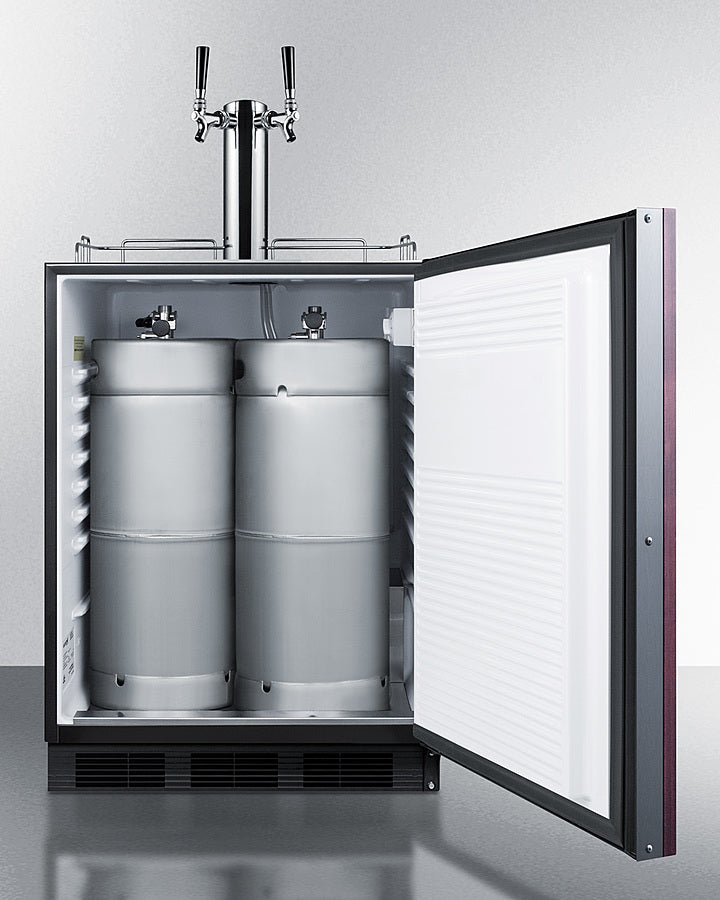

  • Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

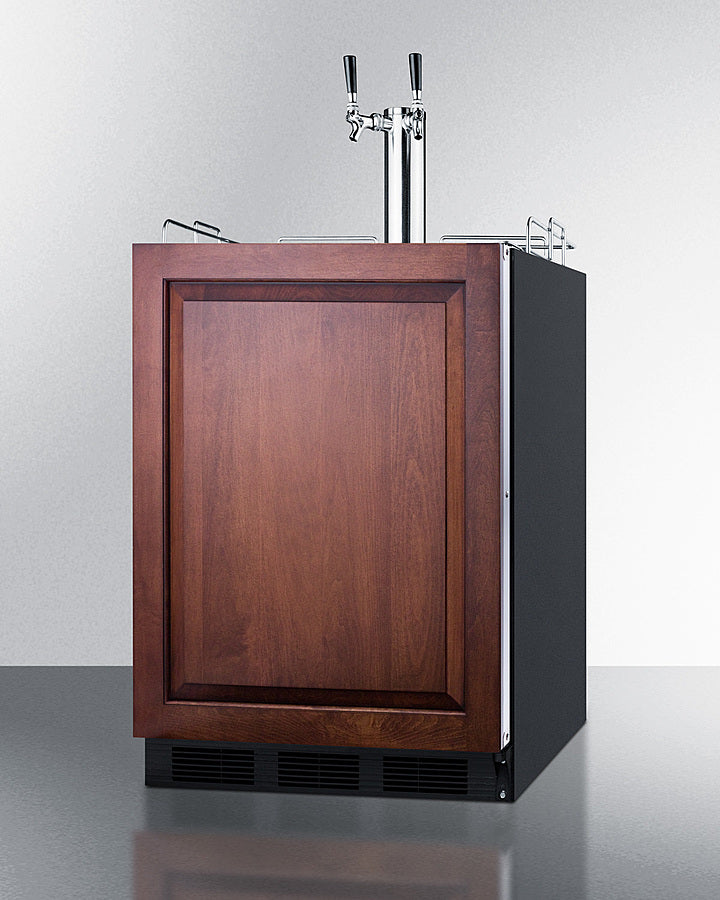

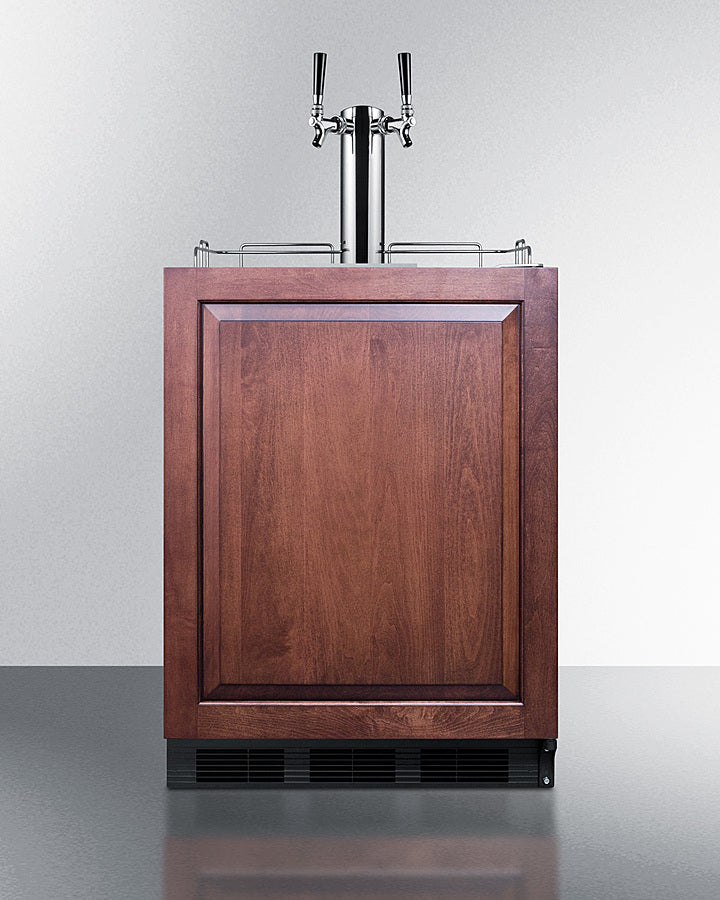

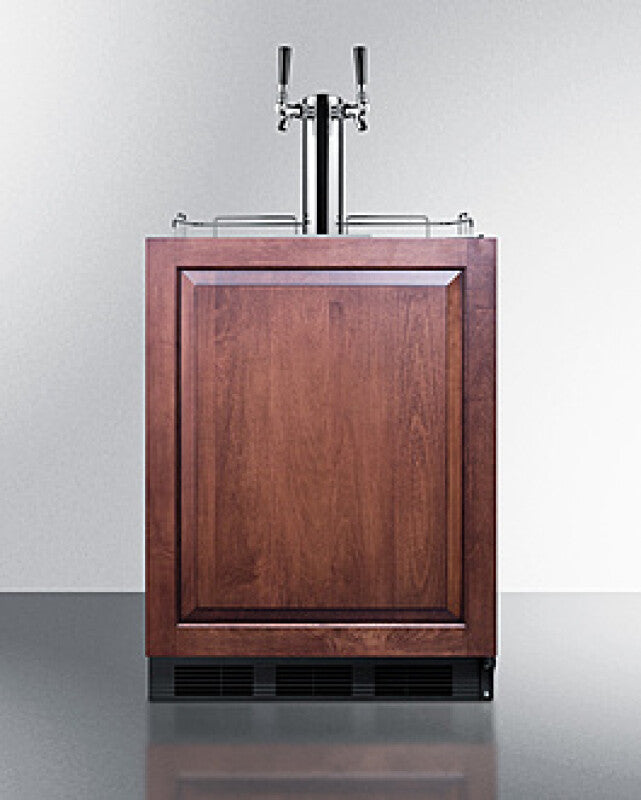

  • Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • Interior dial thermostat ensures easy temperature management
  • No-frost operation for minimum user maintenance
  • Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
  • Removable two-piece drip tray included for added convenience
  • Durable railing makes it easier to neaten service
  • Turn the light on when you need it and off when you're done with a convenient rocker switch
  • Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
  • Interior includes steel cover to protect the floor when loading kegs
  • Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
  • Cold wall design with hidden evaporator and seamless interior
  • Allows the unit to be used freestanding
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Environmentally friendly design without ozone-damaging chemicals



Description

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC58BLBIADAIF is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC58BLBIIFADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap. Inside, the SBC58BLBIADAIF is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BLBIADAIF is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.
