Sale price $1,042.92 Regular price $1,184.97 Save $142.05 / 11% OFF

Product Details for SUMMIT RE203W

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 19.5 in.
Height 41.75 in.
Length 25.13 in.
Weight 125 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.84 ft³
Dimensional Weight 147.19 lbs.
Total of Cubes 11.84 ft³
Total of Dimensional Weight 147.19 lbs.

Overview electric range

Nominal Height 42.0" (107 cm)
Height of Cabinet 41.75" (106 cm)
Nominal Width 20.0" (51 cm)
Width 19.5" (50 cm)
Nominal Depth 26.0" (66 cm)
Depth 25.13" (64 cm)
Depth with Handle 27.38" (70 cm)
Depth with door at 90° 46.38" (118 cm)
Door White
Cabinet White
US Electrical Safety UL
Voltage/Frequency 220 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
UPC 761101058283
Oven Capacity 2.3 cu.ft. (65 L)
Cooktop Surface Metal
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1250.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1250.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1250.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 2400.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 15.25" (39 cm)
Oven Interior Width 14.5" (37 cm)
Oven Interior Depth 17.63" (45 cm)
Power Source 220V
Broiler Location Inside Oven

Description

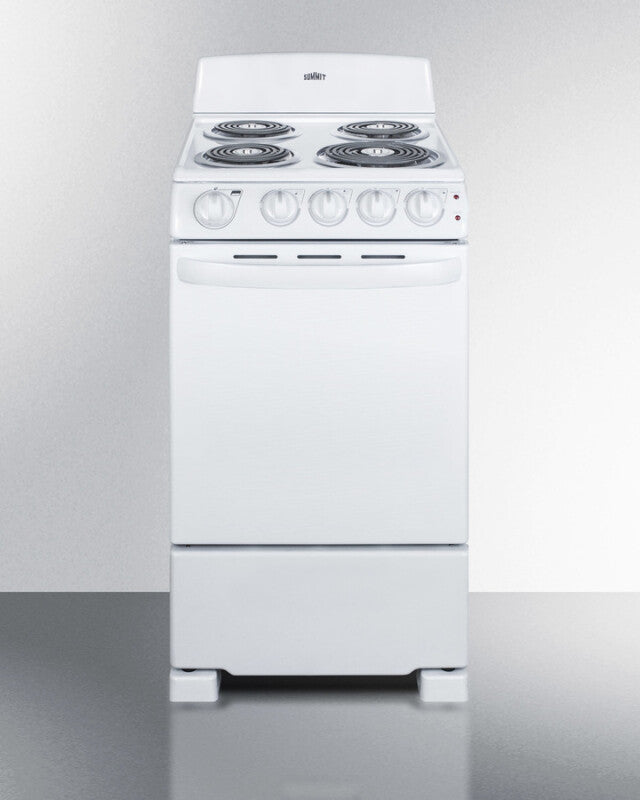

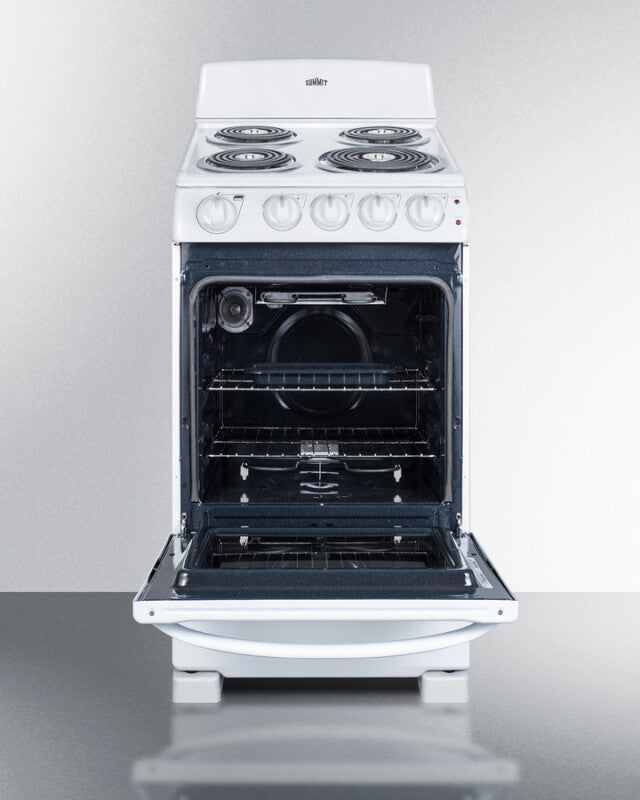

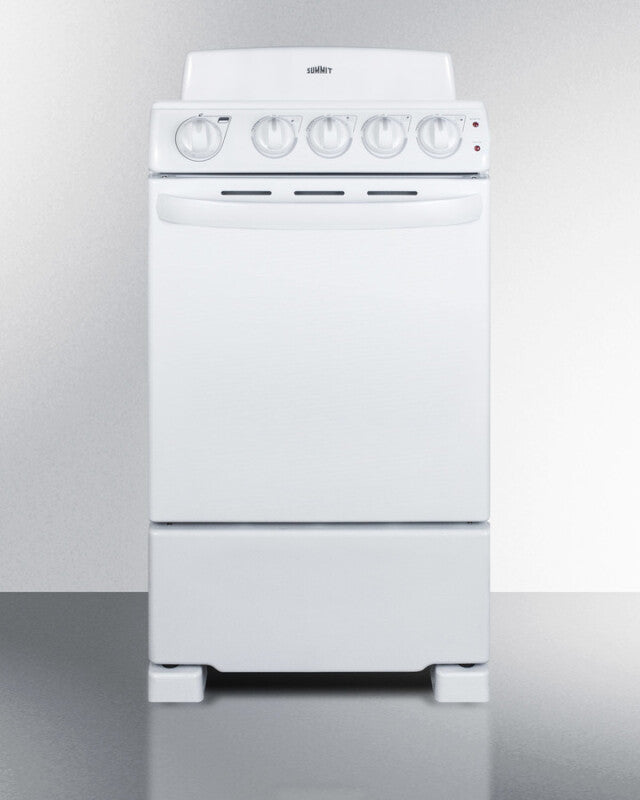

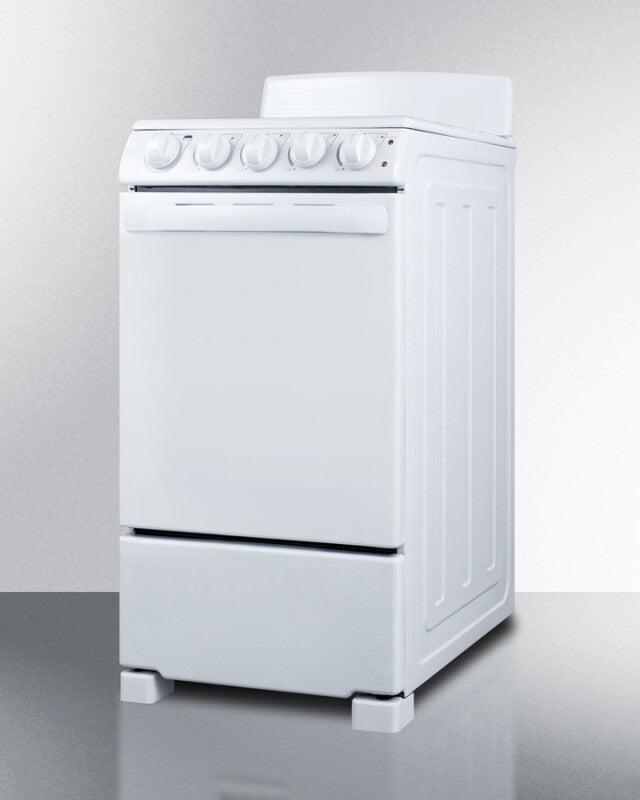

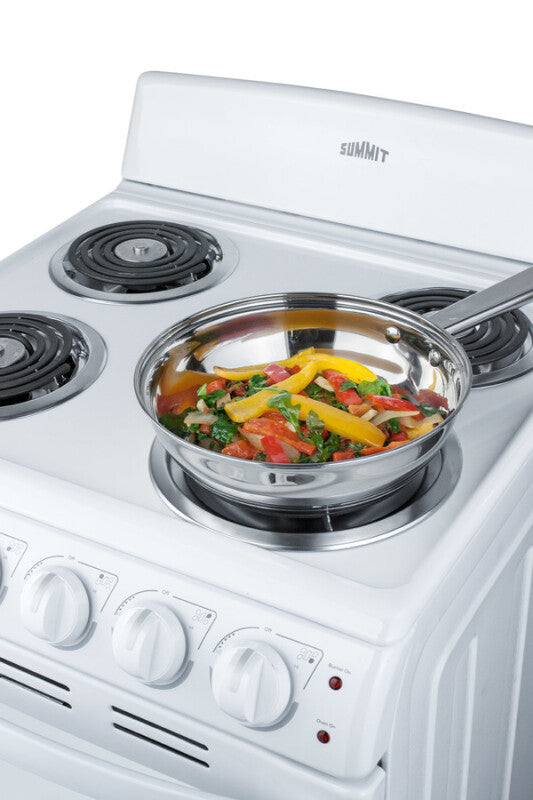

SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 20" wide fits. Made in North America, the RE203W is a 220V electric range designed for 20" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the oven is in use. The RE203W features a large 2.3 cu.ft. oven made from durable porcelain, with two adjustable racks and a two-piece broiler pan. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The RE203W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and quality design, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 24" wide choices, browse our website. Note: this item replaces the RE201W.


Product Features

  • Safety elements
    Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking
  • 20" width
    Perfectly sized for apartments and smaller home kitchens
  • Waist-high broiler
    Broiler is located inside the oven, making it easier to use

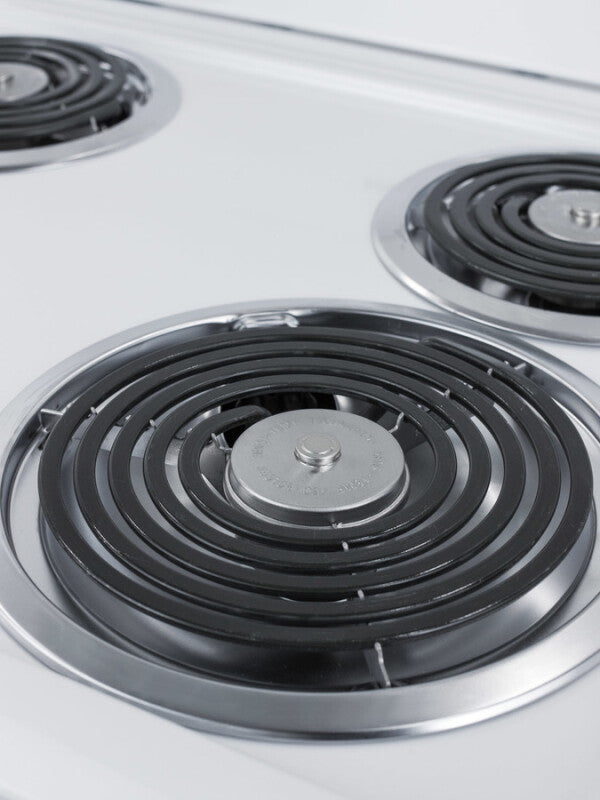

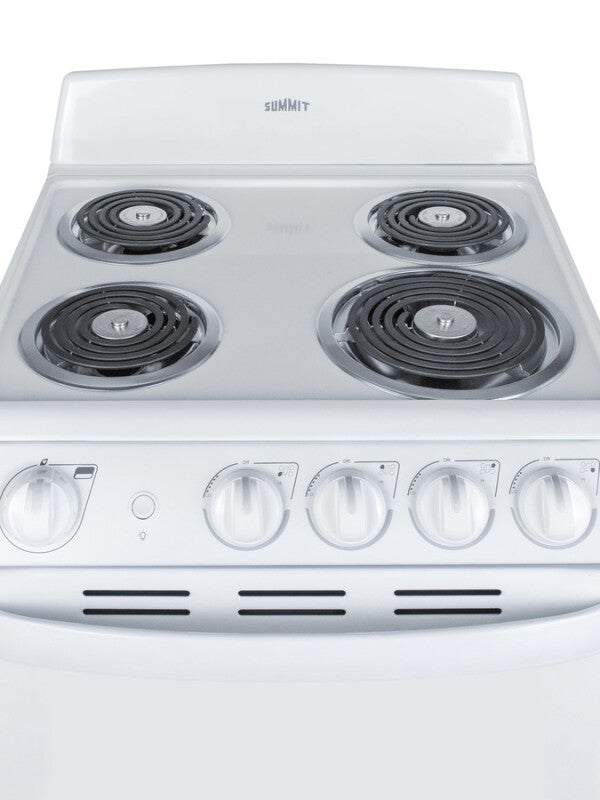

  • Four coil elements with chrome drip pans
    Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs
  • Backsplash
    High backing prevents stovetop contents from splashing up or boiling over and staining back walls

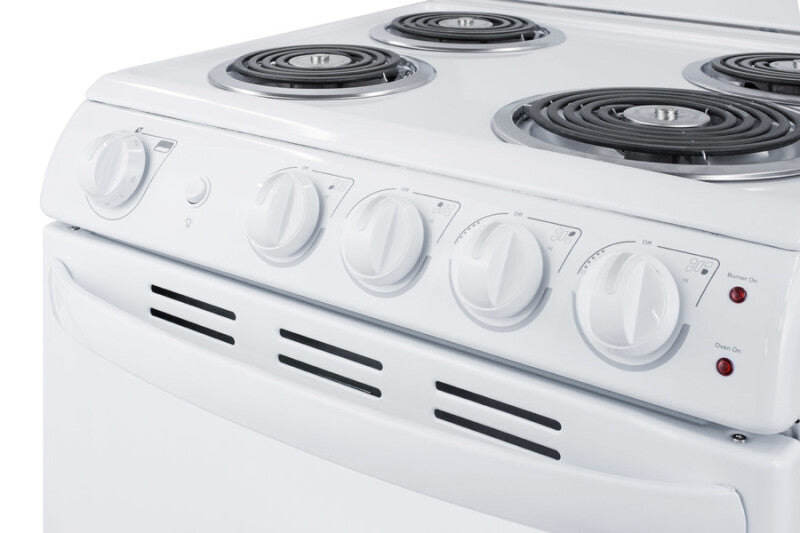

  • Upfront controls
    Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
  • Chrome drip pans
    Each element includes a removable chrome pan for easier cleaning
  • Textured cabinet
    Fully finished white cabinet constructed from steel
  • Color matched knobs & handle
    White-on-white design for an attractive look ideal for any kitchen
  • Safety brake system for oven racks
    Sliding racks will stay in your oven with special brake mechanism
  • Indicator lights
    Control panel includes an 'on' light for the oven and burners for added safety when using the range
  • Push-to-turn knobs
    To prevent accidents, knobs require a small amount of force when turning
  • ADA compliant design
    Upfront controls and easy-to-operate knobs offer easier accessibility
  • Cord not included
    Compatible with standard 40 amp 3 or 4-wire range cords
  • TAA compliant
    This electric range was made in North America and meets the TAA guidelines
  • 20" Wide Electric 4-Burner Range
    Slim-fitting coil range perfectly sized for apartments and smaller home kitchens
