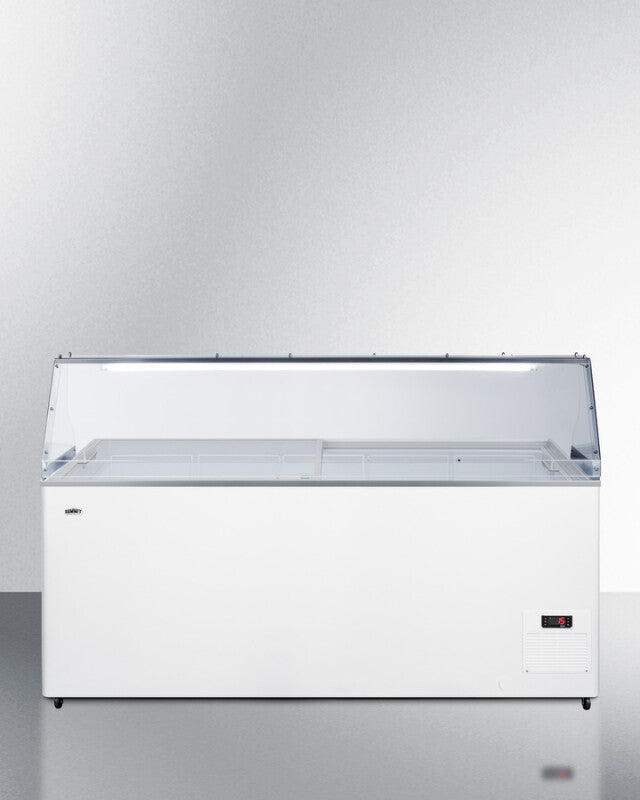

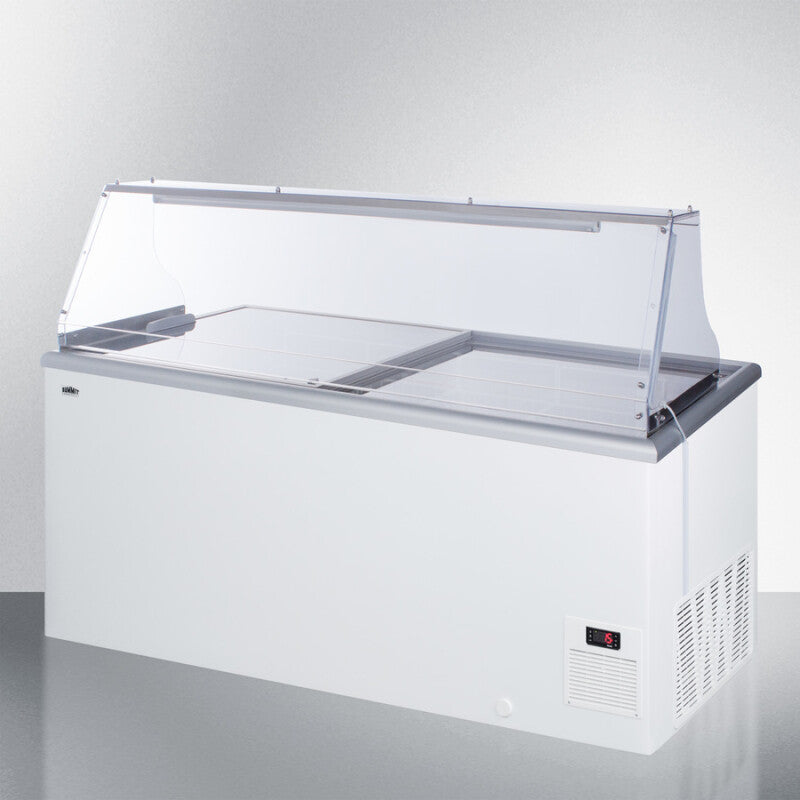

Summit NOVA53PDC 17 Cu.Ft. Dipping Cabinet White

Quick Specification More details

Width:
60.75"
Depth:
27.25"
Height:
45.5"
Type:
Chest Freezers

About this product

Digital thermostat
Commercially listed
Sneezeguard
Wide temperature range

Summer Sale

Clearance

SKU: NOVA53PDC | UPC: 761101060187

Summit NOVA53PDC 17 Cu.Ft. Dipping Cabinet White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
60.75"
Depth:
27.25"
Height:
45.5"
Type:
Chest Freezers

About this product

Digital thermostat
Commercially listed
Sneezeguard
Wide temperature range

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT NOVA53PDC

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	60.75 in.
Height	45.5 in.
Length	27.25 in.
Weight	190 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	43.59 ft³
Dimensional Weight	541.89 lbs.
Total of Cubes	43.59 ft³
Total of Dimensional Weight	541.89 lbs.

Overview freezer

Nominal Height	46.0" (117 cm)
Height of Cabinet	45.5" (116 cm)
Nominal Width	61.0" (155 cm)
Width	60.75" (154 cm)
Nominal Depth	28.0" (71 cm)
Depth	27.25" (69 cm)
Capacity	17.8 cu.ft. (504 L)
Defrost Type	Manual
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	4.2
Voltage/Frequency	115 V AC/60 Hz
Weight	190.0 lbs. (86 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101060187
Door Swing	Sliding
Interior Height	26.0" (66 cm)
Interior Width	54.5" (138 cm)
Interior Depth	21.0" (53 cm)
Thermostat Type	Digital
Refrigerant Type	R290
Refrigerant Amount	3.17 oz.
High Side PSI	345.0
Low Side PSI	140.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.88" (20 cm)
Compressor Step Depth	21.0" (53 cm)
Temperature Range	-13 to 23ºF

Description

Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.

Product Features

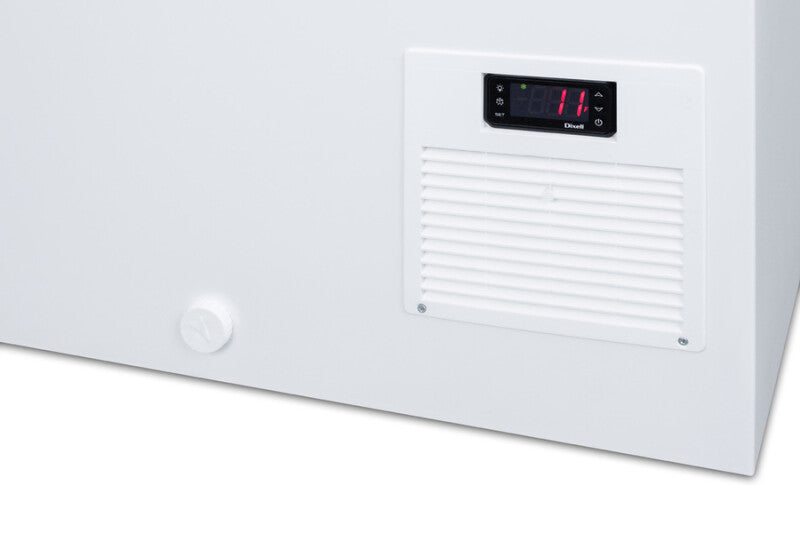

Digital thermostat
Electronic controls for precise temperature management
Commercially listed
UL-S listed to NSF-7 Standards for use in commercial establishments
Sneezeguard
Durable polycarbonate sneezeguard is pre-installed
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
Strong insulation
3" thick insulation helps to ensure items stay cold

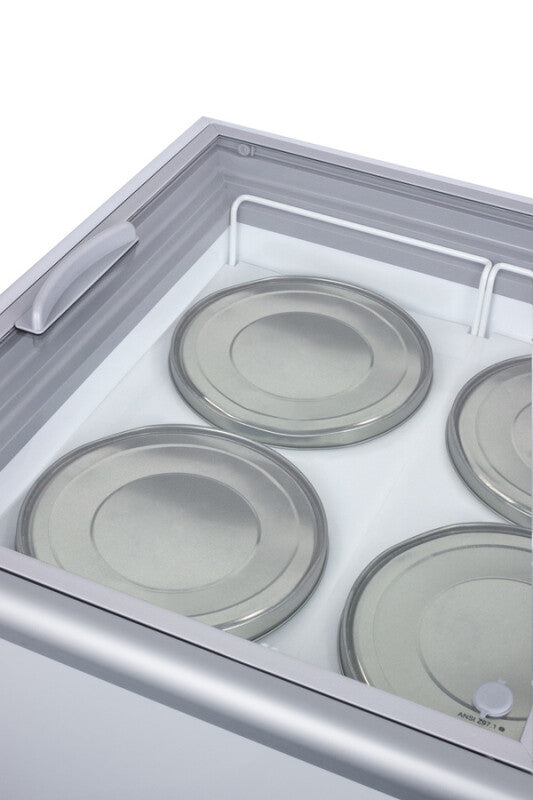

Ice cream tub holders
Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Holds 18 standard 3 gallon tubs
Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets

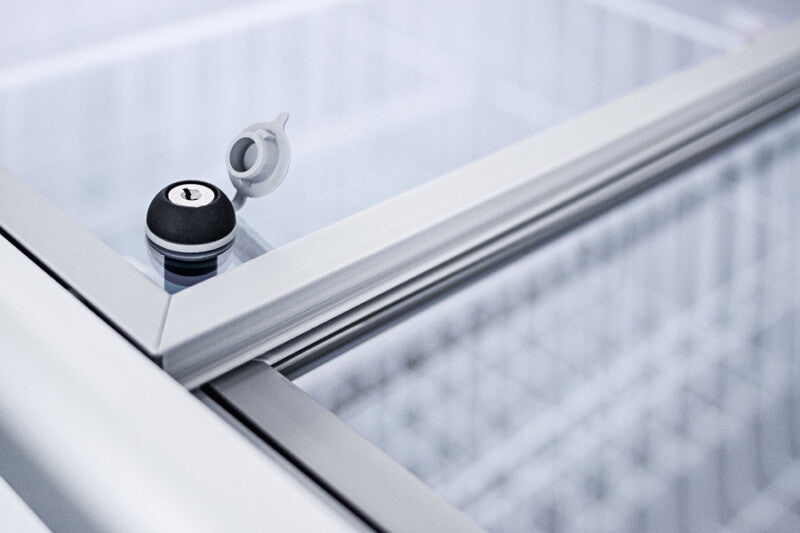

Removable lock
A keyed lock is included for optional use
Manual defrost
Static cooling system for improved temperature stability
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Steel interior
Durable construction in a white finish for easy visibility
Light
Sneezeguard light for added visibility
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
