SKU: NOVA53GDC | UPC: 761101065038

Summit NOVA53GDC 18 Cu.Ft. Dipping Cabinet (Unassembled) White

Quick Specification More details

Width:
60.75"
Depth:
27.25"
Height:
49.5"
Type:
Specialty Refrigerators

About this product

European dipping cabinet
Commercially listed
Holds 18 standard 3 gallon tubs
Glass sneezeguard included

Summer Sale

Clearance

SKU: NOVA53GDC | UPC: 761101065038

Summit NOVA53GDC 18 Cu.Ft. Dipping Cabinet (Unassembled) White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
60.75"
Depth:
27.25"
Height:
49.5"
Type:
Specialty Refrigerators

About this product

European dipping cabinet
Commercially listed
Holds 18 standard 3 gallon tubs
Glass sneezeguard included

Product Details for SUMMIT NOVA53GDC

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	60.75 in.
Height	49.5 in.
Length	27.25 in.
Weight	300 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	47.42 ft³
Dimensional Weight	589.53 lbs.
Total of Cubes	47.42 ft³
Total of Dimensional Weight	589.53 lbs.

Overview freezer

Nominal Height	50.0" (127 cm)
Height of Cabinet	49.5" (126 cm)
Nominal Width	61.0" (155 cm)
Width	60.75" (154 cm)
Nominal Depth	28.0" (71 cm)
Depth	27.25" (69 cm)
Capacity	17.8 cu.ft. (504 L)
Defrost Type	Manual
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	4.2
Voltage/Frequency	115 V AC/60 Hz
Weight	300.0 lbs. (136 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101065038
Door Swing	Sliding
Interior Height	26.0" (66 cm)
Interior Width	54.5" (138 cm)
Interior Depth	21.0" (53 cm)
Thermostat Type	Digital
Refrigerant Type	R290
Refrigerant Amount	3.17 oz.
High Side PSI	345.0
Low Side PSI	140.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.88" (20 cm)
Compressor Step Depth	21.0" (53 cm)
Temperature Range	-13 to 23ºF

Description

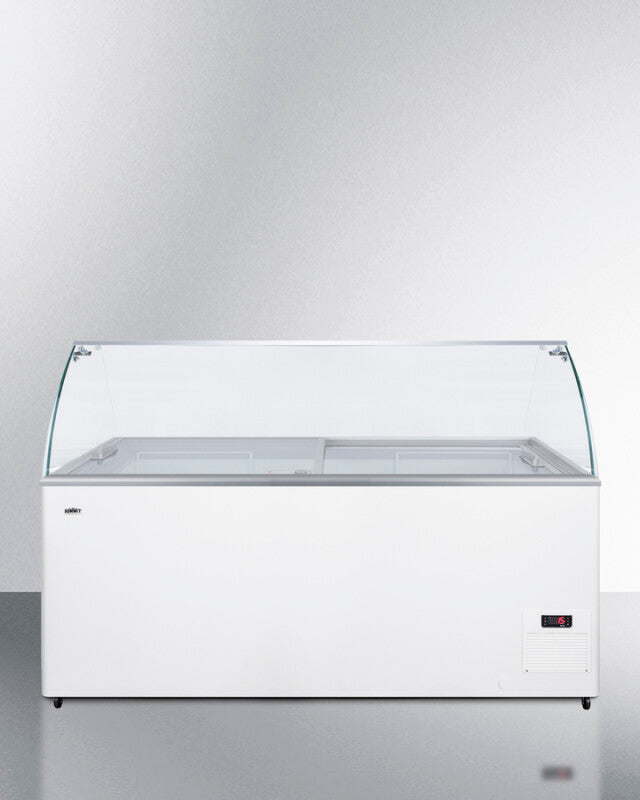

Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards. Made for us by Elcold in Denmark, the NOVA53GDC is a 61" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use. The NOVA35 freezer features 17.8 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA53 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA53GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.

Product Features

European dipping cabinet
Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions
Commercially listed
UL-S listed to NSF-7 Standards for use in commercial establishments
Holds 18 standard 3 gallon tubs
Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
Glass sneezeguard included
3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility
Aluminum work surface
Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings

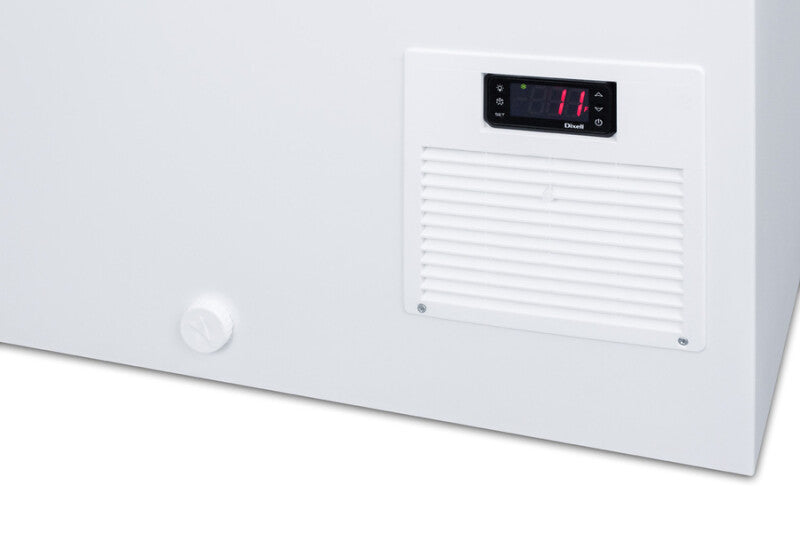

Digital thermostat
Electronic controls for precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

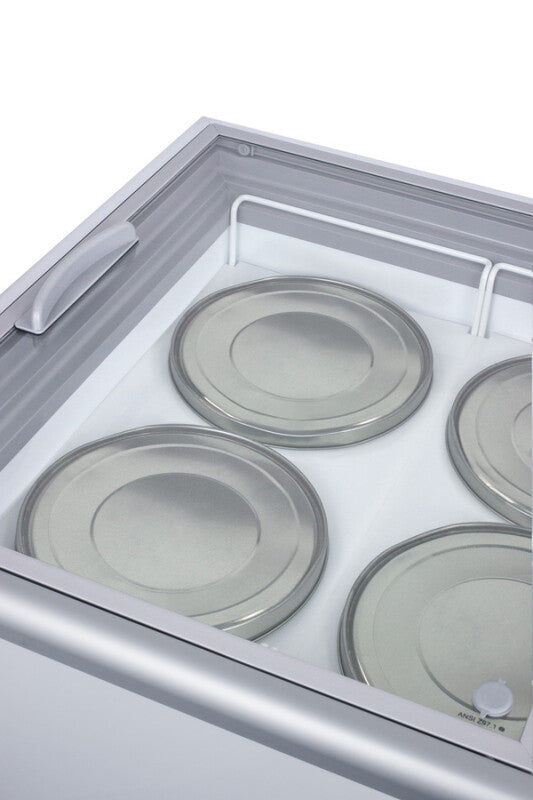

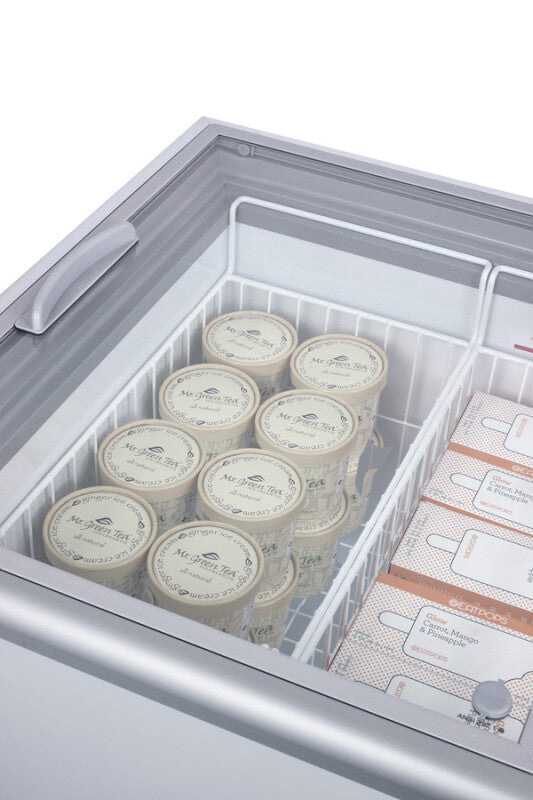

Ice cream tub holders
Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Novelty baskets included
Four extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Strong insulation
3" thick insulation helps to ensure items stay cold
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Manual defrost
Static cooling system for improved temperature stability

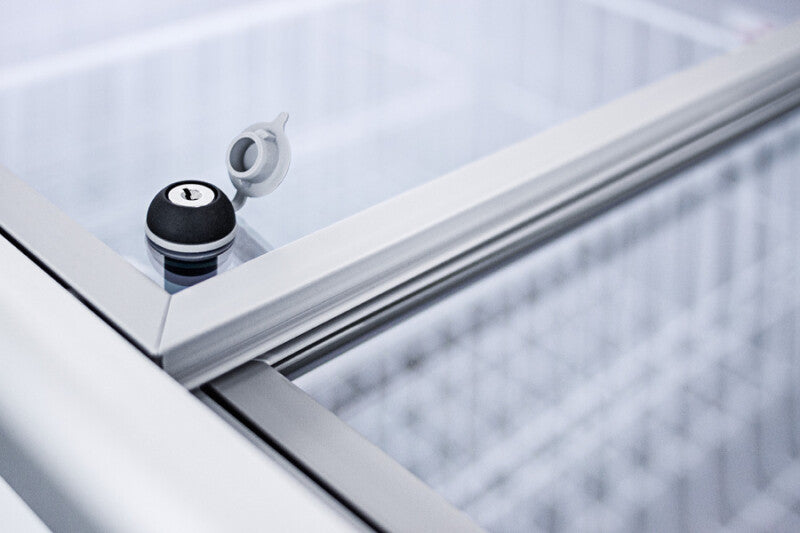

Removable lock
A keyed lock is included for optional use
Defrost drain
Front located for easier defrosting
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Easy assembly
Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps
Steel interior
Durable construction in a white finish for easy visibility
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
