SKU: MRF73PLA | UPC: 761101084602

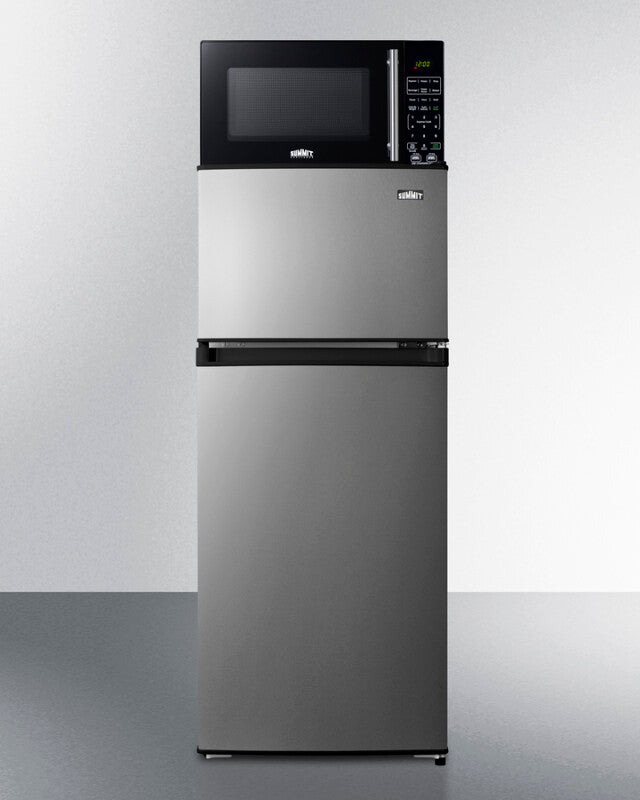

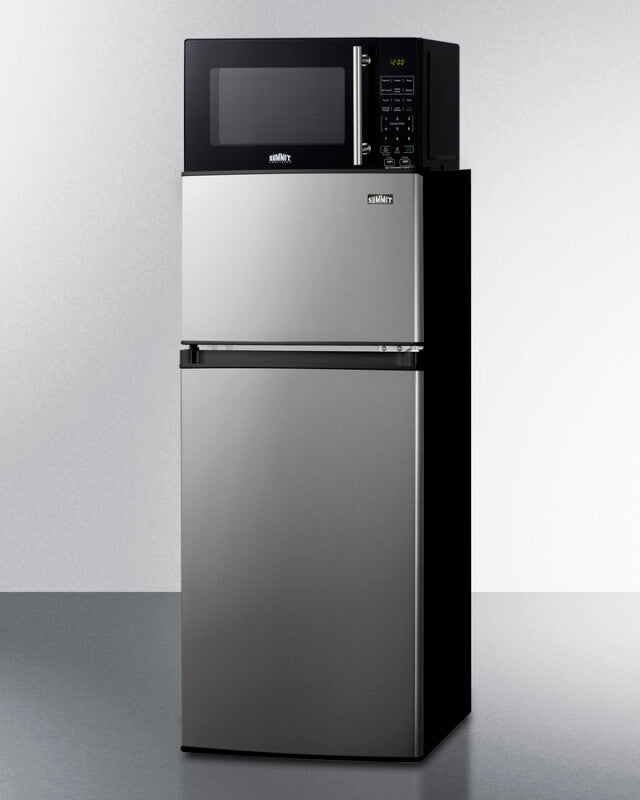

Summit MRF73PLA Microwave/Refrigerator-Freezer Combination with Allocator Stainless Steel Look

Quick Specification More details

Width:
18.5"
Depth:
19.13"
Height:
54.38"
Type:
Beverage Centers

About this product

SM903BSA1 microwave
CP73PL Refrigerator-freezer
Easy assembly
Cycle defrost

Summer Sale

Clearance

SKU: MRF73PLA | UPC: 761101084602

Summit MRF73PLA Microwave/Refrigerator-Freezer Combination with Allocator Stainless Steel Look

$1,023.91 ~~$1,284.97~~ Save $261.06 / 20% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
18.5"
Depth:
19.13"
Height:
54.38"
Type:
Beverage Centers

About this product

SM903BSA1 microwave
CP73PL Refrigerator-freezer
Easy assembly
Cycle defrost

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,023.91 ~~$1,284.97~~ Save $261.06 / 20% OFF

Product Details for SUMMIT MRF73PLA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	18.5 in.
Height	54.38 in.
Length	19.13 in.
Weight	95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.14 ft³
Dimensional Weight	138.46 lbs.
Total of Cubes	11.14 ft³
Total of Dimensional Weight	138.46 lbs.

Overview microwave-refrigerator

Nominal Height	55.0" (140 cm)
Height of Cabinet	54.38" (138 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.13" (49 cm)
Depth with door at 90°	36.0" (91 cm)
Capacity	4.5 cu.ft. (127 L)
Defrost Type	Cycle
Door	Stainless Look
Cabinet	Black
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Amps	15.0
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101084602
Refrigerator Included	CP73PL
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	6
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	2
Half Door Shelves	4
Can Storage	Yes

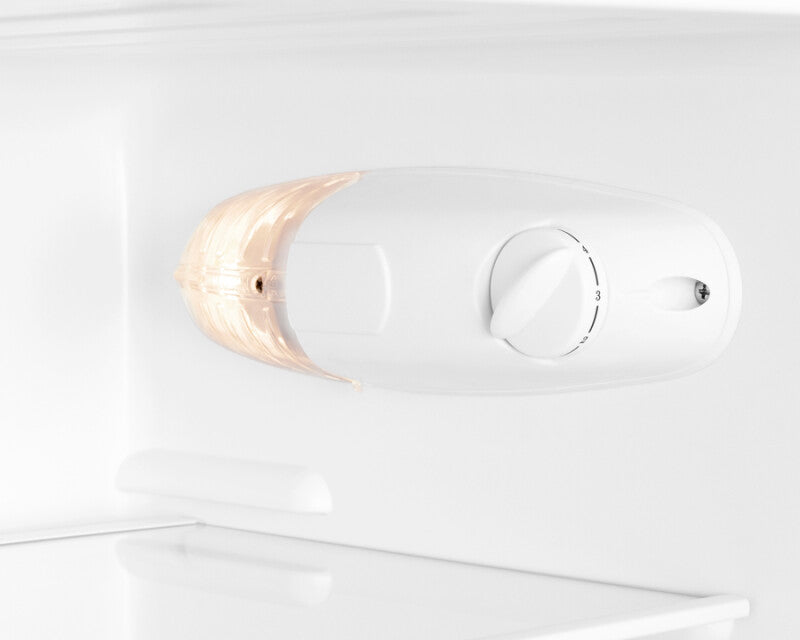

Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	1.37 oz.
High Side PSI	150.0
Low Side PSI	60.0
Refrigerator Interior Height	27.0" (69 cm)
Refrigerator Interior Width	15.5" (39 cm)
Refrigerator Interior Depth	14.5" (37 cm)
Freezer Interior Height	9.63" (24 cm)
Freezer Interior Width	14.0" (36 cm)
Freezer Interior Depth	14.0" (36 cm)
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	15.5" (39 cm)
Compressor Step Depth	4.0" (10 cm)
Level Legs	2
Microwave Wattage	700.0
Microwave Controls	Digital
Specialized Cooking Buttons	Yes

Description

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience. Model MRF73PLA combines a fully featured compact microwave with our two-door mid-sized CP73PL refrigerator-freezer. The complete unit is sized at just 19" wide for an easy fit. The refrigerator-freezer comes in a black cabinet finish with user-reversible doors in a stainless steel look, offering an attractive appearance without the need to clean off fingerprints and smudges. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges. The SM903BSA1 microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive. The MRF73PLA ships on one pallet in three boxes (refrigerator-freezer CP73PL, microwave SM903BSA1, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

Product Features

SM903BSA1 microwave
Compact microwave in black with window, stainless steel handle, and digital controls for easy operatoin
CP73PL Refrigerator-freezer

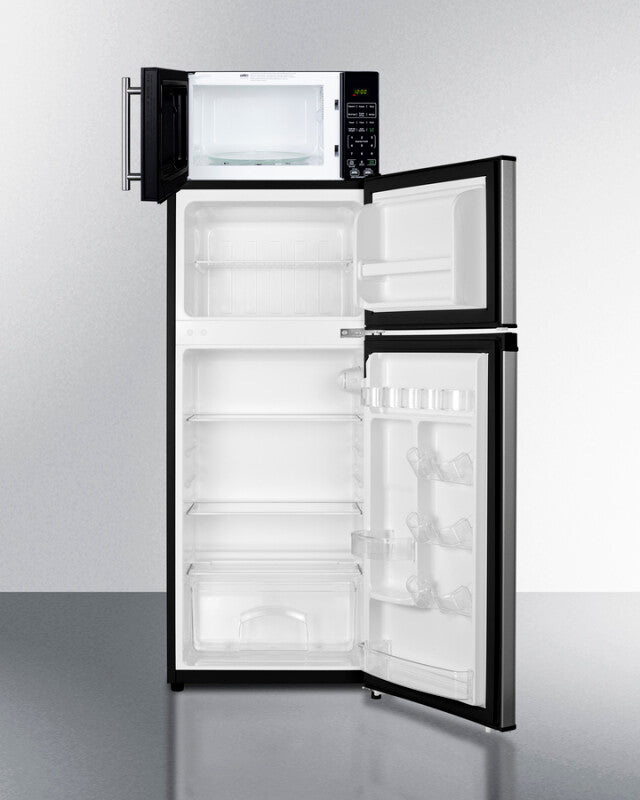

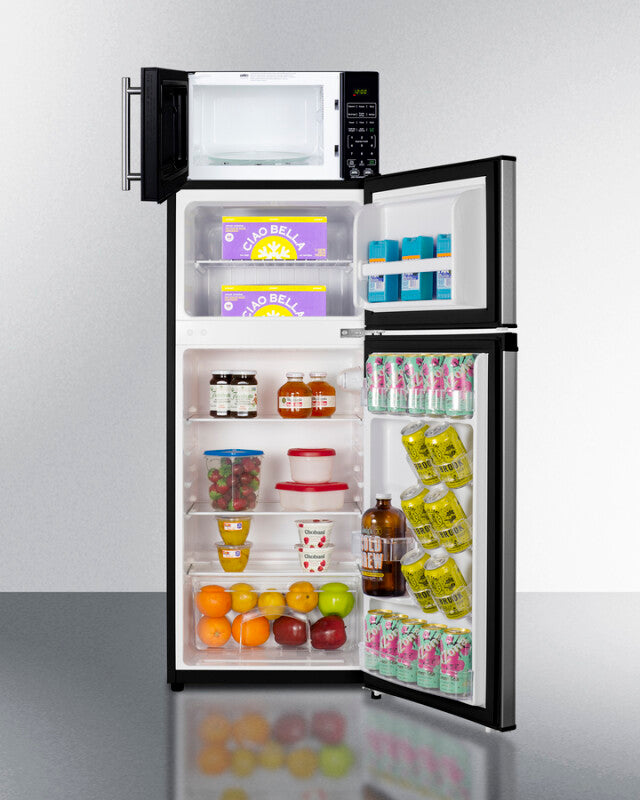

Two-door mid-sized refrigerator-freezer with cycle defrost and deluxe interior that includes glass shelving, door racks, can holders, and a crisper

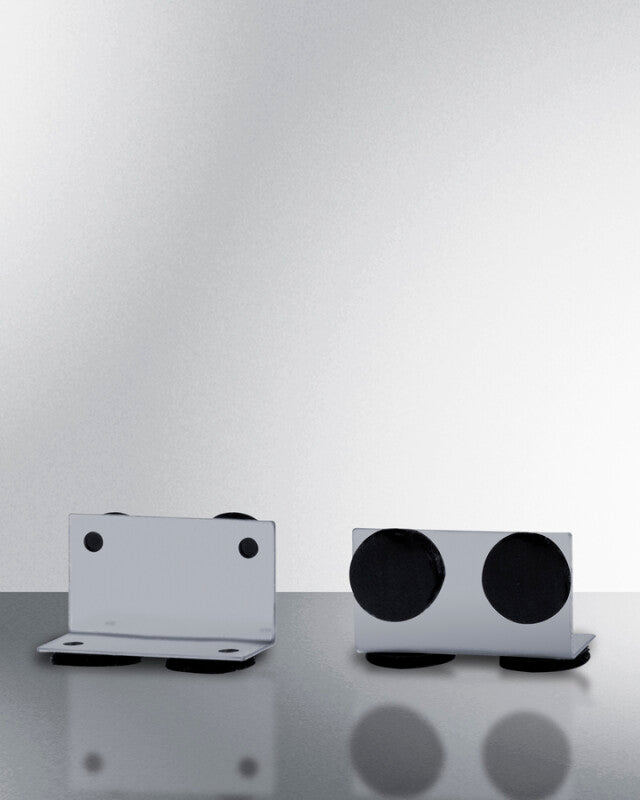

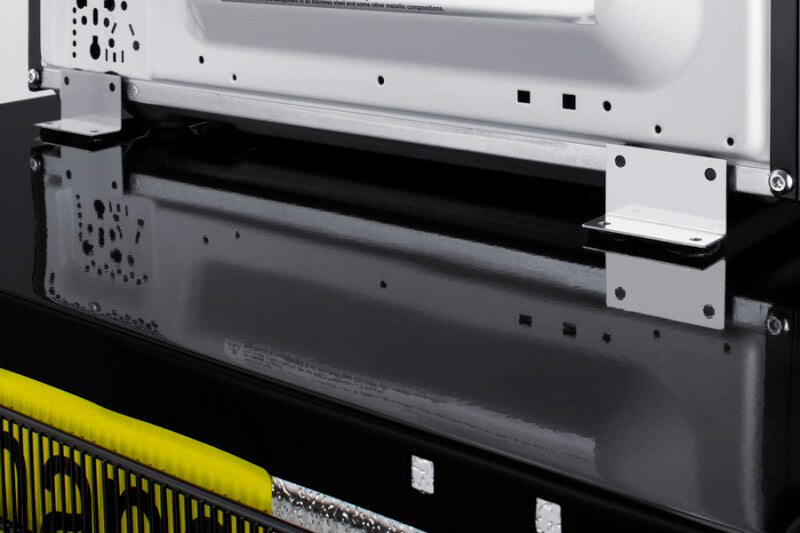

Easy assembly
Ships with two removable brackets that let you secure the microwave on top of the refrigerator
Cycle defrost
Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents

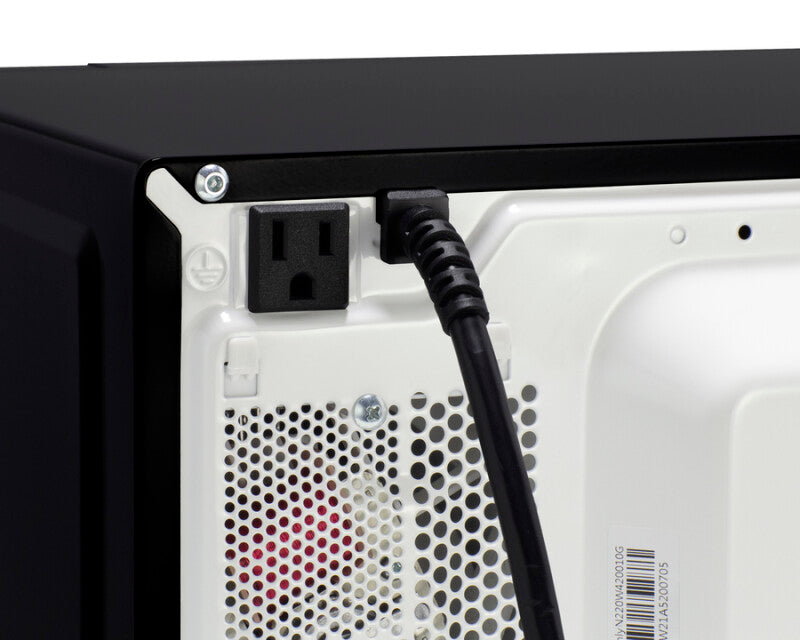

Built-in power allocator
Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

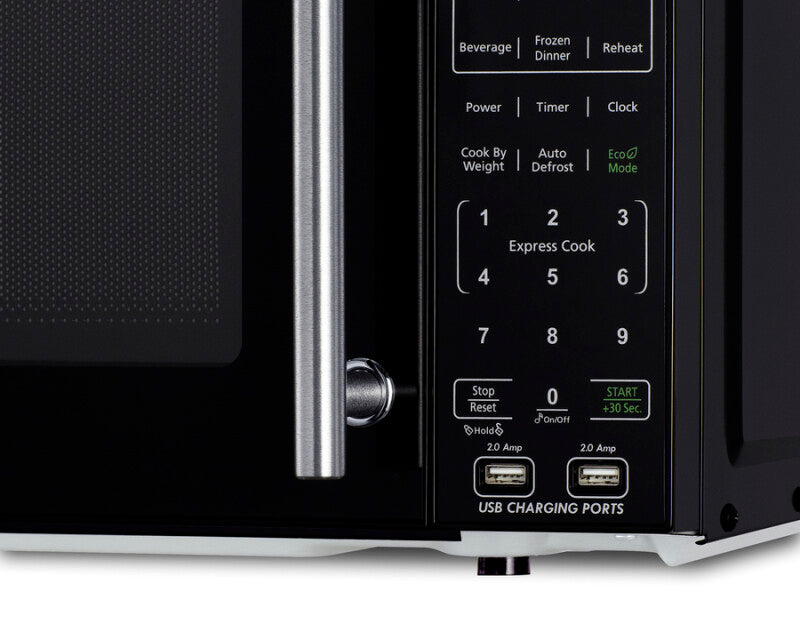

(2) USB ports
Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience
Reversible doors (refrigerator)
User-reversible door swing for added flexibility
Sealed back
Allows for a better fit and easier cleanability
Stainless steel handle (microwave)
Easy-grab handle in brushed stainless steel elevates the look for the microwave
One-touch cooking
Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost
Right angle plug (microwave)
Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots
Stainless steel look and black cabinet finish
Microwave and refrigerator cabinet comes in black, with the refrigerator doors offering the look of brushed stainless steel but in a fingerprint-resistant finish for easier cleaning
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Mute function
Press and hold ON/OFF for 3 seconds to disable the sound of your microwave
Eco Mode
Power-saving option lets you disable the digital display
