Sale price $2,337.62 Regular price $3,154.97 Save $817.35 / 25% OFF

Product Details for SUMMIT LSWD24

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.75 in.
Height 66 in.
Length 24.75 in.
Weight 300 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 22.45 ft³
Dimensional Weight 279.11 lbs.
Total of Cubes 22.45 ft³
Total of Dimensional Weight 279.11 lbs.

Overview washer-dryer

Nominal Height 66.0" (168 cm)
Height of Cabinet 66.0" (168 cm)
Nominal Width 24.0" (61 cm)
Width 23.75" (60 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.75" (63 cm)
Depth with door at 90° 43.75" (111 cm)
Capacity 7.1 cu.ft. (201 L)
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 101.0kWh/year
Other Energy Info 15 amps for both the washer and dryer
Amps 30.0
Weight 300.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
UPC 761101088150
Loading Style Front Loading
Door Window Yes
Door Swing French
Reversible No
Maximum Wash Weight 26.4 lbs. (12 kg)
Maximum Dry Weight 19.0 lbs. (9 kg)
Lint Trap Yes
Control Type Digital & Dial
Dispenser Compartment Yes
Wash Cycles 15
Dry Cycles 15
Maximum Drum Speed 1400.0
Delayed Start Yes
Delicate Cycle Yes
Permanent Press Cycle Yes
Level Legs 8

Description

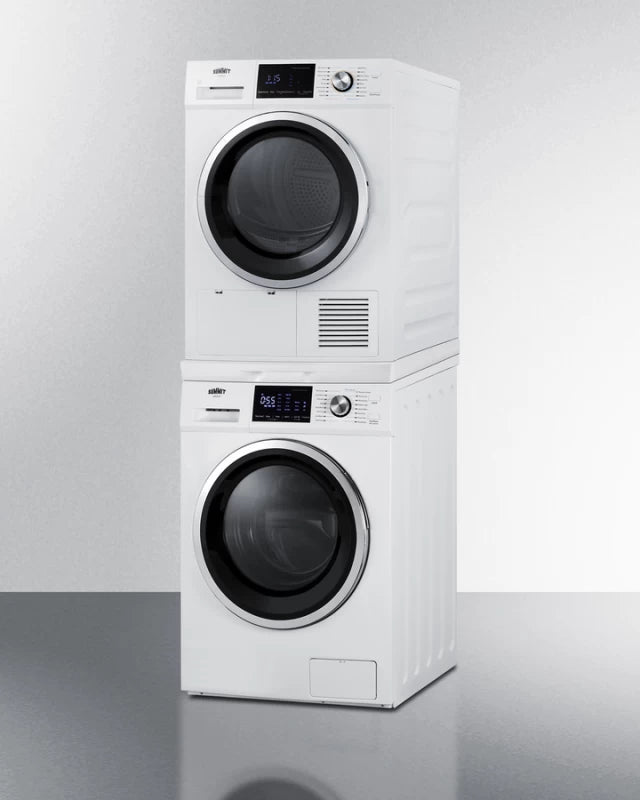

Summit's selection of slim-fitting laundry options brings efficiency and convenience to apartments, tiny houses, and other homes with limited floor space. The LSWD24 is a laundry station set that includes the 2.7 cu.ft. LW2427 washer, 4.4 cu.ft. LD2444 heat pump dryer, and the LWSTACKKIT accessory that lets you stack the dryer on top. The stacking rack is specially designed for these two units and features a full-extension slide-out rack for added convenience when doing laundry. Both laundry units are ENERGY STAR certified for energy and water savings. The 115V washer includes a pre-installed 3-prong cord. The 208-240V heat pump dryer is designed for professional installation to a 3 or 4-wire connection based on your local code. The LW2427 washer can wash up to 26.4pounds of fabric with a choice of 15 wash programs including cottons, heavy duty, permanent press for wrinkle reduction, sportswear, sanitary, babywear, delicates, wool, and more. A tub clean setting lets you run a high temperature wash cycle to help sterilize the interior and remove any residue left from previous washes. Additional features include a child lock, 24 hour delay start, and add garment function. The pull-out detergent compartment makes it easy to load. The LD2444 heat pump dryer offers non-vented operation and utilizes a heat pump for an energy efficient performance. It dries up to 19 pounds of fabric with 15 dry programs including options for wool, air fluff, jeans, delicates, and permanent press to help reduce wrinkles. Additional features include a child lock, 24 hour delay start, add garment function, and lint filter to ensure a cleaner performance. For improved water and energy savings, the LD2444 utilizes modern heat pump technology. This 2-stage drying system helps to allow more versatile placement and increased efficiency by separating the moisture produced by your dryer from hot air. The water is collected by the upper condensation tank and must be emptied (an icon on the digital screen will remind you after each dry cycle). Both models have a front-loading design in a white cabinet finish, with windows for a clear view of the interior. Durable stainless steel interiors ensure long-lasting use. Dial controls allow users to choose their wash/dry cycle with ease, and digital touchscreens allow for efficient management of each unit. With its slim-fitting design and fully wash & dry capacity, the LSWD24 is perfect for apartments, homes, and similar environments seeking full-capacity washer and dryer.


Product Features

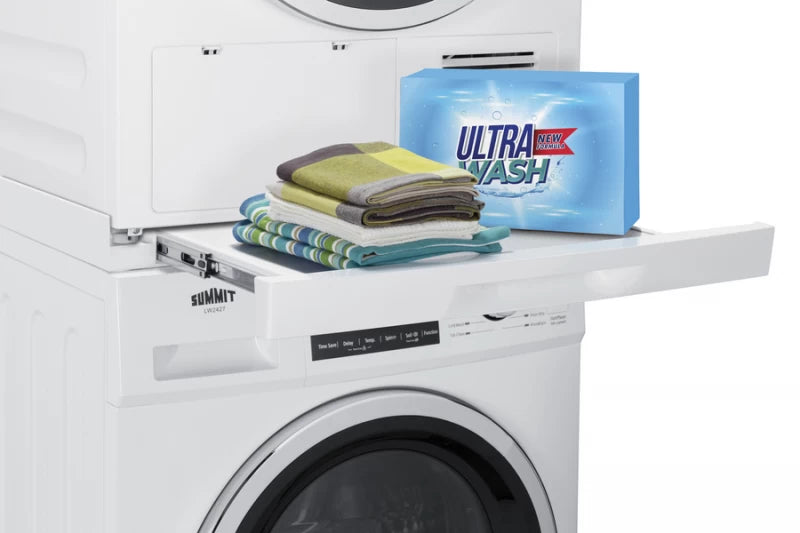

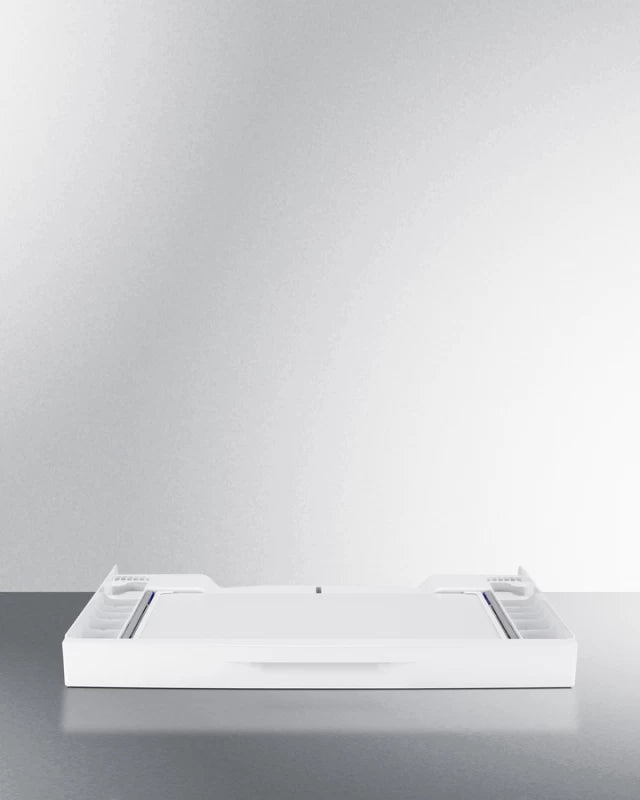

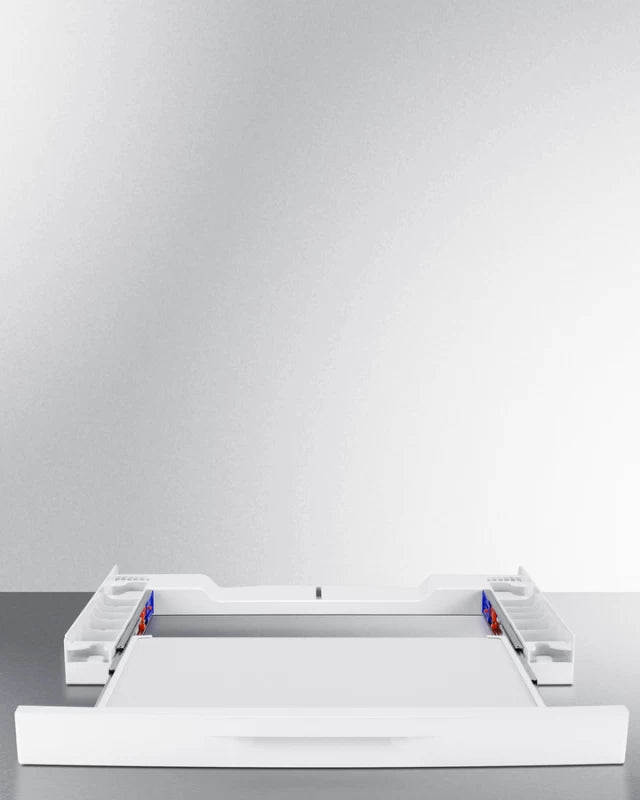

  • Stacking kit with slide-out rack
    Easy to install stacking kit includes a full-extension glide-out base that can hold up to 35 lbs. of clothes

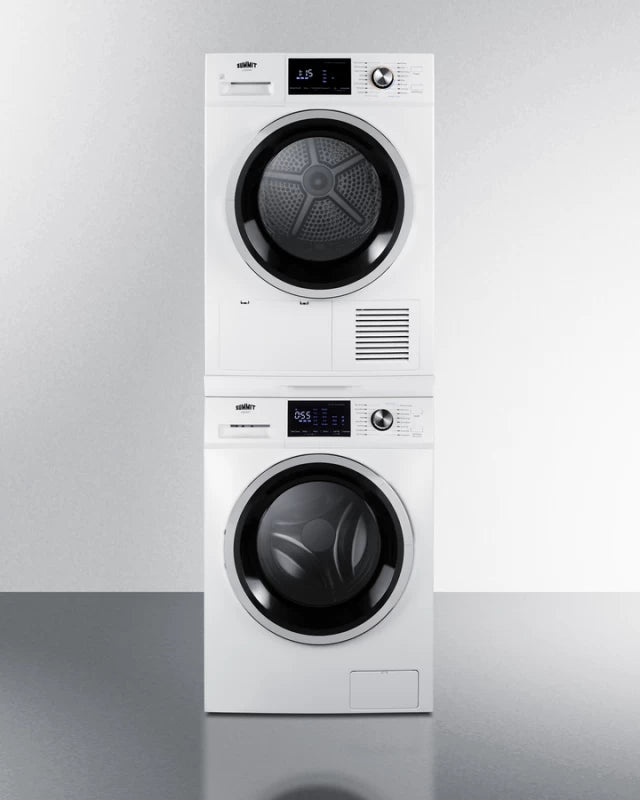

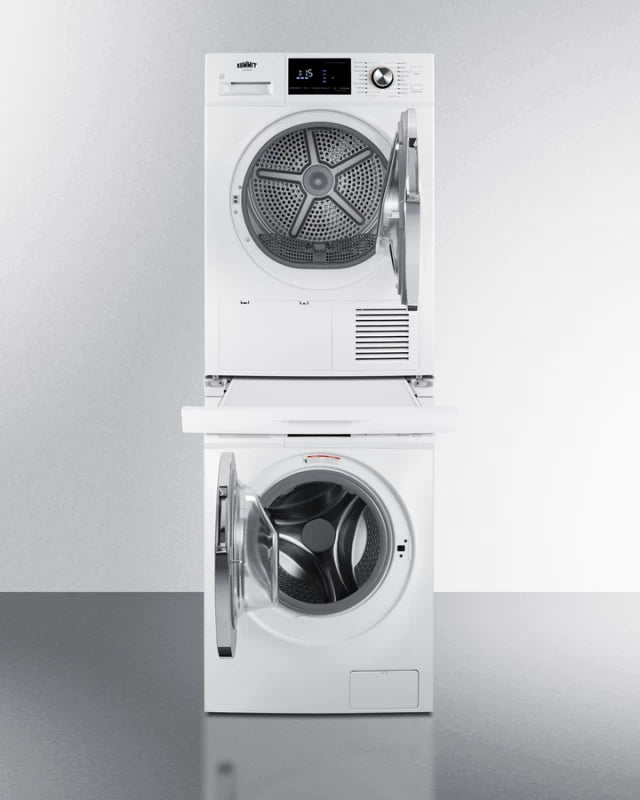

  • Complete laundry station
    Combines LW2427 washer & LD2444 heat pump dryer for a complete laundry station with a stacking kit
  • ENERGY STAR certified (washer & dryer)
    Use less water and energy than national standards require to ensure more efficiency and lower utility bills
  • 110-120V Operation (washer)
    Versatile non-vented washer for use with standard 15 amp circuits
  • Large interiors
    Washer has 2.7 cu.ft drum (wash up to 26.4 lbs. of fabric), while the dryer has a 4.4 cu.ft. drum (dry up to 19 lbs. of fabric)
  • Front-loading design (washer & dryer)
    Easy to load, with a glass door for a clear view inside

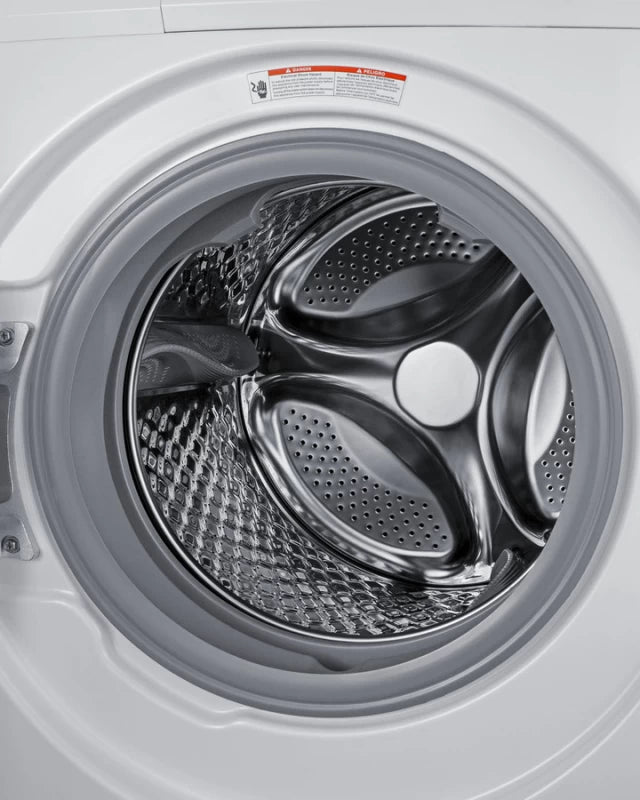

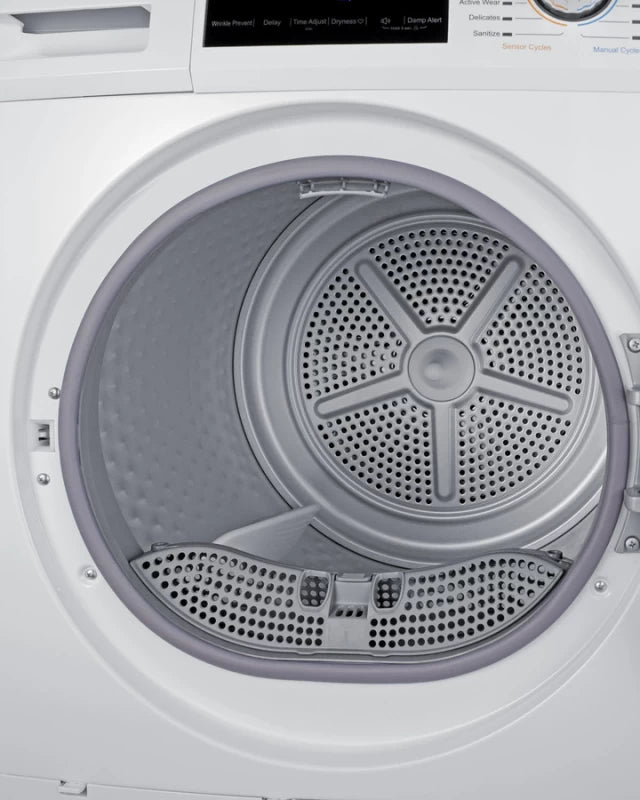

  • Stainless steel tub (washer) & drum (dryer)
    Durable interiors holds up load after load
  • 208-240V Operation (dryer)
    Requires professional installation to a 3 or 4-wire connection
  • Touchscreen display (washer & dryer)
    Digital touchscreen controls ensure easy operation of speciality programs
  • Heat pump operation (dryer)
    Non-vented, energy efficient operation that uses recycled air to better save on energy use and costs
  • Wash settings
    Get the proper fabric care with settings for cottons, quick wash, activewear, babywear, delicates, wool, and more
  • 15 dry settings
    Multiple options to meet all of your fabric needs, including specialty settings for jeans, quick dry, wool, air fluff, delicates, activewear, and more
  • Permanent press (washer & dryer
    Popular function to help reduce wrinkles
  • Tub clean setting (washer)
    Allows you to run an empty wash cycle at high temperatures to help sterilize the interior drum and remove lingering residue
  • 1400 RPM (dryer)
    Provides better water extraction for dryer clothing
  • Condensation drainage hose (dryer)
    Included for users who prefer a more traditional drainage system (not required for operation of the unit)
  • Lint filter
    Included inside the door to help catch clothing debris

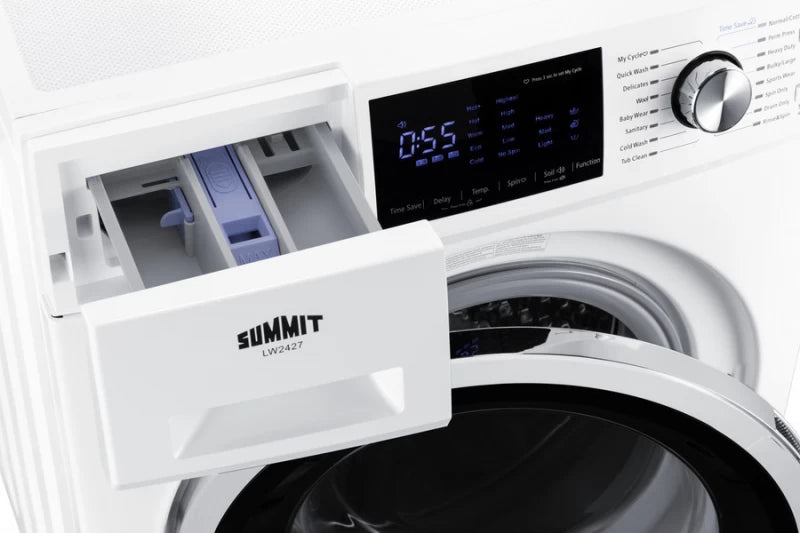

  • Detergent dispenser
    Pull-out compartment for prewash, regular detergent, and fabric softener
  • Delay start option (washer & dryer)
    Allows you to pre-set your laundry for the ideal finish time
  • Easy iron function (washer)
    Helpful setting can be added to most wash cycles as needed
  • Add garment function
    Lets you pause the wash or dry cycle to add or remove fabric
  • Control lock (both units)
    Child lock allows you to disable the controls to prevent accidental use
  • Cycle selector knob (washer & dryer)
    Allows users to easily cycle through the 15 wash and dry programs

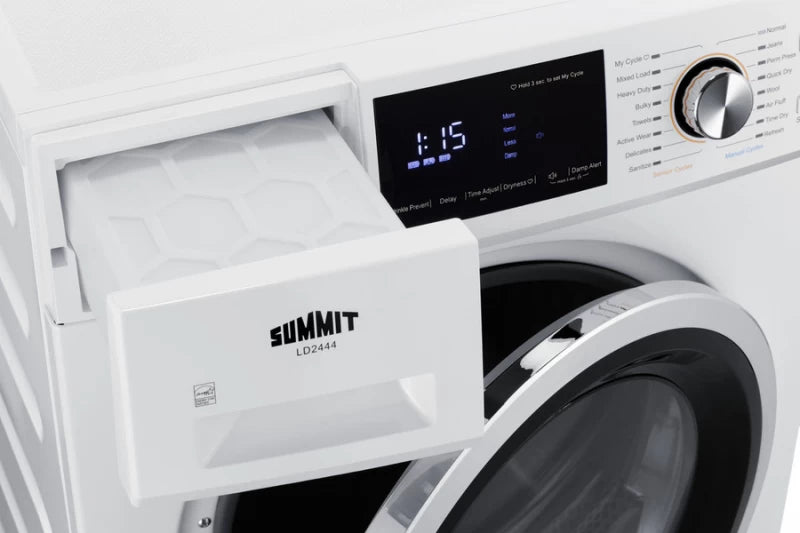

  • Condensation tank (dryer)
    Pull-out tank for easy disposal of collected moisture after drying (Note: the tank should be emptied every other cycle)
