Summit HC30BBADA 30" Under Cabinet Convertible Range Hood, ADA Compliant Black
Sale price
$365.00
Regular price
$522.97
Save
$157.97
/ 30% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$365.00
Regular price
$522.97
Save
$157.97
/ 30% OFF
Product Details for SUMMIT HC30BBADA
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview range hood
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.5" (14 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.88" (76 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 13.0 lbs. (6 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107240 |
| Installation | Under Cabinet |
| Venting | Convertible |
| Controls | Dial |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 300.0 CFM |
| Sone Rating | 6 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
Description
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC30BBADA is a 30" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 300 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
Product Features
-
30" Wide ADA Compliant Range Hood
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines -
ADA compliant design

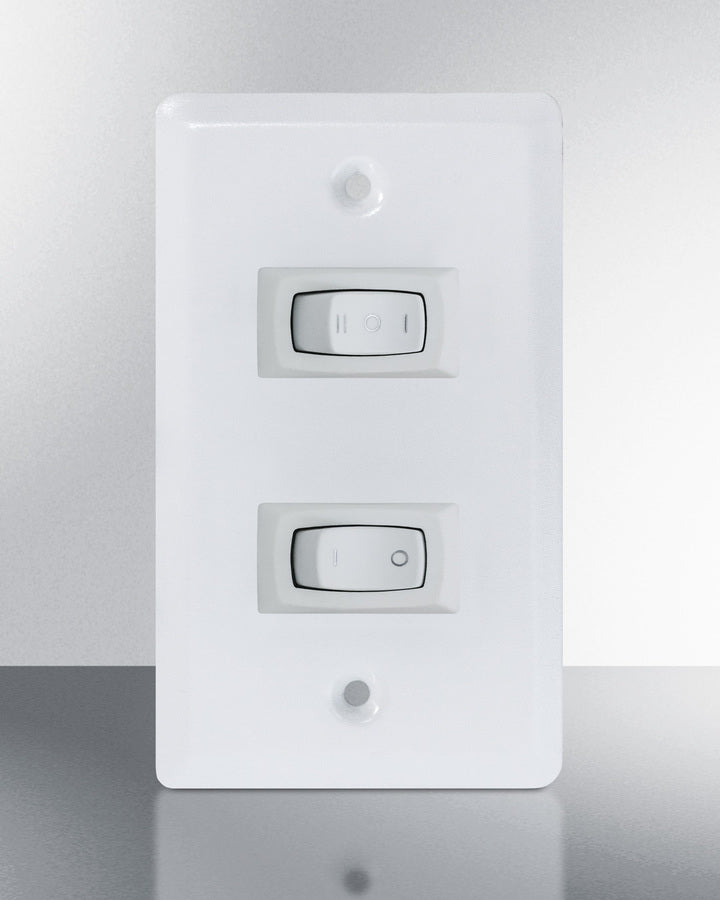

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included -
Under cabinet range hood
Low profile design offers classic style to finish your kitchen -
30 inch width
Sized for use over 30 inch cooking surfaces (additional sizes available) -
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible -
Powerful ventilation
Can operate at 300 CFM to ensure thorough ventilation of your cooking surface -
Black finish
Matte finish in jet black suits any kitchen space -
Easy conversion
Ships pre-set for recirculating mode but can be converted in a few simple steps -
Versatile top or rear exhaust
Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both) -
Durable 21 gauge steel construction
Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods -
Angled airflow
Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user -

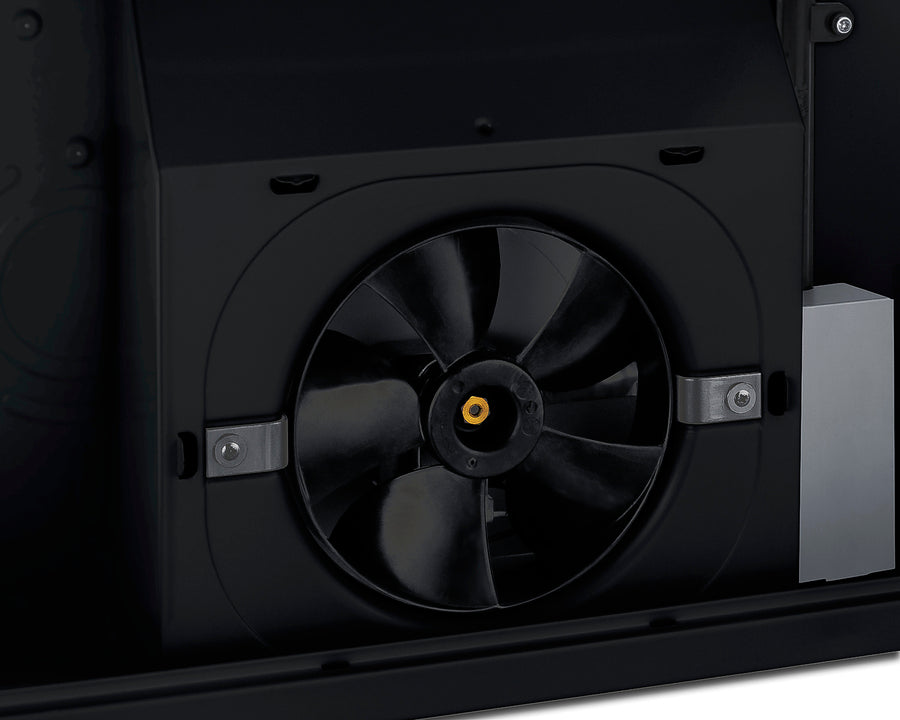

Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed -
Accepts a standard bulb
Designed to hold a standard incandescent light bulb with easy installation and no tools required -

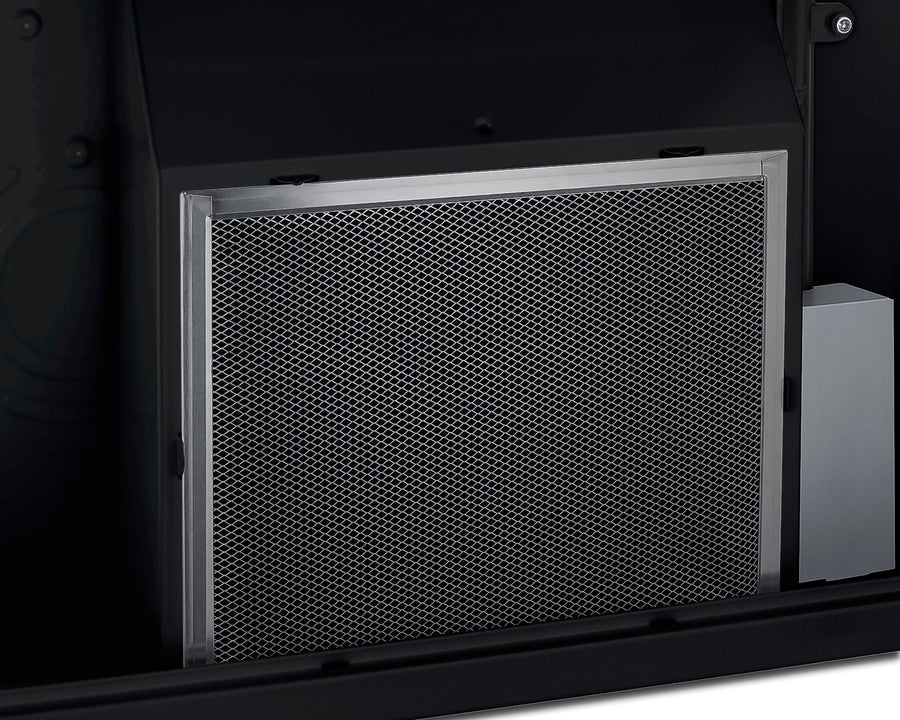

Combination charcoal/aluminum mesh filter
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience -
Removable filter
Snap-in design allows you to easily remove the filter for fast replacing as needed -
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan -
Professional installation
Designed to be hard-wired by a licensed professional -
Made in North America
TAA compliant
