SKU: HC20SSADA | UPC: 761101107202

Summit HC20SSADA 20" Under Cabinet Convertible Range Hood, ADA Compliant Stainless Steel

Quick Specification More details

Width:
20"
Depth:
20"
Height:
5.5"
Type:
Ducted Mount Hoods

About this product

Convertible design
Under cabinet range hood
20 inch width
Stainless steel finish

Summer Sale

Clearance

SKU: HC20SSADA | UPC: 761101107202

Summit HC20SSADA 20" Under Cabinet Convertible Range Hood, ADA Compliant Stainless Steel

$246.57 ~~$314.97~~ Save $68.40 / 21% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
20"
Depth:
20"
Height:
5.5"
Type:
Ducted Mount Hoods

About this product

Convertible design
Under cabinet range hood
20 inch width
Stainless steel finish

Product Details
From The Manufacturer
Reviews

$246.57 ~~$314.97~~ Save $68.40 / 21% OFF

Product Details for SUMMIT HC20SSADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	20 in.
Height	5.5 in.
Length	20 in.
Weight	11 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.27 ft³
Dimensional Weight	15.83 lbs.
Total of Cubes	1.27 ft³
Total of Dimensional Weight	15.83 lbs.

Overview range hood

Nominal Height	6.0" (15 cm)
Height of Cabinet	5.5" (14 cm)
Nominal Width	20.0" (51 cm)
Width	20.0" (51 cm)
Nominal Depth	20.0" (51 cm)
Depth	20.0" (51 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	11.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
UPC	761101107202
Installation	Under Cabinet
Venting	Convertible
Controls	Dial
Number of Fan Speeds	2
Maximum Air Movement	270.0 CFM
Sone Rating	6
Duct Shape	3"1/4" x 10" rectangular or 7" round

Description

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC20SSADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces.It comes in a stainless steel finish with a horizontal grain constructed from 21 gauge galvanized steel for lasting durability. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.

Product Features

Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Under cabinet range hood
Low profile design offers classic style to finish your kitchen
20 inch width
Sized for use over 20 inch cooking surfaces (additional sizes available)
Stainless steel finish
Real stainless steel with a horizontal grain for a clean, professional look
Versatile top or rear exhaust
Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
Easy conversion
Ships pre-set for recirculating mode but can be converted in a few simple steps
Angled airflow
Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user
Powerful ventilation
Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
Durable 21 gauge steel construction
Stainless steel exterior with a body that's 53% heavier gauge than most of the industry's under cabinet hoods
Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Accepts a standard bulb
Designed to hold a standard incandescent light bulb with easy installation and no tools required

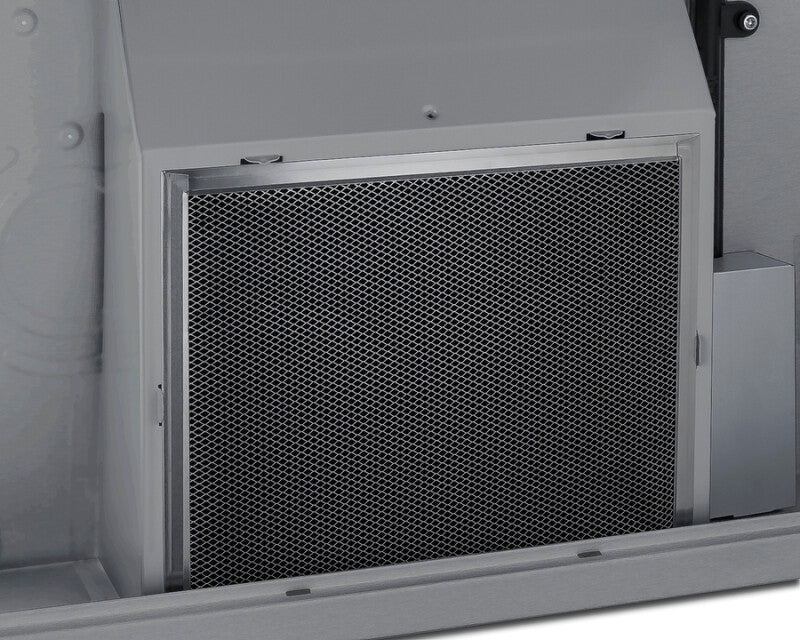

Combination charcoal/aluminum mesh filter
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Removable filter
Snap-in design allows you to easily remove the filter for fast replacing as needed
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation
Designed to be hard-wired by a licensed professional
Made in North America
TAA compliant
20" Wide ADA Compliant Range Hood
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
ADA compliant design

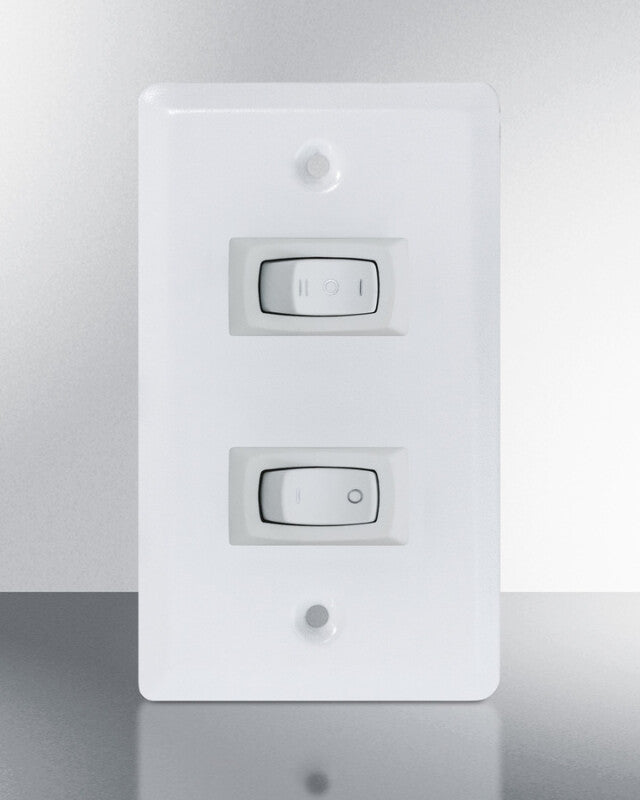

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
