Sale price $187.46 Regular price $234.97 Save $47.51 / 20% OFF

Product Details for SUMMIT HC20SS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 20 in.
Height 5.5 in.
Length 20 in.
Weight 11 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.27 ft³
Dimensional Weight 15.83 lbs.
Total of Cubes 1.27 ft³
Total of Dimensional Weight 15.83 lbs.

Overview range hood

Nominal Height 6.0" (15 cm)
Height of Cabinet 5.5" (14 cm)
Nominal Width 20.0" (51 cm)
Width 20.0" (51 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 11.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101087054
Installation Under Cabinet
Venting Convertible
Controls Dial
Number of Fan Speeds 2
Maximum Air Movement 270.0 CFM
Sone Rating 6
Duct Shape 3"1/4" x 10" rectangular or 7" round

Description

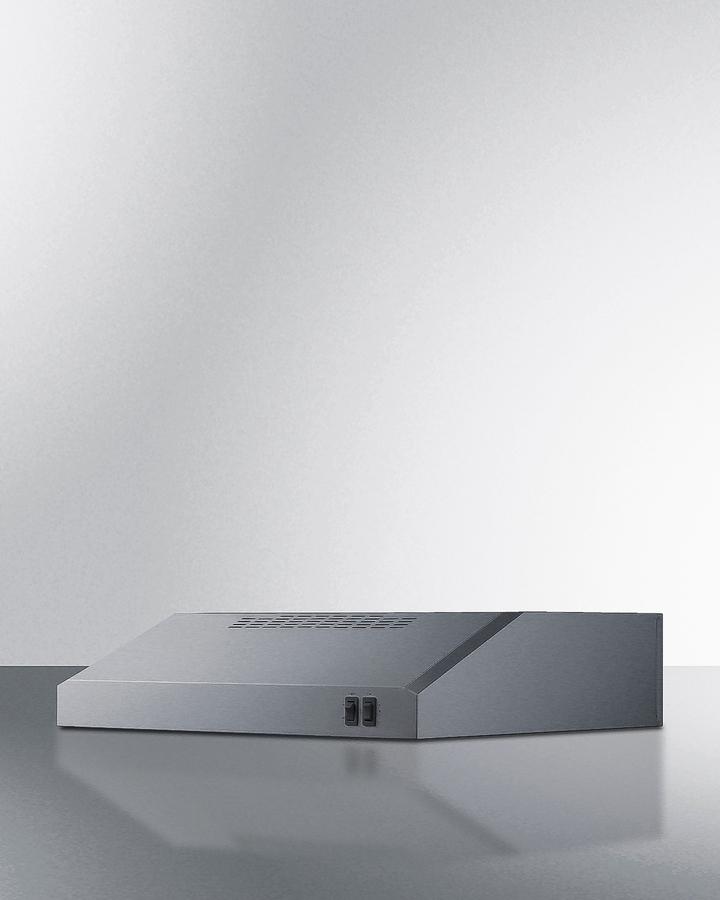

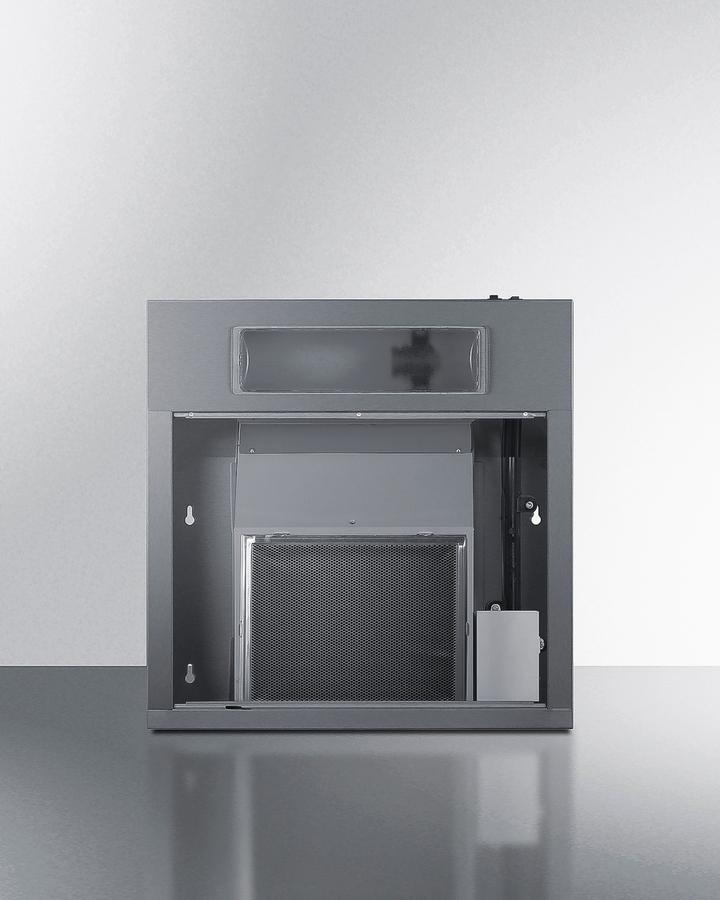

Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space. Model HC20SS is a 20" wide range hood ideal for apartments and other smaller kitchens. It comes in a stainless steel finish with a horizontal grain constructed from 21 gauge galvanized steel for lasting durability. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.


Product Features

  • Under cabinet range hood
    Low profile design offers classic style to finish your kitchen
  • 20 inch width
    Sized for use over 20 inch cooking surfaces (additional sizes available)
  • Easy conversion
    Ships pre-set for recirculating mode but can be converted in a few simple steps
  • Convertible design
    Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
  • Stainless steel finish
    Real stainless steel with a horizontal grain for a clean, professional look
  • Durable 21 gauge steel construction
    Stainless steel exterior with a body that's 53% heavier gauge than most of the industry's under cabinet hoods
  • Angled airflow
    Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

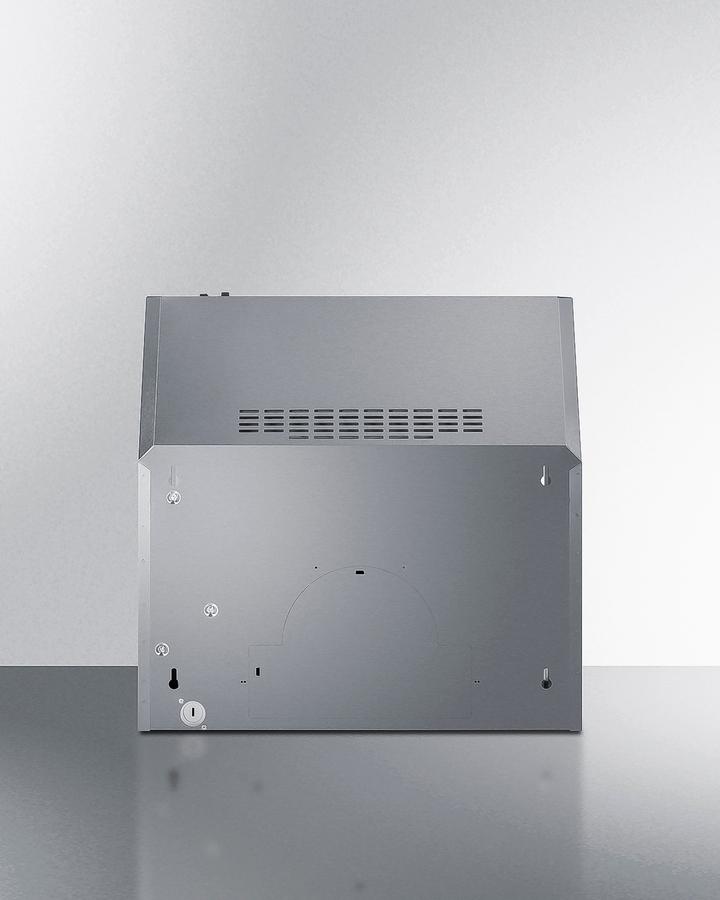

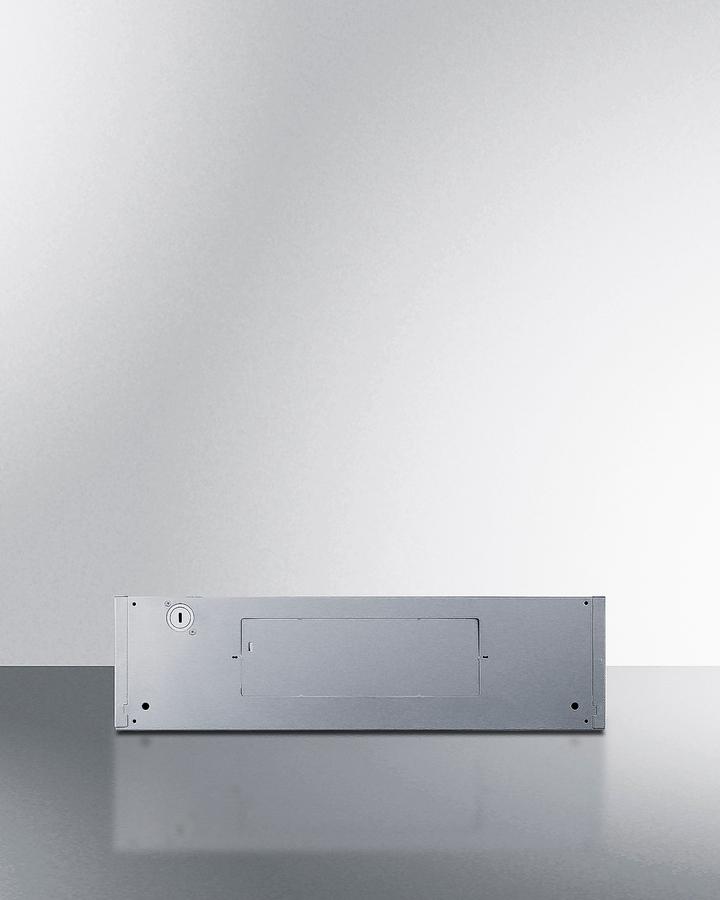

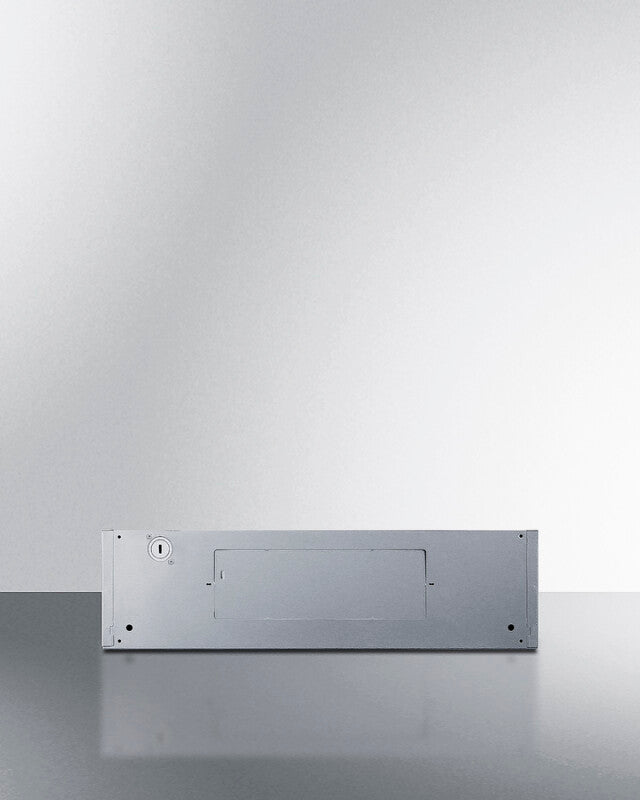

  • Versatile top or rear exhaust
    Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
  • Powerful ventilation
    Can operate at 270 CFM to ensure thorough ventilation of your cooking surface

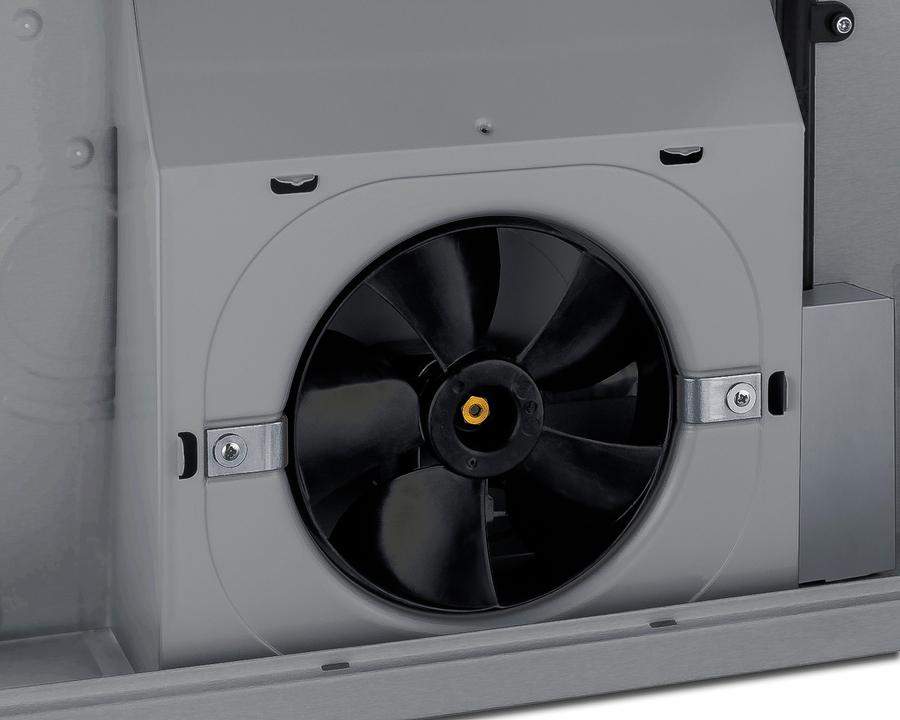

  • Two-speed fan
    High and low setting to allow proper ventilation of your kitchen as needed
  • Accepts a standard bulb
    Designed to hold a standard incandescent light bulb with easy installation and no tools required

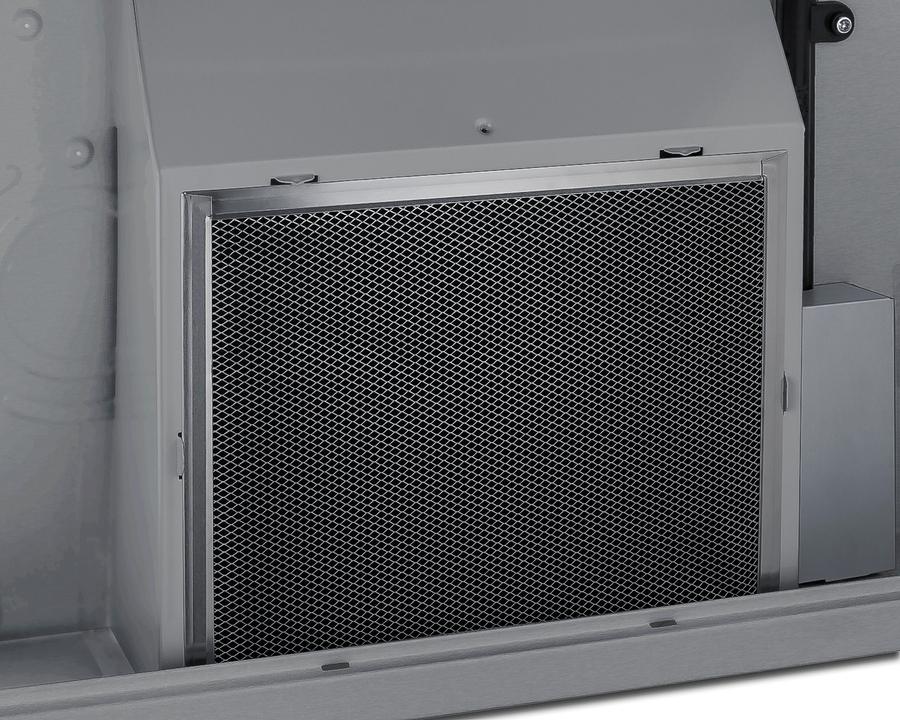

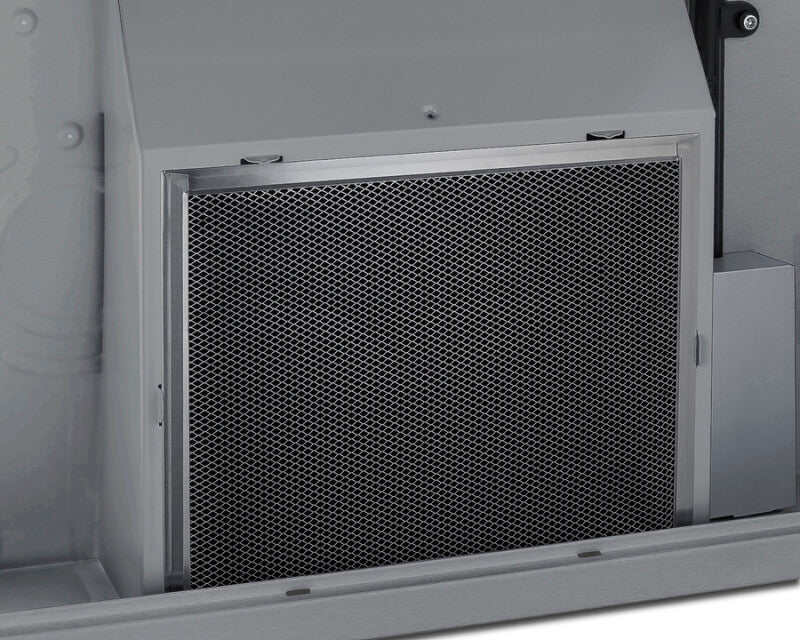

  • Combination charcoal/aluminum mesh filter
    Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
  • Removable filter
    Snap-in design allows you to easily remove the filter for fast replacing as needed

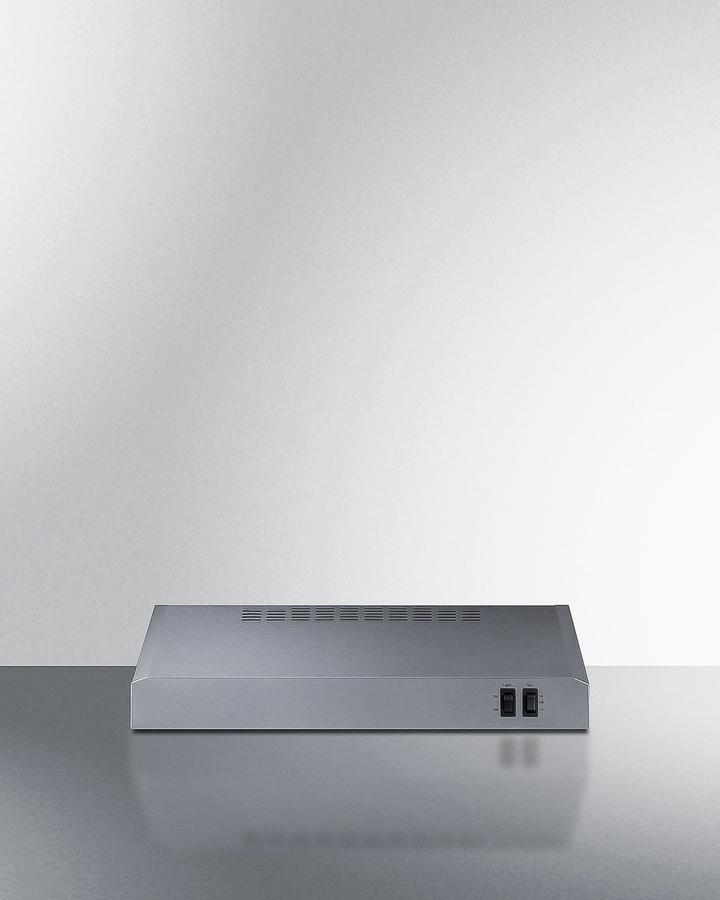

  • Rocker switch controls
    Front-located on/off and high/low switches make it easy to manage the light and fan
  • Professional installation
    Designed to be hard-wired by a licensed professional
  • Made in North America
    TAA compliant
