SKU: H30RSSADA | UPC: 761101087399

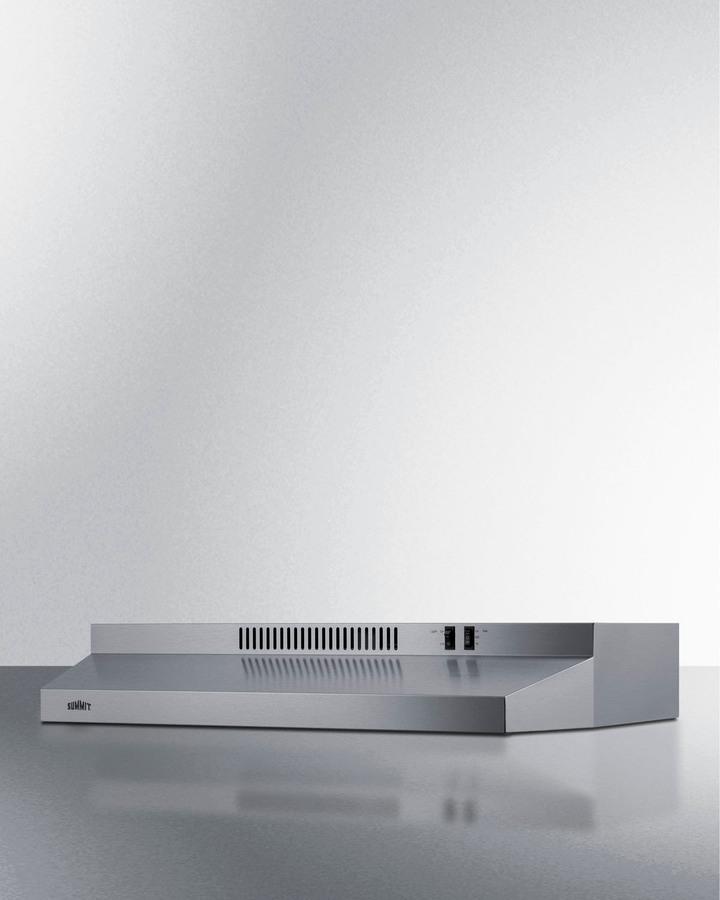

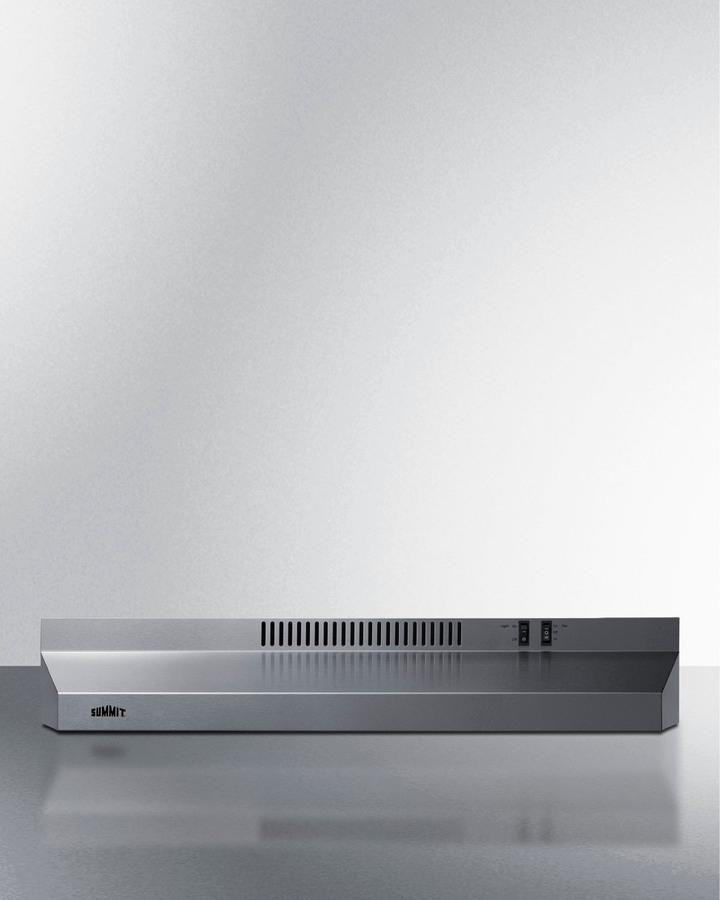

Summit H30RSSADA 30" Under Cabinet Convertible Range Hood, ADA Compliant Stainless Steel

Quick Specification More details

Width:
29.88"
Depth:
18.63"
Height:
5.13"
Type:
Ducted Mount Hoods

About this product

30" Wide ADA Compliant Range Hood
ADA compliant design
Under cabinet range hood
30 inch width

Summer Sale

Clearance

SKU: H30RSSADA | UPC: 761101087399

Summit H30RSSADA 30" Under Cabinet Convertible Range Hood, ADA Compliant Stainless Steel

$238.47 ~~$339.97~~ Save $101.50 / 29% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.88"
Depth:
18.63"
Height:
5.13"
Type:
Ducted Mount Hoods

About this product

30" Wide ADA Compliant Range Hood
ADA compliant design
Under cabinet range hood
30 inch width

Product Details
From The Manufacturer
Reviews

$238.47 ~~$339.97~~ Save $101.50 / 29% OFF

Product Details for SUMMIT H30RSSADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	29.88 in.
Height	5.13 in.
Length	18.63 in.
Weight	12 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.65 ft³
Dimensional Weight	20.54 lbs.
Total of Cubes	1.65 ft³
Total of Dimensional Weight	20.54 lbs.

Overview range hood

Nominal Height	6.0" (15 cm)
Height of Cabinet	5.13" (13 cm)
Nominal Width	30.0" (76 cm)
Width	29.88" (76 cm)
Nominal Depth	19.0" (48 cm)
Depth	18.63" (47 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Weight	12.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
UPC	761101087399
Venting	Convertible
Controls	Dial
Light	Yes
Number of Lights	1
Light Type	Incandescent
Number of Fan Speeds	2
Duct Shape	3"1/4" x 10" rectangular or 6/7" round with transition

Description

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model H30RSSADA is a 30" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It features an attractive stainless steel finish with a horizontal grain. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting. This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional. Additional convertible range hoods are available in 18", 20", 24", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 30" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.

Product Features

30" Wide ADA Compliant Range Hood
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
ADA compliant design
Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
Under cabinet range hood
Low profile design offers a classic way to finish your kitchen
30 inch width
Sized for use over 30 inch cooking surfaces (additional sizes available)
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Versatile top or rear exhaust
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Easy 1-step conversion
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Stainless steel finish
Durable construction in an attractive style with a horizontal grain
Light & bulb included
Includes an incandescent bulb to help illuminate your cooking surface

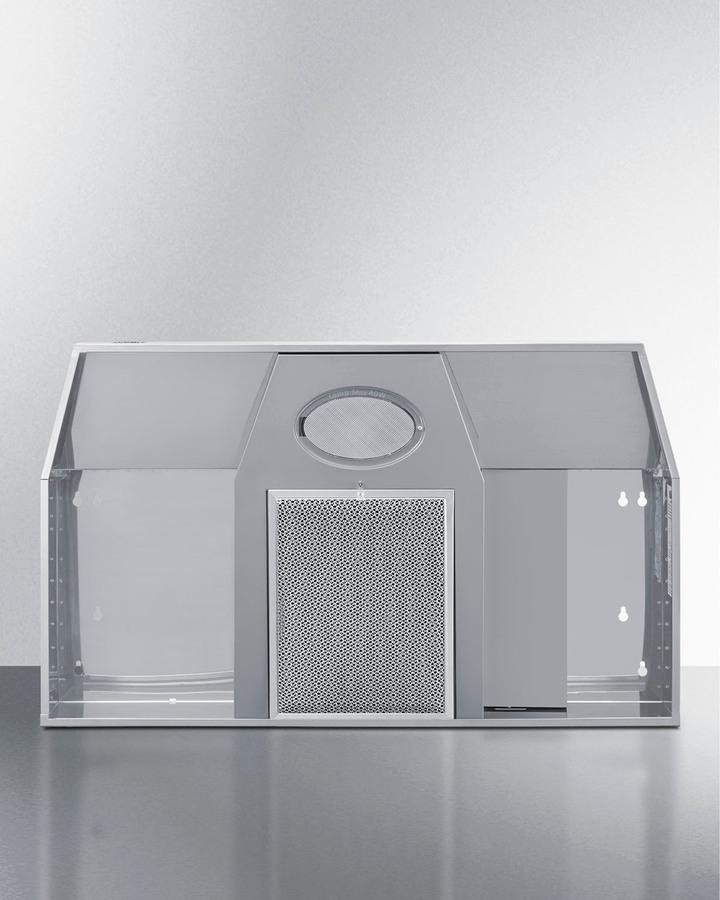

Removable metal grease filter
Easy installation and detaching allows you to properly clean the filter for optimum efficiency

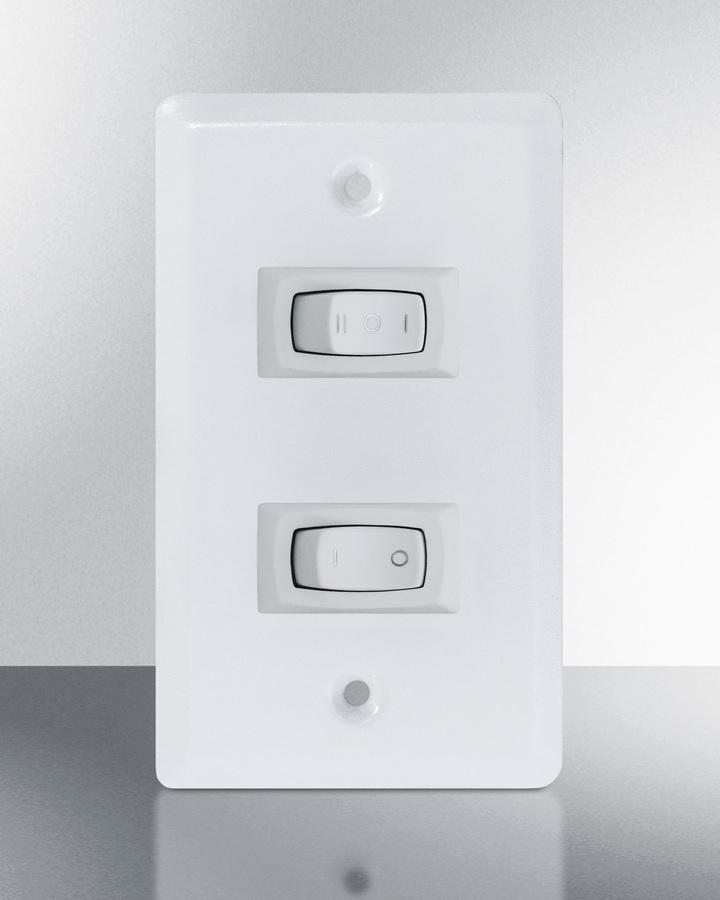

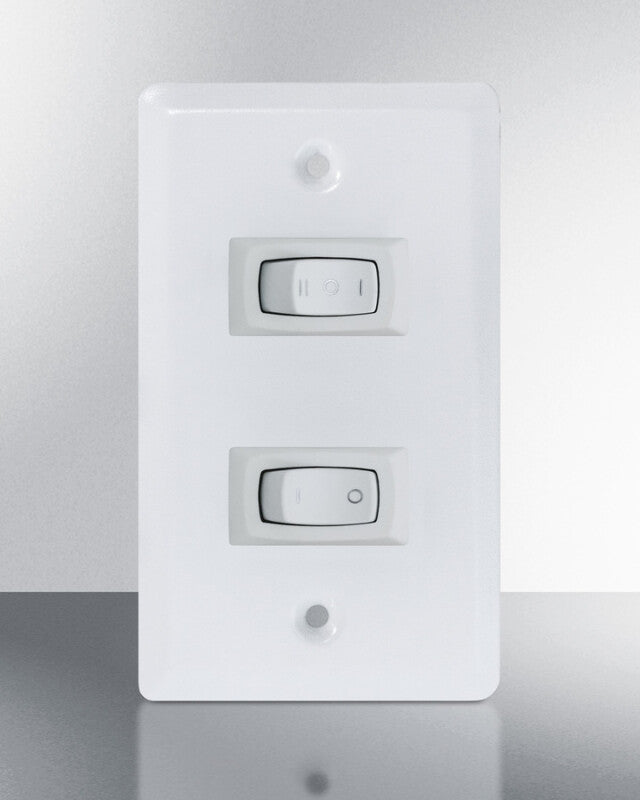

Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Charcoal filter included
Helps absorb grease and odors when using the hood in recirculating mode
Professional installation
Designed to be hard-wired by a licensed professional
