Sale price $170.20 Regular price $264.97 Save $94.77 / 35% OFF

Product Details for SUMMIT H30RSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 29.88 in.
Height 5.13 in.
Length 18.63 in.
Weight 12 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.65 ft³
Dimensional Weight 20.54 lbs.
Total of Cubes 1.65 ft³
Total of Dimensional Weight 20.54 lbs.

Overview range hood

Nominal Height 6.0" (15 cm)
Height of Cabinet 5.13" (13 cm)
Nominal Width 30.0" (76 cm)
Width 29.88" (76 cm)
Nominal Depth 19.0" (48 cm)
Depth 18.63" (47 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101085081
Venting Convertible
Controls Dial
Light Yes
Number of Lights 1
Light Type Incandescent
Number of Fan Speeds 2
Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition

Description

Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space. Model H30RSS is a 30" wide range hood ideal for apartments and other smaller kitchens. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting. This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional. Additional convertible range hoods are available in 18", 20", 24", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 30" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.


Product Features

  • Under cabinet range hood
    Low profile design offers a classic way to finish your kitchen
  • 30 inch width
    Sized for use over 30 inch cooking surfaces (additional sizes available)
  • Convertible design
    Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
  • Versatile top or rear exhaust
    Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
  • Two-speed fan
    High and low setting to allow proper ventilation of your kitchen as needed
  • Stainless steel finish
    Durable construction in an attractive style with a horizontal grain
  • Easy 1-step conversion
    Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
  • Light & bulb included
    Includes an incandescent bulb to help illuminate your cooking surface

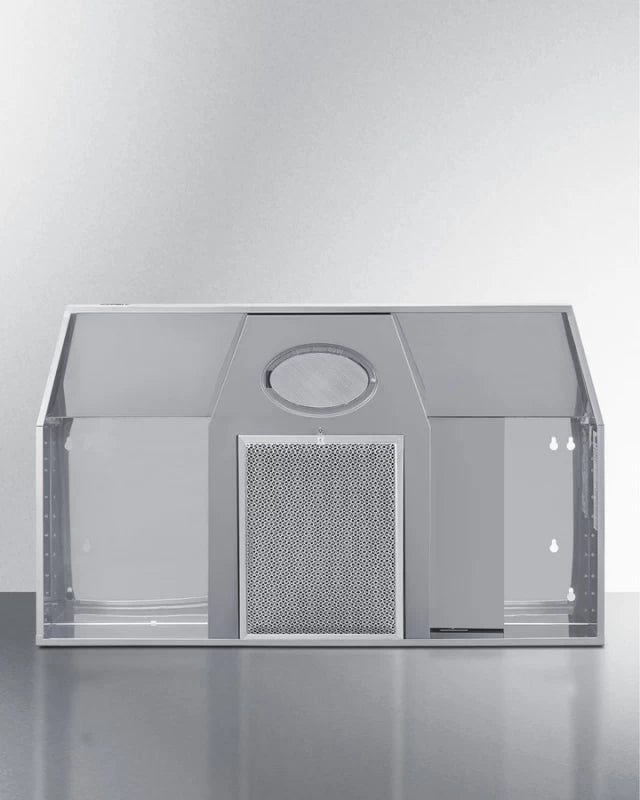

  • Removable metal grease filter
    Easy installation and detaching allows you to properly clean the filter for optimum efficiency
  • Charcoal filter included
    Helps absorb grease and odors when using the hood in recirculating mode
  • Rocker switch controls
    Front-located on/off and high/low switches make it easy to manage the light and fan
  • Professional installation
    Designed to be hard-wired by a licensed professional
