Summit FFRF36IFADA 36" Wide Built-In Refrigerator-Freezer, ADA Compliant (Panels Not Included) Panel-Ready

Quick Specification More details

Width:
35.5"
Depth:
24.25"
Height:
31.5"
Type:
Compact Refrigerators

About this product

Commercially approved
ADA compliant design
Built-in capable
All-in-one design

Summer Sale

Clearance

SKU: FFRF36IFADA | UPC: 761101067711

Summit FFRF36IFADA 36" Wide Built-In Refrigerator-Freezer, ADA Compliant (Panels Not Included) Panel-Ready

$2,663.97 ~~$3,239.97~~ Save $576.00 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.5"
Depth:
24.25"
Height:
31.5"
Type:
Compact Refrigerators

About this product

Commercially approved
ADA compliant design
Built-in capable
All-in-one design

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,663.97 ~~$3,239.97~~ Save $576.00 / 17% OFF

Product Details for SUMMIT FFRF36IFADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	35.5 in.
Height	31.5 in.
Length	24.25 in.
Weight	160 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	15.69 ft³
Dimensional Weight	195.09 lbs.
Total of Cubes	15.69 ft³
Total of Dimensional Weight	195.09 lbs.

Overview refrigerator-freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.5" (80 cm)
Nominal Width	36.0" (91 cm)
Width	35.5" (90 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.25" (62 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	504.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067940
Door Swing	French
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	23.5" (60 cm)
Refrigerator - Interior Width	12.75" (32 cm)
Refrigerator - Interior Depth	16.75" (43 cm)
Refrigerator - Capacity	2.9 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Temperature Range	36°F to 46°F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	1.59 oz.
Freezer - Interior Height	23.5" (60 cm)
Freezer - Interior Width	12.75" (32 cm)
Freezer - Interior Depth	16.75" (43 cm)
Freezer - Capacity	2.9 cu.ft
Freezer - Shelf Type	Chrome
Freezer - Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.59 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	2
Freezer - Temperature Range	-22°F to 46°F
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.25" (11 cm)

Description

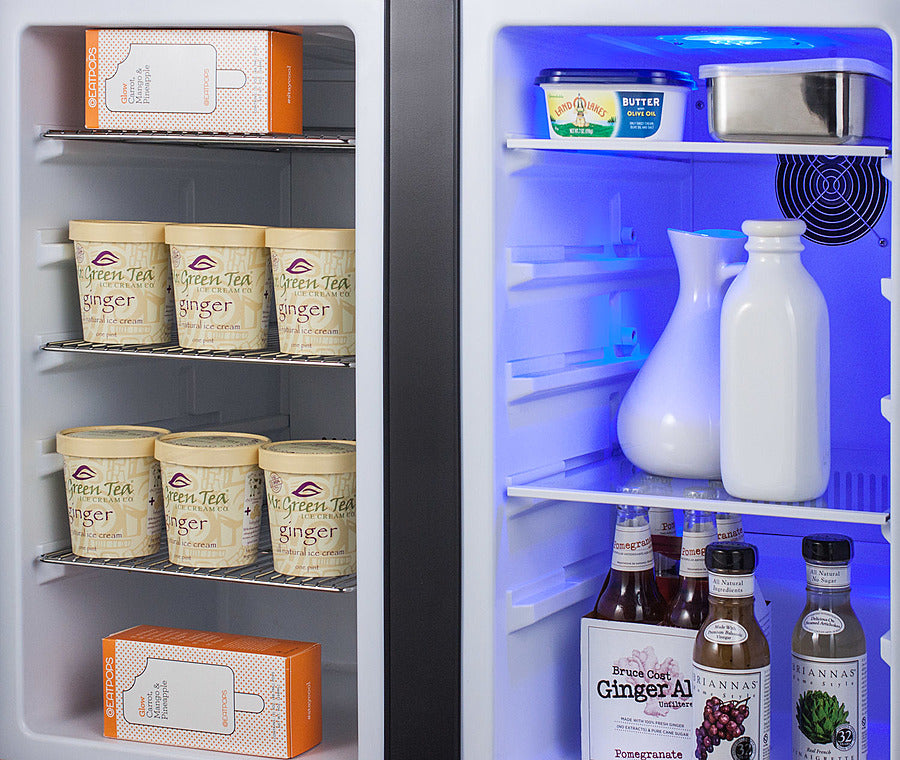

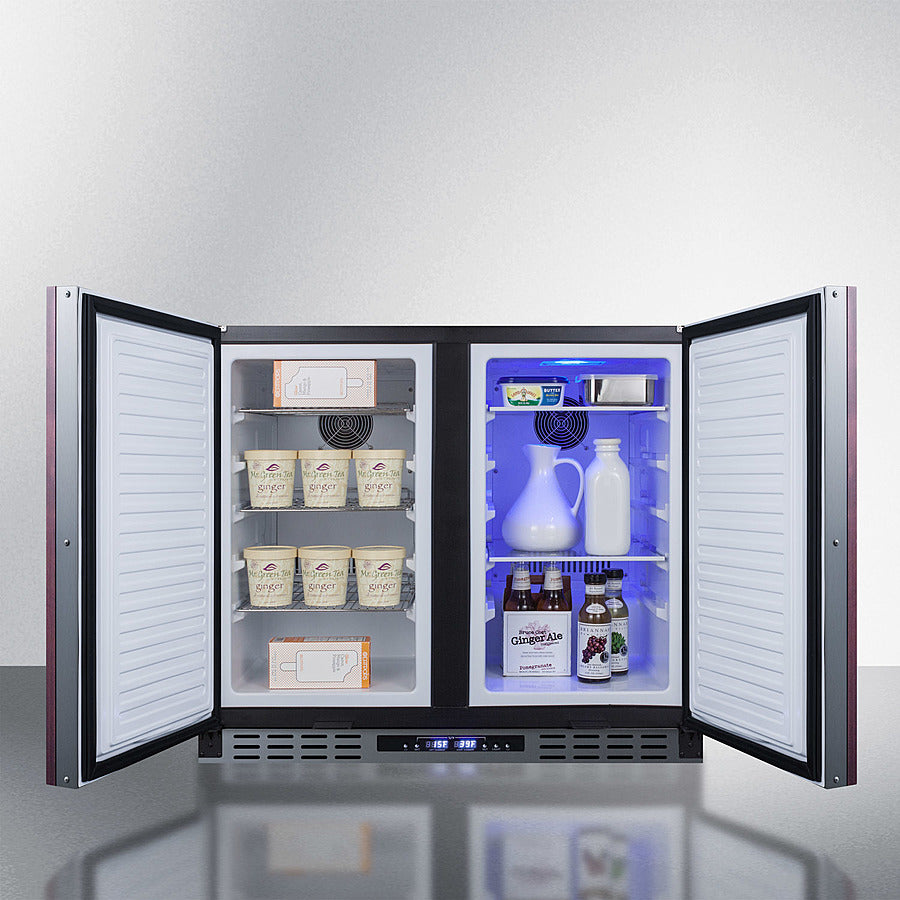

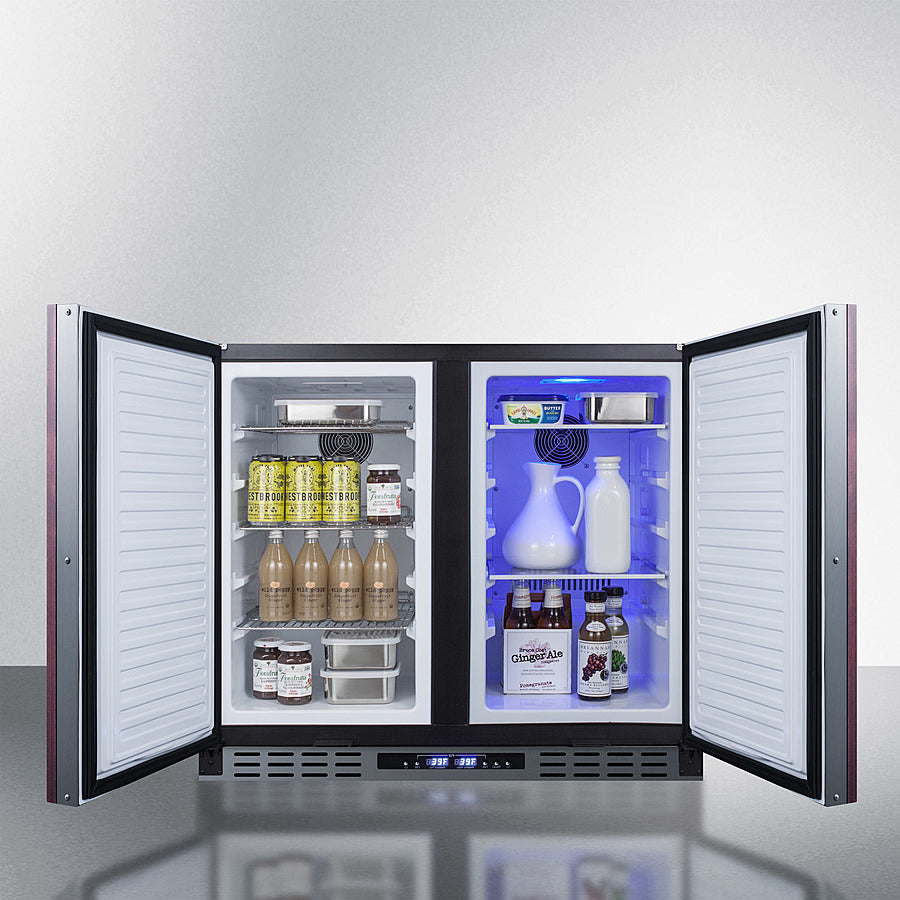

SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The FFRF36IFADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. A stainless steel kickplate adds elegance to any space. The digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36IFADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. The FFRF36ADA is sized at 31 5/8 inches high to fit under lower ADA compliant counters. For this unit in standard height, see the FFRF36IF. NOTE: Due to its larger commercial design, the FFRF36IFADA requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

Product Features

Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
ADA compliant design
31 5/8 height for use under lower ADA compliant counters
Built-in capable
Front-breathing system allows the unit to be used built-in
All-in-one design
Separate refrigerator and freezer sections with single compressor operation
Frost-free operation
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
Digital thermostat
Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
LED lighting (refrigerator)
Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation

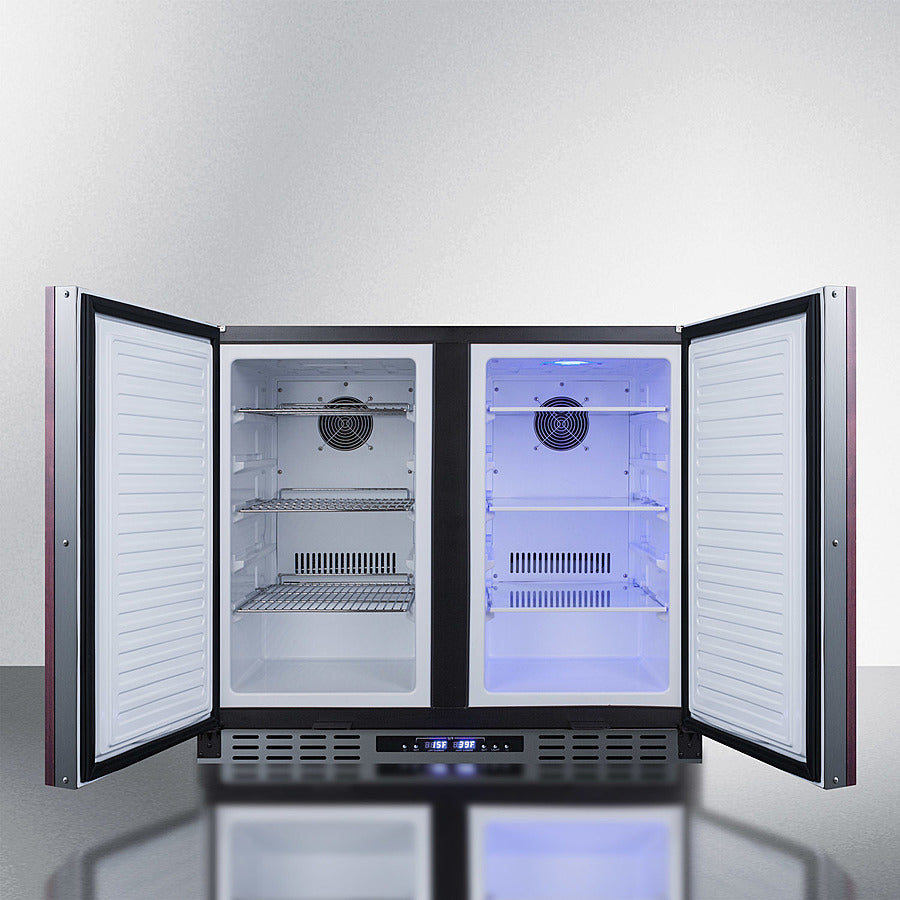

Adjustable shelves (5 placement options)
Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
Convertible freezer
Freezer compartment temperature can be set to serve as a second refrigerator as needed
Internal fans
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability
Temperature memory function
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Fully finished cabinet
Allows the unit to be used freestanding
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Leveling legs
Two leveling legs ensure the unit is even when placed on uneven surfaces
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

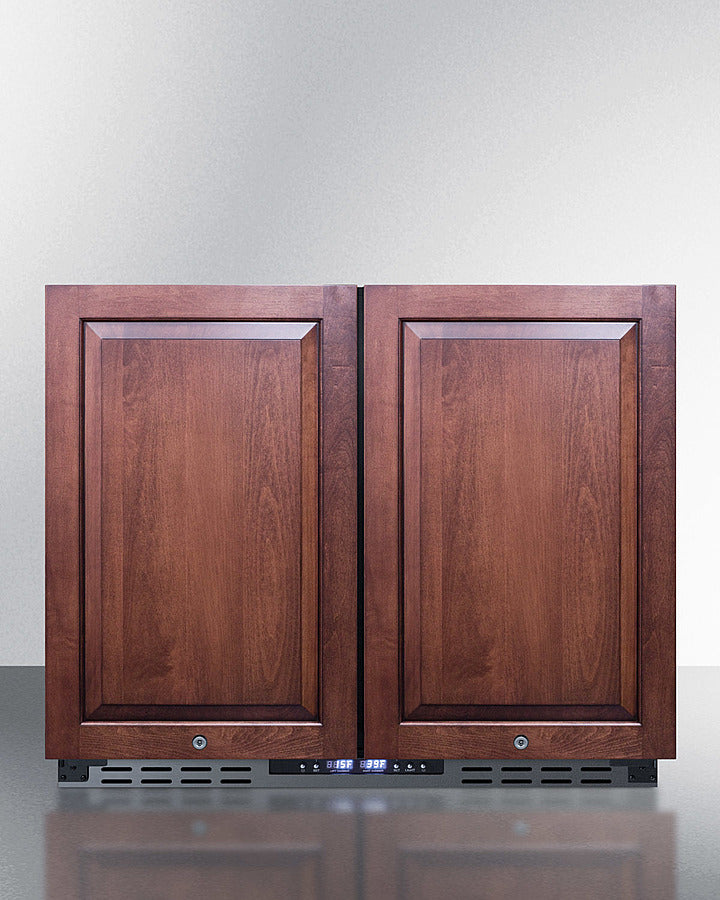

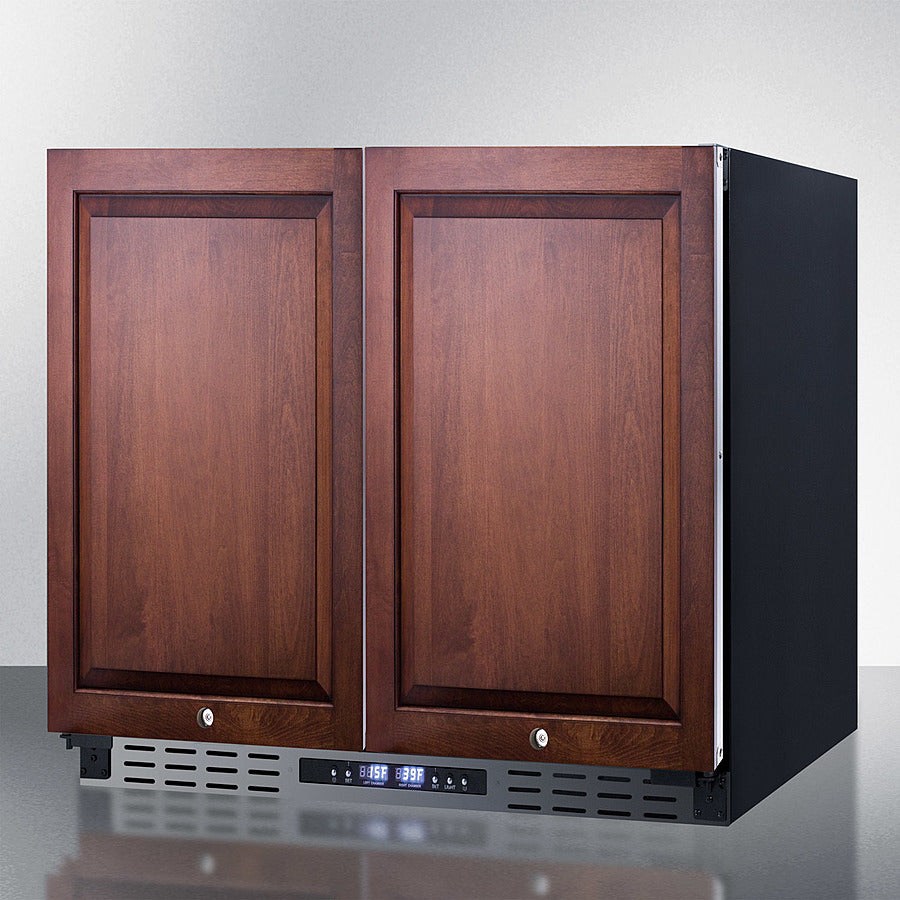

Panel-ready doors
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
