SKU: FF7BKBIIF | UPC: 761101072807

Summit FF7BKBIIF 24" Wide Built-In All-Refrigerator (Panel Not Included) Black

Quick Specification More details

Width:
23.63"
Depth:
23.63"
Height:
32.63"
Type:
Compact Refrigerators

About this product

Commercially approved
Slim undercounter dimensions
Built-in capable
Integrated door frame

Summer Sale

Clearance

SKU: FF7BKBIIF | UPC: 761101072807

Summit FF7BKBIIF 24" Wide Built-In All-Refrigerator (Panel Not Included) Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
23.63"
Height:
32.63"
Type:
Compact Refrigerators

About this product

Commercially approved
Slim undercounter dimensions
Built-in capable
Integrated door frame

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT FF7BKBIIF

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.63 in.
Height	32.63 in.
Length	23.63 in.
Weight	100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.54 ft³
Dimensional Weight	131.08 lbs.
Total of Cubes	10.54 ft³
Total of Dimensional Weight	131.08 lbs.

Overview refrigerator features dimensions

Nominal Height	33.0" (84 cm)
Height of Cabinet	32.63" (83 cm)
Height to Hinge Cap	33.25" (84 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.63" (60 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101072807
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

Description

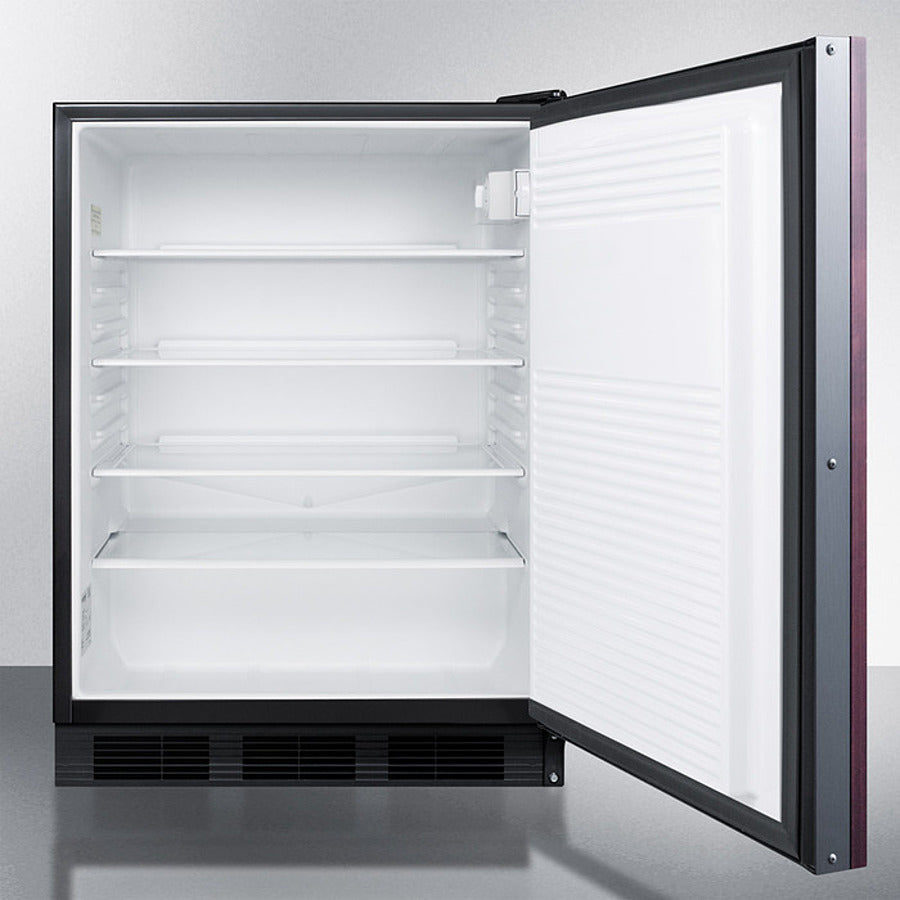

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters. The FF7BKBIIF features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This model has a black cabinet. The door includes an integrated door frame designed to accept full overlay panels for a custom look. Users provide their own handle. Inside, the FF7BKBIIF utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial. The FF7BKBIIF is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series. NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.

Product Features

Commercially approved
ETL-S Listed and CalCode Compliant
Slim undercounter dimensions
Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

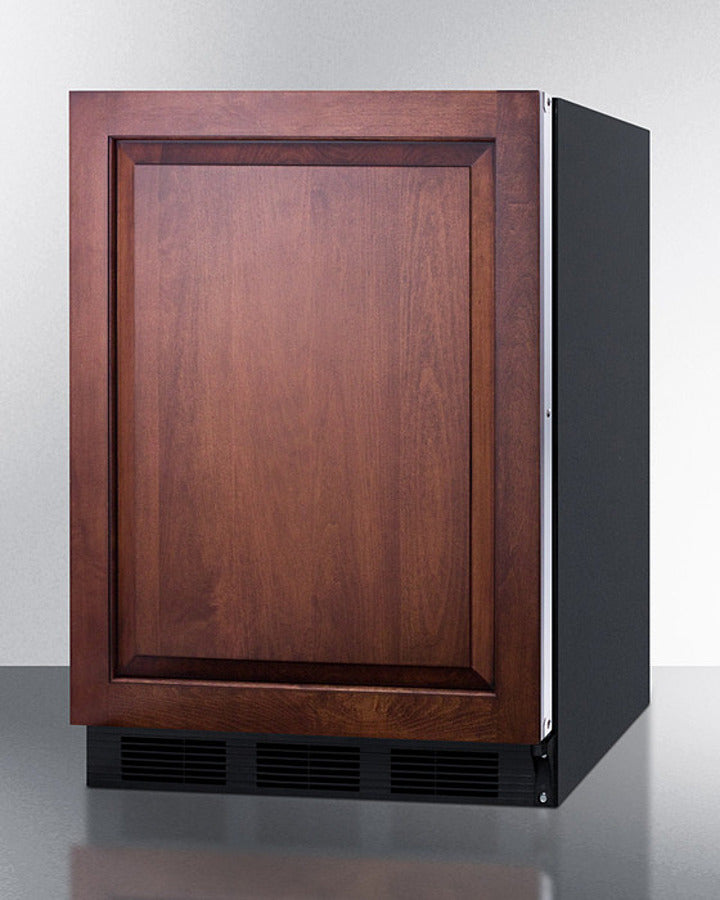

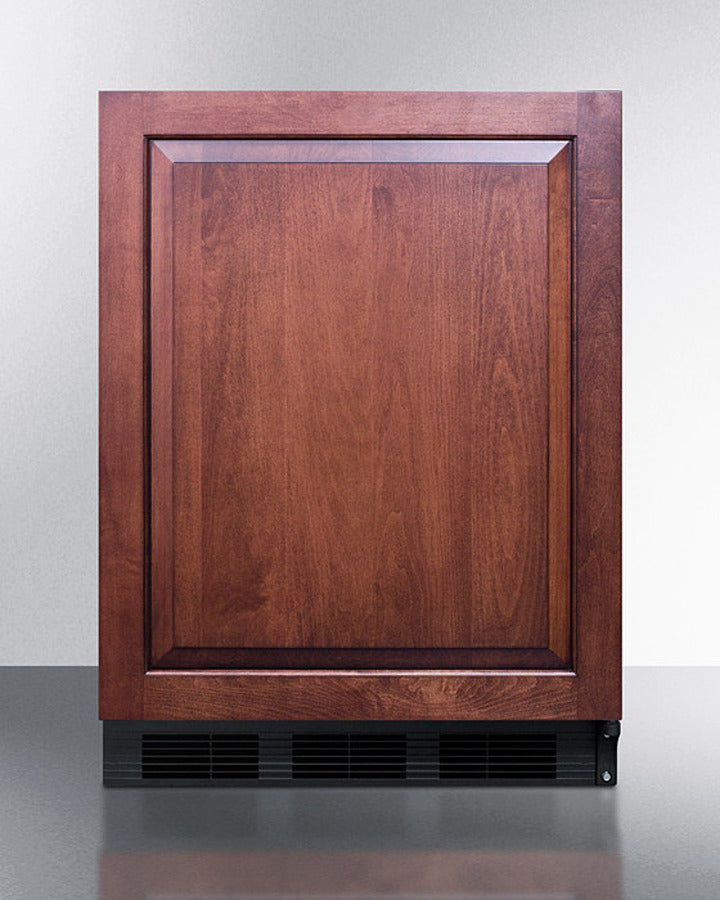

Integrated door frame
Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced user maintenance with automatic defrost
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Deep shelf space
Interior can accommodate large trays up to 19 1/2" x 15 1/2"
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished black cabinet
Allows the unit to be used freestanding
Height Adjustable
Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
