Summit FF27BSSADAIF 27" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
26.75"
Depth:
23.25"
Height:
31.88"
Type:
Compact Refrigerators

About this product

Panel-ready door
Indoor/Outdoor compatible
ADA Compliant height
Less than 24" deep

Summer Sale

Clearance

SKU: FF27BSSADAIF | UPC: 761101148977

Summit FF27BSSADAIF 27" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) Panel-Ready

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
26.75"
Depth:
23.25"
Height:
31.88"
Type:
Compact Refrigerators

About this product

Panel-ready door
Indoor/Outdoor compatible
ADA Compliant height
Less than 24" deep

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT FF27BSSADAIF

Technical Details

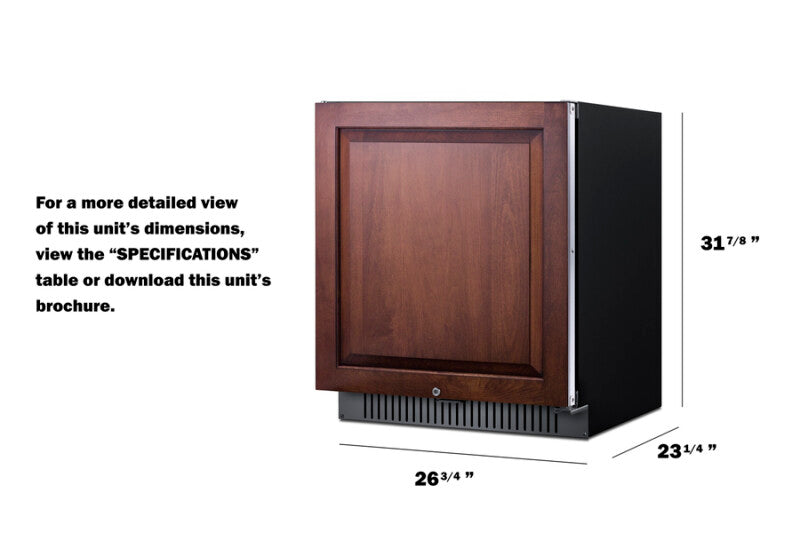

Dimensions & weight

Width	26.75 in.
Height	31.88 in.
Length	23.25 in.
Weight	101 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.47 ft³
Dimensional Weight	142.64 lbs.
Total of Cubes	11.47 ft³
Total of Dimensional Weight	142.64 lbs.

Overview refrigerator features dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.88" (81 cm)
Nominal Width	27.0" (69 cm)
Width	26.75" (68 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.25" (59 cm)
Depth with Panel	24.0" (61 cm)
Depth with door at 90°	48.5" (123 cm)
Capacity	4.98 cu.ft. (141 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	235.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	101.0 lbs. (46 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101148977
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 46ºF
Sound Level	40.5 dB
Interior Height	23.25" (59 cm)
Interior Width	22.5" (57 cm)
Interior Depth	16.88" (43 cm)
Compressor Step Height	4.25" (11 cm)
Compressor Step Width	22.5" (57 cm)
Compressor Step Depth	4.5" (11 cm)

Description

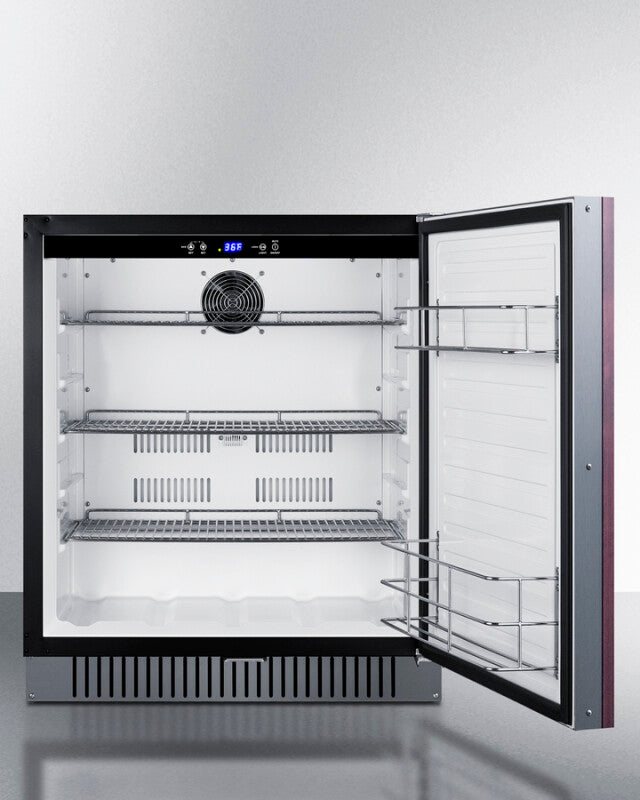

Summit is expanding its popular lineup of built-in undercounter ADA height refrigeration with new luxury choices for 27" wide spaces in residential or commercial kitchen spaces. Model FF27BSSADAIF is an all-refrigerator sized just under 27" wide and under 24" deep for an easy fit under in any kitchen with limited depth. The 32" height makes this perfect for use under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 26 9/16" W x 27 9/16" H at 3/4" thickness). The sealed back and right angle plug help to ensure an easy fit. We include a factory-installed lock on the door and two keys for optional security as needed. The refrigerator interior comes in a clean white finish, perfect for providing full visibility. The LED lighting can be adjusted between three levels of brightness to best suit your preferences. Additional features include a 96-hour Sabbath mode setting, high/low temperature alarm, and a child lock to secure the digital control panel. Adjustable chrome shelves make it easy to rearrange the interior as needed for the optimum storage. The door includes two racks ideal for holding condiments and the floor is slotted to keep bottles in place. The FF27BSSADAIF is ETL-S listed to NSF-7 commercial standards and is also approved for residential use. The weatherproof construction allows use in indoor or outdoor kitchens. Additional 27" wide choices ADA compliant choices are available in drawer style (SPR275OS2DADA). Browse the full Summit line to explore endless options for ADA compliant spaces.

Product Features

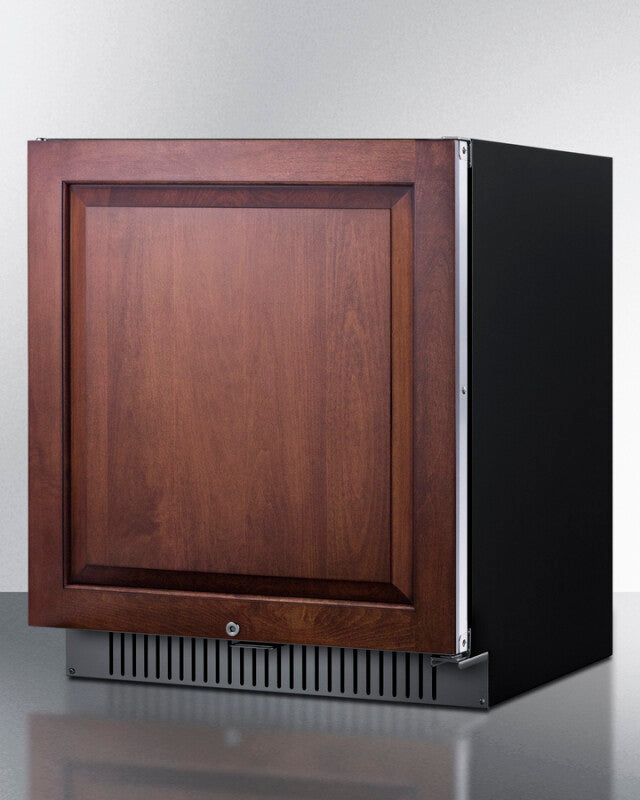

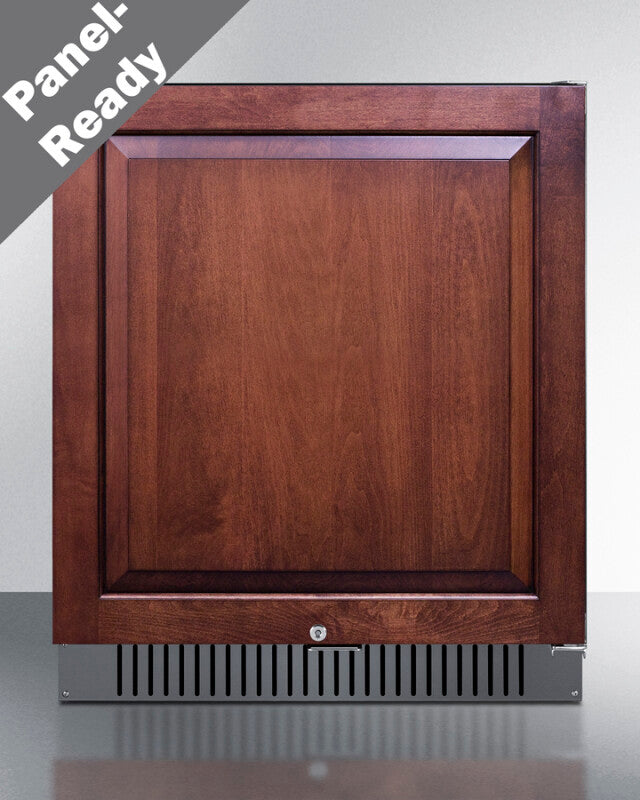

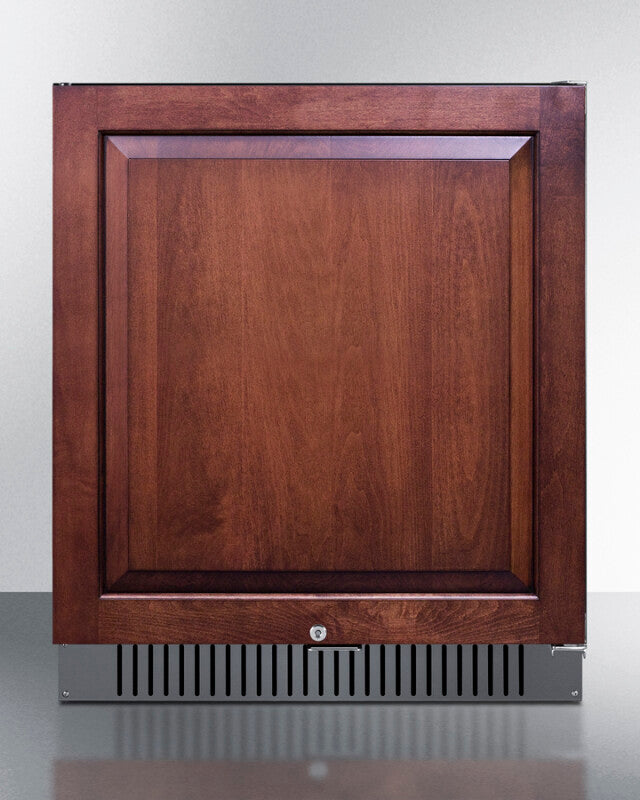

Panel-ready door
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design (recommended panel size: 26 9/16" W x 27 9/16" H at 3/4" thickness)
Indoor/Outdoor compatible
Weatherproof construction allows safe use in outdoor settings
ADA Compliant height
32" height allows easy installation under lower ADA compliant counters
Less than 24" deep
Shallower fit than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces
Stainless steel door
Durable construction with a stylish look
White interior
Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

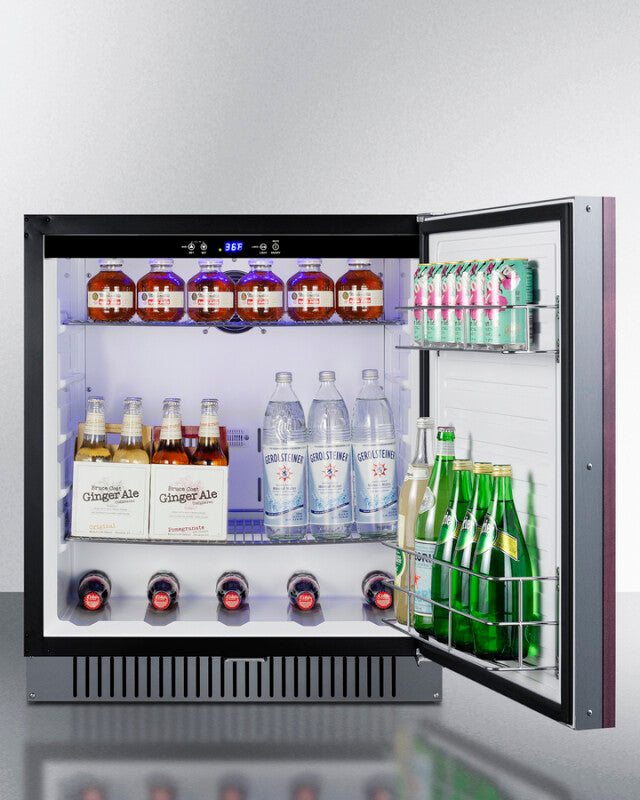

Door storage
Two racks offer the perfect storage solution for tall bottles and condiments
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
27" Wide Undercounter All-Refrigerator
Uniquely sized for built-in installation under counters in residential or commercial kitchen settings
Commercially approved
ETL-S listed to NSF-7 commercial standards

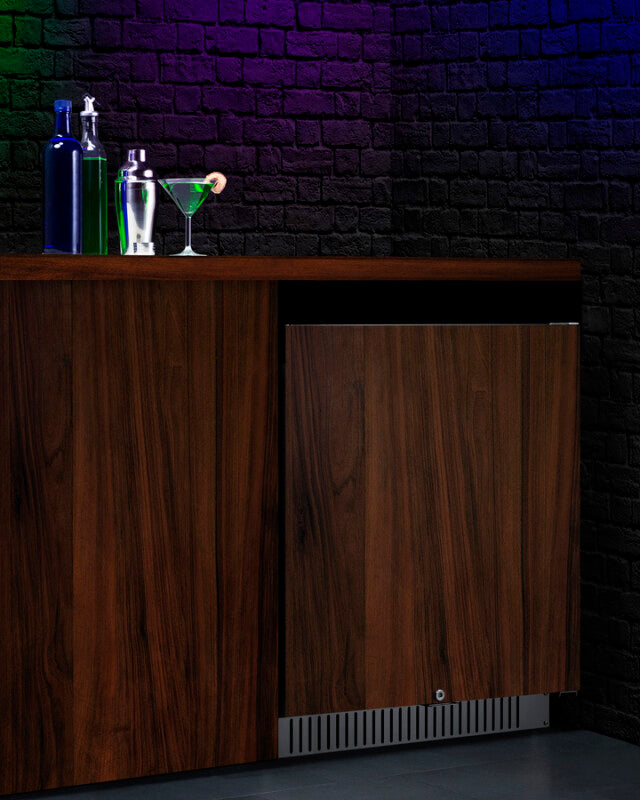

Built-in capable
Front-breathing design allows the unit to be built-in under counters

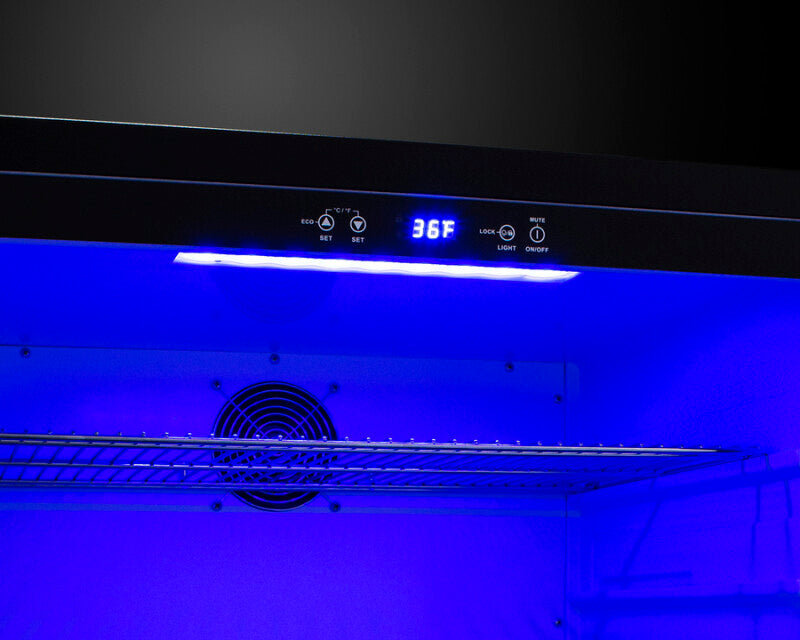

Digital control panel
Easy and intuitive digital controls located inside the refrigerator
Factory installed lock
Keyed lock for a secure interior (2 keys included)

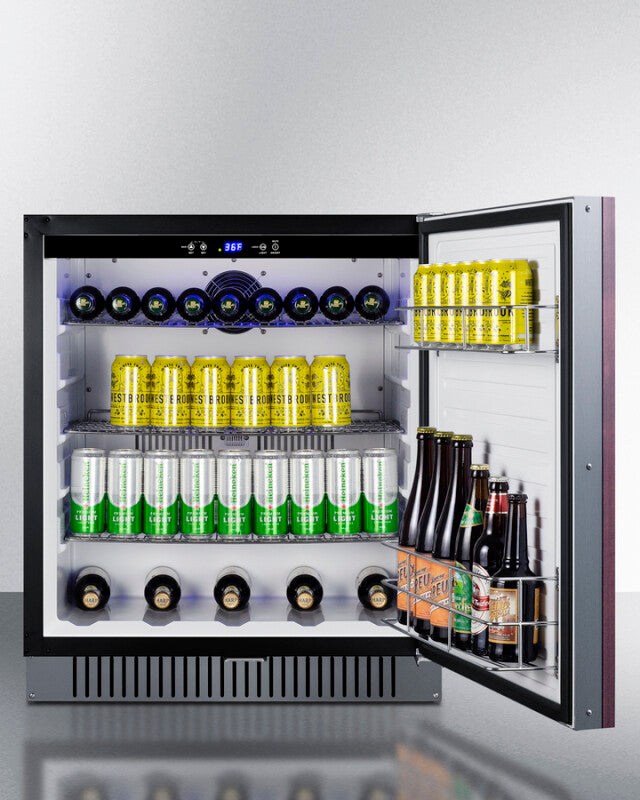

Adjustable shelving
Durable commercial shelving lets you rearrange the interior as needed to accommodate a variety of sizes
Slotted floor
Floor features bottle slots that help to keep them in place as needed
Automatic defrost
Reduced maintenance with auto defrost system
Interior lighting
Dimmable LED lighting (with 3 brightness settings) in an attractive blue hue
Temperature alarm
Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Fully finished black cabinet
Allows unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
