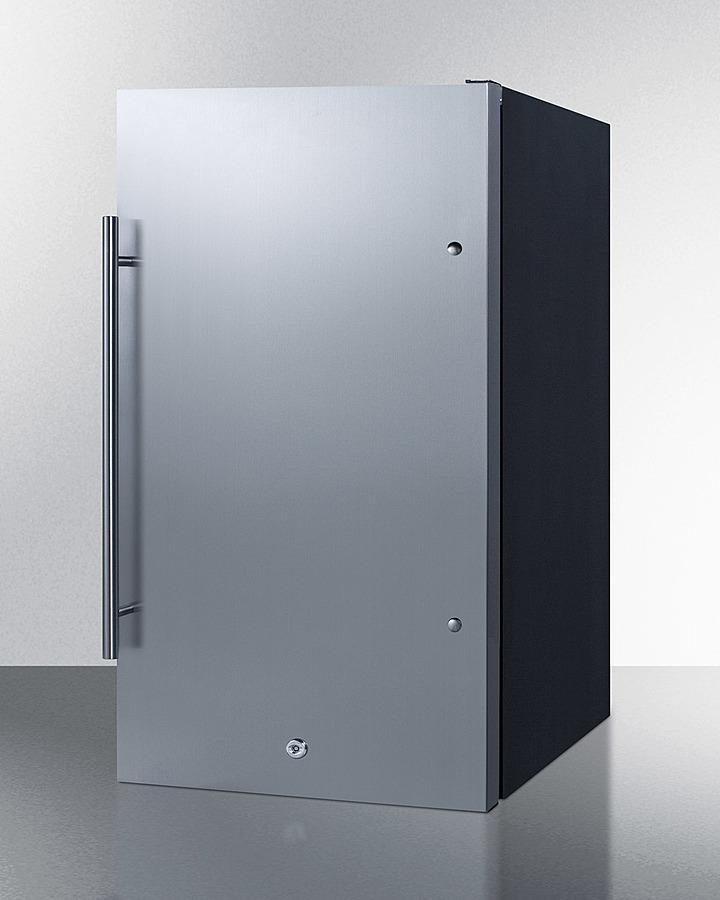

Summit FF195ADA Shallow Depth Built-In All-Refrigerator, ADA Compliant Stainless Steel/Black

Quick Specification More details

Width:
19"
Depth:
17.25"
Height:
32.5"
Type:
Refrigerator Only

About this product

ADA compatible height
Commercially approved
ENERGY STAR certified
17.25" shallow depth

Summit FF195ADA Shallow Depth Built-In All-Refrigerator, ADA Compliant Stainless Steel/Black

$1,130.36 ~~$1,329.97~~ Save $199.61 / 15% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Refrigerator Installation — Existing Water Line only (No Mods; No Copper lines)
$110.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
19"
Depth:
17.25"
Height:
32.5"
Type:
Refrigerator Only

About this product

ADA compatible height
Commercially approved
ENERGY STAR certified
17.25" shallow depth

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,130.36 ~~$1,329.97~~ Save $199.61 / 15% OFF

Product Details for Summit FF195ADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	19 in.
Height	32.5 in.
Length	17.25 in.
Weight	70 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.16 ft³
Dimensional Weight	76.63 lbs.
Total of Cubes	6.16 ft³
Total of Dimensional Weight	76.63 lbs.

Overview refrigerator features dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.5" (83 cm)
Nominal Width	19.0" (48 cm)
Width	19.0" (48 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.25" (44 cm)
Depth with Handle	18.57" (47 cm)
Depth with door at 90°	34.75" (88 cm)
Capacity	3.13 cu.ft. (89 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	259.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	70.0 lbs. (32 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067995
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.88oz.
High Side PSI	320.0
Low Side PSI	120.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34 to 50ºF
Sound Level	33.4 dB
Interior Height	29.0" (74 cm)
Interior Width	16.0" (41 cm)
Interior Depth	12.75" (32 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	16.0" (41 cm)
Compressor Step Depth	6.25" (16 cm)

Description

Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style. The FF195ADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a jet black cabinet with a sealed back for easy cleaning of the unit. At 32.5 inches high, it's ideal for use under many ADA compliant counters. The user-reversible stainless steel door adds elegance to any setting and the stainless steel pro-style handle completes the look. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces. Inside, the FF195ADA utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management. The FF195ADA is ENERGY STAR certified and designed for built-in or freestanding use. For a similar glass door unit commercially approved for outdoor use, see the SPR489OSADA.

Product Features

ADA compatible height
Sized at 32.5" high for installation under most lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
17.25" shallow depth
Ideal for home wet bars, island kitchens, and other applications with limited footprint space
Automatic defrost
Reduced user maintenance with auto defrost system
Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed
Professional handle
Stainless steel handle adds an attractive touch
Stainless steel door
Stainless steel door offers an elegant look
Factory installed lock
Keyed lock offers added security, with two keys included
Adjustable shelves
Three glass shelves with brake system ensures safe, optimal storage
Door racks
Two chrome racks accommodate a variety of sizes for optimal interior storage
LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view
Black interior finish
Allows for easy cleaning and organization within the interior of the unit
Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction
Versatile design allows for residential use
Sealed back
Space saving design for easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Right-angle plug
Provides flexibility in unit placement without needing added depth
