SUMMIT CT663BKBIKSHHADA 24" Wide Built-in Refrigerator-freezer, ADA Compliant

Summit

CT663BKBIKSHHADA-KT

|

Product ID: CT663BKBIKSHHADA

  • On Sale
Key Specs
  • Type: Compact refrigerators
  • Width: 23.63 Inch
  • Depth: 23.5 Inch
  • Height: 32.38 Inch

More details

Sale price $1,474.47 Regular price $2,050.00 Save $575.53

Check Delivery Options

Out of stock

Notify Me
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Black Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068572
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 4
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL) Alarm
HG - Hospital grade cord SSK
Latch for door LHD - Left hand door swing
ODA - Open door alarm SCD - Self-closing door
SS Hinges PH - Probe Hole
TT - Installed thermometer -
Interior
FC - Internal Fan FCGP internal fan with gel packs
Lock
AC Keypad KEYPAD
Door
STO-Step-To-Open Door Pedal -
Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Black Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068572
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 4
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL) Alarm
HG - Hospital grade cord SSK
Latch for door LHD - Left hand door swing
ODA - Open door alarm SCD - Self-closing door
SS Hinges PH - Probe Hole
TT - Installed thermometer -
Interior
FC - Internal Fan FCGP internal fan with gel packs
Lock
AC Keypad KEYPAD
Door
STO-Step-To-Open Door Pedal -


32" height fits under lower ADA compliant counters
(BULL)304 grade stainless steel in a high gloss neutral finish from our basalt collection
(BULL)Fingerprint resistant door hides most smudges and is easy to clean with a dry cloth
(BULL)Flexible design allows built-in or freestanding use in 24" wide spaces

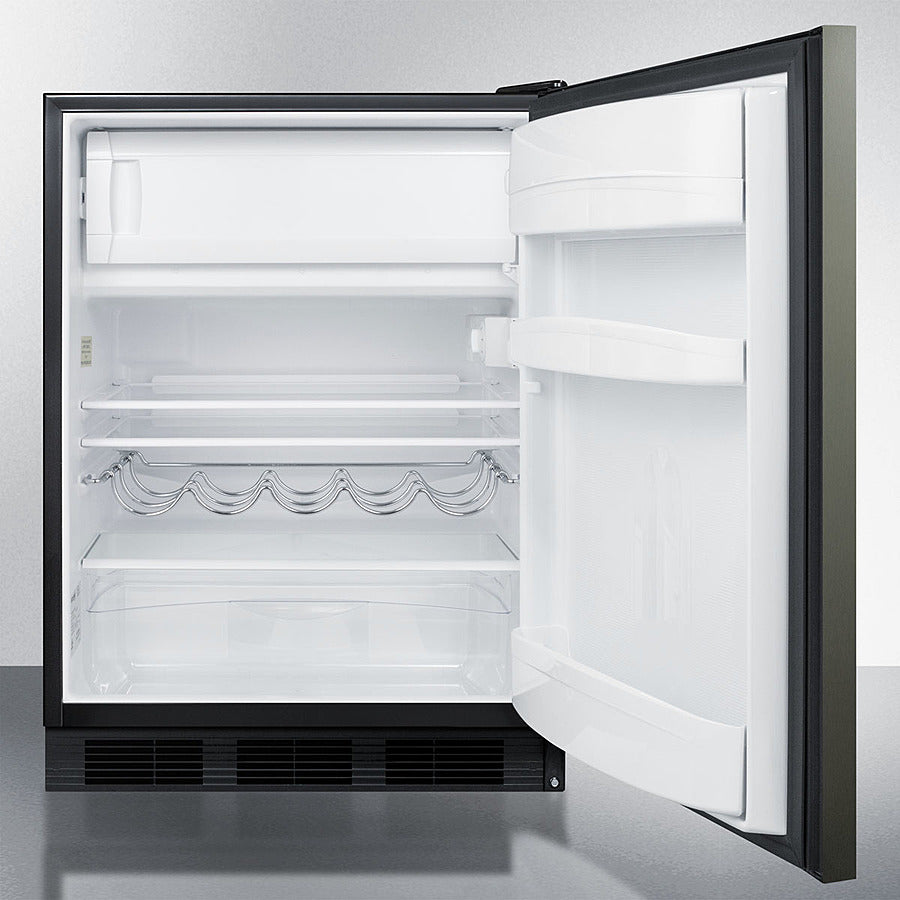

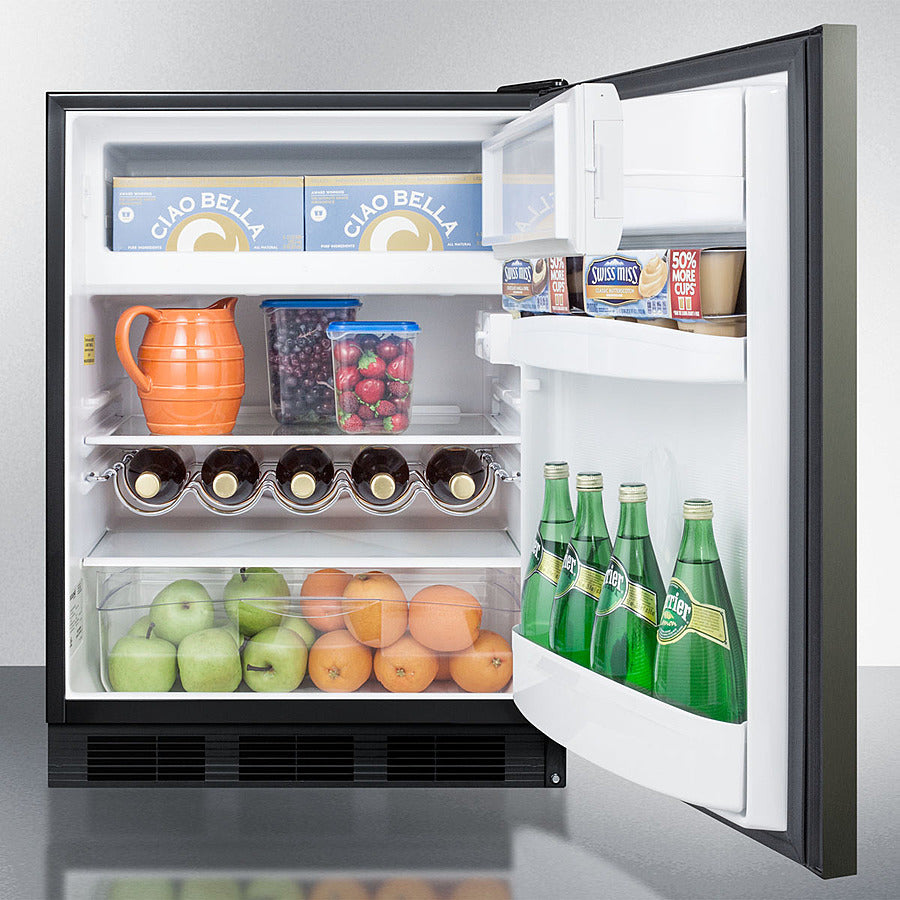

(BULL)Deluxe interior with glass shelves, door storage, and a scalloped wine shelf
(BULL)Improved temperature performance with our unique dual evaporator cooling
(BULL)Made in Europe


SUMMIT brings quality and value under the counter with the industry's largest collection of ADA compliant built-in refrigeration. The CT663BBIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters. Sized with a 24" footprint, the CT663BKBIKSHHADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32" height and front-breathing design make it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished black cabinet also enables freestanding use. The CT663BKBIKSHHADA comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look. Inside, the CT663BKBIKSHHADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat. With its ideal dimensions and user-friendly features, the CT663BKBIKSHHADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.

  • ADA compliant : 32" high to fit under lower ADA compliant counters
  • Door storage : Store tall bottles and condiments right on the door for convenient access
  • Slim undercounter dimensions : Less than 24" wide with a generous storage capacity
  • Built-in capable : Make the best use of space by installing your appliance under the counter
  • Black stainless steel wrapped door : 304 grade stainless steel in a high gloss neutral finish from our basalt collection
  • Fingerprint resistant : Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges
  • Professional horizontal handle : Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
  • Cycle defrost : This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
  • Dual evaporator : Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
  • Adjustable glass shelves : Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
