Sale price $1,361.39 Regular price $1,737.97 Save $376.58 / 21% OFF

Product Details for SUMMIT CMV115

Technical Details

Dimensions & weight

Width 23.5 in.
Height 17.75 in.
Length 22.25 in.
Weight 82 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 5.37 ft³
Dimensional Weight 66.77 lbs.
Total of Cubes 5.37 ft³
Total of Dimensional Weight 66.77 lbs.

Overview speed oven

Nominal Height 18.0" (46 cm)
Height of Cabinet 17.75" (45 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Depth 22.25" (57 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 35.75" (91 cm)
Capacity 1.55 cu.ft. (44 L)
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Parts & Labor Warranty 1 Year
UPC 761101108117
Controls Digital
Cooking Timer Yes
Digital Clock Yes
Oven Temperature Range 100 to 450ºF
Oven Cleaning Type Manual
Oven Rack Qty 1
Interior Height 9.75" (25 cm)
Interior Width 16.5" (42 cm)
Interior Depth 16.5" (42 cm)
Cutout Height 17.75" (45 cm)
Cutout Width 22.31" (57 cm)
Cutout Depth 22.0" (56 cm)
Power Source 115V with cord and NEMA 5-20 plug
Number of Cooking Settings 12
Microwave Function Yes
Wattage 1000W
Convection Yes
Broiler Yes
Turntable Diameter 14.25" (36 cm)
Child Lock Yes
Window Yes
Interior Light Yes

Description

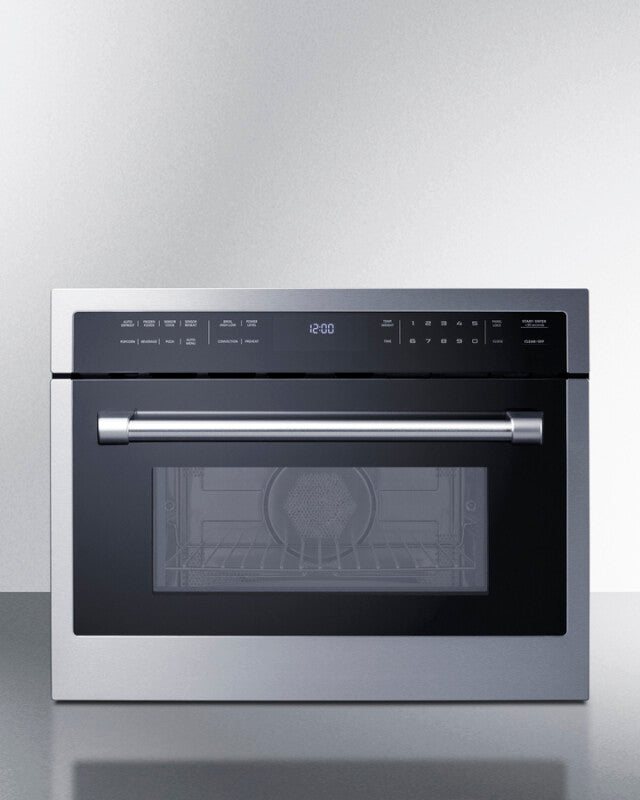

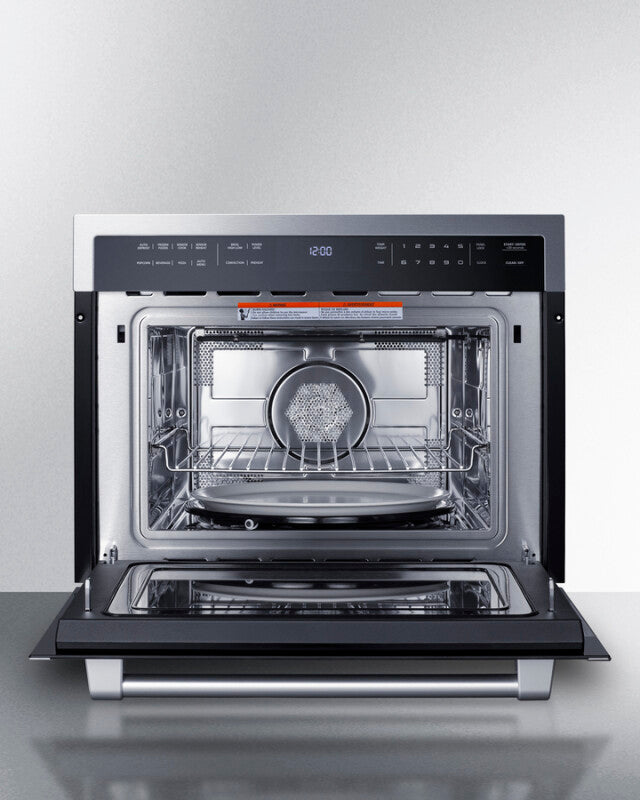

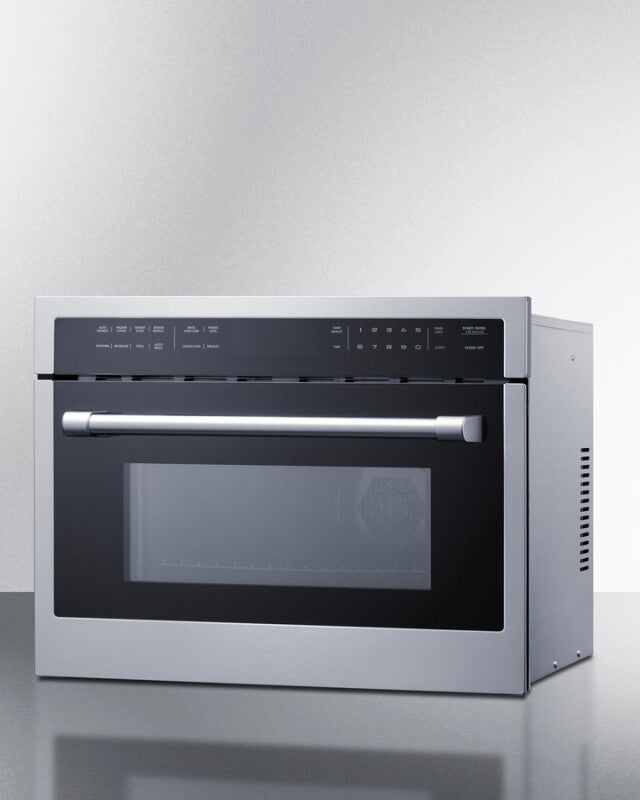

Summit helps enhance smaller kitchen functionality with fully featured speed ovens. Designed for built-in installation, the CMV115 meets all of your cooking needs in just 24" of width. This unit can be installed in 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings to maximize kitchen space. It includes a pre-installed cord with a 3-prong NEMA 5-20 plug for easy installation in 115V connections. The CMV115's exterior features sleek stainless steel with a horizontal grain and a modern design with a matching handle. The double-pane tempered glass door comes with an attractive tint and jet black trim to match the digital touch control panel. Inside, this speed oven offers a generous 1.55 cu.ft. capacity. The interior walls are constructed from stainless steel to ensure easier cleaning and lasting durability. We include an adjustable wire oven rack, ceramic round baking tray, and removable metal turntable for easy microwave use. Enjoy uncomplicated cooking to achieve the exact taste, texture, and, more importantly, temperature you want for your dishes. Settings include bake, high/low broil, and convection heating. The rapid preheat function saves cooking time and features an audible alert when the set temperature has been reached. The microwave functionality includes a +30 seconds button, as well as one-touch settings for popcorn, beverages, frozen foods, and pizza, as well as sensor heating and auto defrost by time or weight. 10 power settings let you find the right level of heat for every dish. Multi-stage cooking allows you to set two power levels when needed. With its ideal size, modern style, and advanced technology, the CMV115 is the perfect solution for bringing full-service cooking convenience to apartments, senior living facilities, mobile homes, and other kitchens with space and power limitations. For a 240V version, see model CMV24. In addition to our innovative speed ovens, we offer built-in, drawer-style, and countertop microwaves in an array of finishes. Visit summitappliance.com to explore all of our convenient cooking solutions.


Product Features

  • 24" Wide 115V Speed Oven
    Built-in 115V speed oven designed for installation under the counter or in wall openings

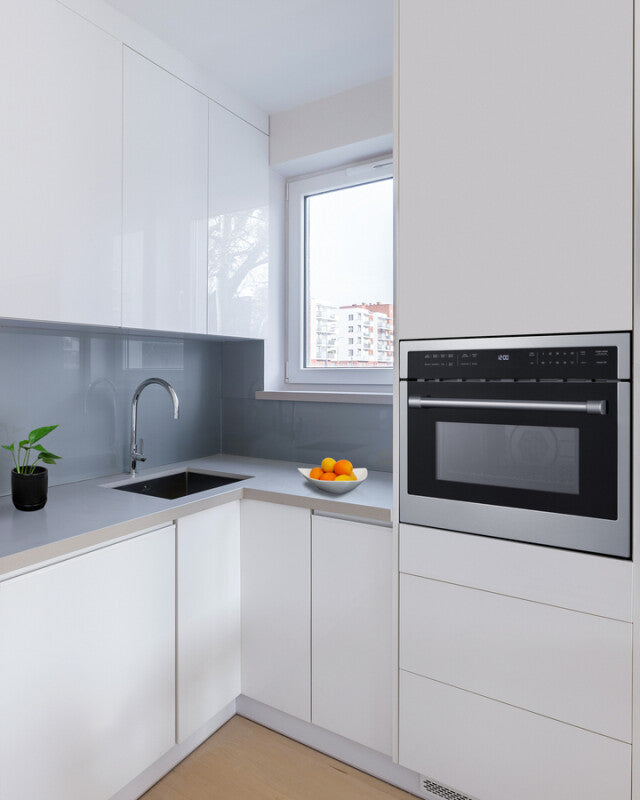

  • Designed for built-in installation
    Sized to fit 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings
  • 110-120V operation
    Designed for installation in kitchens with a 115V/60Hz/20 amp connection

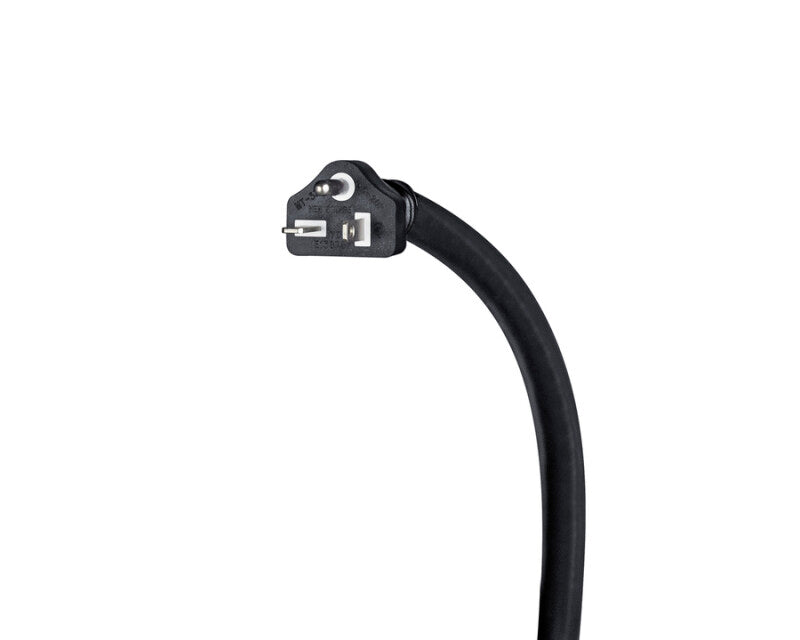

  • Power cord included
    Ships with a pre-installed cord and standard NEMA 5-20 3-prong plug for easy installation
  • Large capacity
    1.55 cu.ft. interior offers spacious cooking space for medium to large dishes
  • Oven window
    Double pane glass door with a tint lets you monitor your cooking

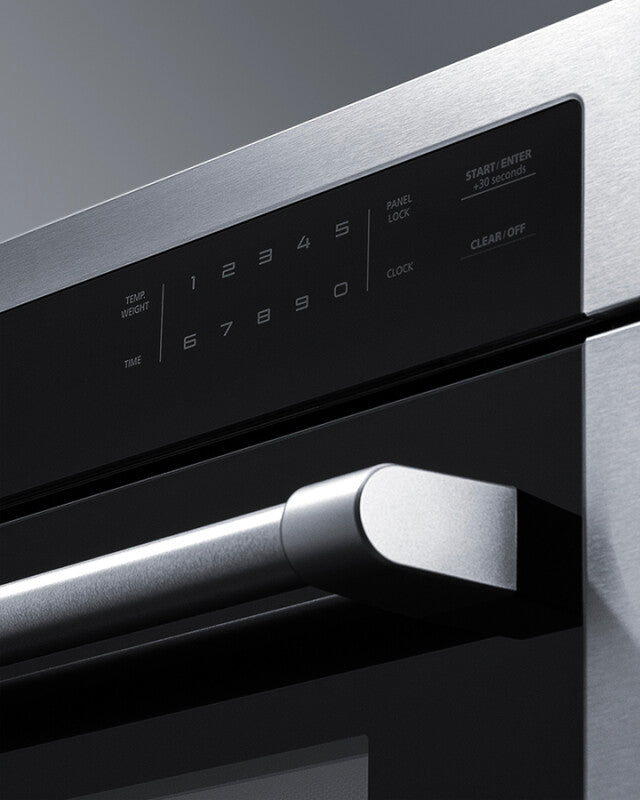

  • Digital touch controls
    Intuitive touch controls for easy operation
  • Microwave fucntion
    Can be used for standard microwave cooking with options that allow 220W, 400W, 600W, 800W, and 1000W heating
  • Defrost function
    Defrost by weight or time for decreased cook time
  • Broiler function
    High/low broil setting perfect for toasting food, baking cheese-covered dishes such as lasagna, grilling meat, or baking certain pies
  • Preheat function
    Ensure more efficient cooking with the rapid preheat function that sends an audible alert when the temperature has been reached
  • Sensor cook function
    Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
  • +30 seconds function
    One-touch setting lets you add 30 seconds of full power heating
  • Specialty 1-touch cooking options
    Pre-programmed settings for pizza, beverages, popcorn, frozen dinners, and reheating
  • Multi-stage cooking
    Allows you to set two power levels on a microwave setting for versatile heating as needed
  • Panel lock
    Safety "Stop" button lets you lock the control panel to prevent children from accidentally activating the unit
  • Digital clock with timer
    Centered display shows a digital readout of the time or timer countdown
  • Metal turntable
    Removable metal turntable for even heating when using the microwave function

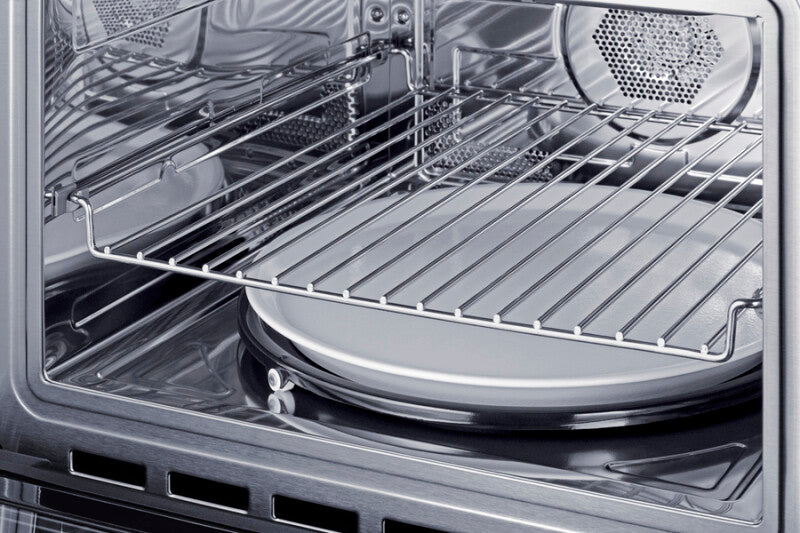

  • Ceramic baking tray
    Includes a removable round tray for easy baking
  • End of cycle buzzer
    Oven will audibly beep when cooking function has finished
  • UL listed for the USA and Canada
    Approved for residential installation in American or Canadian kitchens
  • FCC Approved
    This unit complies with part 18 of the FCC rules
  • Stainless steel construction
    Interior and exterior manifold and door trim are constructed from stainless steel for professional elegance and long-lasting durability
  • Professional handle
    Robust handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry
  • Convection function
    Convection fan improves air circulation and ensure fast, even heating throughout the entire oven interior
