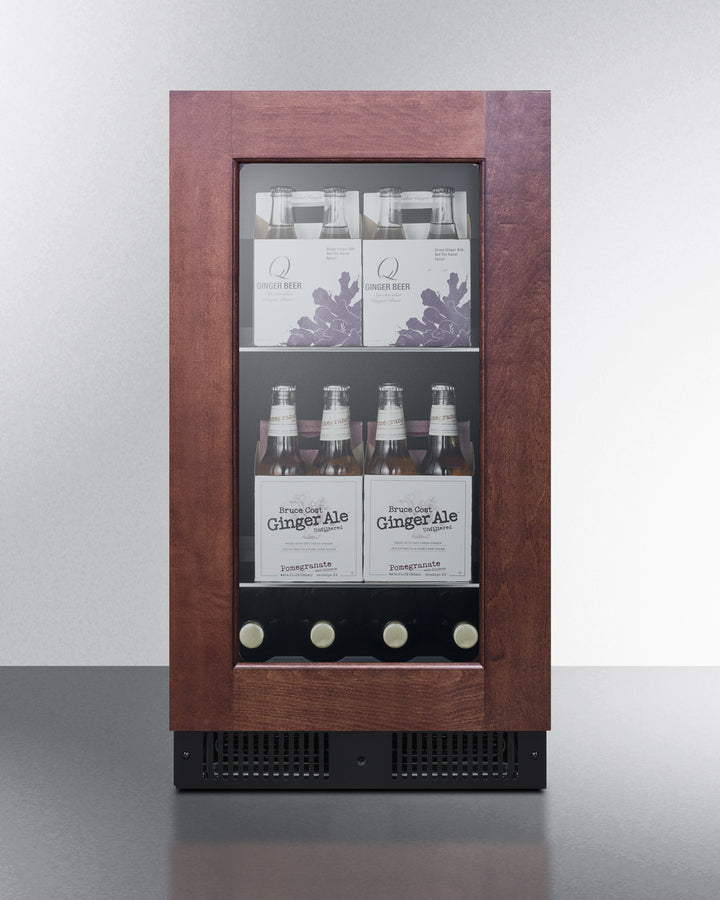

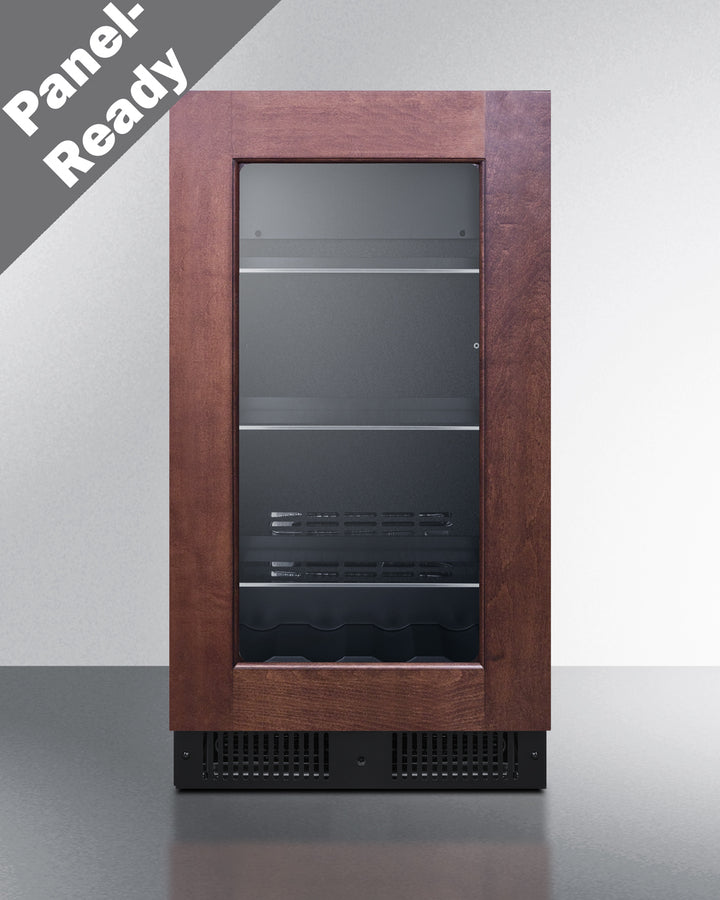

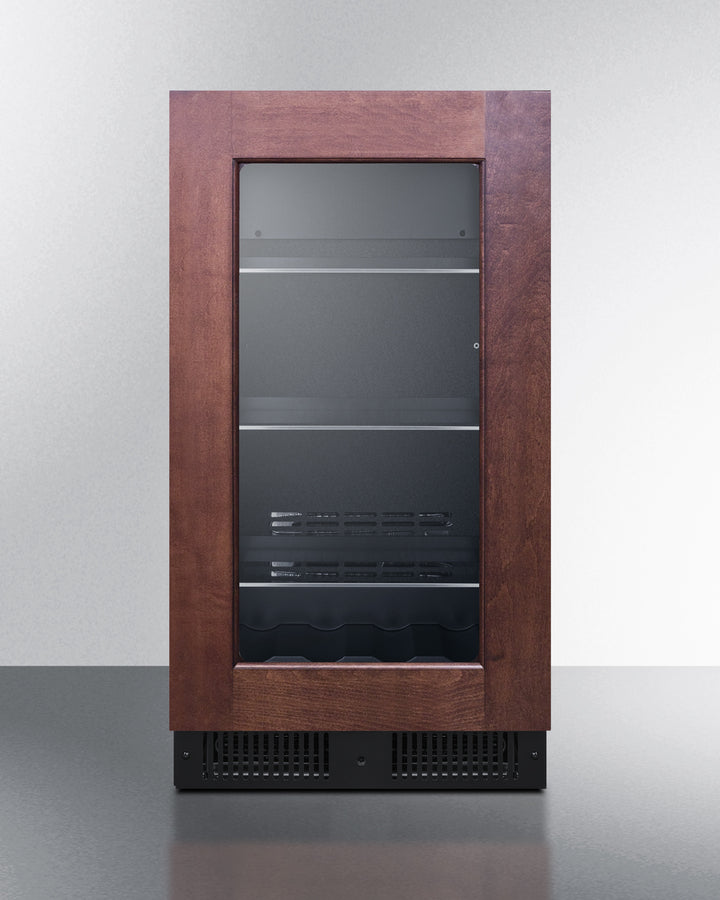

Summit CL181WBVPNRLHD 18" Wide Built-In Beverage Center (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
17.5" (44 cm)
Depth:
22.75" (58 cm)
Type:
Wine Fridges

About this product

18" Wide Beverage Center
Built-in capable
Panel-ready door trim
Double pane tempered glass door

Summer Sale

Clearance

SKU: CL181WBVPNRLHD | UPC: 761101145648

Summit CL181WBVPNRLHD 18" Wide Built-In Beverage Center (Panel Not Included) Panel-Ready

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
17.5" (44 cm)
Depth:
22.75" (58 cm)
Type:
Wine Fridges

About this product

18" Wide Beverage Center
Built-in capable
Panel-ready door trim
Double pane tempered glass door

Product Details for SUMMIT CL181WBVPNRLHD

Technical Details

Overview refrigerator features dimensions

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.75" (86 cm)
Nominal Width	18.0" (46 cm)
Width	17.5" (44 cm)
Nominal Depth	24.0" (61 cm)
Depth	22.75" (58 cm)
Depth with Handle	25.38" (64 cm)
Depth with Panel	23.5" (60 cm)
Depth with door at 90°	39.63" (101 cm)
Capacity	2.9 cu.ft. (82 L)
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	255.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	88.0 lbs. (40 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101145648
Sabbath Mode	Yes
Door Swing	LHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.85oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Light	Yes
Temperature Range	36 to 43ºF
Interior Height	23.0" (58 cm)
Interior Width	12.25" (31 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	12.25" (31 cm)
Compressor Step Depth	5.25" (13 cm)

Description

Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in the home. The CL181WBVPNRLHD is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products. The CL181WBVPNRLHD includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature. Uniquely styled and fully featured, the CL181WBVPNRLHD is an elegant solution to bringing reliable beverage storage to a variety of applications. In addition to this beverage centers, Summit manufactures a variety of 18" wide undercounter units, including wine cellars, freezers, icemakers, and drawer refrigerators. Browse the full lineup to find the right fit for your space.

Product Features

18" Wide Beverage Center
Undercounter glass door beverage refrigerator for built-in or freestanding use
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door trim
European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 17 3/8" W with a 3 1/4" H x 3 1/4" W inner frame
Double pane tempered glass door
Heat-safe glass ensures your items are stored safely
Digital thermostat
Electronic controls for precise temperature management
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Adjustable glass shelves
Spill-proof glass shelves make it easy to store and display bottles and cans
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
White LED lighting
Unique white lighting located inside the walls offers elegant illumination for the jet black interior
Professional handle
Vertically mounted handle in brushed stainless steel
Left hand door swing
For this unit with the door opening from the other side, see model CL181WBVPNR
Factory-installed lock
Keyed lock located in the kickplate for optional security
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature alarm
Audibly alerts if the interior temperature is too warm
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Automatic defrost
Reduced maintenance and steady temperature performance
Sealed back
Space saving design with easier cleanability
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet
Allows the unit to be used freestanding
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
