Product Details for SUMMIT CL181WBVPNR

Technical Details

Dimensions & weight

Width 17.5 in.
Height 33.75 in.
Length 22.75 in.
Weight 88 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.78 ft³
Dimensional Weight 96.67 lbs.
Total of Cubes 7.78 ft³
Total of Dimensional Weight 96.67 lbs.

Overview refrigerator features dimensions

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 18.0" (46 cm)
Width 17.5" (44 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Panel 23.5" (60 cm)
Depth with door at 90° 40.13" (102 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs. (40 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145600
Sabbath Mode Yes
Door Swing Reversible
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36 to 43ºF
Interior Height 23.5" (60 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.63" (42 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 14.0" (36 cm)
Compressor Step Depth 5.5" (14 cm)

Description

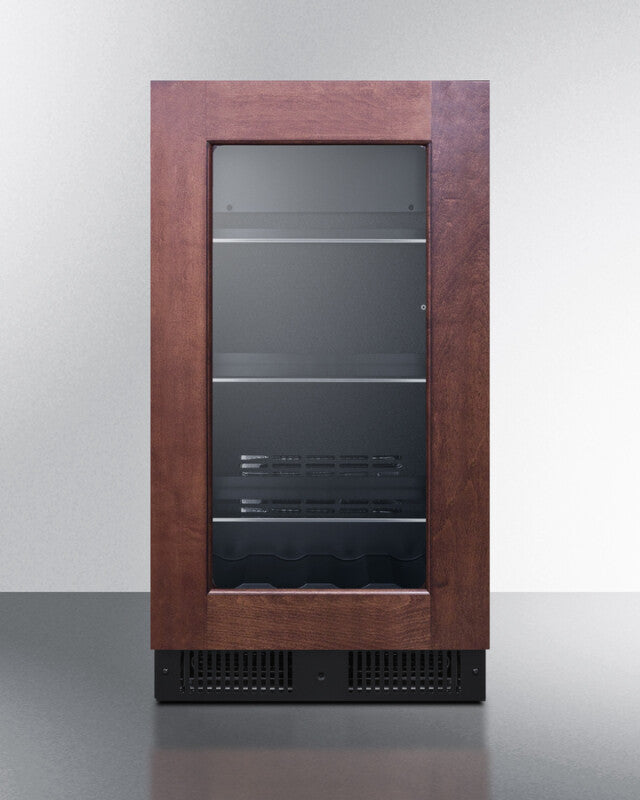

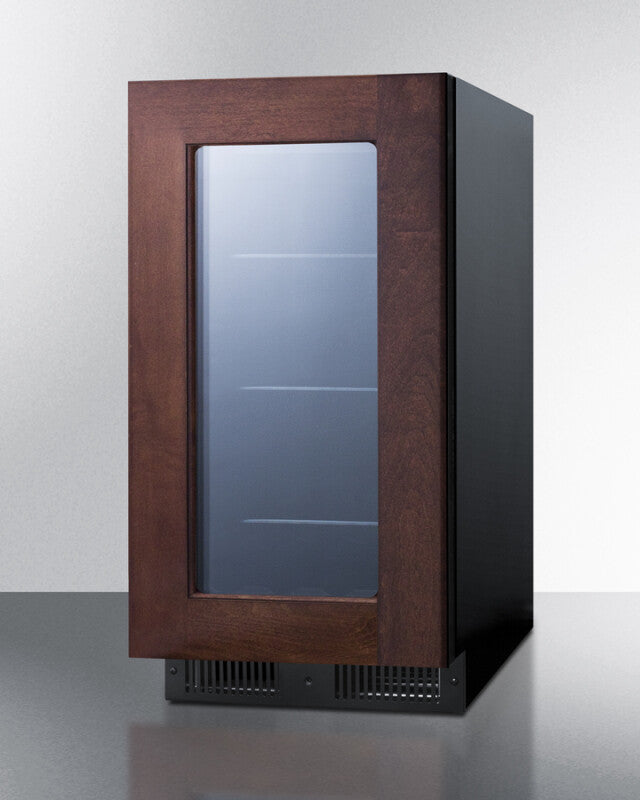

Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in the home. The CL181WBVPNR is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products. A lock is located in the kickplate for convenient security. The CL181WBVPNR includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature. Uniquely styled and fully featured, the CL181WBVPNR is an elegant solution to bringing reliable beverage storage to a variety of spaces. In addition to this beverage centers, Summit manufactures a variety of 18" wide undercounter units, including wine cellars, freezers, icemakers, and drawer refrigerators. Browse the full lineup to find the right fit for your space.


Product Features

  • 18" Wide Beverage Center
    Undercounter glass door beverage refrigerator for built-in or freestanding use
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

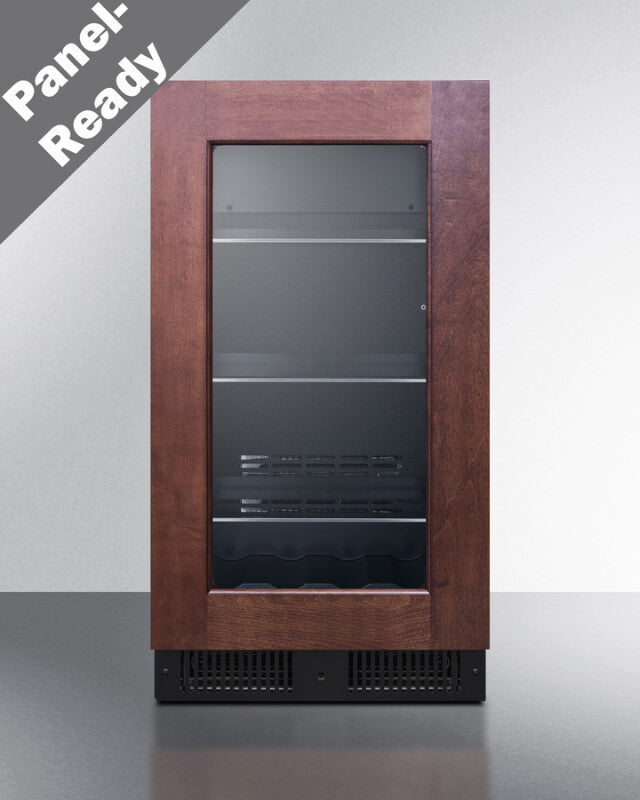

  • Panel-ready door trim
    European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 17 3/8" W with a 3 1/4" H x 3 1/4" W inner frame
  • Double pane tempered glass door
    Heat-safe glass ensures your items are stored safely
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit

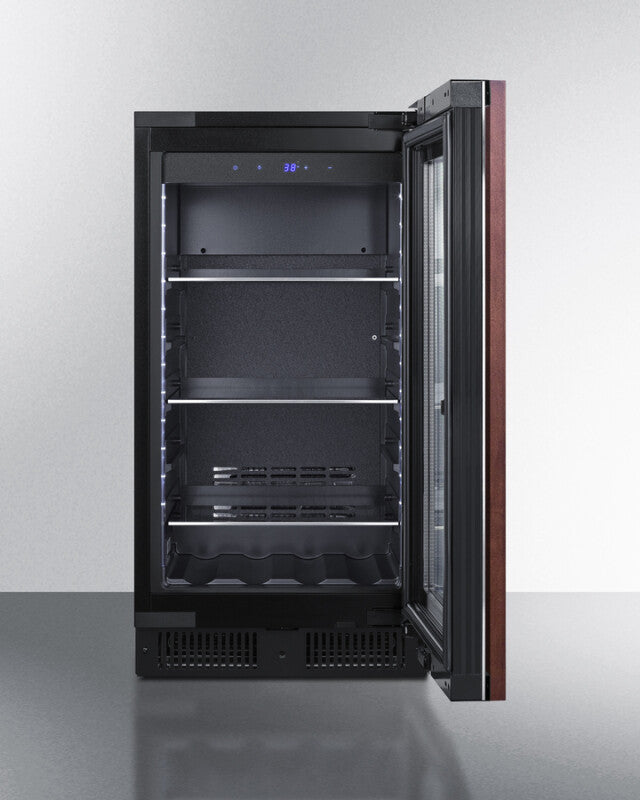

  • Adjustable glass shelves
    Spill-proof glass shelves make it easy to store and display bottles and cans

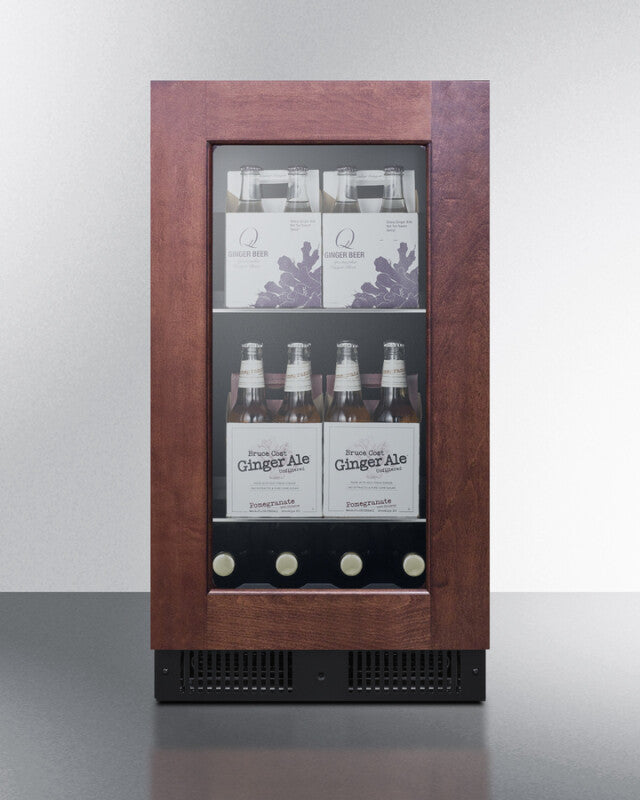

  • Bottle slots
    Floor is specially slotted to store wine and other bottles safely in place
  • White LED lighting
    Unique white lighting located inside the walls offers elegant illumination for the jet black interior
  • Professional handle
    Vertically mounted handle in brushed stainless steel
  • Reversible door
    User-reversible door swing allows for more flexibility in placing the unit
  • Sabbath Mode
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature alarm
    Audibly alerts if the interior temperature is too warm
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over 60 seconds
  • Fan-forced cooling
    Internal fan ensures the interior is evenly cooled from top to bottom
  • Automatic defrost
    Reduced maintenance and steady temperature performance
  • Sealed back
    Space saving design with easier cleanability
  • Factory-installed lock
    Keyed lock located in the kickplate for optional security
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Digital thermostat
    Electronic controls for precise temperature management
