Summit BIM68OSPUMPIF 47 lb. Clear Outdoor/Indoor Icemaker (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
14.88"
Depth:
22.63"
Height:
33.5"
Type:
Ice Makers

About this product

Outdoor Clear Icemaker
Weatherproof design
Built-in pump
Built-in capable

Summer Sale

Clearance

SKU: BIM68OSPUMPIF | UPC: 761101061795

Summit BIM68OSPUMPIF 47 lb. Clear Outdoor/Indoor Icemaker (Panel Not Included) Panel-Ready

$3,219.23 ~~$3,879.97~~ Save $660.74 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.88"
Depth:
22.63"
Height:
33.5"
Type:
Ice Makers

About this product

Outdoor Clear Icemaker
Weatherproof design
Built-in pump
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$3,219.23 ~~$3,879.97~~ Save $660.74 / 17% OFF

Product Details for Summit BIM68OSPUMPIF

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	14.88 in.
Height	33.5 in.
Length	22.63 in.
Weight	105 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.53 ft³
Dimensional Weight	81.16 lbs.
Total of Cubes	6.53 ft³
Total of Dimensional Weight	81.16 lbs.

Overview icemaker

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Height to Hinge Cap	33.63" (85 cm)
Nominal Width	15.0" (38 cm)
Width	14.88" (38 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.63" (57 cm)
Depth with door at 90°	37.25" (95 cm)
Capacity	0.98 cu.ft. (28 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061795
Door Swing	RHD
Reversible	Factory Reversible
Daily Ice Production	47.0 lbs. (21 kg)
Ice Storage Capacity	26.0 lbs. (12 kg)

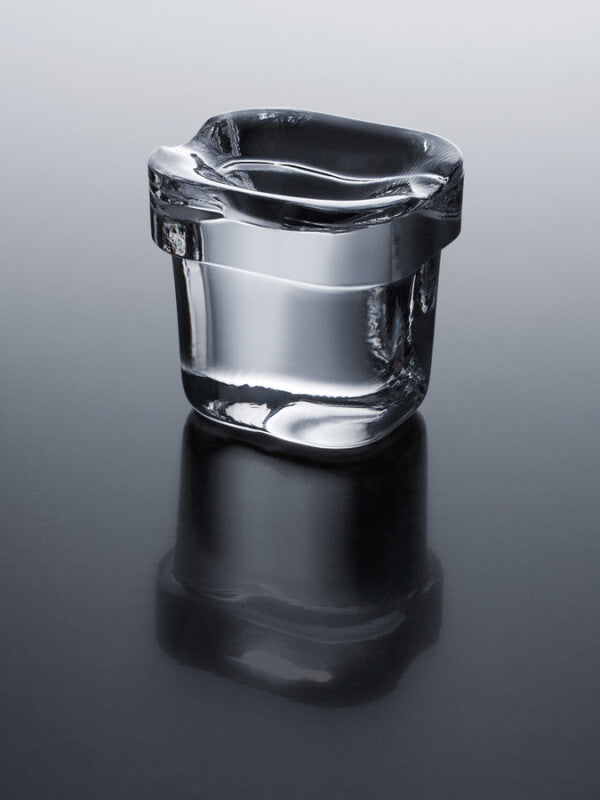

Ice Shape	Top hat
Size of Cube	1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	3.5 oz.
High Side PSI	127.0
Low Side PSI	40.0
Interior Height	12.75" (32 cm)
Interior Width	12.75" (32 cm)
Interior Depth	9.25" (23 cm)
Level Legs	4

Description

Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location. Sized at 15" wide, the BIM68OSPUMPIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet lets the unit be used freestanding. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup. The BIM68OSPUMPIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 47 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSPUMPIF is UL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.

Product Features

Outdoor Clear Icemaker
15" wide built-in undercounter icemaker produces 47 lbs. of clear gourmet ice cubes
Weatherproof design
Durable construction for safe installation in outdoor kitchens
Built-in pump
Internal pump allows more flexibility in placing the unit
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

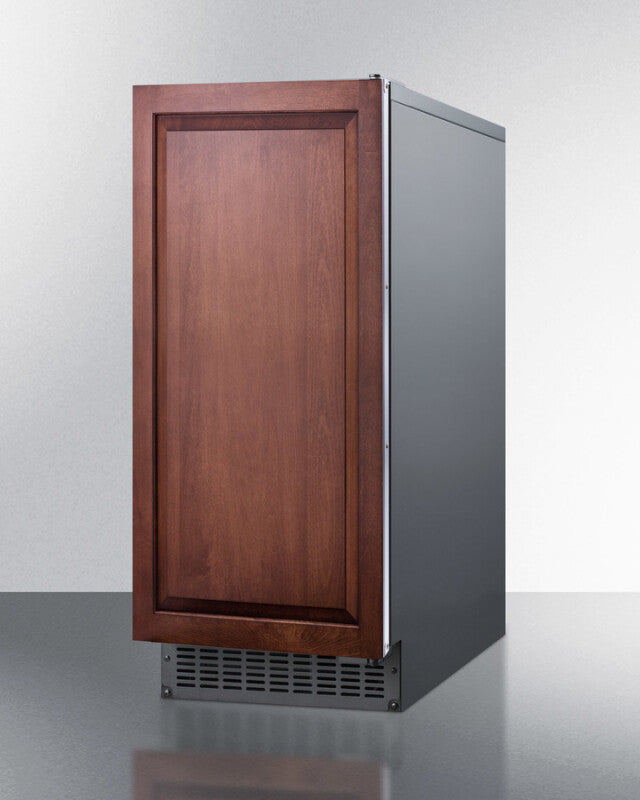

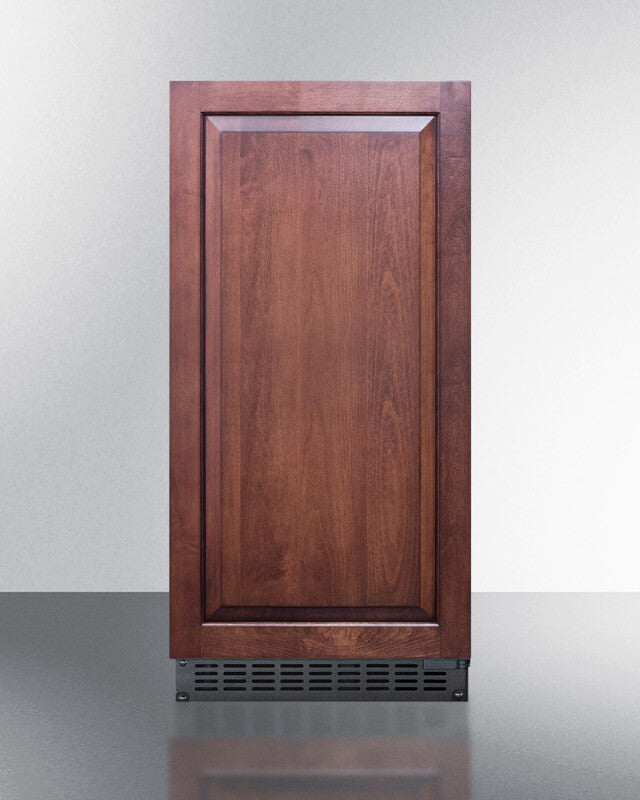

Panel-ready door
Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
Frost-free operation
No-frost operation for minimum user maintenance
Factory-reversible door
Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
Sealed back
Space-saving design with easier cleanability
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Indoor/outdoor capable
Versatile design can be installed inside or out
Commercially approved
UL-S listed to NSF-12 commercial standards for use in foodservice settings
47 lb. production capacity
Can make up to 47 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Stainless steel wrapped exterior
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance
Clear ice cube production
Gourmet style rounded dice-style ice cubes
Standard water hookup
Operates with a standard 1/4” OD water supply line
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
