Product Details for Summit BIM62ADAPNRLHD

Technical Details

Overview icemaker

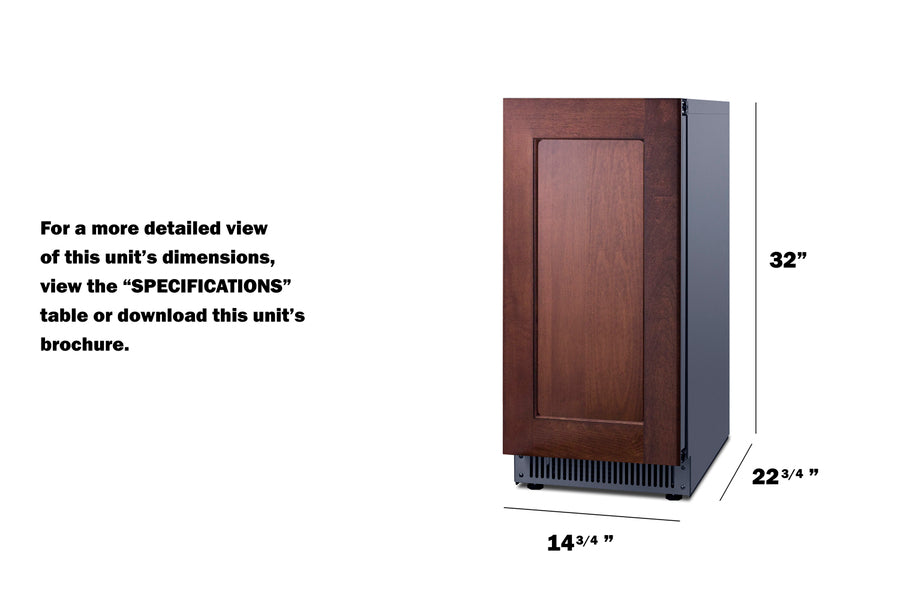

Height of Cabinet 32.0" (81 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Panel 23.5" (60 cm)
Depth with door at 90° 38.13" (97 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 6.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101156217
Door Swing LHD
Reversible No
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 68.0 lbs. (31 kg)
Ice Storage Capacity 26.0 lbs. (12 kg)
Ice Shape Top hat
Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes 3
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
Interior Height 19.75" (50 cm)
Interior Width 12.25" (31 cm)
Interior Depth 15.5" (39 cm)
Level Legs 4

Description

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers. Model BIM62ADAPNRLHD is a 15" wide panel-ready icemaker featuring an attractive and durable stainless steel exterior. This icemaker is sized at just 32" high to fit under ADA compliant counters, but the legs can be raised up to 34 1/4" high to accommodate taller spaces. This unit ships with a sliding kickplate that helps fill the extra space if needed. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. The icemaker's door features a fully articulating European-style hinge to ensure a smoother opening. We include a 2-piece bracket kit included to allow easy installation of your own overlay panel to create your custom look. This icemaker is unbranded, allowing you to easily integrate it into any kitchen or bar. Inside, the BIM62ADAPNRLHD produces up to 68 lbs. of clear, gourmet style top hat-shaped ice cubes daily. Top hat ice, often called gourmet ice, is a cylindrical cube with a slightly wider top resembling a miniature top hat or thimble. The distinct dense structure helps minimize dilution, keeping drinks colder for longer without watering them down. The uniform shape offers an elegant presentation, while its non-clumping design ensures easy dispensing. The size can be adjusted between three settings to best suit your taste. We include a steel ice scoop that can be hung inside for easy serving. This icemaker features easy-to-use digital controls. An indicator light alerts users to each step in the production process and when the bin is full. Frost-free operation eliminates the need to defrost the interior. Additional features include a temperature memory function, cleaning setting and alarm, and sabbath mode for periods of observances. With clear gourmet ice that's gentle on glassware paired with efficient performance, this icemaker brings a premium experience to any setting. For an outdoor version of this unit, see model BIM63OSADA. This unit comes with a left hand door swing. For this model with a right-hand door, see model BIM62ADAPNR. In addition to this series, Summit also manufactures drain-free icemakers, as well as 18" wide options, outdoor models, and more. Explore all of Summit's icemakers at summitappliance.com


Product Features

  • 15" Wide Clear Icemaker
    Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

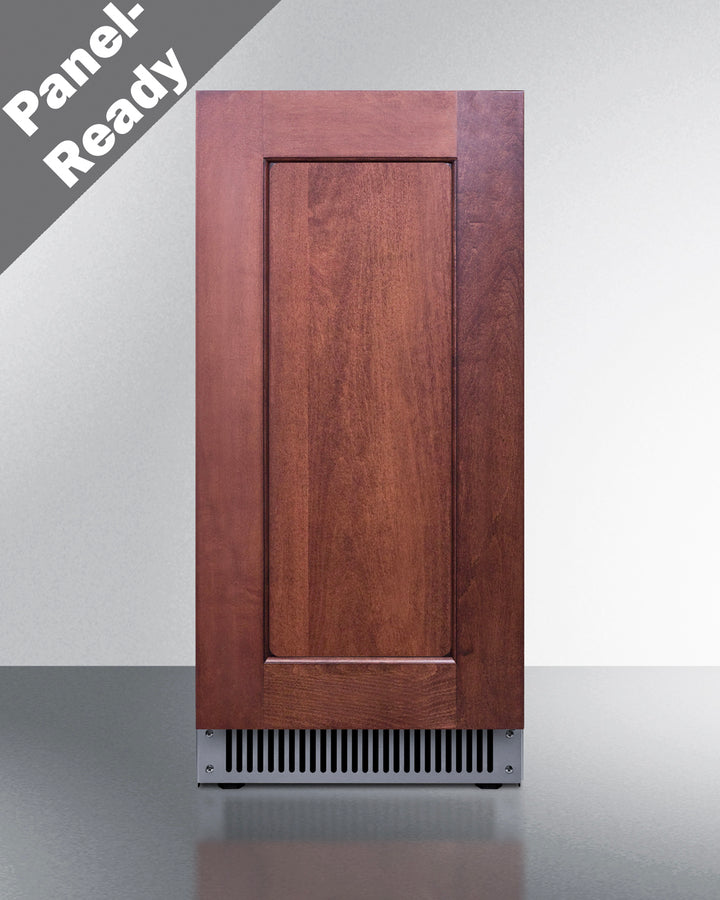

  • Custom style
    Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar
  • Built-in undercounter design
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Easy panel installation with included 2-piece bracket kit
    Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 28 1/4" H x 14 5/8" W)
  • Stainless steel door
    Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

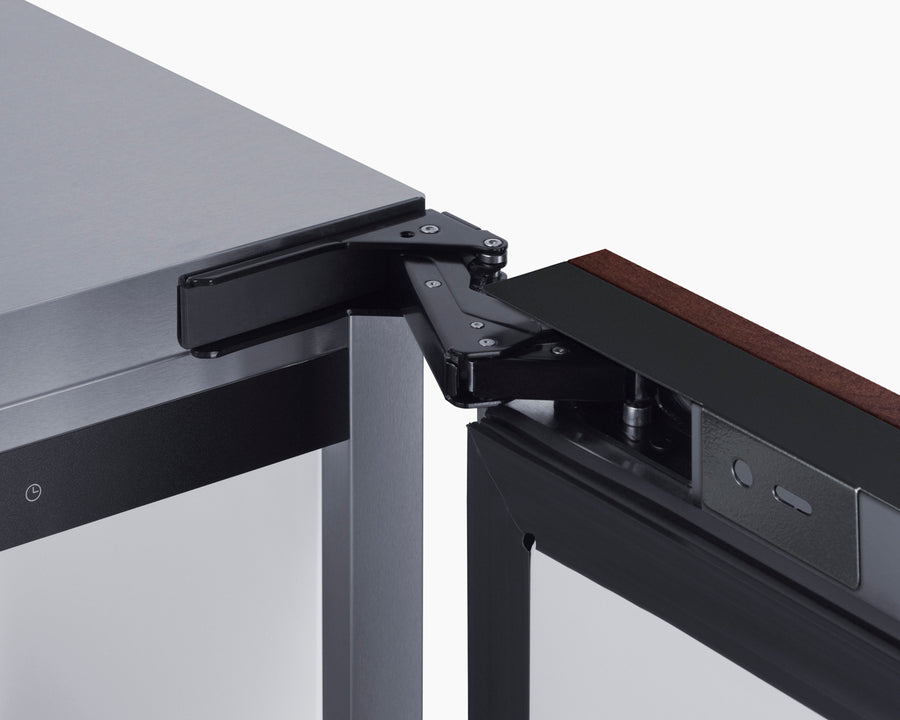

  • Fully articulating door hinge
    European style hinge design ensures a flush fit and allows for a smoother opening
  • Versatile design
    Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door
  • ADA-compliant
    32" height allows installation under lower ADA-compliant counters
  • Height adjustable
    Leveling legs can be extended up to 2 1/4", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets
  • Built-in pump
    Internal pump allows more flexibility in placing the unit
  • 68 lb. production capacity
    High capacity production to keep clear gourmet ice on hand

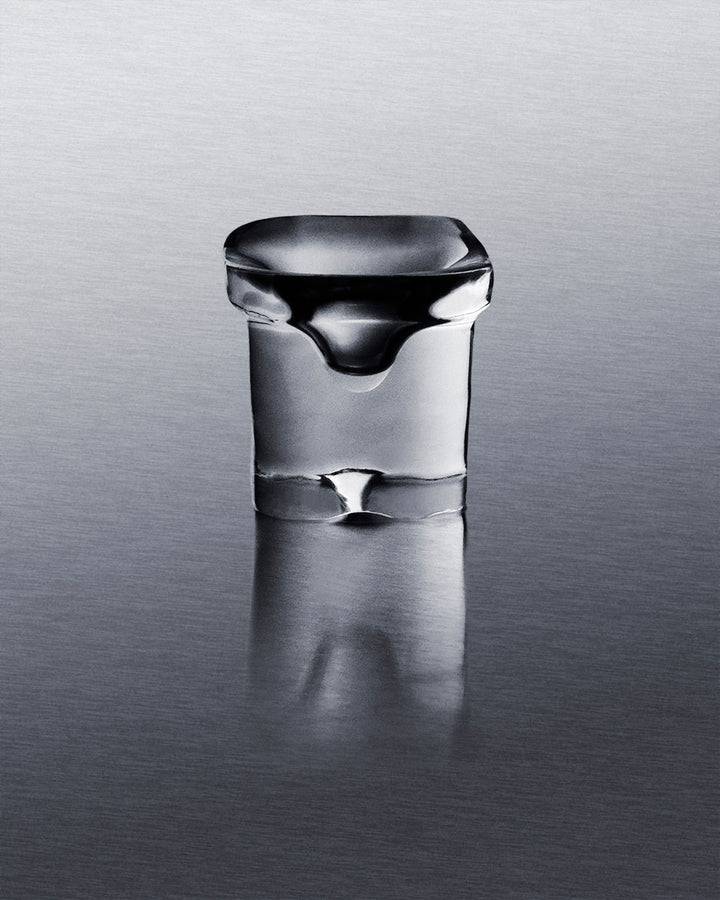

  • Gourmet top hat ice
    Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled
  • Unbranded exterior
    Allows for seamless integration with other appliances
  • Touch controls
    Provides easy operation of the unit with indicator lights for each stage of the production process
  • Ice size selection
    Function allows users to choose from small, medium, or large clear ice cubes
  • Automatic defrost
    No-frost operation for minimum user maintenance
  • Clean function
    Clean mode allows you to periodically clean the system as needed with a neutral detergent
  • Cleaning alarm
    Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process
  • Memory function
    Mode memory function allows the icemaker to its last setting in the event of a power interruption
  • Sabbath mode
    Optional setting lets you disable the lighting and alarms during periods of religious observance
  • Ice scoop
    Ice scoop included for added convenience, with an interior hook to keep it in place inside
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Left hand door swing
    For this unit with the door opening from the other side, see model BIM62ADAPNR
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • 100% CFC free
    Environmentally friendly design with no ozone-damaging chemicals
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
