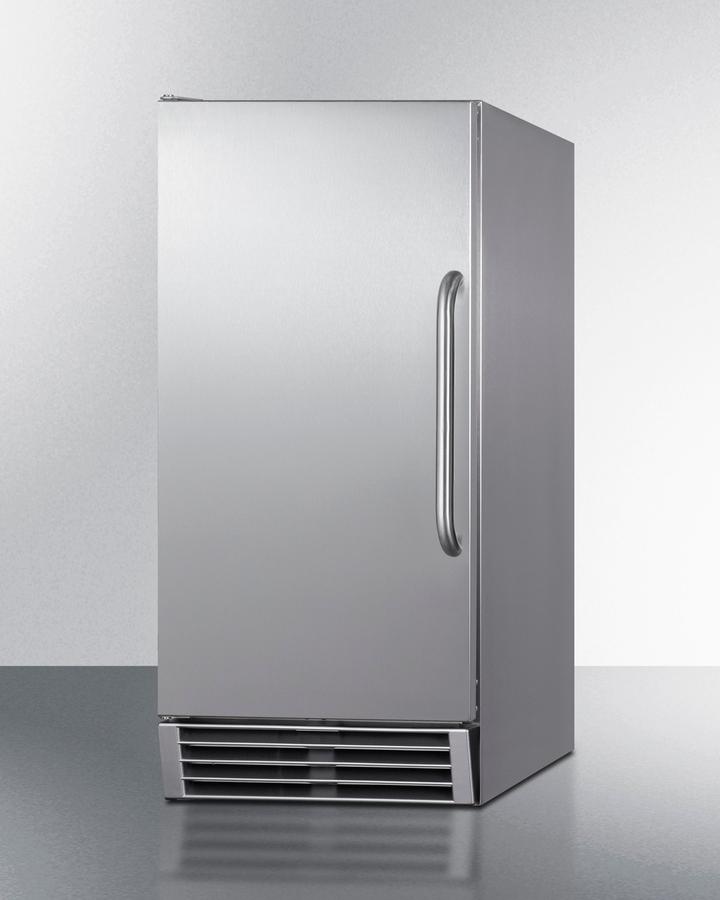

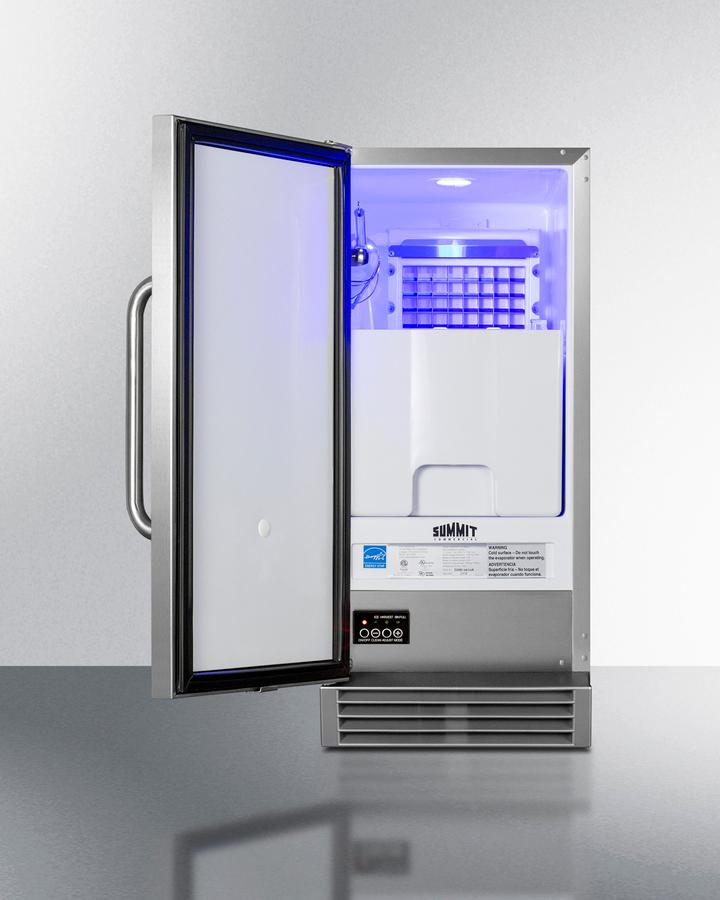

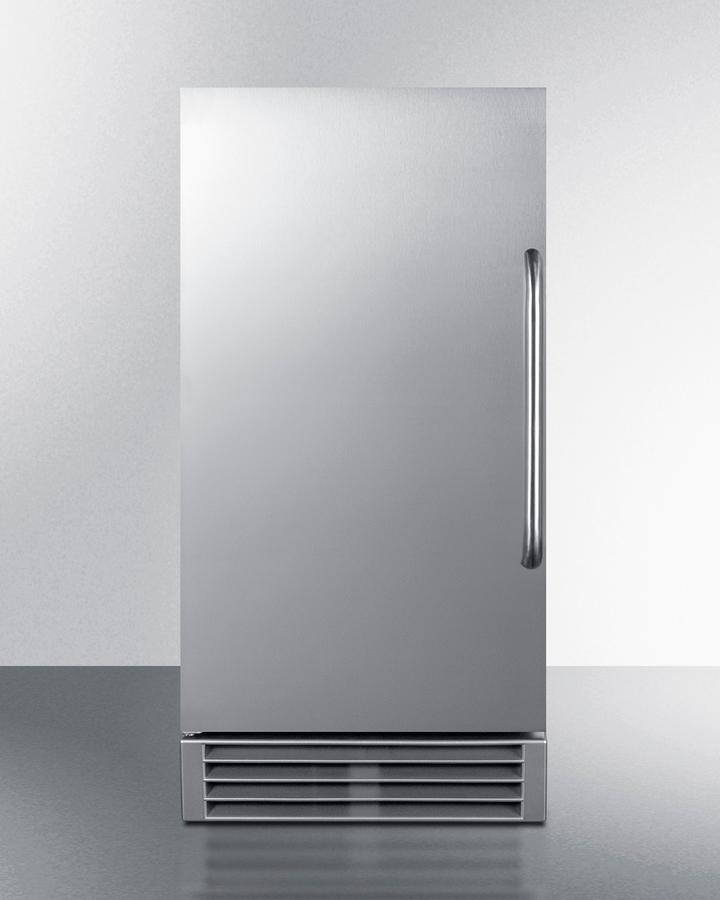

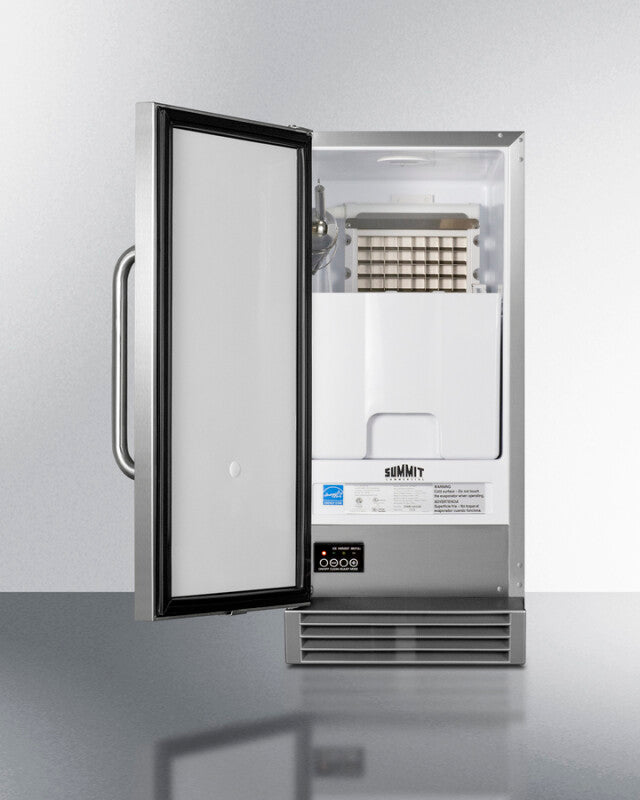

Summit BIM47OSADA Built-In Outdoor 45 lb. Clear Icemaker, ADA Compliant Stainless Steel

Quick Specification More details

Width:
14.5"
Depth:
23.25"
Height:
32.38"
Type:
Ice Makers

About this product

Commercially approved
Weatherproof design
ADA compliant
Built-in capable

Summer Sale

Clearance

SKU: BIM47OSADA | UPC: 761101067766

Summit BIM47OSADA Built-In Outdoor 45 lb. Clear Icemaker, ADA Compliant Stainless Steel

$2,290.47 ~~$2,769.97~~ Save $479.50 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.5"
Depth:
23.25"
Height:
32.38"
Type:
Ice Makers

About this product

Commercially approved
Weatherproof design
ADA compliant
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,290.47 ~~$2,769.97~~ Save $479.50 / 17% OFF

Product Details for Summit BIM47OSADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	14.5 in.
Height	32.38 in.
Length	23.25 in.
Weight	100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.32 ft³
Dimensional Weight	78.53 lbs.
Total of Cubes	6.32 ft³
Total of Dimensional Weight	78.53 lbs.

Overview icemaker

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.38" (82 cm)
Nominal Width	15.0" (38 cm)
Width	14.5" (37 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.25" (59 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	36.75" (93 cm)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	4.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067766
Door Swing	LHD
Reversible	Yes
Drain Required	Yes
Daily Ice Production	50.0 lbs. (23 kg)
Ice Storage Capacity	25.0 lbs. (11 kg)
Ice Shape	Cube
Size of Cube	7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.88 oz.
High Side PSI	350.0
Low Side PSI	130.0
Interior Height	18.5" (47 cm)
Interior Width	12.0" (30 cm)
Interior Depth	16.0" (41 cm)
Level Legs	4

Description

Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space. ENERGY STAR certified for commercial use, BIM47OSADA is just 32 3/8" high, ideal for use under lower counters following ADA compliant guidelines. It features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home. Inside, the BIM47OSADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 50 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided stainless steel scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces. Sized at 15" wide, BIM47OSADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM47OS.

Product Features

Commercially approved
ETL-S listed to NSF-12 commercial standards
Weatherproof design
Durable stainless steel construction for safe installation in outdoor spaces
ADA compliant
32 3/8" height fits under lower ADA compliant counters

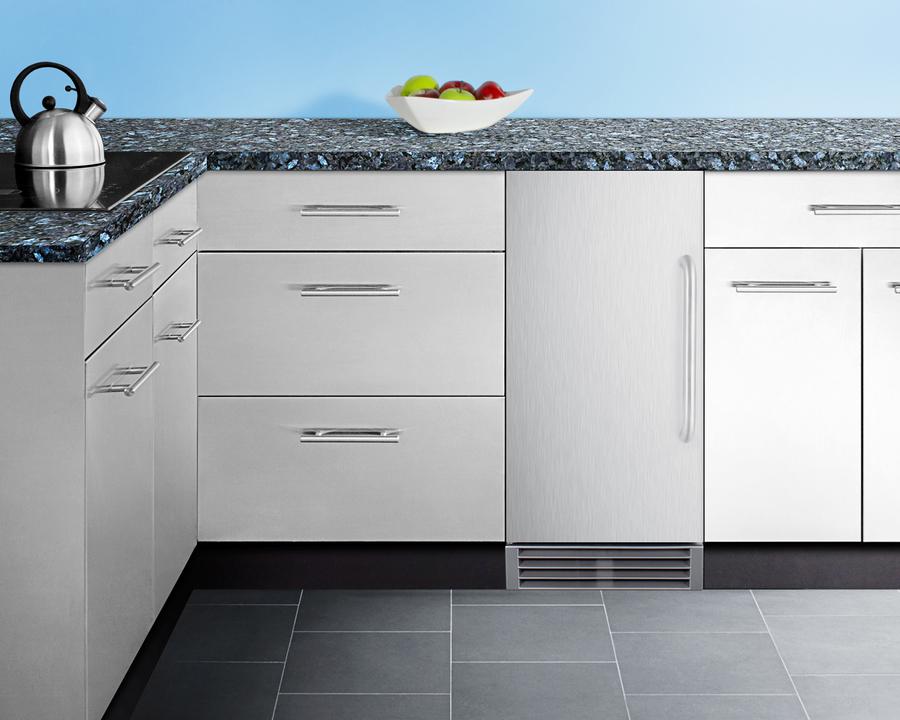

Built-in capable
Make the best use of space by installing your icemaker under the counter
50 lb. production capacity
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
ENERGY STAR certified commercial performance
Efficient performance saves on energy use and costs
Built-in pump
Internal pump affords more flexibility in placing the unit
Automatic defrost
Reduced maintenance with auto defrost system
Clear ice cube production
Produces 7/8" x 7/8" x 7/8" clear ice cubes

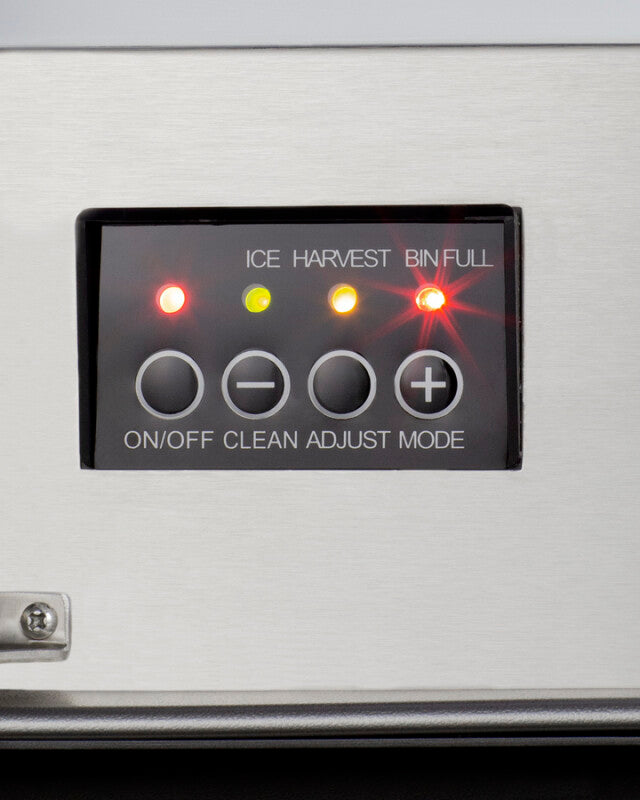

Touch control panel
Provides easy operation of the unit with indicator lights for each stage of the production process
Reversible stainless steel door
User-reversible door swing for flexible placement
Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Interior light
Lighting in a soft blue hue for easy viewing of the interior

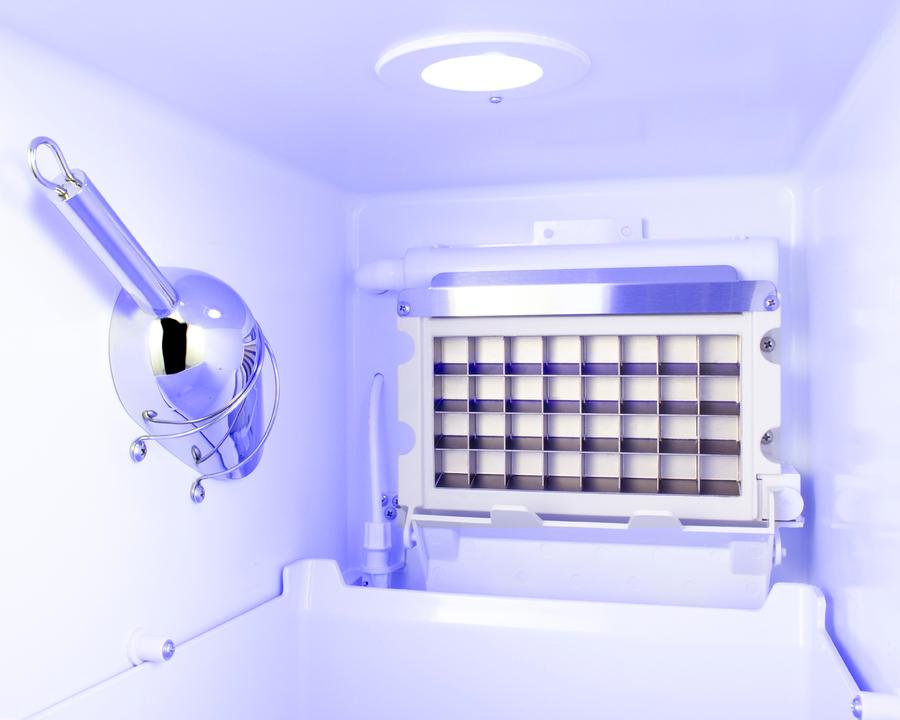

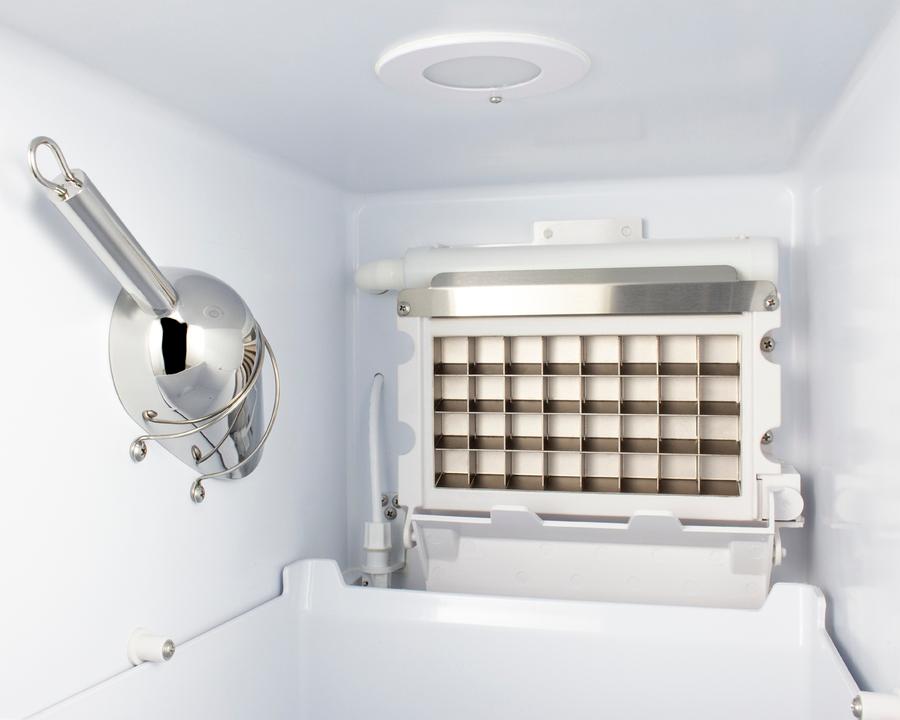

Ice scoop included
Interior wall includes brackets to hang for easy storage
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Sealed back
Space saving design for easier cleanability
Leveling legs
Four leveling legs help to keep the unit level on uneven surfaces
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
