Summit BIM44GCSSIF Built-In 45 lb. Clear Icemaker (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
14.5"
Depth:
23.5"
Height:
33"
Type:
Ice Machines

About this product

Commercially approved
50 lb. production capacity
ENERGY STAR certified commercial performance
Built-in capable

Clearance

SKU: BIM44GCSSIF | UPC: 761101077239

Summit BIM44GCSSIF Built-In 45 lb. Clear Icemaker (Panel Not Included) Panel-Ready

$2,386.30 ~~$3,160.00~~ Save $773.70 / 24% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.5"
Depth:
23.5"
Height:
33"
Type:
Ice Machines

About this product

Commercially approved
50 lb. production capacity
ENERGY STAR certified commercial performance
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,386.30 ~~$3,160.00~~ Save $773.70 / 24% OFF

Product Details for Summit BIM44GCSSIF

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	14.5 in.
Height	33 in.
Length	23.5 in.
Weight	100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.51 ft³
Dimensional Weight	80.9 lbs.
Total of Cubes	6.51 ft³
Total of Dimensional Weight	80.9 lbs.

Overview icemaker

Nominal Height	33.0" (84 cm)
Height of Cabinet	33.0" (84 cm)
Nominal Width	15.0" (38 cm)
Width	14.5" (37 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	37.0" (94 cm)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	4.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101077239
Door Swing	LHD
Reversible	Factory Reversible
Drain Required	Yes
Daily Ice Production	50.0 lbs. (23 kg)
Ice Storage Capacity	25.0 lbs. (11 kg)
Ice Shape	Cube
Size of Cube	7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.88 oz.
High Side PSI	350.0
Low Side PSI	130.0
Interior Height	18.5" (47 cm)
Interior Width	12.0" (30 cm)
Interior Depth	16.0" (41 cm)
Level Legs	4

Description

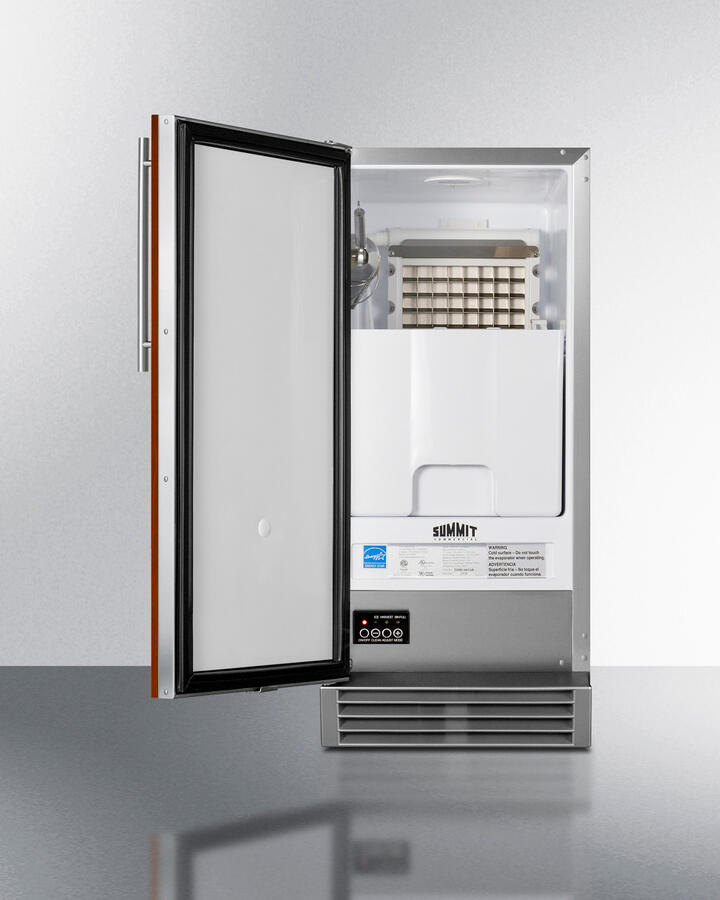

Summit brings full capacity clear ice production to residential and commercial spaces with a full selection of built-in undercounter clear icemakers. Model BIM44GCSSIF is an indoor icemaker sized just under 34" high and 15" wide for an easy fit in commercial or home kitchens and bars. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry (panel size: 28 11/16" H x 14 1/2" W at 3/4" thick and 10 lb. maximum). Users supply their own handle and panel. This unit comes with a complete stainless steel cabinet and matching kickplate. It includes a built-in pump to allow for more flexible placement. We include both a drain hose and water supply hose. Automatic defrost ensures minimum user maintenance. This unit produces up to 45 pounds of clear cube-shaped ice in a day cycle. The removable bin can hold up to 25 pounds. Ice is formed in sheets and can easily be broken into cubes using the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. LED lighting in a modern blue finish provides full illumination of the interior. This unit is ETL-S listed to NSF standards and is ENERGY STAR certified as a commercial icemaker. Additional choices are available with a lower ADA compliant height, stainless steel doors, and for outdoor use. Explore the full Summit selection to find the right icemaker for your needs.

Product Features

Commercially approved
ETL-S listed to NSF-12 commercial standards
50 lb. production capacity
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
ENERGY STAR certified commercial performance
Efficient performance saves on energy use and costs
Built-in capable
Make the best use of space by installing your icemaker under the counter
Built-in pump
Internal pump affords more flexibility in placing the unit

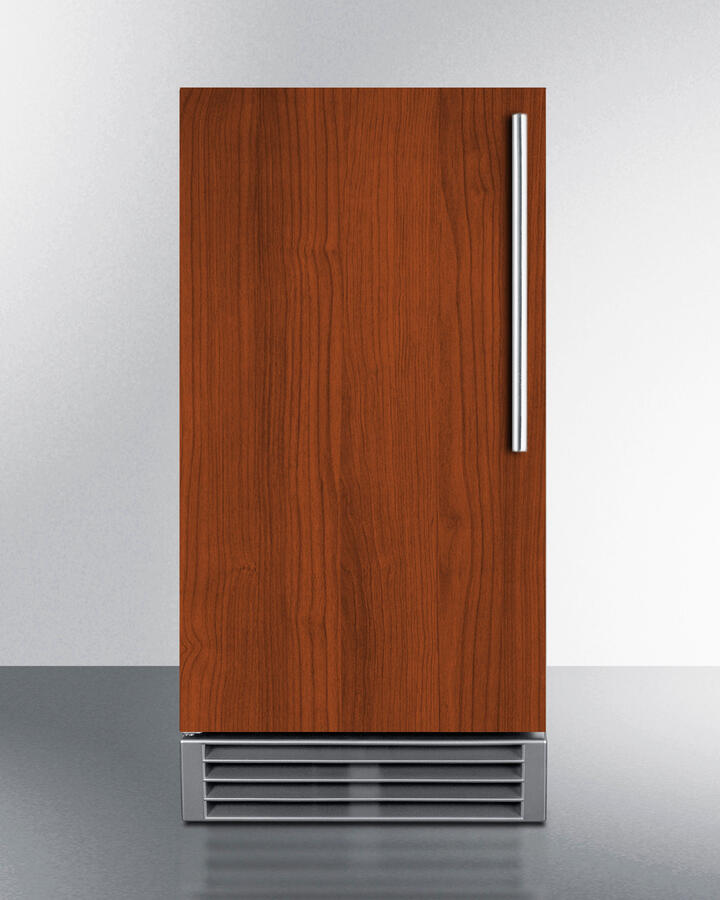

Panel-ready door
Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced maintenance with auto defrost system
Clear ice cube production
Produces 7/8" x 7/8" x 7/8" clear ice cubes

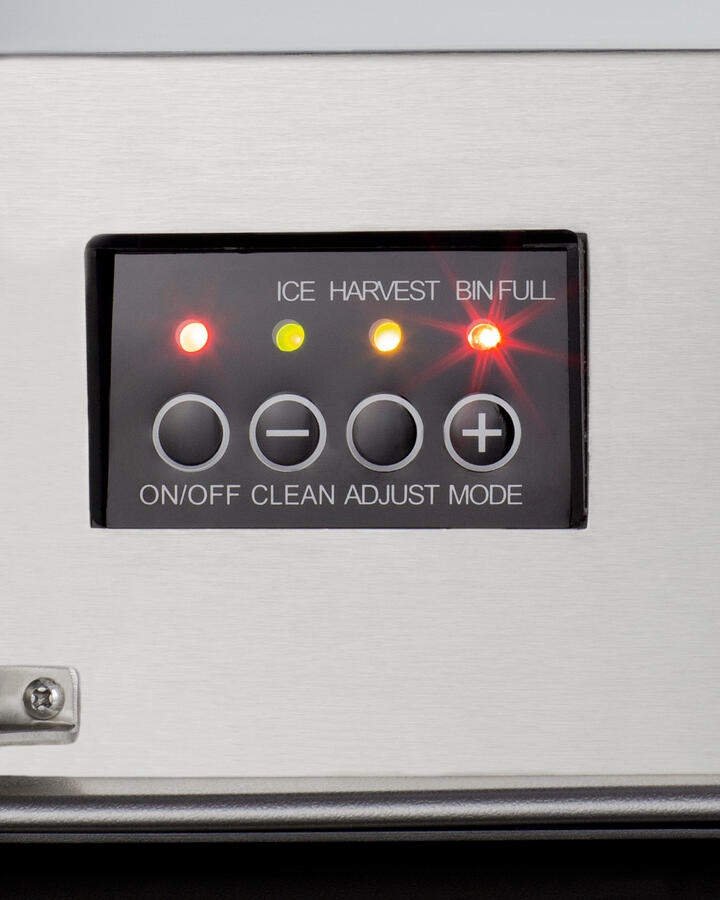

Touch control panel
Provides easy operation of the unit with indicator lights for each stage of the production process
Insulated storage bin
Ice stays solid longer in this cold-protected bin

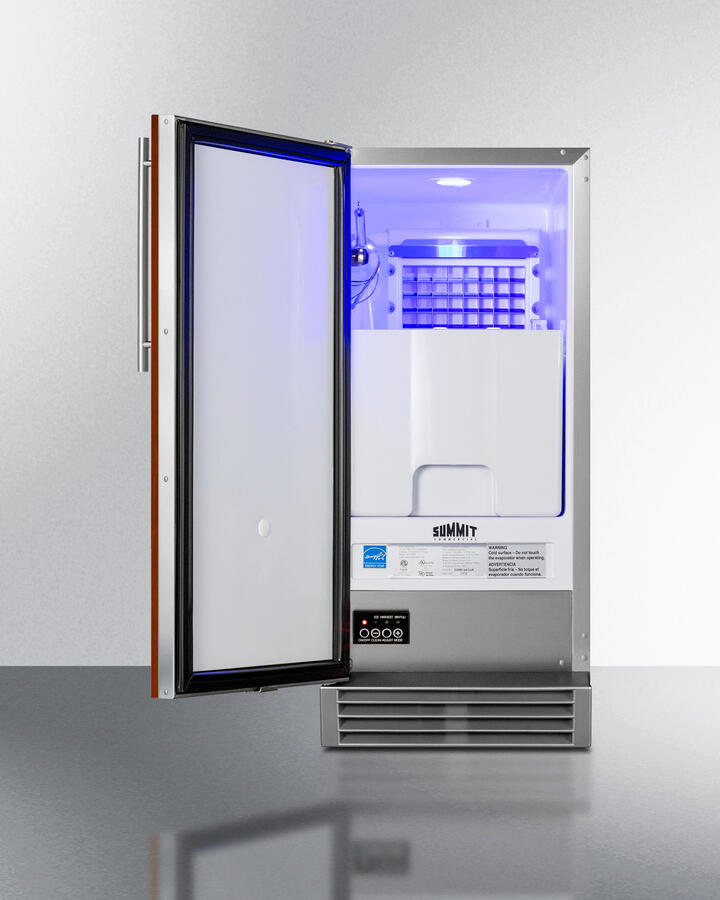

Interior light
Lighting in a soft blue hue for easy viewing of the interior

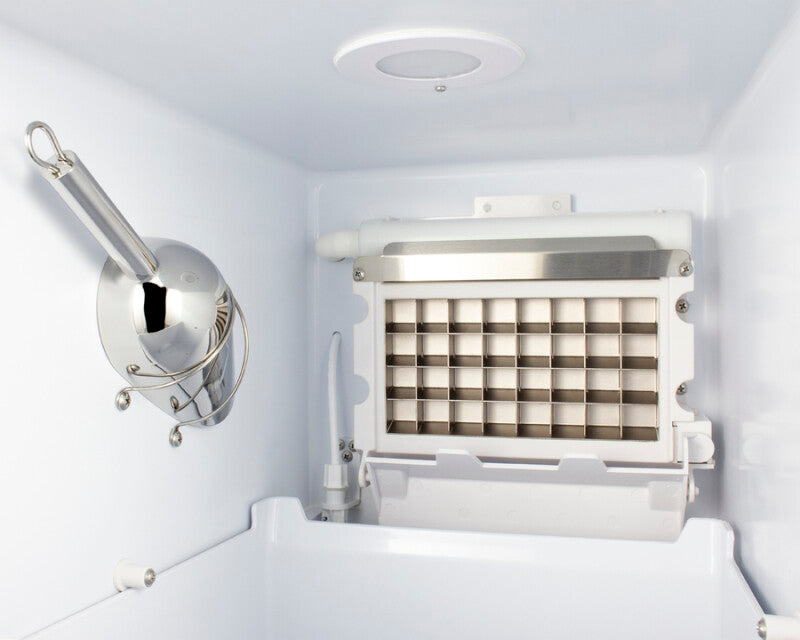

Ice scoop included
Interior wall includes brackets to hang for easy storage
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Sealed back
Space saving design for easier cleanability
Leveling legs
Four leveling legs help to keep the unit level on uneven surfaces
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
