SKU: BIM271OS | UPC: 761101103556

Summit BIM271OS 25 lb. Drain-Free outdoor Icemaker Stainless Steel

Quick Specification More details

Width:
14.88"
Depth:
19.38"
Height:
34"
Type:
Ice Makers

About this product

15" Wide No-Drain Icemaker
Adjustable Height
Weatherproof design
Large capacity

Summer Sale

Clearance

SKU: BIM271OS | UPC: 761101103556

Summit BIM271OS 25 lb. Drain-Free outdoor Icemaker Stainless Steel

$1,642.47 ~~$2,059.97~~ Save $417.50 / 20% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.88"
Depth:
19.38"
Height:
34"
Type:
Ice Makers

About this product

15" Wide No-Drain Icemaker
Adjustable Height
Weatherproof design
Large capacity

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,642.47 ~~$2,059.97~~ Save $417.50 / 20% OFF

Product Details for Summit BIM271OS

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	14.88 in.
Height	34 in.
Length	19.38 in.
Weight	61 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	5.67 ft³
Dimensional Weight	70.54 lbs.
Total of Cubes	5.67 ft³
Total of Dimensional Weight	70.54 lbs.

Overview icemaker

Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	15.0" (38 cm)
Width	14.88" (38 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.38" (49 cm)
Depth with Handle	21.38" (54 cm)
Depth with door at 90°	33.63" (85 cm)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.9
Voltage/Frequency	115 V AC/60 Hz
Weight	61.0 lbs. (28 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101103556
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Daily Ice Production	25.0 lbs. (11 kg)
Ice Storage Capacity	22.0 lbs. (10 kg)
Ice Shape	Crescent
Size of Cube	1/2" x 3/4" x 2 3/8"
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	15.88" (40 cm)
Interior Width	11.88" (30 cm)
Interior Depth	12.38" (31 cm)
Level Legs	4

Description

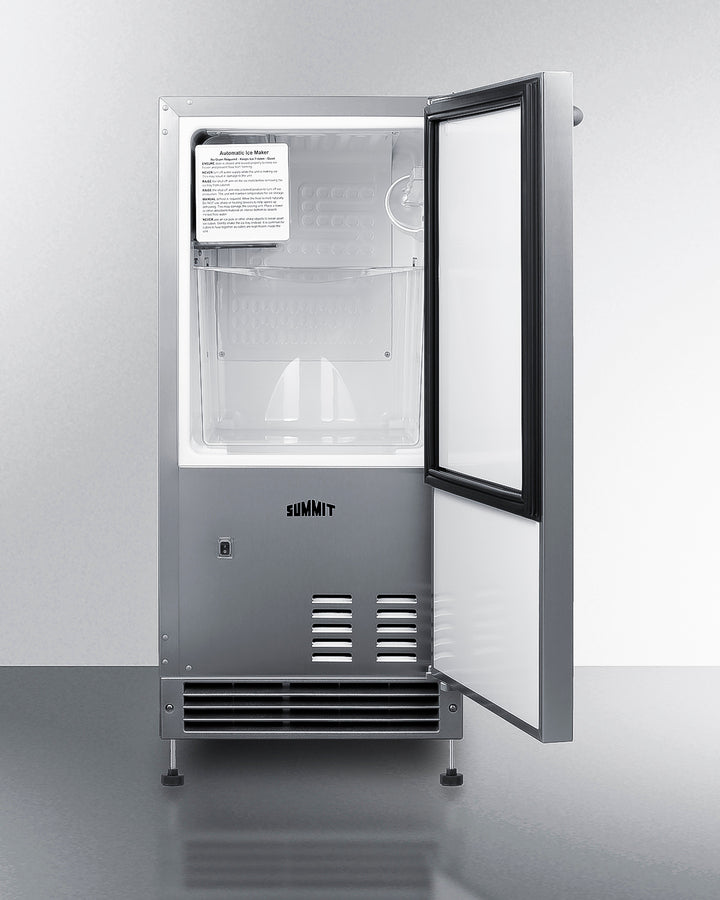

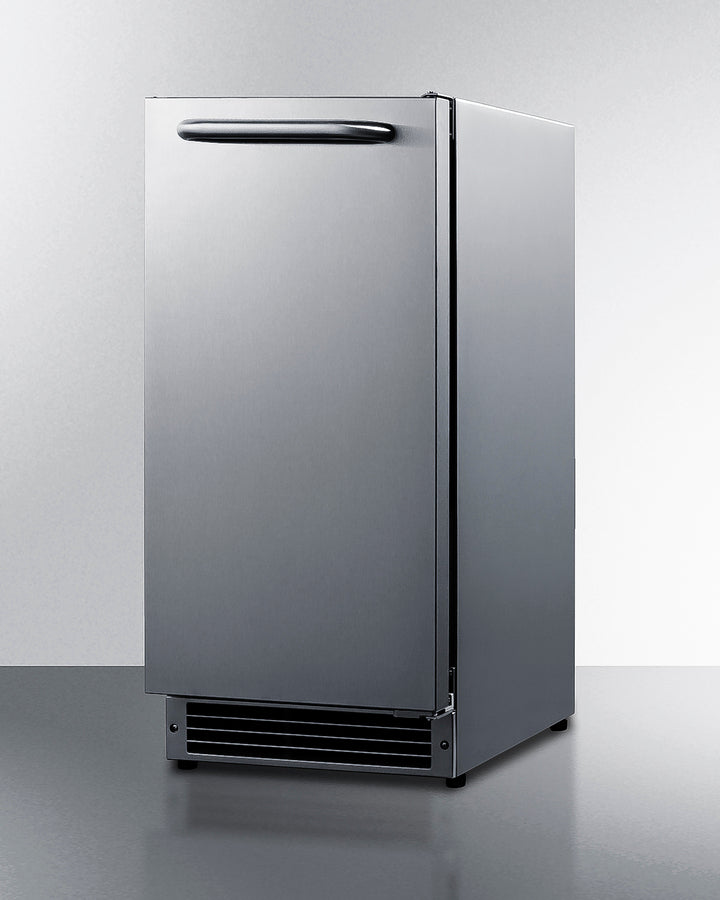

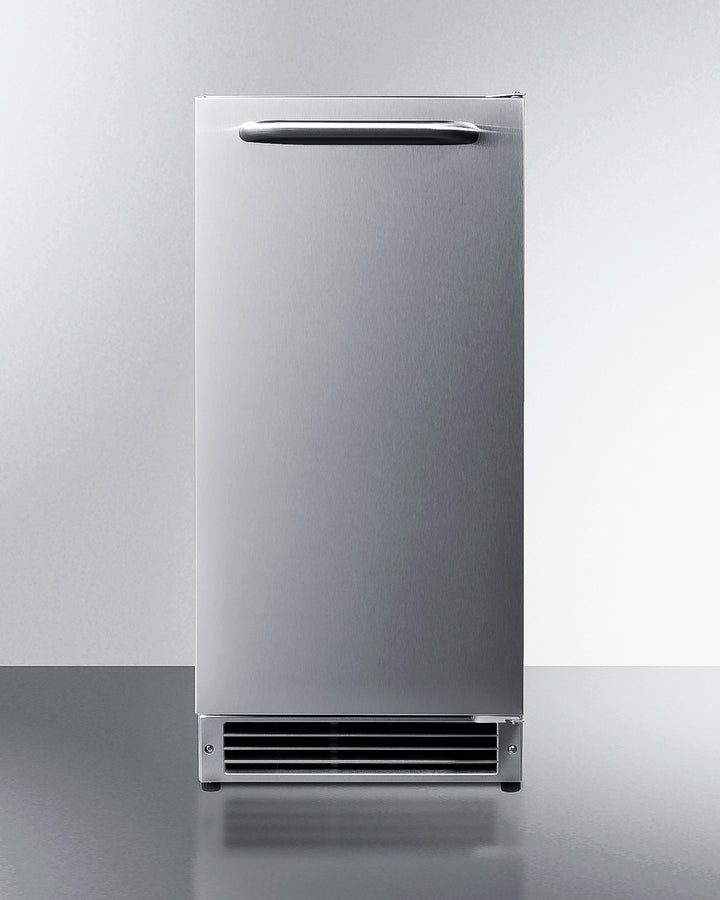

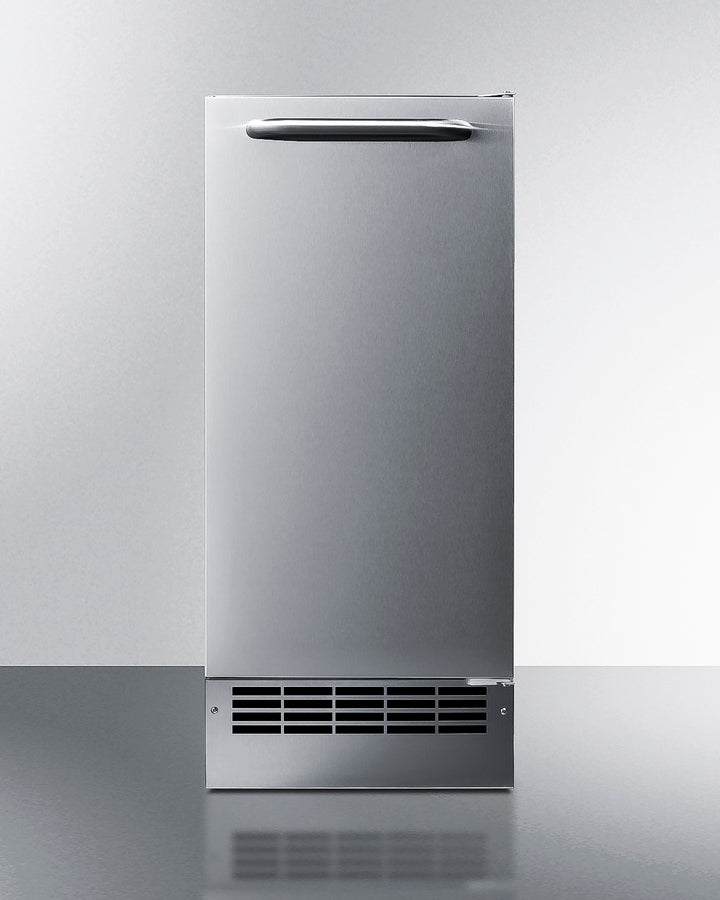

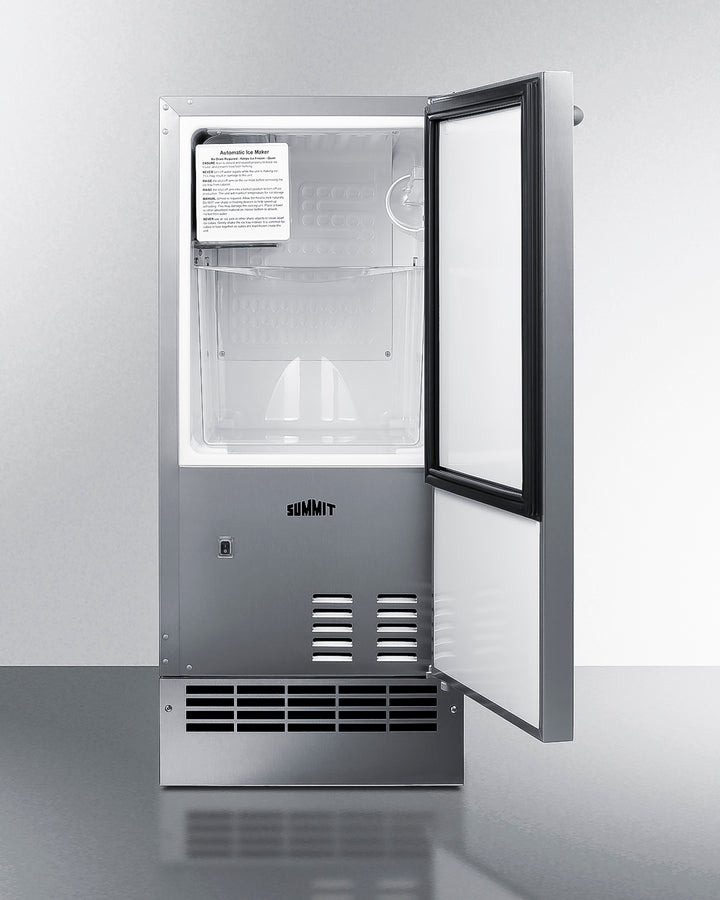

Summit combines convenience and luxury to craft the BIM271OS - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM271OS features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters in outdoor spaces. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look. The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM271OS shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its complete stainless steel construction and low maintenance design, the BIM271OS is a great way to finish any outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Product Features

15" Wide No-Drain Icemaker
No drain is required for more flexibility in placing the icemaker indoors or outside

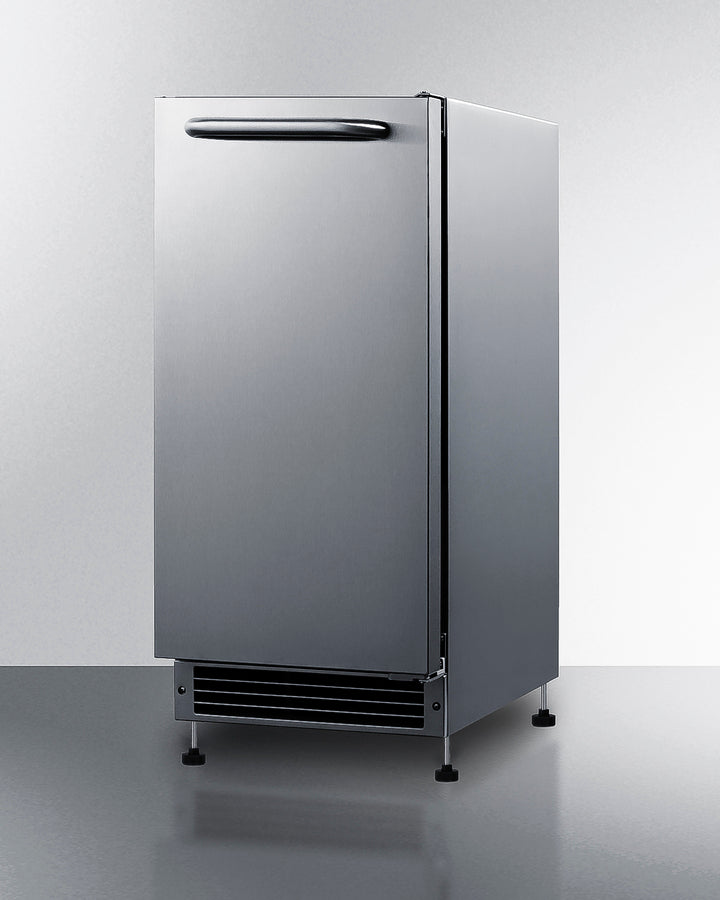

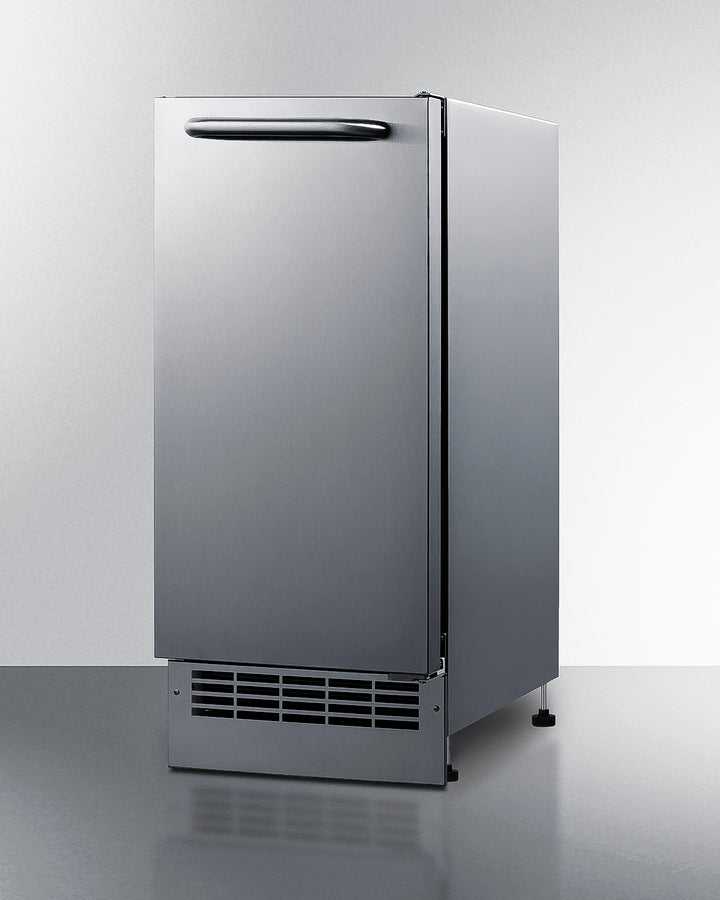

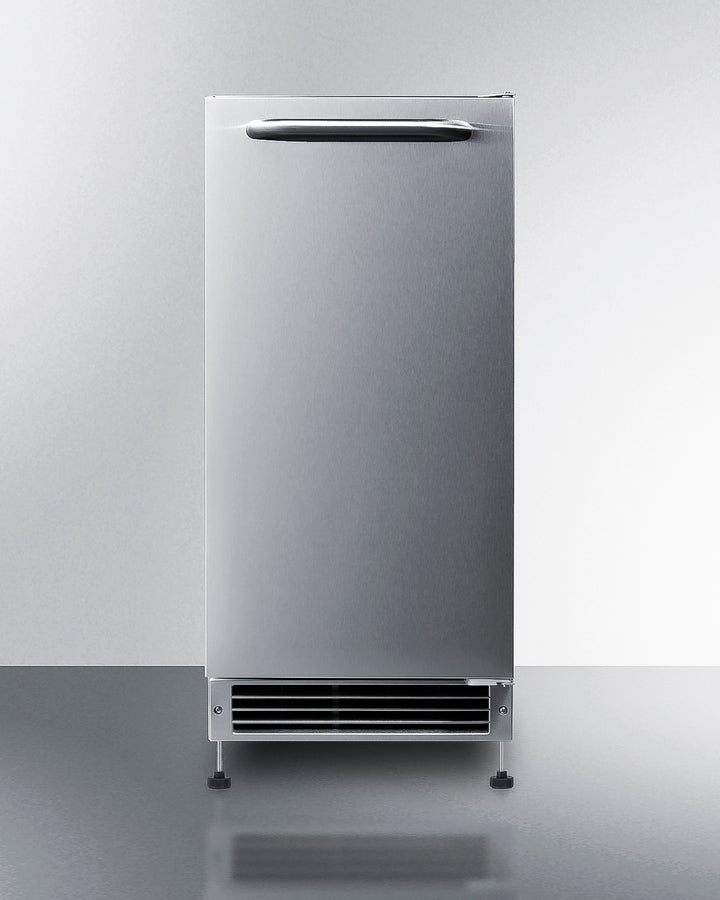

Adjustable Height
This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
Weatherproof design
Durable construction for safe installation in outdoor kitchens
Large capacity
Produces and stores more than 20 lbs of ice per day cycle
Drain-free design
Convenient design allows more flexibility in positioning the unit
ADA compliant
Customizable height allows installation under lower ADA-compliant counters
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Stainless steel exterior
304-grade stainless steel allows the icemaker to be used freestanding
Indoor/outdoor capable
Versatile design allows users the ability to place the unit inside or out
Reversible door
User-reversible door swing for flexible placement
Sealed back
Space-saving design with easier cleanability
Standard water hookup
Operates with a standard 1/4” OD water supply line
Built-In capable
Make the best use of space by installing your ice maker under the counter
Modern handle
Horizontally mounted towel bar style handle in stainless steel

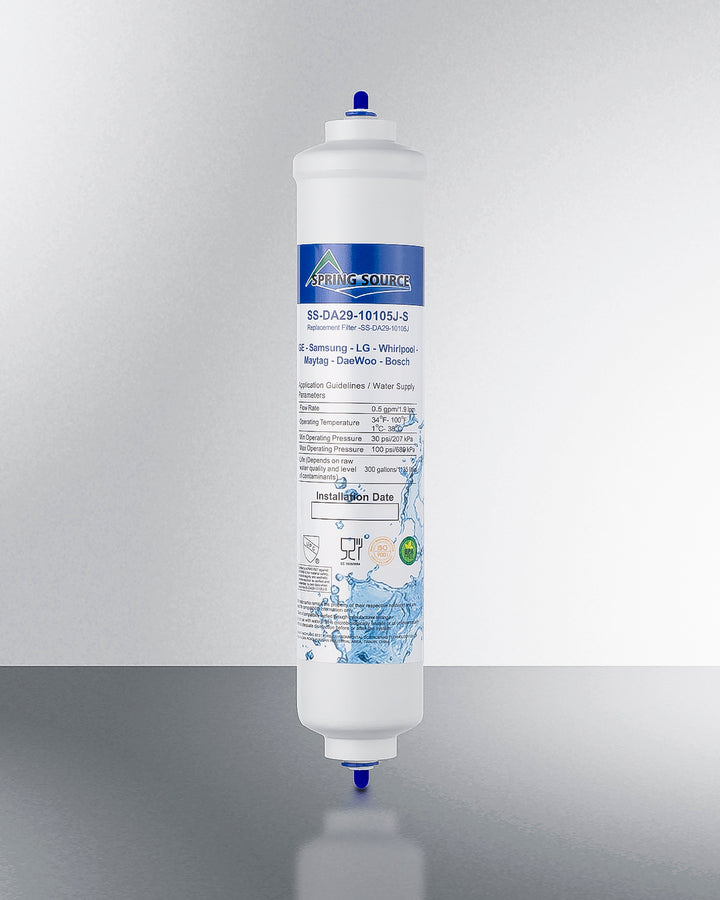

Filter included
Water filter is included for optional use
Ice scoop included
Large ice scoop and holder included for your convenience
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
