SKU: BIM26IFLHD | UPC: 761101144818

Summit BIM26IFLHD 15 lb. Drain-Free Built-In Icemaker (Panel Not Included) Panel-Ready

15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)
15 lb. Drain-Free Built-In Icemaker (Panel Not Included)

Quick Specification More details

  • Width:
    14.88" (38 cm)
  • Depth:
    16.75" (43 cm)
  • Type:
    Ice Makers

About this product

  • No-Drain 15" Wide Icemaker
  • Built-In capable
  • Large capacity
  • Drain-free design
Summer Sale
Clearance

SKU: BIM26IFLHD | UPC: 761101144818

Summit BIM26IFLHD 15 lb. Drain-Free Built-In Icemaker (Panel Not Included) Panel-Ready

$1,146.70 $1,574.97 Save $428.27 / 27% OFF

Out of stock

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    14.88" (38 cm)
  • Depth:
    16.75" (43 cm)
  • Type:
    Ice Makers

About this product

  • No-Drain 15" Wide Icemaker
  • Built-In capable
  • Large capacity
  • Drain-free design
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$1,146.70 $1,574.97 Save $428.27 / 27% OFF

Product Details for Summit BIM26IFLHD

Technical Details

Overview icemaker
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 25.0" (64 cm)
Width 14.88" (38 cm)
Width with Door Open 15.13" (38 cm)
Depth 16.75" (43 cm)
Depth with door at 90° 32.25" (82 cm)
Defrost Type Manual
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101144818
Door Swing LHD
Height Adjustable No
Daily Ice Production 15.0 lbs. (7 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Size of Cube 7/8" x 7/8" x 2-3/8"
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 1.69 oz.
High Side PSI 120.0
Low Side PSI 55.0
Interior Height 12.25" (31 cm)
Interior Width 11.0" (28 cm)
Interior Depth 12.25" (31 cm)
Level Legs 4

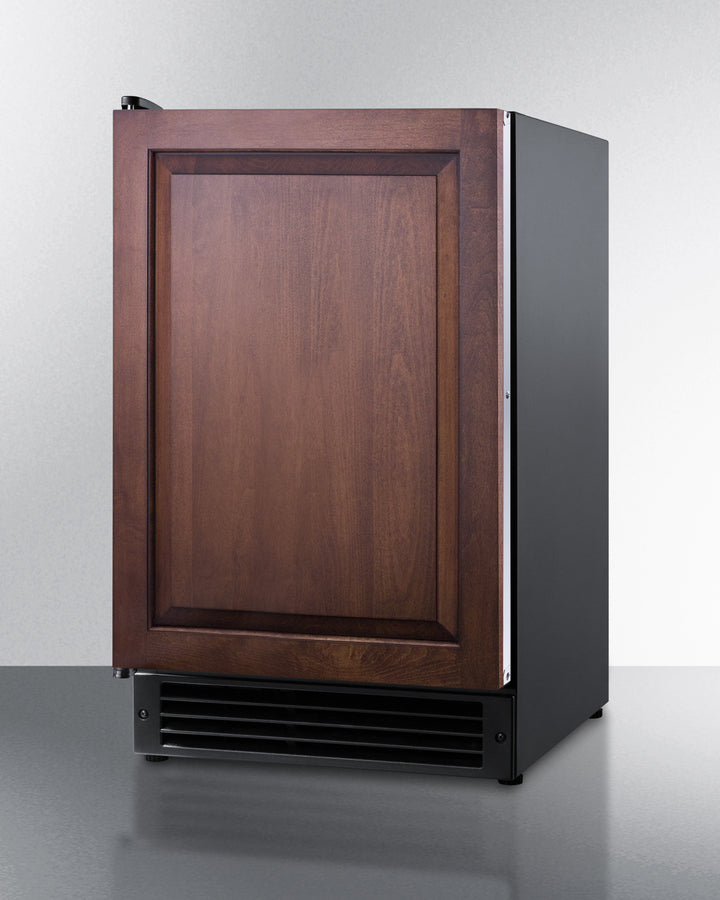

Description

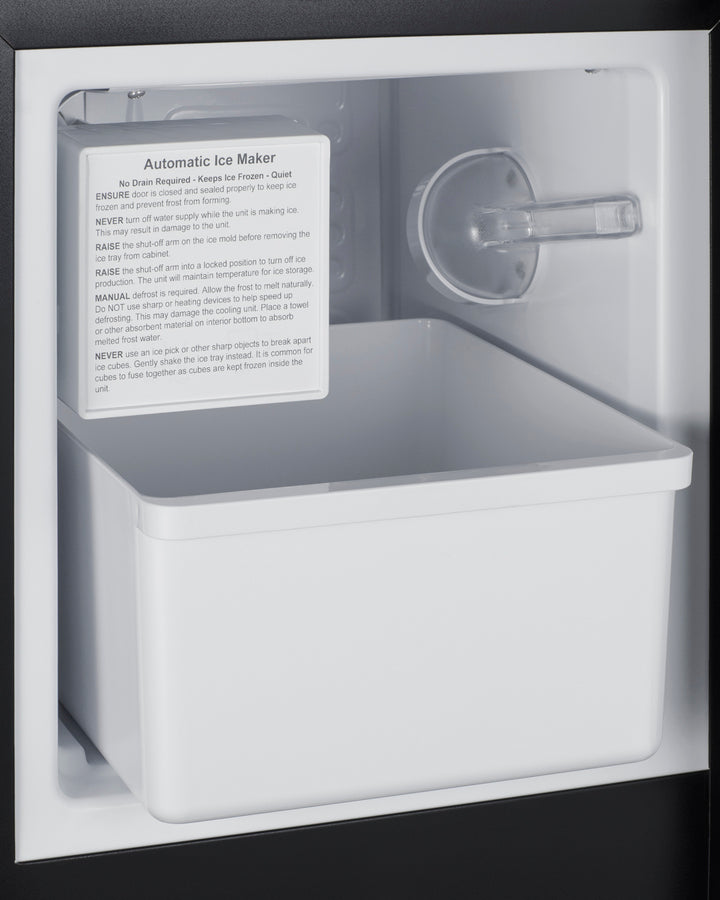

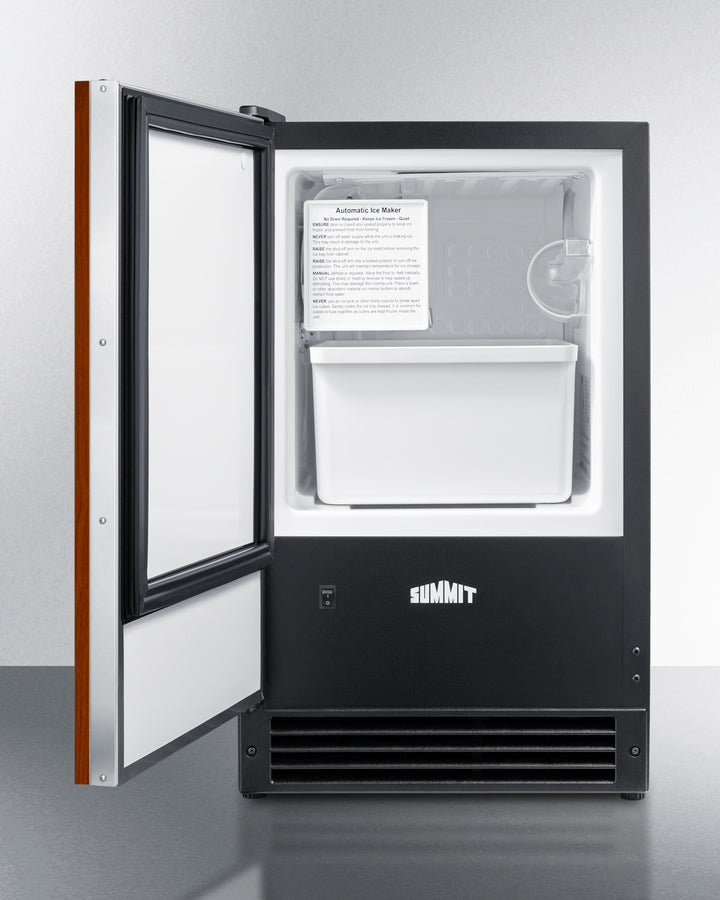

Summit combines convenience and luxury to craft the BIM26IF, a drain-free icemaker with a customizable door front to best complete your space. Sized at just under 15" wide, the BIM26IFLHD features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. Its petite 25" height makes this the optimal unit for use in kitchen islands, home bars, break rooms, RVs, and even boat kitchens. For a custom look, BIM26IFLHD is designed to accept overlay panels (recommended panel size: 20 1/2" H x 14 15/16" W at 3/4" thickness). The door comes with a left hand door swing and integrated stainless steel frame for easy installation that will blend into your space. Customers supply their own handle to match their design. A look inside the BIM26IFLHD shows it can produce 15 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its large capacity, the BIM26 produces 15 lbs of crescent-shaped ice and stores up to 12 lbs. With its stainless steel door, black cabinet, and low maintenance design, the BIM26IFLHD is a great way to finish any undercounter kitchen or home bar space and allows you to maintain an entire supply of ice with less waste. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.


Product Features

  • No-Drain 15" Wide Icemaker
    Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
  • Built-In capable
    Make the best use of space by installing your icemaker under the counter
  • Large capacity
    Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
  • Drain-free design
    Convenient design allows more flexibility in positioning the unit
  • Manual defrost
    Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
  • Panel-ready door
    Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 20 1/2" H x 14 15/16" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • Sealed back
    Space-saving design with easier cleanability
  • Standard water hookup
    Operates with a standard 1/4” OD water supply line
  • Ice scoop included
    Large ice scoop and holder included for your convenience
  • Lasting ice cube production
    Crescent-shaped ice provides a harder and longer-lasting ice
  • Removable bin
    Users can remove the ice bucket for fast and easy cleaning
  • Insulated storage bin
    Ice stays solid longer in this cold-protected bin
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
