SKU: BIM26IF | UPC: 761101144801

Summit BIM26IF 15 lb. Drain-Free Built-In Icemaker (Panel Not Included) Black

Quick Specification More details

Width:
14.88"
Depth:
16.75"
Height:
24.5"
Type:
Ice Makers

About this product

No-Drain 15" Wide Icemaker
Large capacity
Panel-ready door
Sealed back

Summer Sale

Clearance

SKU: BIM26IF | UPC: 761101144801

Summit BIM26IF 15 lb. Drain-Free Built-In Icemaker (Panel Not Included) Black

$1,615.00 ~~$2,241.97~~ Save $626.97 / 27% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.88"
Depth:
16.75"
Height:
24.5"
Type:
Ice Makers

About this product

No-Drain 15" Wide Icemaker
Large capacity
Panel-ready door
Sealed back

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,615.00 ~~$2,241.97~~ Save $626.97 / 27% OFF

Product Details for Summit BIM26IF

Technical Details

Dimensions & weight

Width	14.88 in.
Height	24.5 in.
Length	16.75 in.
Weight	50 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	3.53 ft³
Dimensional Weight	43.93 lbs.
Total of Cubes	3.53 ft³
Total of Dimensional Weight	43.93 lbs.

Overview icemaker

Height of Cabinet	24.5" (62 cm)
Height to Hinge Cap	25.0" (64 cm)
Width	14.88" (38 cm)
Width with Door Open	15.13" (38 cm)
Depth	16.75" (43 cm)
Depth with door at 90°	32.25" (82 cm)
Defrost Type	Manual
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101144801
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	No
Daily Ice Production	15.0 lbs. (7 kg)
Ice Storage Capacity	12.0 lbs. (5 kg)
Ice Shape	Crescent
Size of Cube	7/8" x 7/8" x 2-3/8"
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.69 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	12.25" (31 cm)
Interior Width	11.0" (28 cm)
Interior Depth	12.25" (31 cm)
Level Legs	4

Description

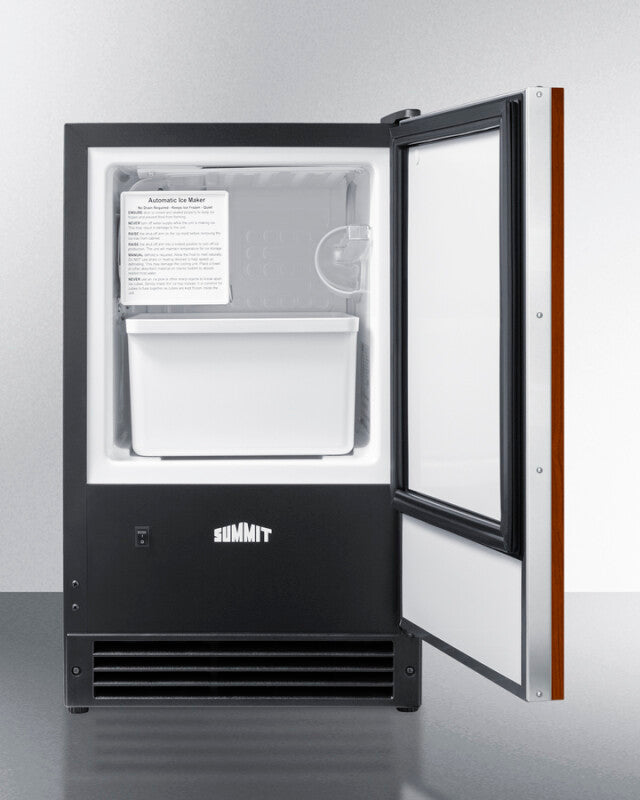

Summit combines convenience and luxury to craft the BIM26IF, a drain-free icemaker with a customizable door front to best complete your space. Sized at just under 15" wide, the BIM26IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. Its petite 25" height makes this the optimal unit for use in kitchen islands, home bars, break rooms, RVs, and even boat kitchens. For a custom look, BIM26IF is designed to accept overlay panels (recommended panel size: 20 1/2" H x 14 15/16" W at 3/4" thickness). The door comes with an integrated stainless steel frame for easy installation that will blend into your space. Customers supply their own handle to match their design. A look inside the BIM26IF shows it can produce 15 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its large capacity, the BIM26 produces 15 lbs of crescent-shaped ice and stores up to 12 lbs. With its stainless steel door, black cabinet, and low maintenance design, the BIM26IF is a great way to finish any undercounter kitchen or home bar space and allows you to maintain an entire supply of ice with less waste. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Product Features

No-Drain 15" Wide Icemaker
Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
Large capacity
Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs

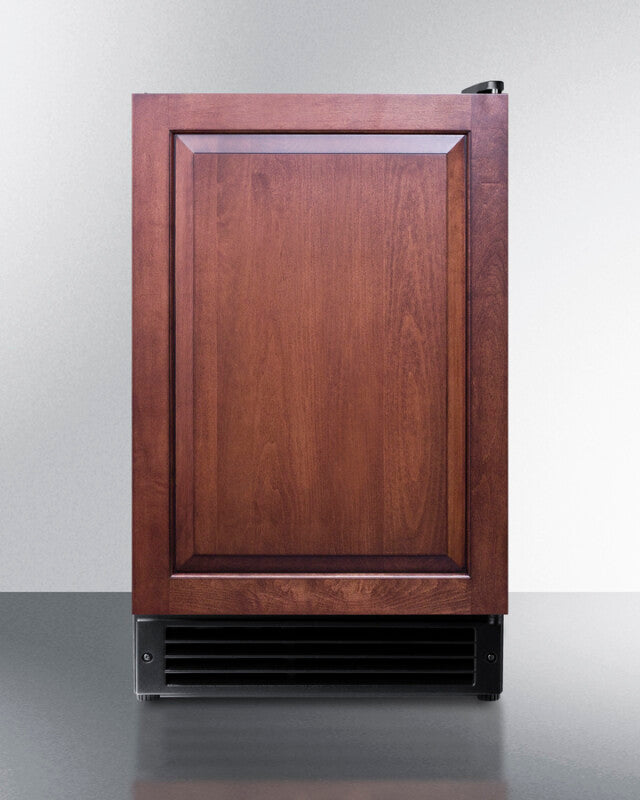

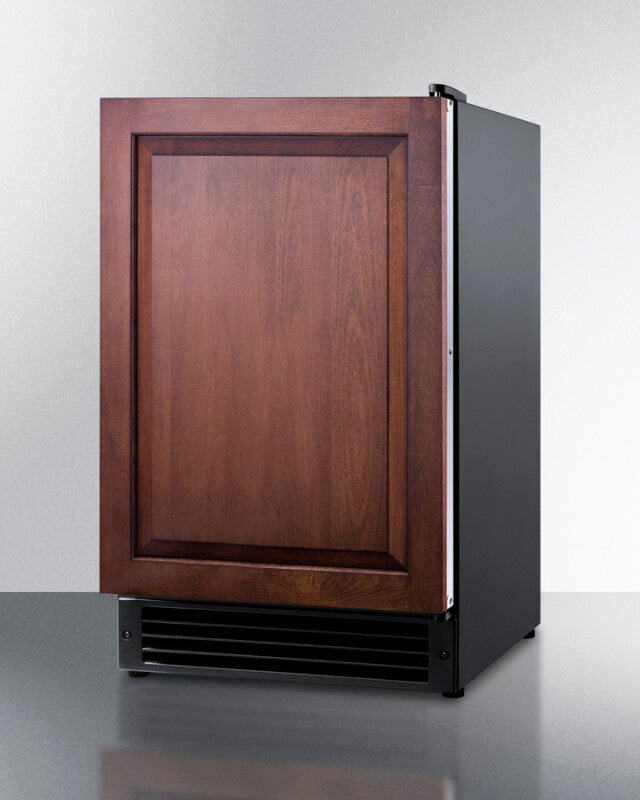

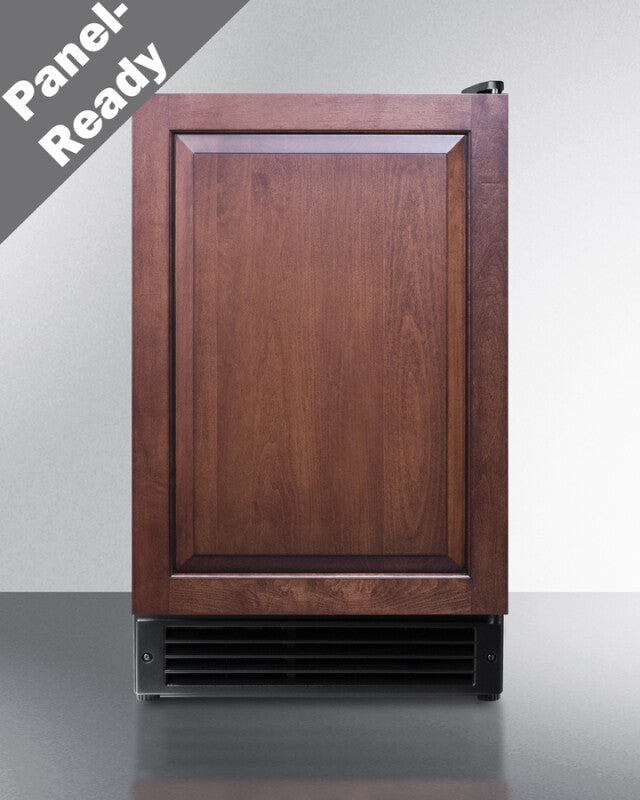

Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 20 1/2" H x 14 15/16" H and at least 3/4" thick; maximum weight: 10 lbs.)
Sealed back
Space-saving design with easier cleanability
Drain-free design
Convenient design allows more flexibility in positioning the unit
Ice scoop included
Large ice scoop and holder included for your convenience
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice

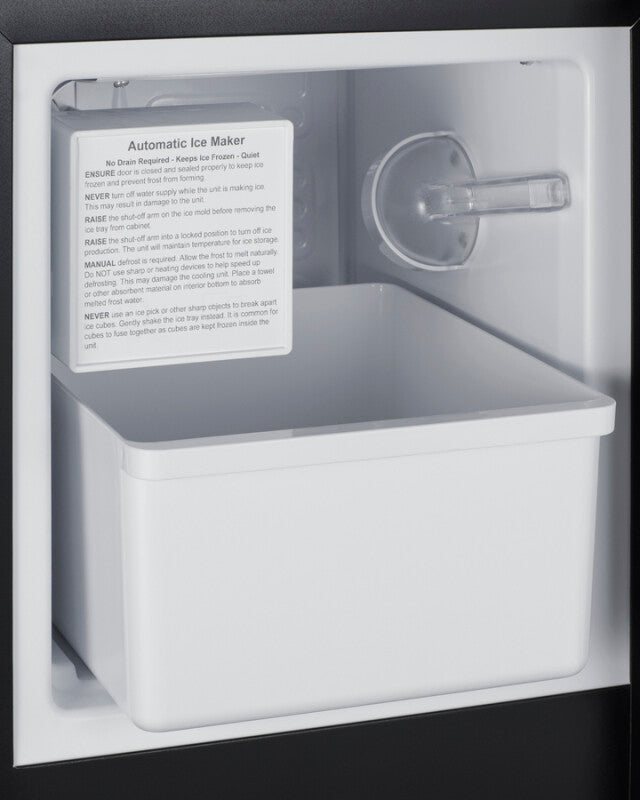

Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Built-In capable
Make the best use of space by installing your icemaker under the counter
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Standard water hookup
Operates with a standard 1/4” OD water supply line
