Name: SUMMIT BIM26H32 25 Lb. Drain-free Icemaker, ADA Compliant
Brand: SUMMIT
SKU: BIM26H32-KT
Price: 1517.37 USD
Availability: OutOfStock

SUMMIT BIM26H32 25 Lb. Drain-free Icemaker, ADA Compliant

Key Specs

Type: Ice makers
Width: 14.88 Inch
Depth: 19.38 Inch
Height: 31.75 Inch

More details

Translation missing: en.products.product.product_variants

$1,517.37 $1,835.00 Save $317.63

Check Delivery Options

Out of stock

Quantity:

Product Information
Specifications
Manuals & Guides
Features
Reviews

General
Model: BIM26H32
Brand: SUMMIT
Type: Ice Makers
Height: 31.75
Width: 14.88
Length: 19.38
Capacity & Storage
Number of Shelves: 0
Freezer Capacity: 0.4
Counter depth: No
Features
Sabbath mode: No
Advanced Features
Wi-Fi Connectivity: No

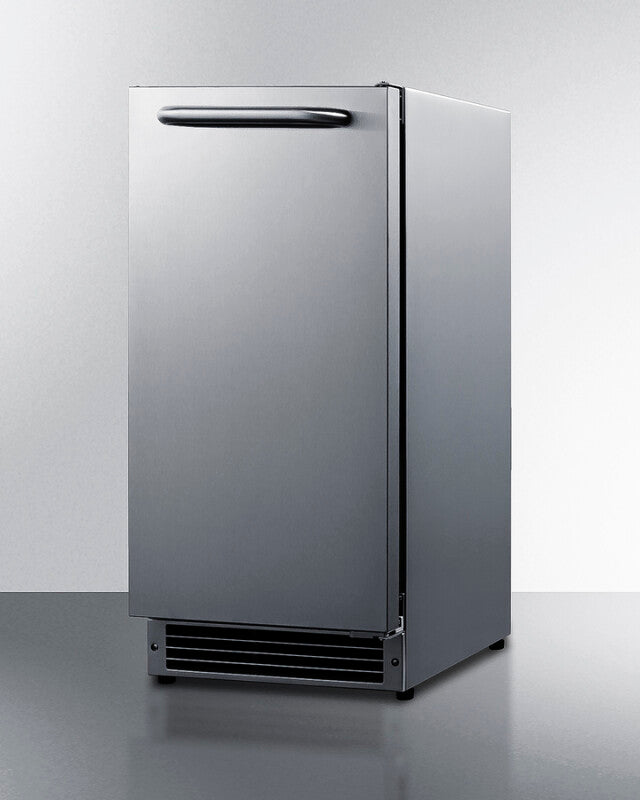

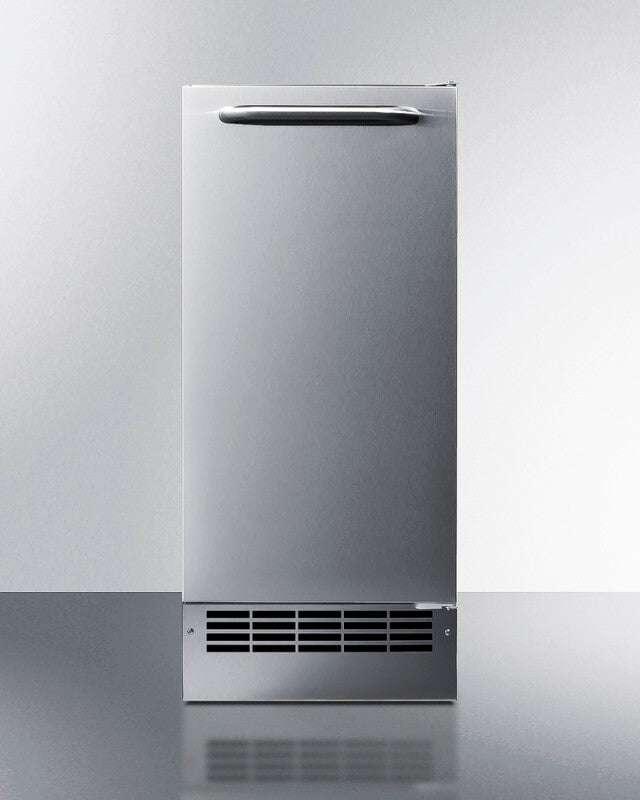

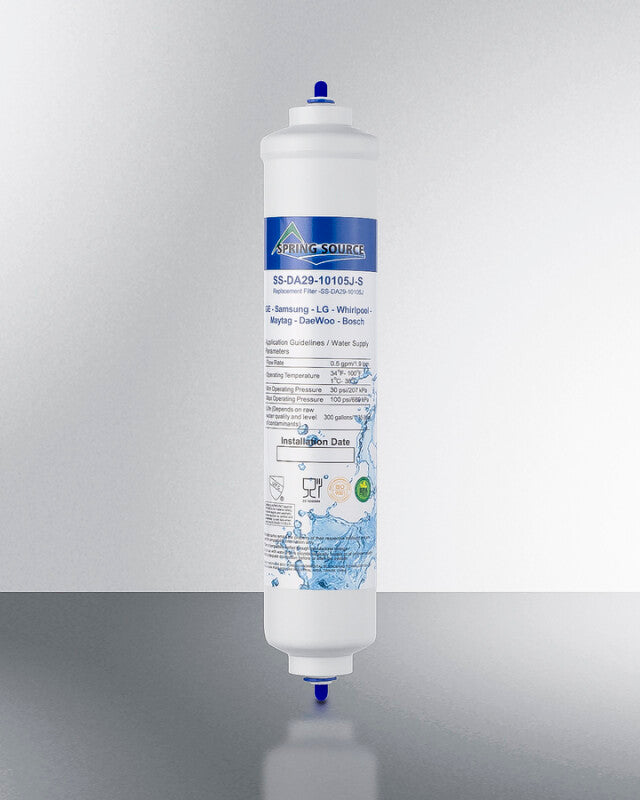

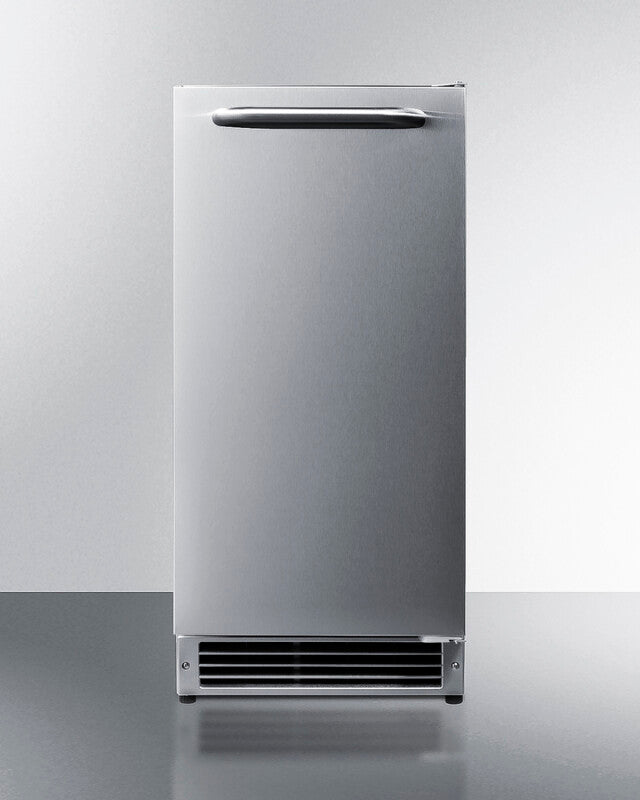

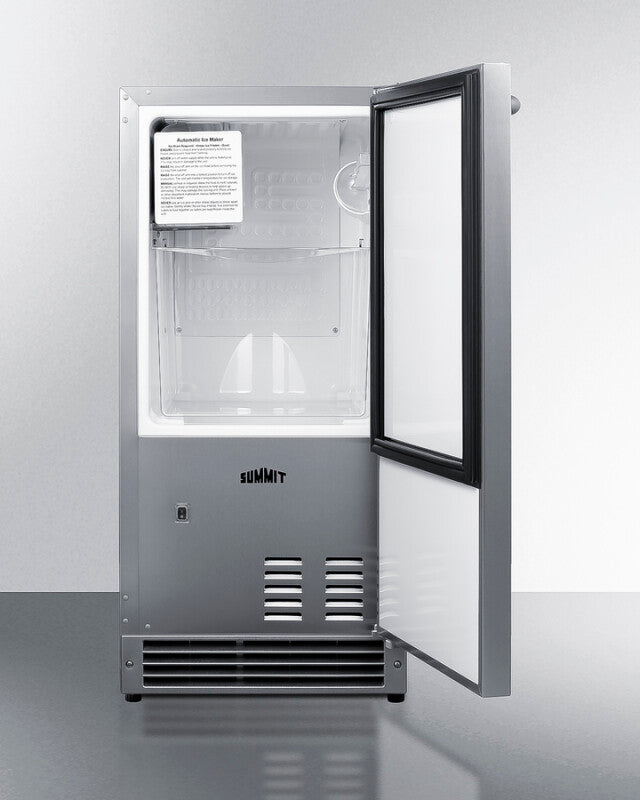

Summit combines convenience and luxury to craft the BIM26H32 - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM26H32 features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look. The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM26H32 shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its complete stainless steel construction and low maintenance design, the BIM26H32 is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste. This icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Overview
Height of Cabinet	31.75" (81 cm)
Width	14.88" (38 cm)
Depth	19.38" (49 cm)
Depth with Handle	21.38" (54 cm)
Depth with door at 90°	33.63" (85 cm)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.9
Voltage/Frequency	115 V AC/60 Hz
Weight	61.0 lbs. (28 kg)
Shipping Weight	90.0 lbs. (41 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101103525
Icemaker
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Daily Ice Production	25.0 lbs. (11 kg)
Ice Storage Capacity	22.0 lbs. (10 kg)
Ice Shape	Crescent
Size of Cube	1
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	15.88" (40 cm)
Interior Width	11.88" (30 cm)
Interior Depth	12.38" (31 cm)
Level Legs	4

No drain is required for more flexibility in placing the icemaker indoors or outside
Space-saving design with easier cleanability
31.75" height allows installation under lower ADA-compliant counters

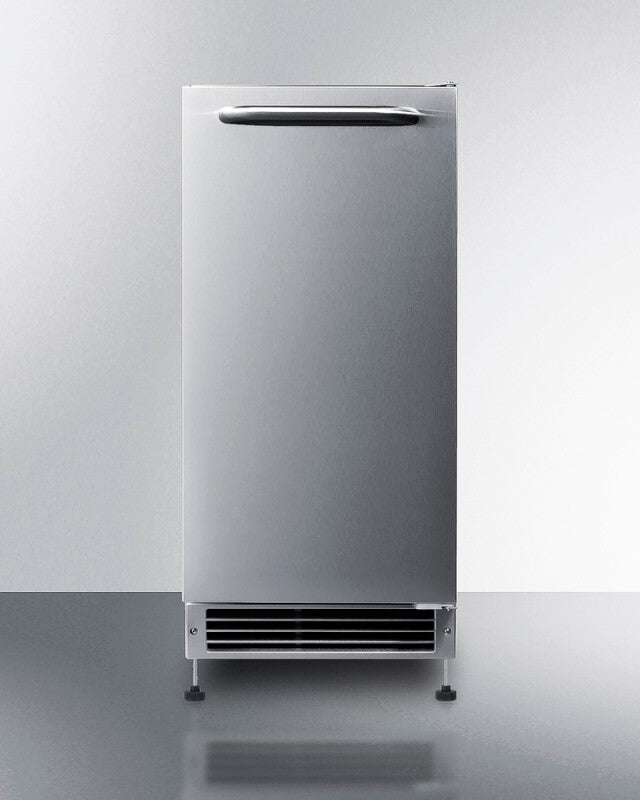

This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Produces and stores more than 20 lbs of ice per day cycle
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
Make the best use of space by installing your ice maker under the counter
User-reversible door swing for flexible placement
