SUMMIT BIM25H34 12 Lb. Drain-free Icemaker

SKU: BIM25H34

SUMMIT BIM25H34 12 Lb. Drain-free Icemaker
SUMMIT BIM25H34 12 Lb. Drain-free Icemaker
SUMMIT BIM25H34 12 Lb. Drain-free Icemaker
SUMMIT BIM25H34 12 Lb. Drain-free Icemaker
SUMMIT BIM25H34 12 Lb. Drain-free Icemaker

Key Specs

  • Type: Ice makers
  • Width: 15.18 Inch
  • Depth: 22.5 Inch
  • Height: 33.75 Inch

More details

    $1,475.77

    More on the way

    Check Delivery Options

    Extended Protection

    ?

    Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

    Enjoy added peace of mind long after the original warranty expires.

    This Protection Plan includes:

    • Full parts and labor coverage during the whole period of the extension plan.
    • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
    • Food loss protection
    • 24/7 toll-free number for support

    Click here for full details.

    • $115.99
    • $163.99
    • Product Information
    • Technical Details
    • Manuals & Guides
    • Features
    • Reviews
    • General
    • Model: BIM25H34
    • Brand: Summit Appliance
    • Height: 33.75
    • Width: 15.18
    • Length: 22.5
    • Advanced Features
    • Wi-Fi Connectivity: No


    Complete 304 grade stainless steel exterior is assembled in the USA for a luxury look built to last
    (BULL)Flexible design allows built-in or freestanding use
    (BULL)No drain required for operation
    (BULL)Produces up to 12 lbs. of crescent-shaped ice in a day cycle

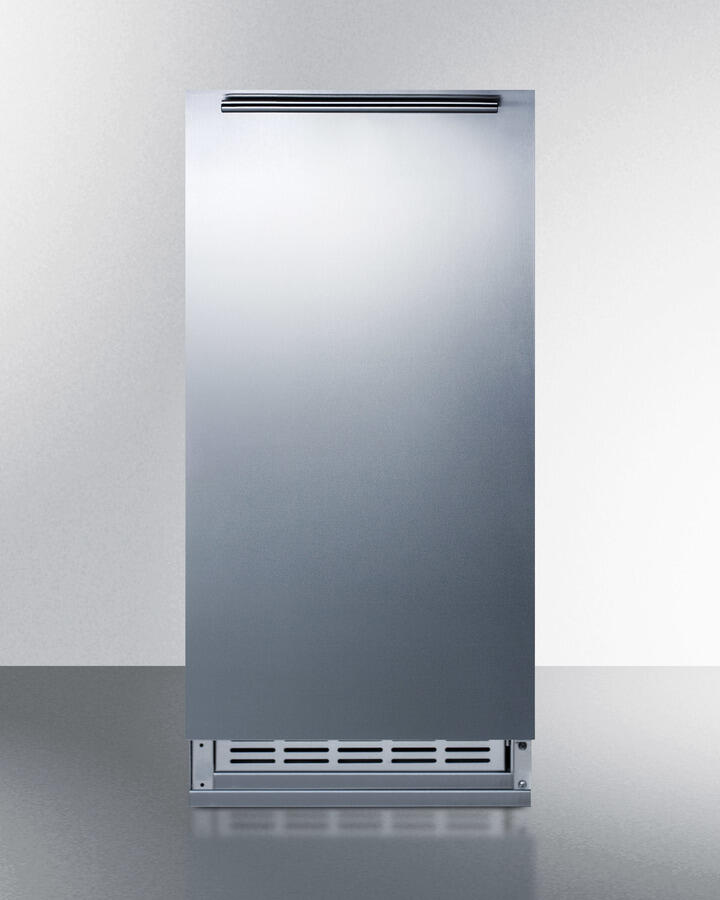

    SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel. Sized at just 15 1/8" wide, the BIM25H34 features a front-breathing design for built-in installation, but also has a fully finished cabinet to allow freestanding use. The cabinet and user-reversible door are wrapped in 304 grade stainless steel for professional style built to last, with a sleek handle mounted horizontally to finish the look. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation. Inside, the BIM25H34 can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H34 ships with a connection hose. Other hardware should be supplied by your plumber. With its complete stainless steel construction and low maintenance design, the BIM25H34 is a great way to finish any undercounter kitchen space. For this unit sized at 32" for use under ADA compliant counters, see the BIM25H32.

    Overview
    Height of Cabinet 33.5" (85 cm)
    Height to Hinge Cap 33.75" (86 cm)
    Width 15.18" (39 cm)
    Depth 21.0" (53 cm)
    Depth with Handle 22.5" (57 cm)
    Depth with door at 90° 34.0" (86 cm)
    Capacity 1.0 cu.ft. (28 L)
    Defrost Type Manual
    Door Stainless Steel
    Cabinet Stainless Steel
    US Electrical Safety UL
    Canadian Electrical Safety ULC
    Amps 1.5
    Voltage/Frequency 115 V AC/60 Hz
    Weight 100.0 lbs. (45 kg)
    Shipping Weight 105.0 lbs. (48 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101058474
    Icemaker
    Door Swing RHD
    Reversible Yes
    Daily Ice Production 12.0 lbs. (5 kg)
    Ice Storage Capacity 12.0 lbs. (5 kg)
    Ice Shape Crescent
    Number of Ice Cube Sizes 1
    Refrigerant Type R600a
    Refrigerant Amount 0.63 oz.
    High Side PSI 250.0
    Low Side PSI 110.0
    Interior Height 11.5" (29 cm)
    Interior Width 10.0" (25 cm)
    Interior Depth 12.63" (32 cm)
    Level Legs 4
    Exterior
    LHD - Left hand door swing Latch for door
    Overview
    Height of Cabinet 33.5" (85 cm)
    Height to Hinge Cap 33.75" (86 cm)
    Width 15.18" (39 cm)
    Depth 21.0" (53 cm)
    Depth with Handle 22.5" (57 cm)
    Depth with door at 90° 34.0" (86 cm)
    Capacity 1.0 cu.ft. (28 L)
    Defrost Type Manual
    Door Stainless Steel
    Cabinet Stainless Steel
    US Electrical Safety UL
    Canadian Electrical Safety ULC
    Amps 1.5
    Voltage/Frequency 115 V AC/60 Hz
    Weight 100.0 lbs. (45 kg)
    Shipping Weight 105.0 lbs. (48 kg)
    Parts & Labor Warranty 1 Year
    Compressor Warranty 5 Years
    UPC 761101058474
    Icemaker
    Door Swing RHD
    Reversible Yes
    Daily Ice Production 12.0 lbs. (5 kg)
    Ice Storage Capacity 12.0 lbs. (5 kg)
    Ice Shape Crescent
    Number of Ice Cube Sizes 1
    Refrigerant Type R600a
    Refrigerant Amount 0.63 oz.
    High Side PSI 250.0
    Low Side PSI 110.0
    Interior Height 11.5" (29 cm)
    Interior Width 10.0" (25 cm)
    Interior Depth 12.63" (32 cm)
    Level Legs 4
    Exterior
    LHD - Left hand door swing Latch for door
    • No pump or drain required : Convenient design allows more flexibility in positioning the unit
    • Right angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
    • Built-in capable : Make the best use of space by installing your icemaker under the counter and flush with other cabinets
    • Complete stainless steel exterior : Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
    • Professional handle : Sleek handle in brushed stainless steel is horizontally mounted for a modern look
    • Mid-sized capacity : Produces and stores up to 12 pounds of ice per day cycle

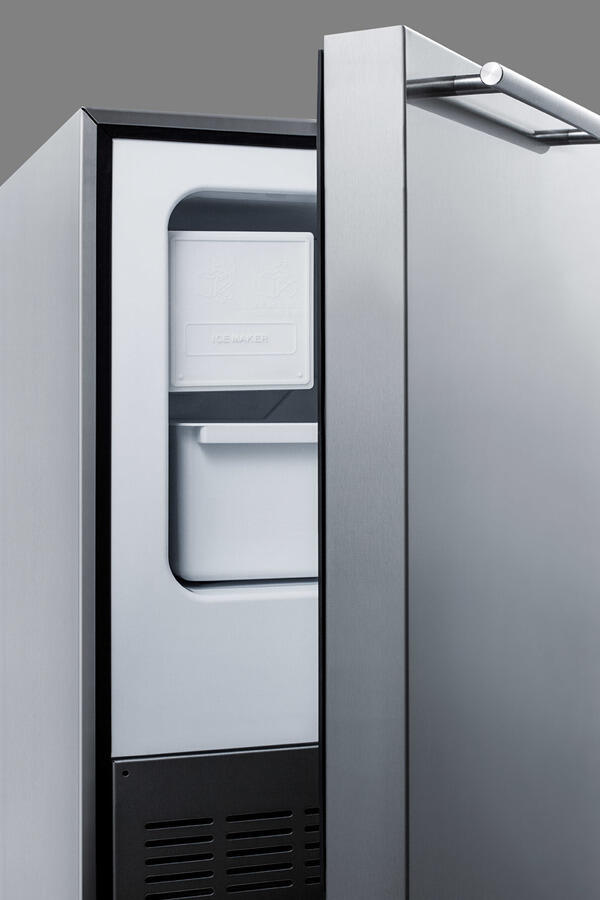

    • Insulated storage bin : Ice stays solid longer in this cold-protected bin
    • Removable bin : Bucket can be removed for fast and easy cleaning
    • Storage compartment : Includes lower compartment for storing non-refrigerated items
    • Reversible door : User-reversible design allows you to change the door swing to better accommodate your setup
