Summit BIM18IF 18" 8 lb. Drain-Free Icemaker (Panel Not Included) Panel-Ready
Sale price
$2,096.97
Regular price
$2,559.97
Save
$463.00
/ 18% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,096.97
Regular price
$2,559.97
Save
$463.00
/ 18% OFF
Product Details for Summit BIM18IF
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & weight
| Width | 17.75 in. |
| Height | 34.25 in. |
| Length | 24 in. |
| Weight | 82 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 8.44 ft³ |
| Dimensional Weight | 104.97 lbs. |
| Total of Cubes | 8.44 ft³ |
| Total of Dimensional Weight | 104.97 lbs. |
Overview icemaker
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 2.7 cu.ft. (76 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063744 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 8.0 lbs. (4 kg) |
| Ice Storage Capacity | 8.0 lbs. (4 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | -22 to 14ºF |
Description
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for smaller kitchens. Sized just under 18 inches wide, the BIM18IF features a front-breathing design for built-in installation, with a fully finished cabinet to also allow freestanding use. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit. Inside, the BIM18IF can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance. With its ideal size and customizable design, the BIM18IF is a great solution to keeping a steady supply of ice on hand in smaller kitchen spaces. For this unit sized for ADA compliant counters, see the BIM18IFADA. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
Product Features
-
Built-in capable
Make the best use of space by installing your appliance under the counter -
Ice production
Makes and stores up to 8 lbs. of crescent cubes -
No pump or drain required
Convenient design allows more flexibility in positioning the unit -
Digital thermostat
Electronic controls for precise temperature management. -

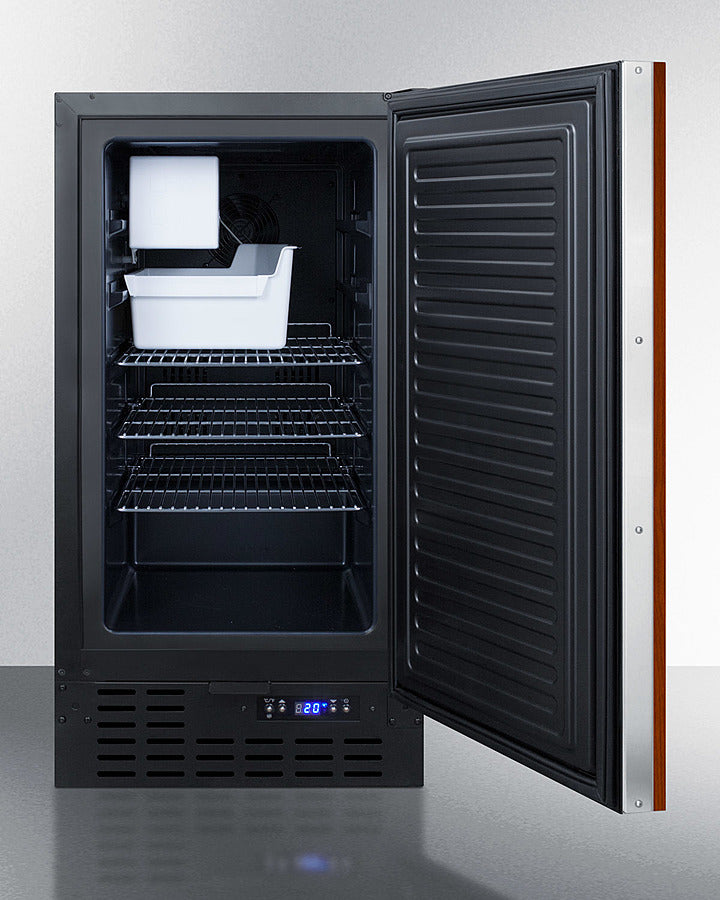

Removable bin
Bucket can be removed for fast and easy cleaning -

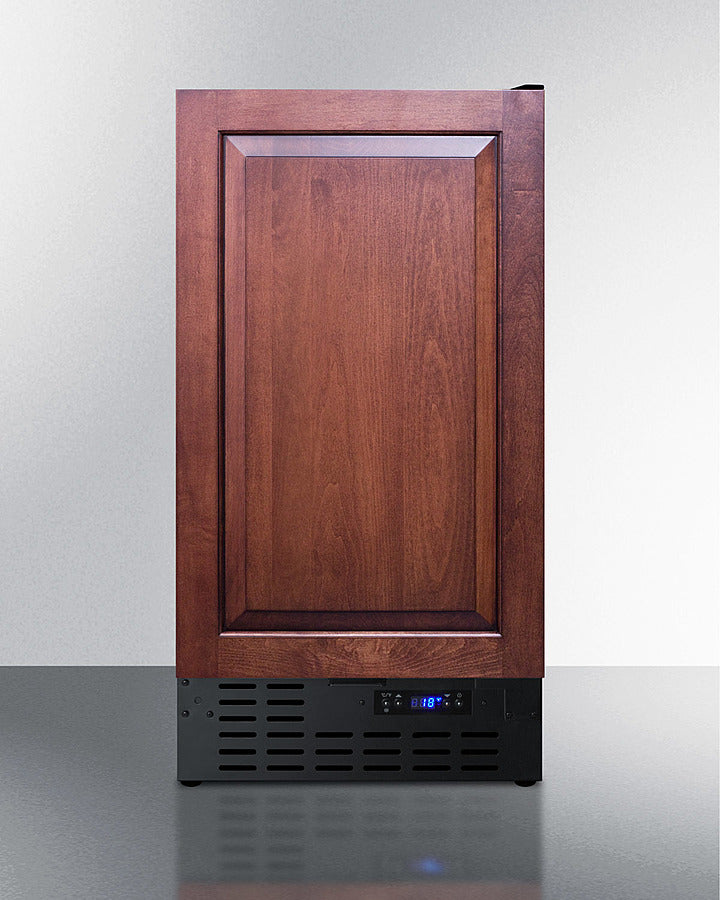

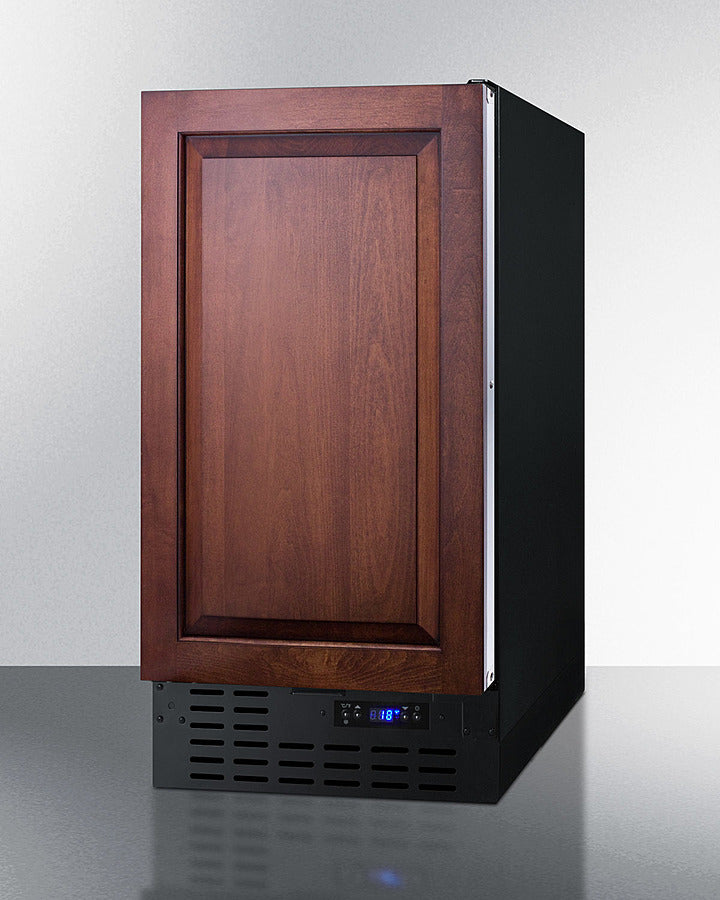

Integrated door frame
Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.) -
Digital display
Temperature readout can be shown in Celsius or Fahrenheit -
Frost-free operation
Eliminates the need to manually defrost the interior -
Extra shelves
Adjustable chrome shelves included to accommodate additional items -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -
Flush back
Space saving design with easier cleanability -
Fully finished black cabinet
Allows the unit to be used freestanding -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
