Product Details for Summit BIM182OSADAIF

Technical Details

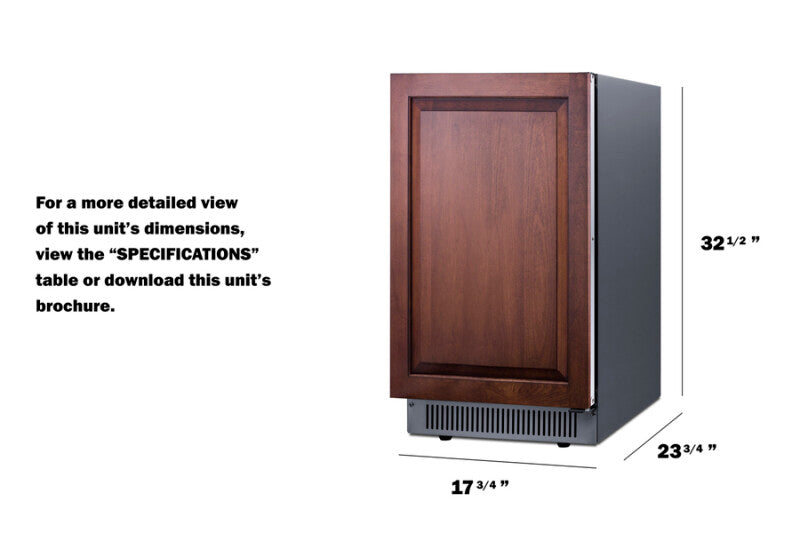

Dimensions & weight

Width 17.75 in.
Height 32.5 in.
Length 23.75 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.93 ft³
Dimensional Weight 98.57 lbs.
Total of Cubes 7.93 ft³
Total of Dimensional Weight 98.57 lbs.

Overview icemaker

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.5" (83 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Depth 23.75" (60 cm)
Depth with Panel 24.75" (63 cm)
Depth with door at 90° 41.0" (104 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 11.8
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101150727
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 60.0 lbs. (27 kg)
Ice Storage Capacity 33.0 lbs. (15 kg)
Ice Shape Cube
Size of Cube .87" x .87" . 87"
Number of Ice Cube Sizes 3
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 1.37 oz.
High Side PSI 330.0
Low Side PSI 160.0
Interior Height 18.75" (48 cm)
Interior Width 14.75" (37 cm)
Interior Depth 16.75" (43 cm)
Level Legs 4

Description

Summit lets you transform your outdoor space into luxury kitchens with weatherproof appliances designed to maximize your entertaining., including uniquely sized 18 inch wide built-in clear icemakers. Sized just under 18 inches wide and 32.5 inches high, model BIM182OSADAIF features weatherproof construction for safe installation in outdoor kitchens. The front-breathing design allows for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back for protection from the elements and right angle cord for added space savings. Inside, the BIM182OSADAIF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience. With its unique size, user-friendly design, and large capacity, the BIM182OSADAIF is a great way to complete any outdoor kitchen with style and convenience. In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.


Product Features

  • 18" Wide Clear Icemaker
    Built-in undercounter icemaker ideal for installation in outdoor kitchens
  • Weatherproof design
    Durable stainless steel construction for safe installation in outdoor spaces
  • ADA-compliant
    32.5" height allows easy installation under lower ADA compliant counters

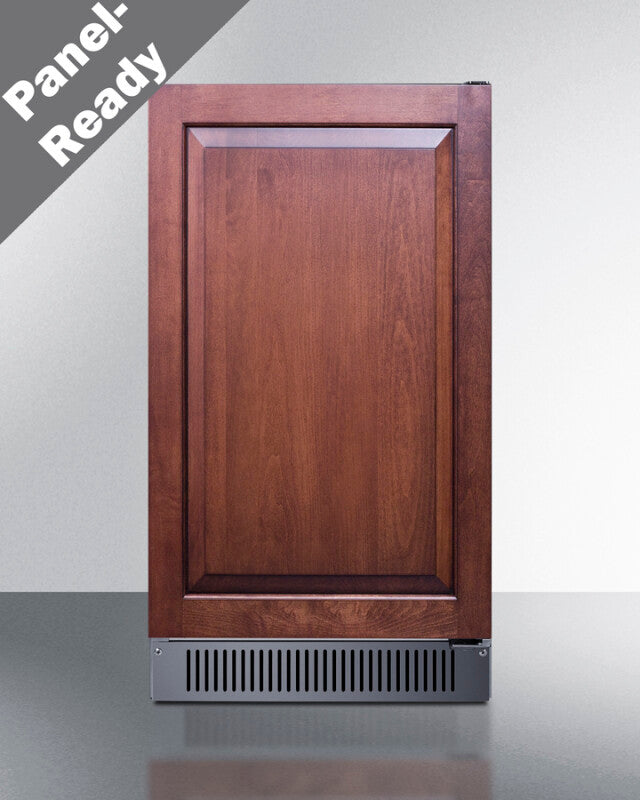

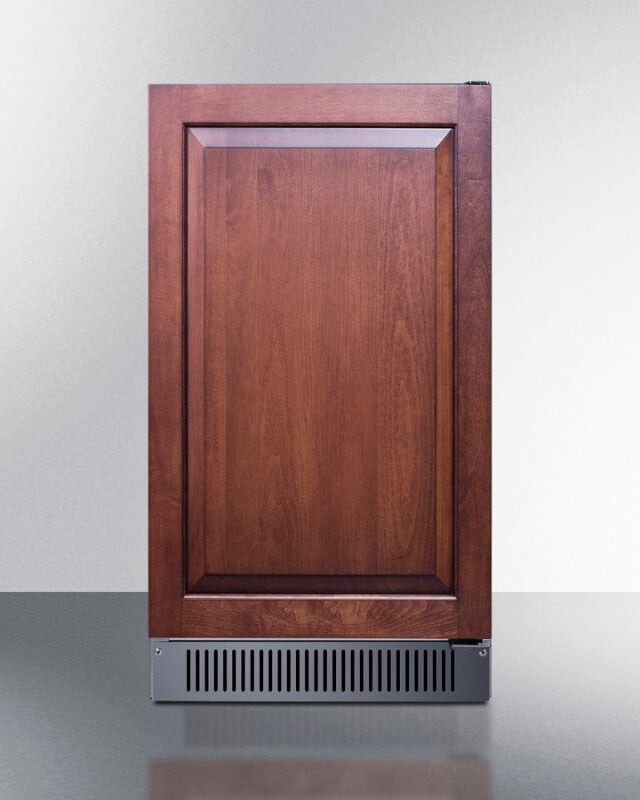

  • Panel-ready door
    Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
  • Built-in pump
    Internal pump affords more flexibility in placing the unit

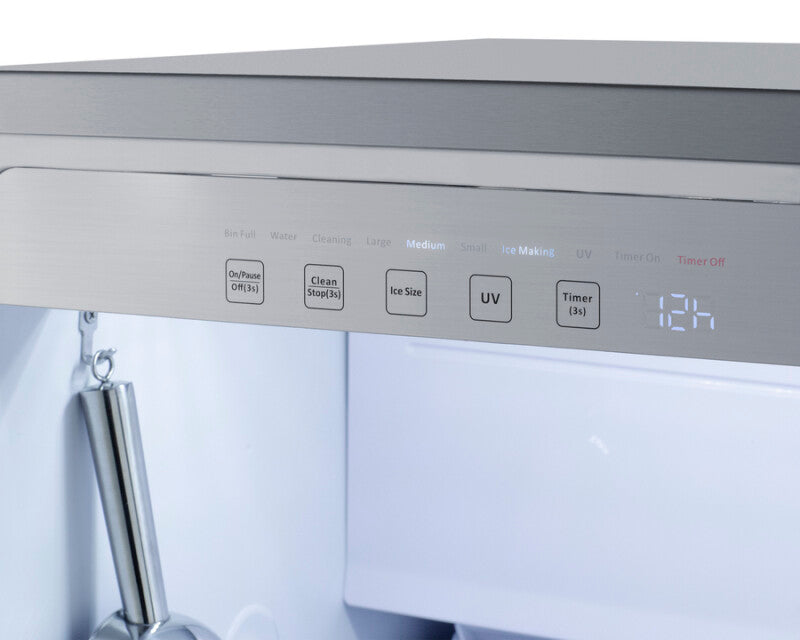

  • Touch control panel
    Provides easy operation of the unit with indicator lights for each stage of the production process
  • 60 lb. production capacity
    Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.
  • Height adjustable
    This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
  • Automatic defrost
    Reduced maintenance with auto defrost system
  • Interior light
    LED lighting automatically illuminates when the door is opened
  • Interior UV light
    Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

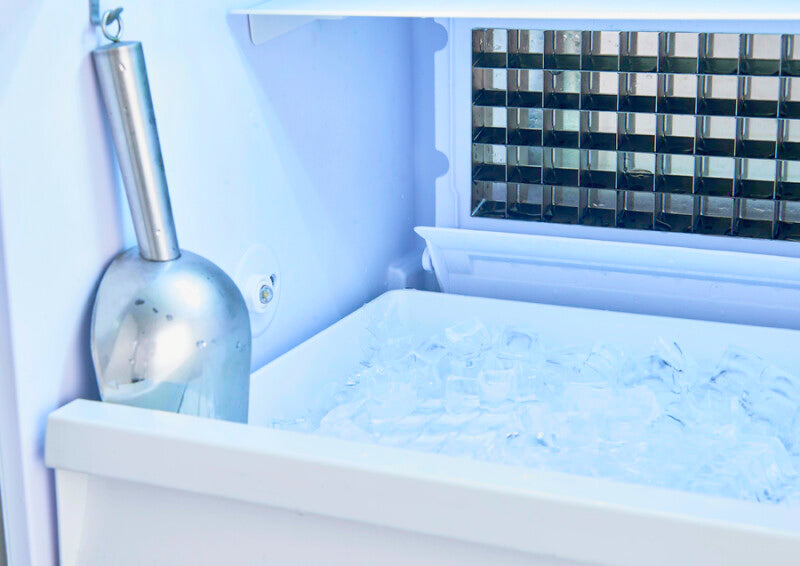

  • Ice scoop included
    Interior wall includes brackets to hang for easy storage
  • Insulated storage bin
    Ice stays solid longer in this cold-protected bin
  • Removable bin
    Users can remove the ice bucket for fast and easy cleaning
  • Fully finished stainless steel cabinet
    Allows the unit to be used freestanding
  • Sealed back
    Space-saving design with easier cleanability
  • Right angle plug
    Flat design offers added space savings by requiring no extra depth to plug the unit in
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
  • Built-in capable
    Make the best use of space by installing your icemaker under the counter
  • Ice selection
    Unit allows users to choose from small, medium, or large clear ice cubes
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
