Summit BIM182 18" Wide Clear Icemaker Stainless Steel

Quick Specification More details

Width:
17.75"
Depth:
23.75"
Height:
34.75"
Type:
Ice Makers

About this product

18" Wide Clear Icemaker
60 lb. production capacity
Touch control panel
Built-in pump

Summer Sale

Clearance

SKU: BIM182 | UPC: 761101108155

Summit BIM182 18" Wide Clear Icemaker Stainless Steel

$2,333.67 ~~$2,814.97~~ Save $481.30 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
17.75"
Depth:
23.75"
Height:
34.75"
Type:
Ice Makers

About this product

18" Wide Clear Icemaker
60 lb. production capacity
Touch control panel
Built-in pump

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,333.67 ~~$2,814.97~~ Save $481.30 / 17% OFF

Product Details for Summit BIM182

Technical Details

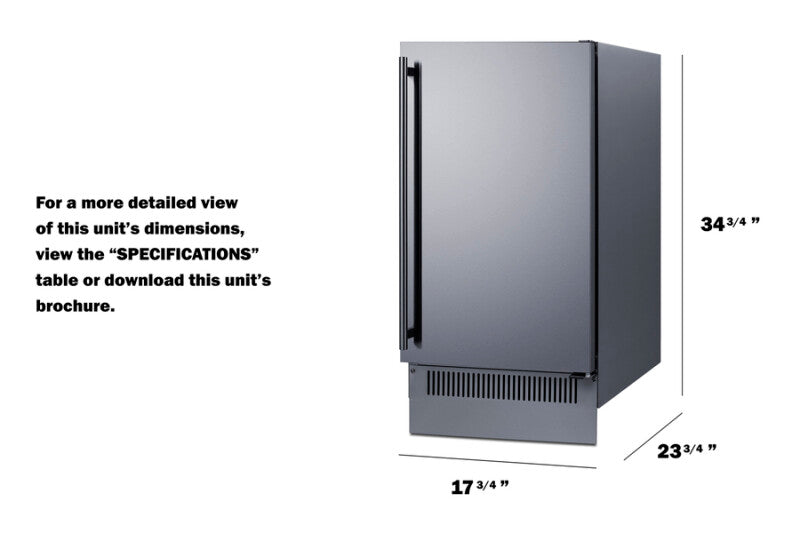

Dimensions & weight

Width	17.75 in.
Height	34.75 in.
Length	23.75 in.
Weight	95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.48 ft³
Dimensional Weight	105.39 lbs.
Total of Cubes	8.48 ft³
Total of Dimensional Weight	105.39 lbs.

Overview icemaker

Nominal Height	32.0" (81 cm)
Height of Cabinet	34.75" (88 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	41.0" (104 cm)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	11.8
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101108155
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Drain Required	Yes
Daily Ice Production	60.0 lbs. (27 kg)
Ice Storage Capacity	33.0 lbs. (15 kg)
Ice Shape	Cube
Size of Cube	.87" x .87" . 87"
Number of Ice Cube Sizes	3
Interior Light	Yes
Refrigerant Type	R290
Refrigerant Amount	1.37 oz.
High Side PSI	330.0
Low Side PSI	160.0
Interior Height	18.75" (48 cm)
Interior Width	14.75" (37 cm)
Interior Depth	16.75" (43 cm)
Level Legs	4

Description

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18-inch wide spaces. Sized just under 18 inches wide and 34.75 inches high, model BIM182 features a front-breathing design for built-in installation underneath standard height counters and includes a include a stainless steel kickplate extender to cover any gaps. The height can also be lowered to accommodate ADA-compliant counters. This model comes in a complete stainless steel exterior, with a user-reversible door to best suit your setting. A pro-style handle is included. This unit features a sealed back and right angle cord for added space savings. Inside, the BIM182 can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with a drain hose, water hose, removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience. With its unique size, user-friendly design, and large capacity, the BIM182 is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OS. In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18-inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

Product Features

18" Wide Clear Icemaker
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
60 lb. production capacity
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.

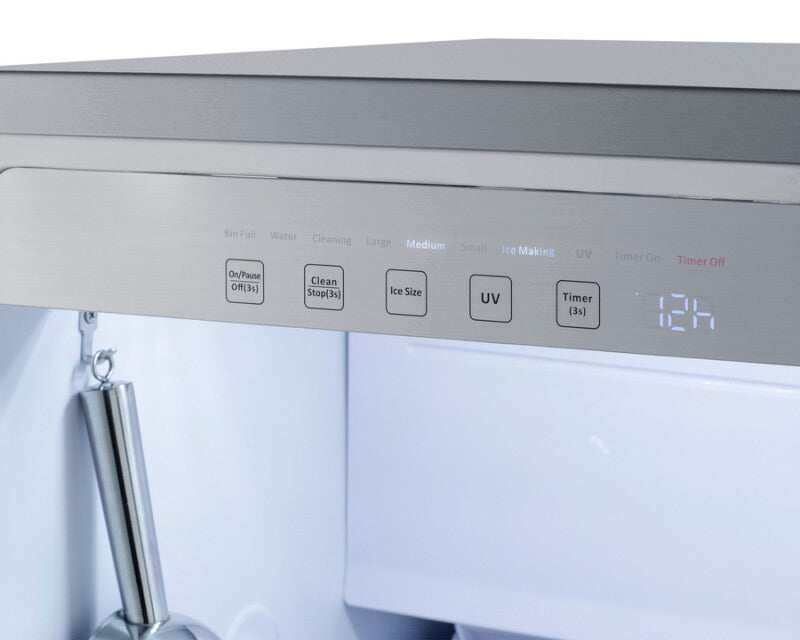

Touch control panel
Provides easy operation of the unit with indicator lights for each stage of the production process
Built-in pump
Internal pump affords more flexibility in placing the unit
Height adjustable
Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Automatic defrost
Reduced maintenance with auto defrost system
Interior light
LED lighting automatically illuminates when the door is opened
Interior UV light
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

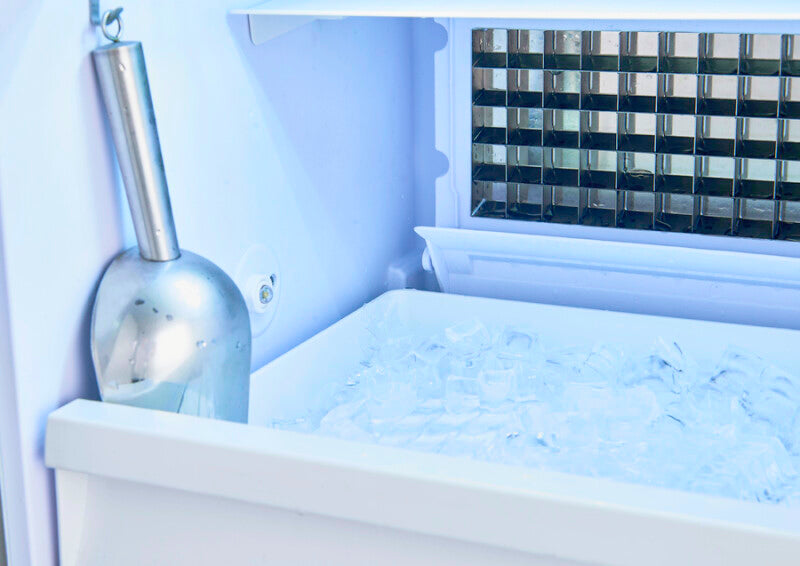

Ice scoop included
Interior wall includes brackets to hang for easy storage
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Reversible stainless steel door
User-reversible door swing for flexible placement
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Pro style handle
Vertically mounted stainless steel handle completes the look
Sealed back
Space-saving design with easier cleanability
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Built-in capable
Make the best use of space by installing your icemaker under the counter
Ice selection
Unit allows users to choose from small, medium, or large clear ice cubes
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
