Summit ASDR2414 24" Wide 2-Drawer All-Refrigerator, ADA Compliant Stainless Steel

Quick Specification More details

Width:
23.38"
Depth:
17.88"
Height:
32"
Type:
Compact Refrigerators

About this product

ADA compliant design
2-Drawer All-Refrigerator
Less than 18" deep
Stainless steel drawers

Summer Sale

Clearance

SKU: ASDR2414 | UPC: 761101079493

Summit ASDR2414 24" Wide 2-Drawer All-Refrigerator, ADA Compliant Stainless Steel

$2,091.50 ~~$2,529.97~~ Save $438.47 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.38"
Depth:
17.88"
Height:
32"
Type:
Compact Refrigerators

About this product

ADA compliant design
2-Drawer All-Refrigerator
Less than 18" deep
Stainless steel drawers

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,091.50 ~~$2,529.97~~ Save $438.47 / 17% OFF

Product Details for Summit ASDR2414

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.38 in.
Height	32 in.
Length	17.88 in.
Weight	106 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.74 ft³
Dimensional Weight	96.24 lbs.
Total of Cubes	7.74 ft³
Total of Dimensional Weight	96.24 lbs.

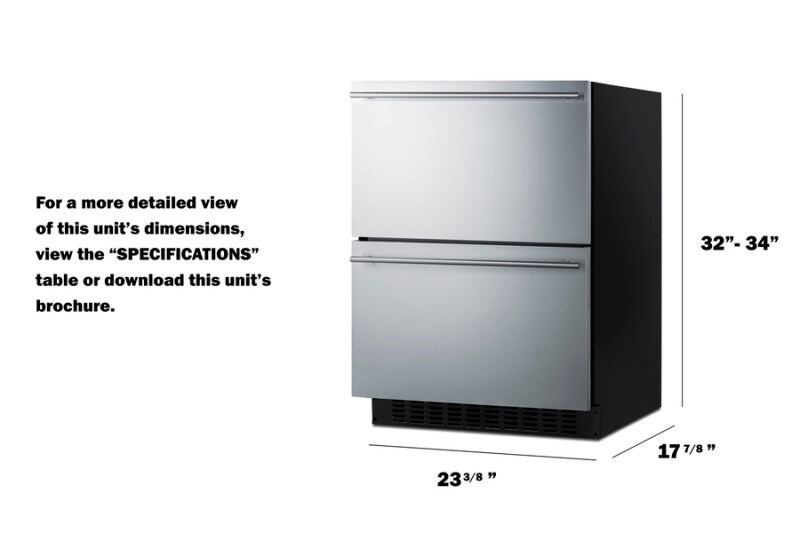

Overview refrigerator features drawer dimensions dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.88" (45 cm)
Depth with Handle	19.0" (48 cm)
Depth with door at 90°	29.63" (75 cm)
Capacity	3.1 cu.ft. (88 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	285.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	106.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079493
Sabbath Mode	Yes
Door Swing	Drawer
Height Adjustable	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF
Sound Level	33 dB
Interior Height 1	8.0" (20 cm)
Interior Width 1	17.63" (45 cm)
Interior Depth 1	11.25" (29 cm)
Interior Height 2	8.0" (20 cm)
Interior Width 2	17.63" (45 cm)
Interior Depth 2	11.25" (29 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	17.63" (45 cm)
Compressor Step Depth	4.75" (12 cm)

Description

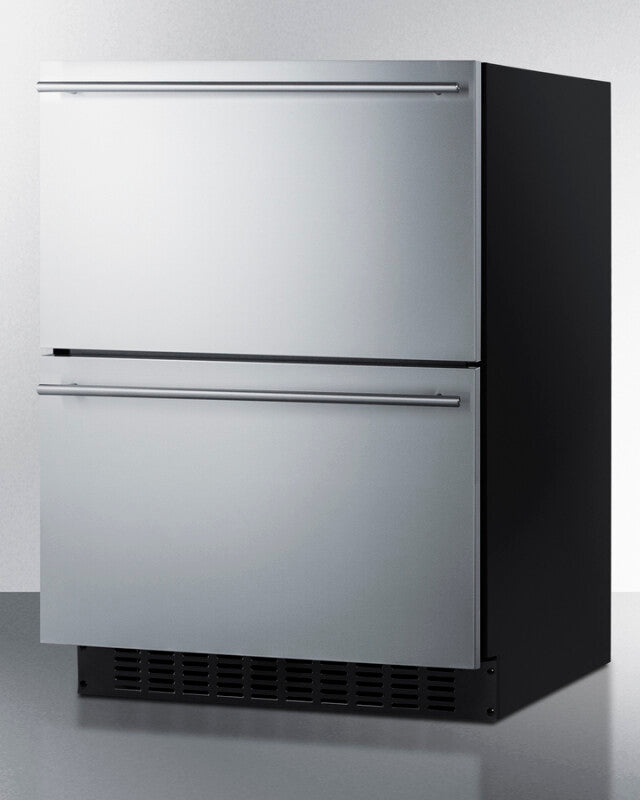

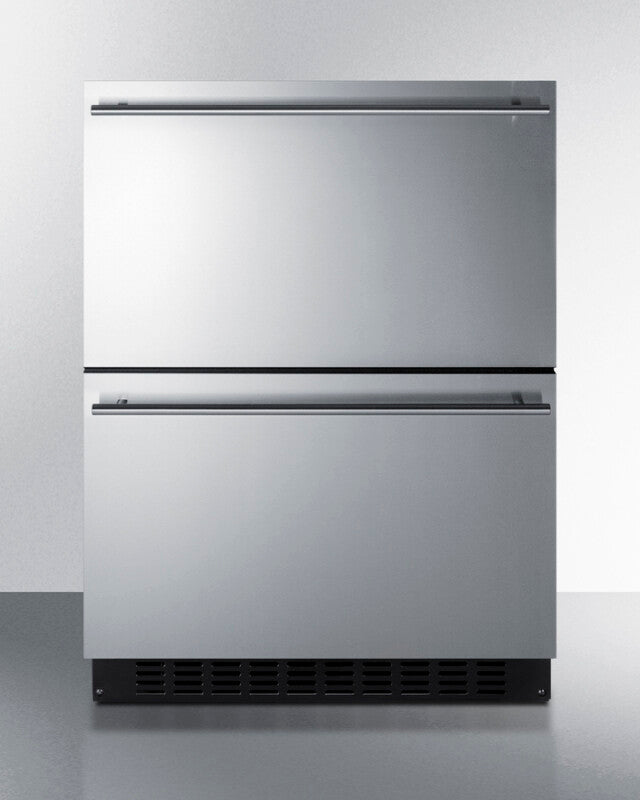

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDR2414 is a 24" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included. Inside, the ASDR2414 has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ASDR2414 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.

Product Features

ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters
2-Drawer All-Refrigerator
24" wide 3.1 cu.ft. all-refrigerator with two gliding drawers
Less than 18" deep
Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

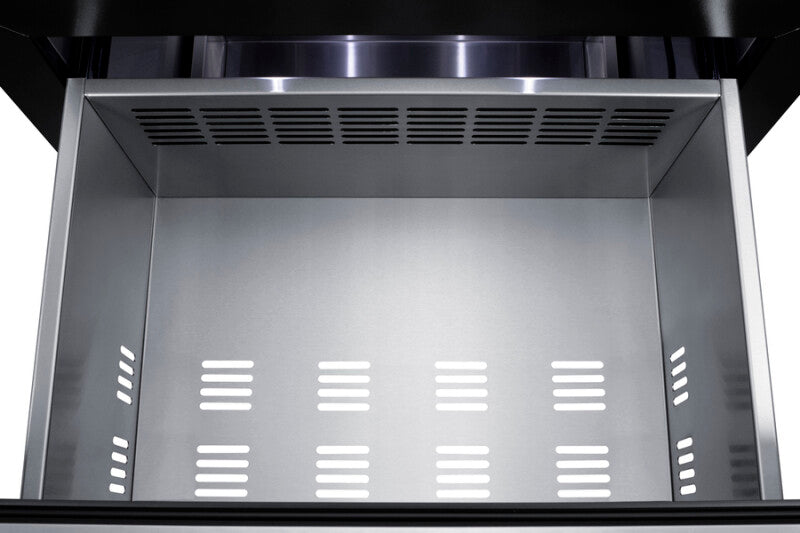

Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

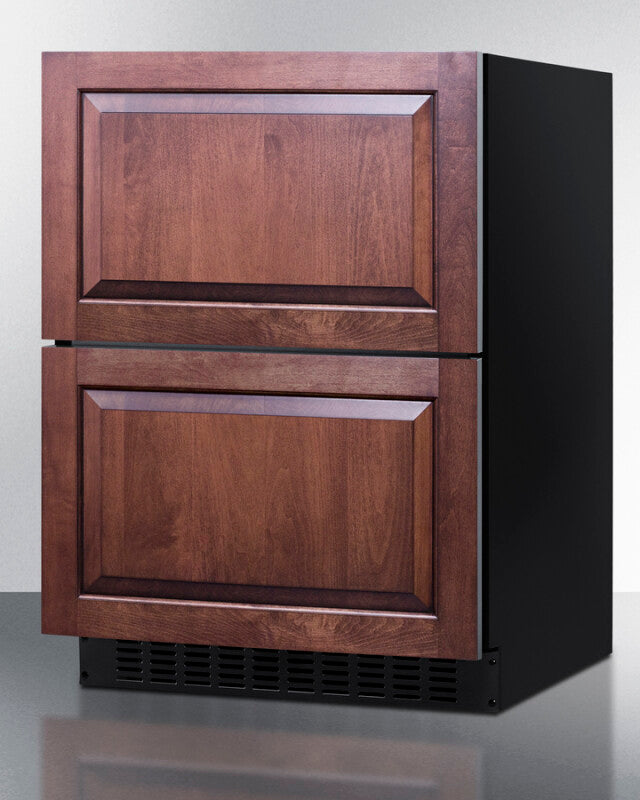

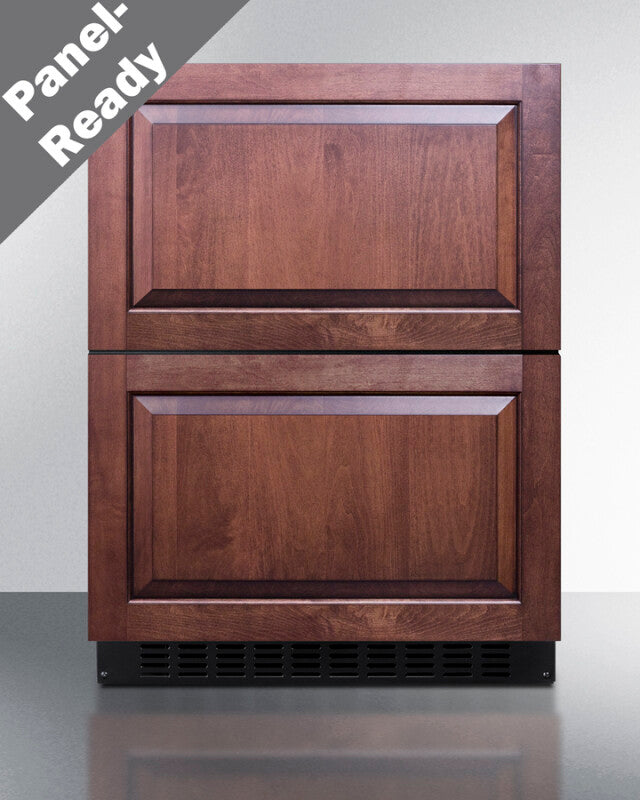

Panel-ready drawer fronts
Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Frost-free
No-frost operation for minimum user maintenance

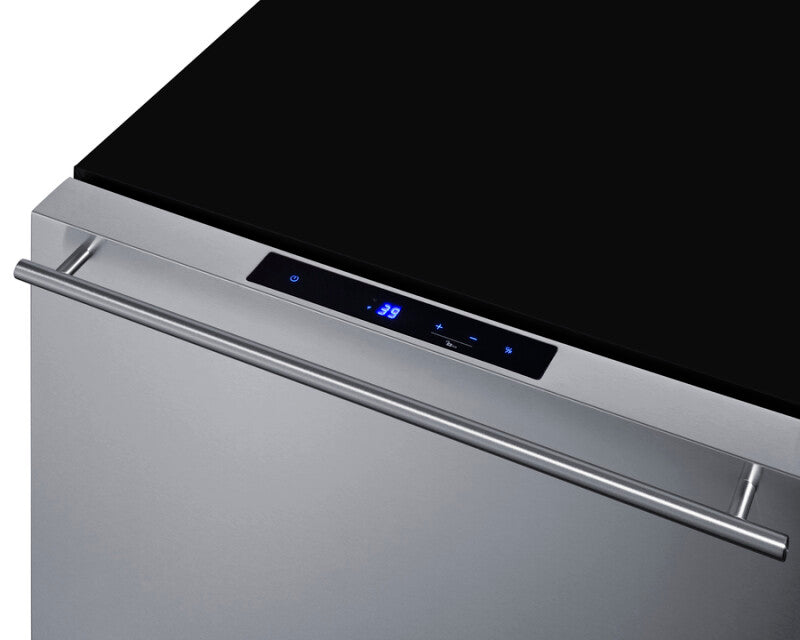

Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Interior lighting
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Fan-forced cooling
Provides for efficient, even cooling of the entire unit

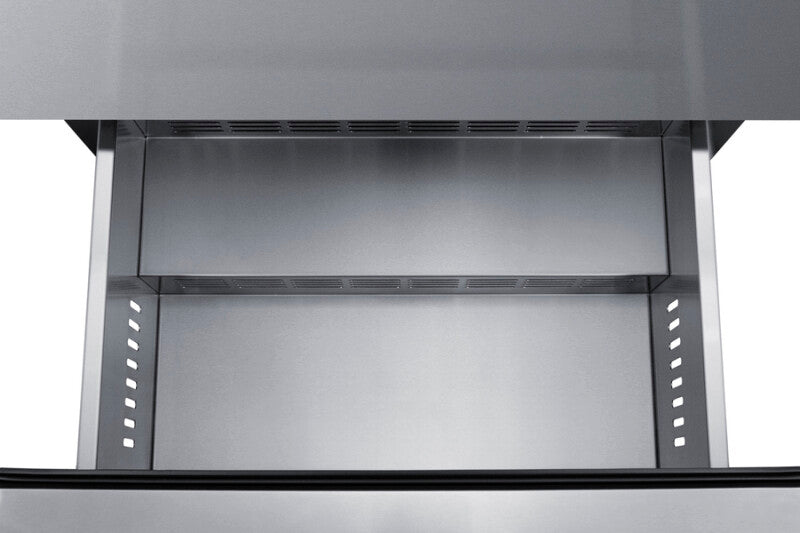

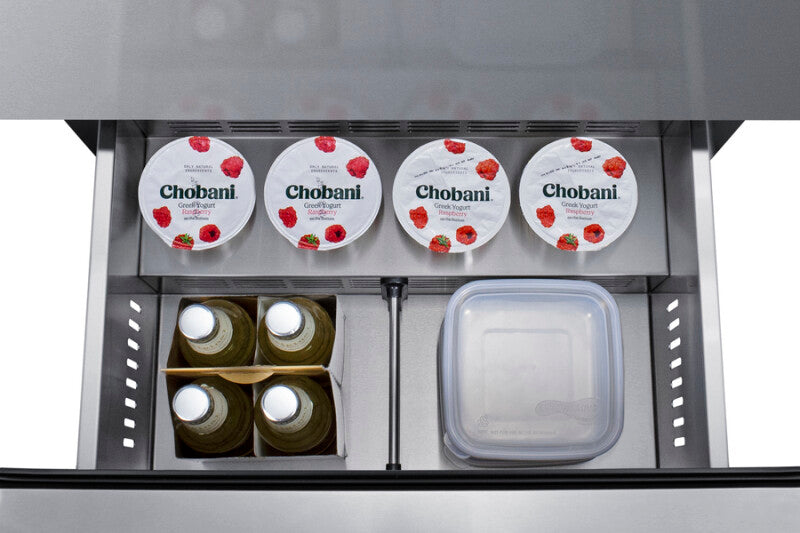

Drawer dividers
Two adjustable dividers provide flexibility when organizing the interiors
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Child lock
Disables digital controls after two minutes of activity for added safety
Temperature memory function
Unit will restore the most recent temperature settings after losing power
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

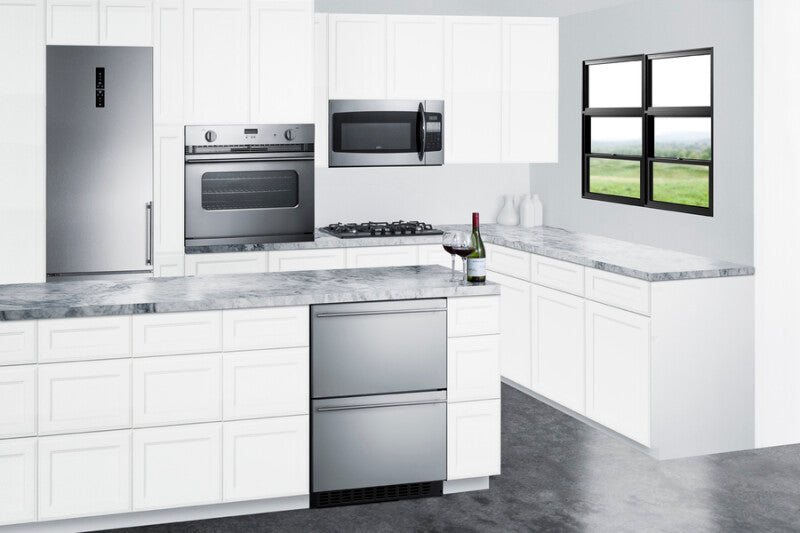

Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Fully finished black exterior cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
