Sale price $1,751.28 Regular price $2,224.97 Save $473.69 / 21% OFF

Product Details for Summit ASDG2411PNR

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

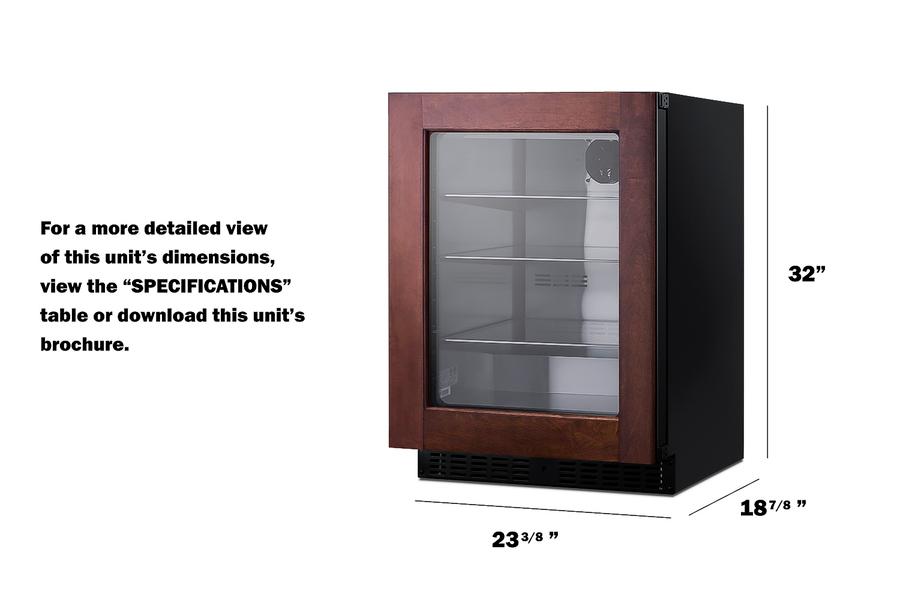

Dimensions & weight

Width 23.38 in.
Height 32 in.
Length 17.75 in.
Weight 120 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.69 ft³
Dimensional Weight 95.54 lbs.
Total of Cubes 7.69 ft³
Total of Dimensional Weight 95.54 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 285.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101104188
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.1 dB
Interior Height 24.5" (62 cm)
Interior Width 19.5" (50 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)

Description

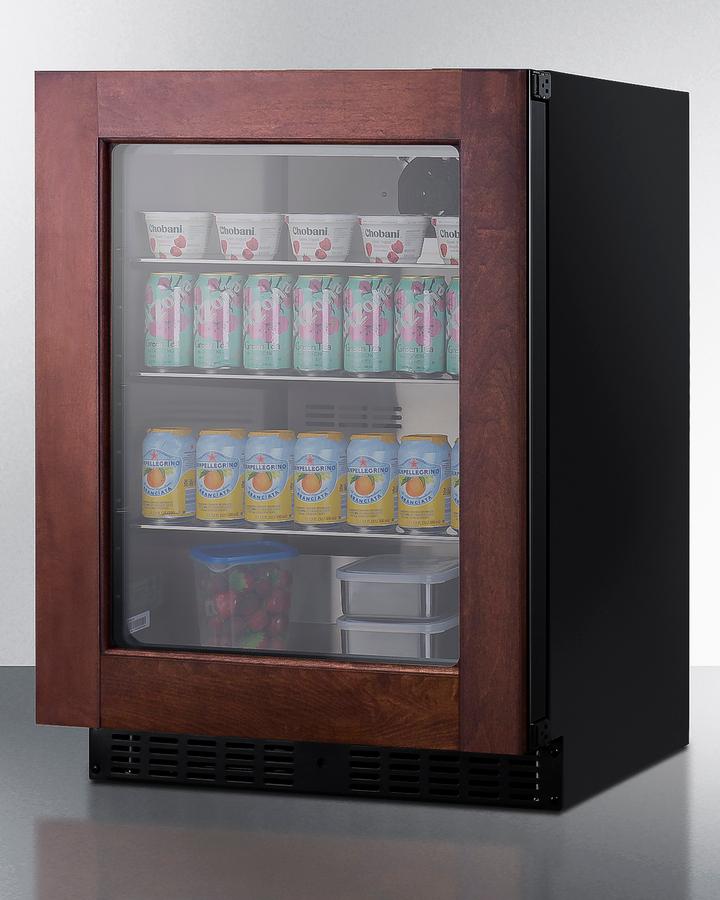

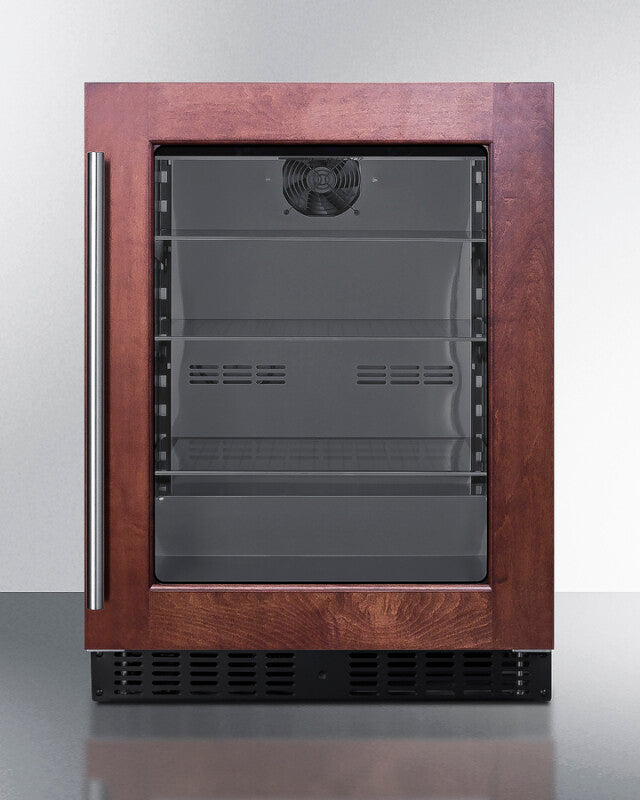

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDG2411PNR is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your stored items. Inside, the ASDG2411PNR features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412PNR wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.


Product Features

  • Less than 18" deep
    Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

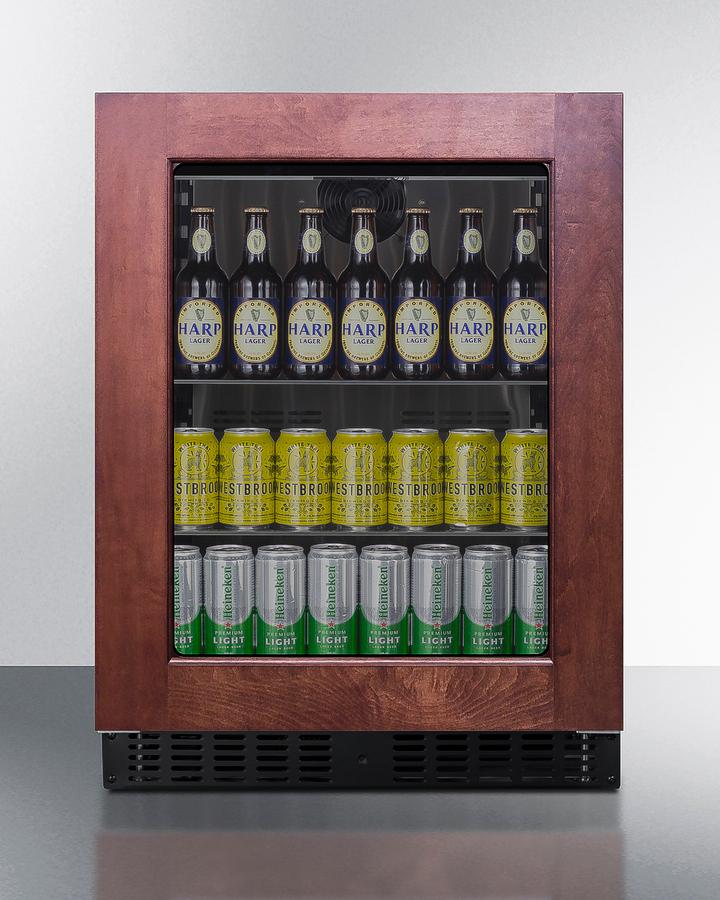

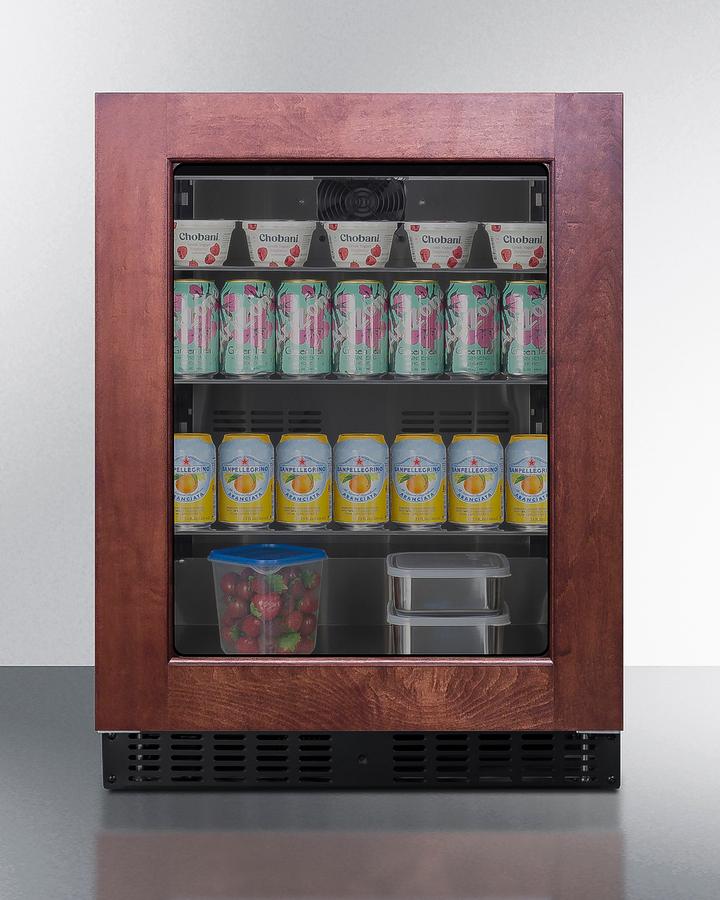

  • 24" wide beverage center
    3.25 cu.ft. interior for residential cold storage
  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters
  • Adjustable height
    Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

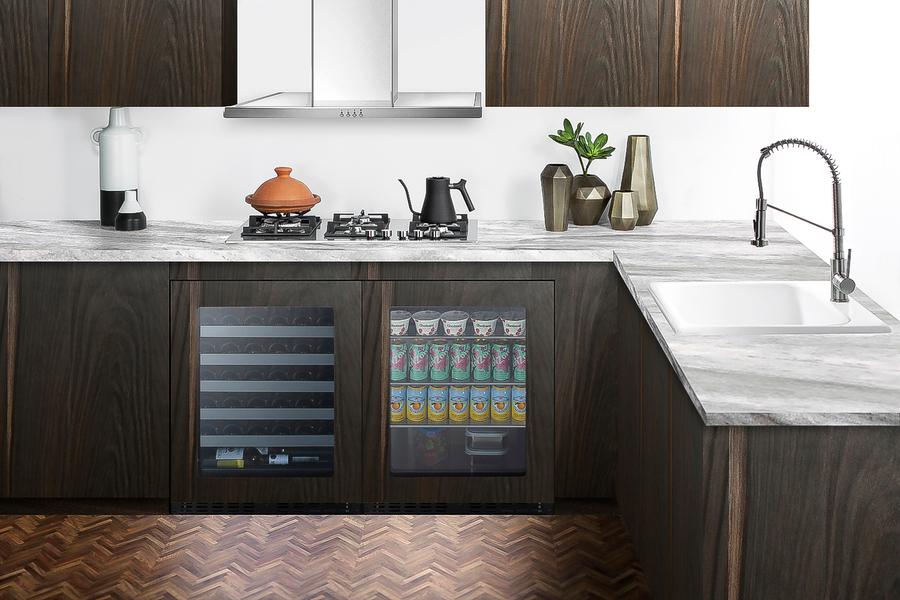

  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

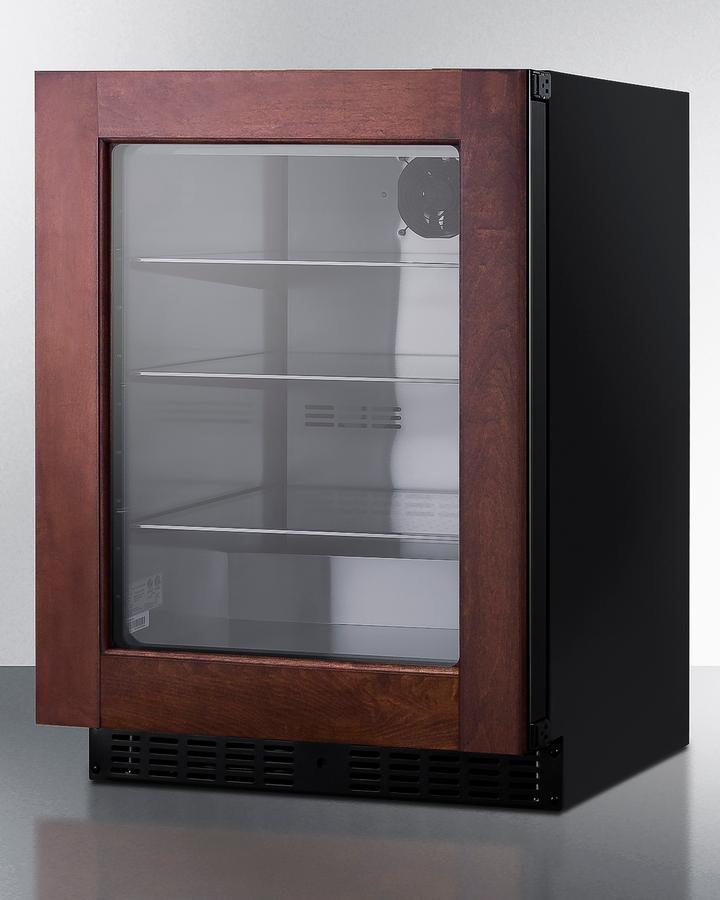

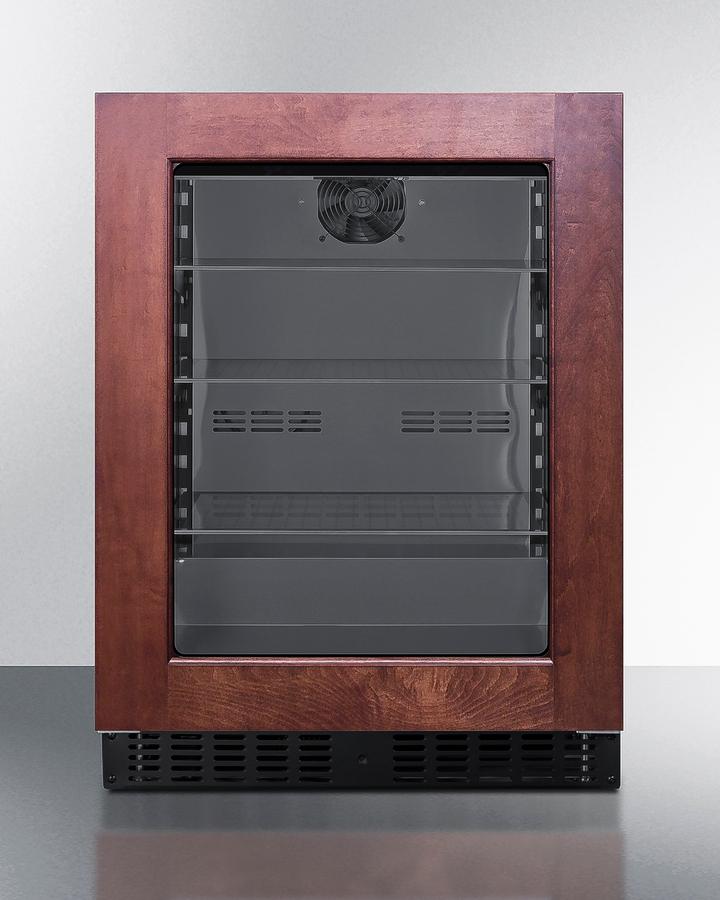

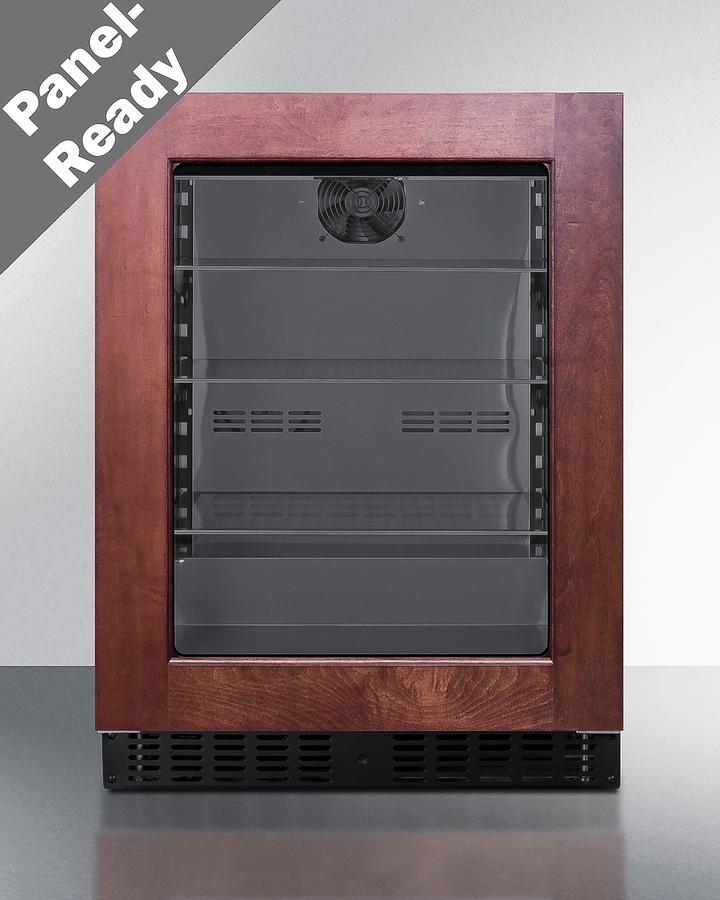

  • Panel-ready door
    European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
  • Double pane tempered glass door
    Elegant design offers a clear but protected view of your interior
  • Seamless stainless steel door trim
    Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Stainless steel interior
    Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)

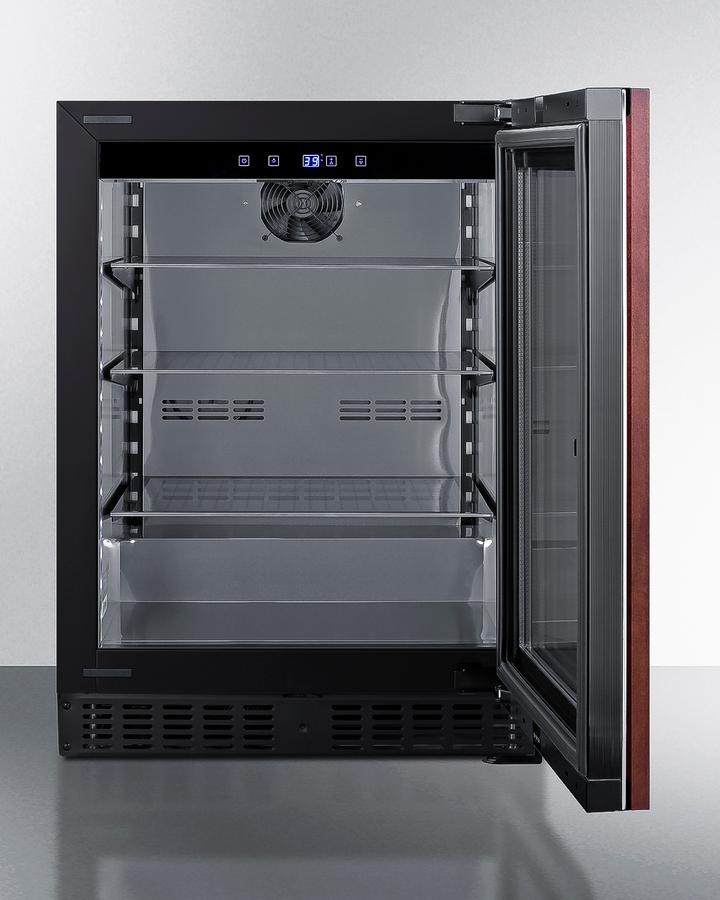

  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

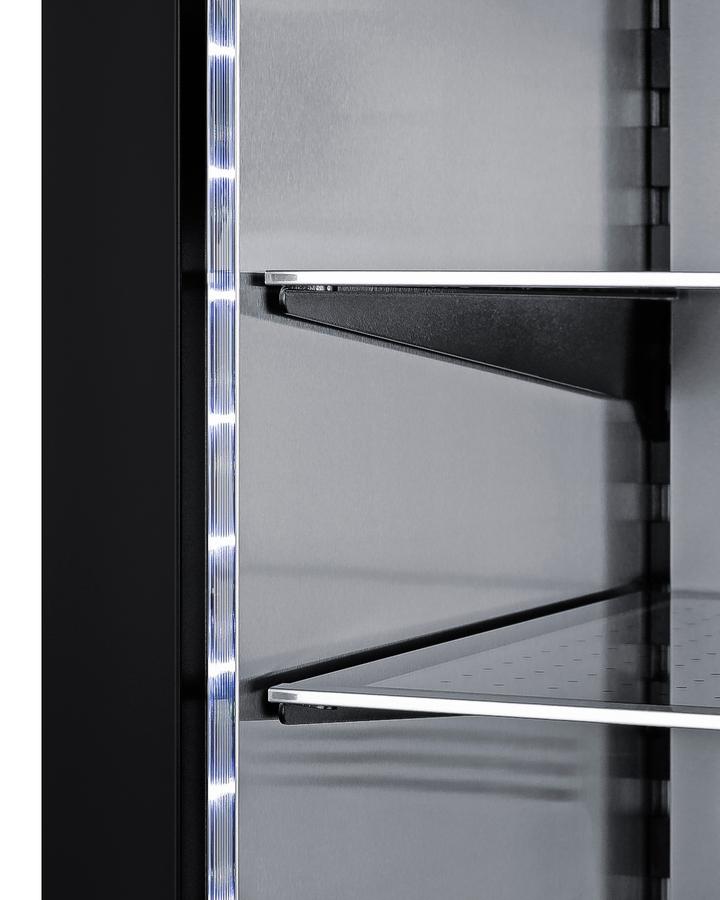

  • Dimmable LED lighting
    Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Internal fan
    Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

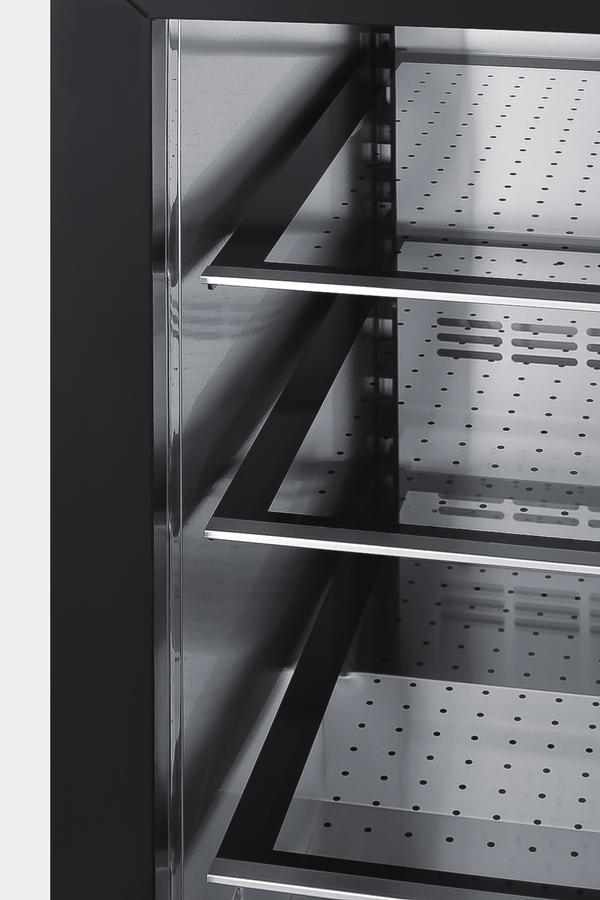

  • Cantilevered shelving
    Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • High temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Reversible door
    User-reversible door swing for added flexibility
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability

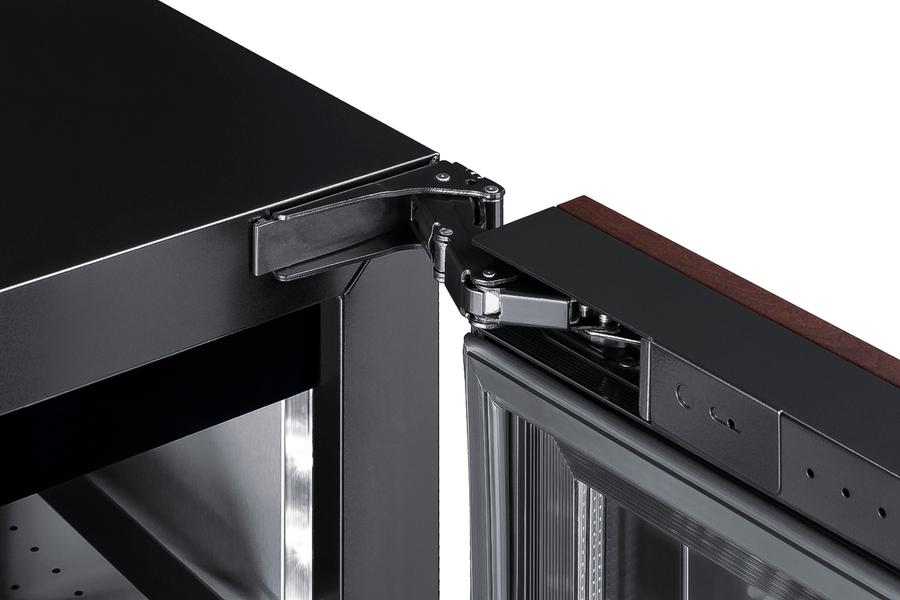

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
