Sale price $1,580.05 Regular price $1,894.97 Save $314.92 / 16% OFF

Product Details for Summit ASDG1521

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

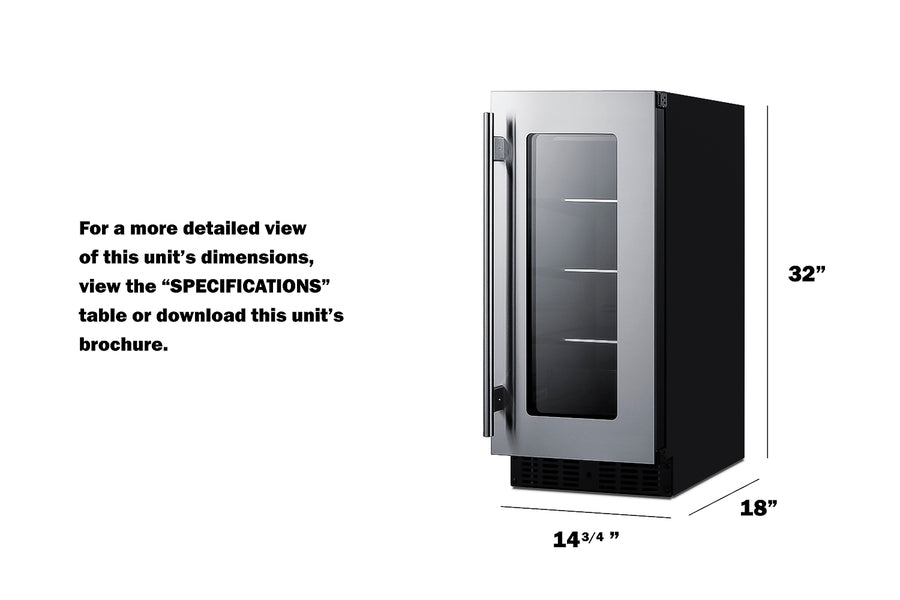

Dimensions & weight

Width 14.75 in.
Height 32 in.
Length 17.75 in.
Weight 68 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 4.85 ft³
Dimensional Weight 60.27 lbs.
Total of Cubes 4.85 ft³
Total of Dimensional Weight 60.27 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth with Handle 19.63" (50 cm)
Depth with door at 90° 31.0" (79 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 68.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079509
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.78oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.4 dB
Interior Height 22.5" (57 cm)
Interior Width 10.75" (27 cm)
Interior Depth 12.38" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.75" (27 cm)
Compressor Step Depth 5.5" (14 cm)

Description

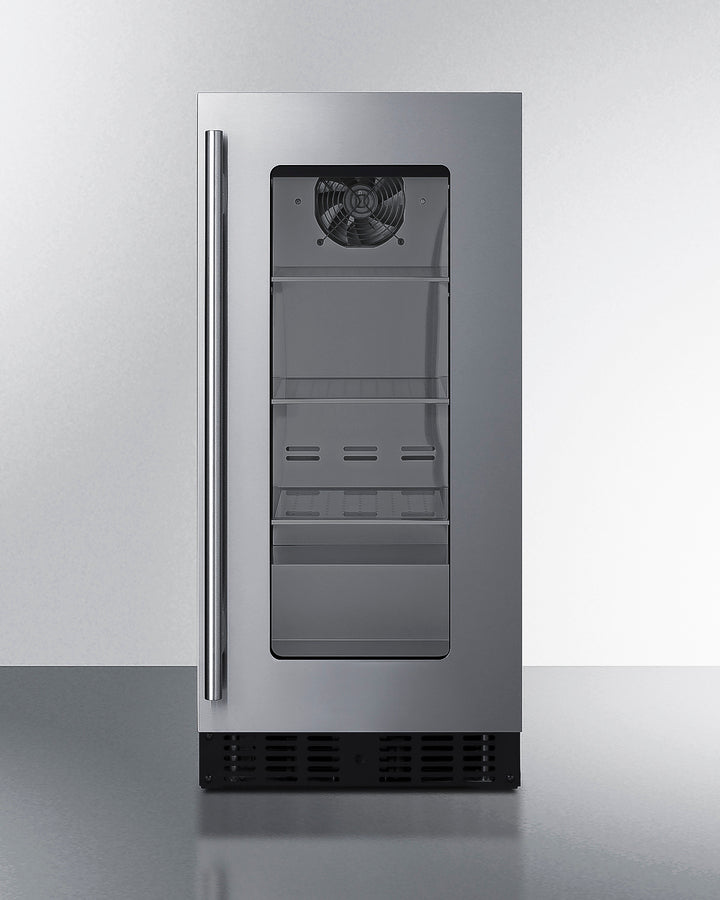

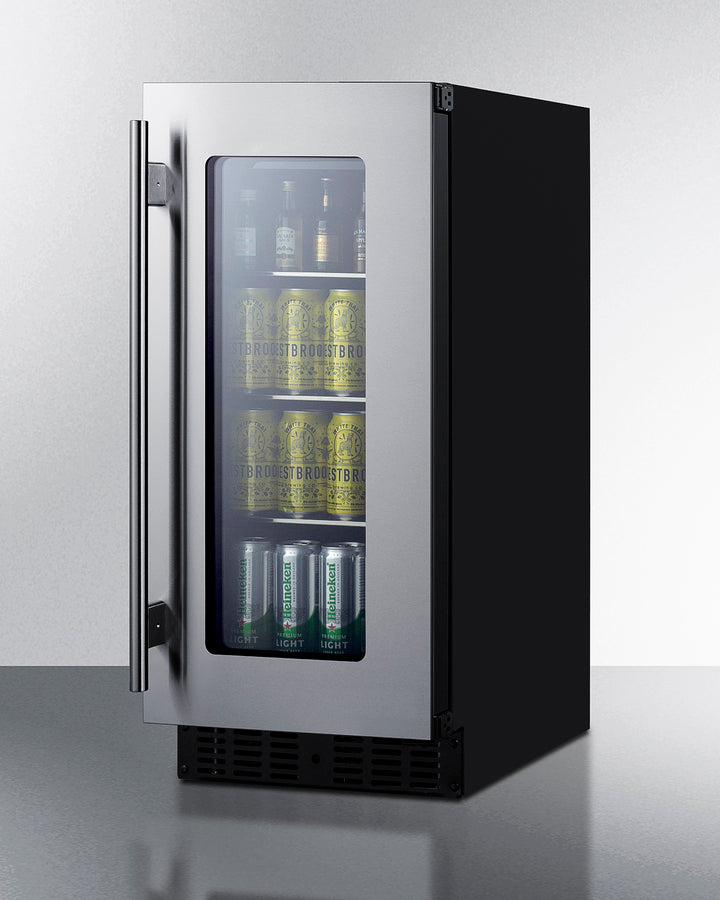

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDG1521 is a 15" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock. Inside, the ASDG1521 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW1522 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.


Product Features

  • Adjustable height
    Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

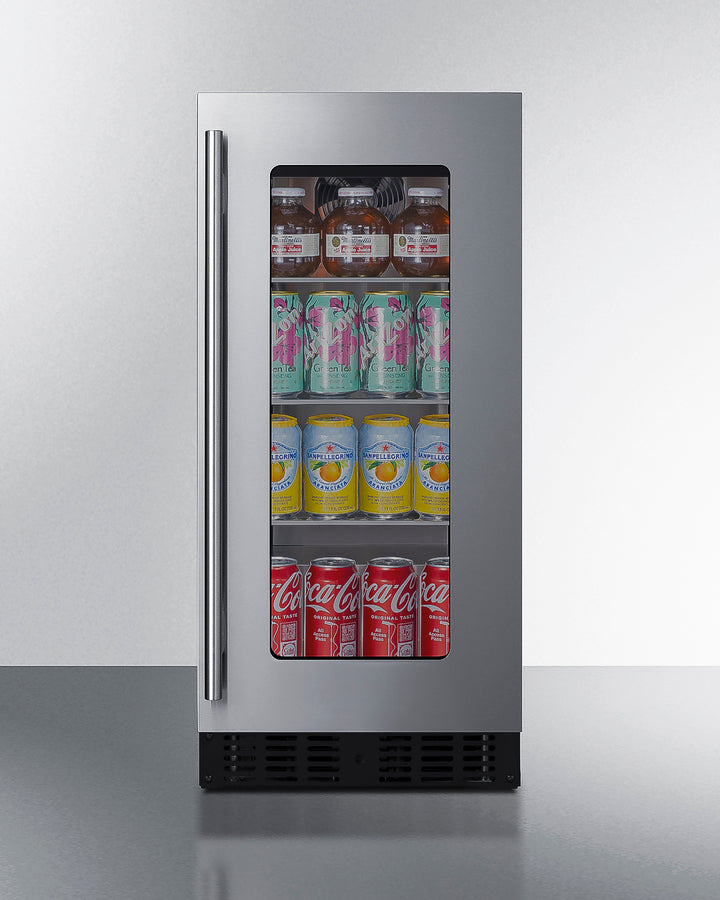

  • 15" wide beverage center
    1.8 cu.ft. interior for residential or cold storage
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

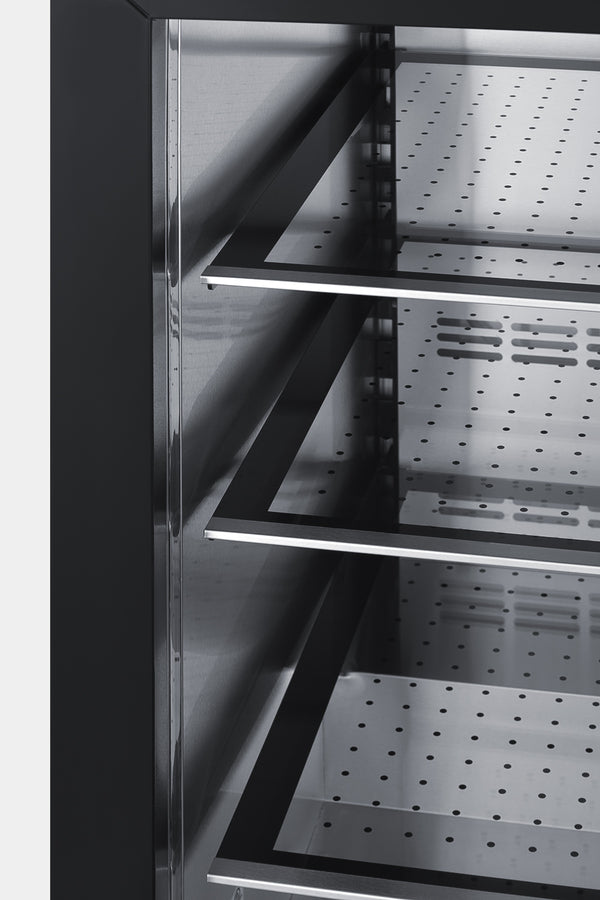

  • Stainless steel interior
    Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Double pane tempered glass door
    Elegant design offers a clear but protected view of your interior
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)

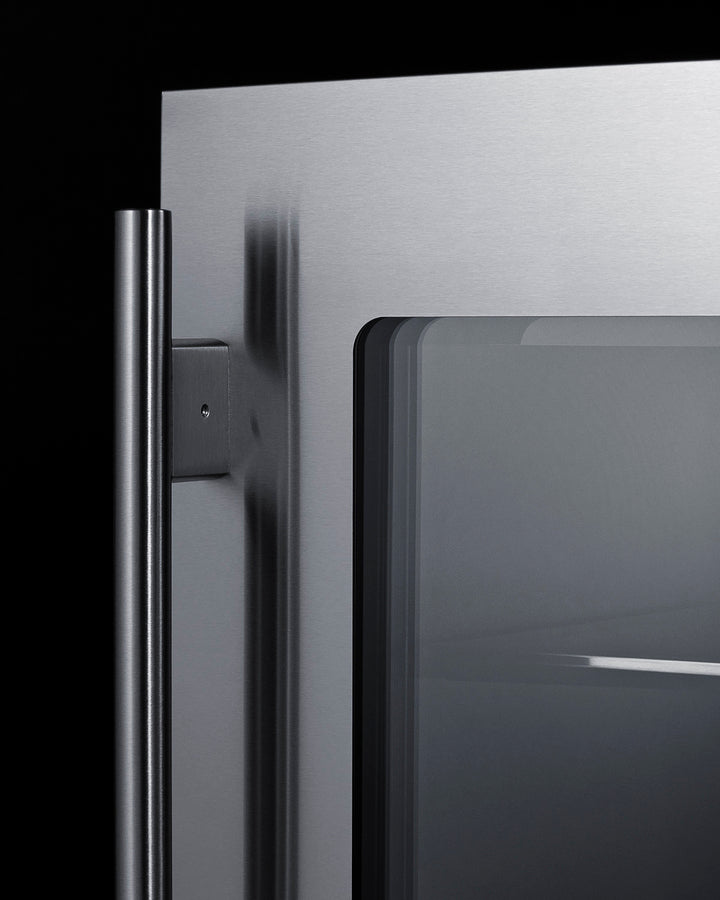

  • Professional handle
    Stainless steel handle completes the look

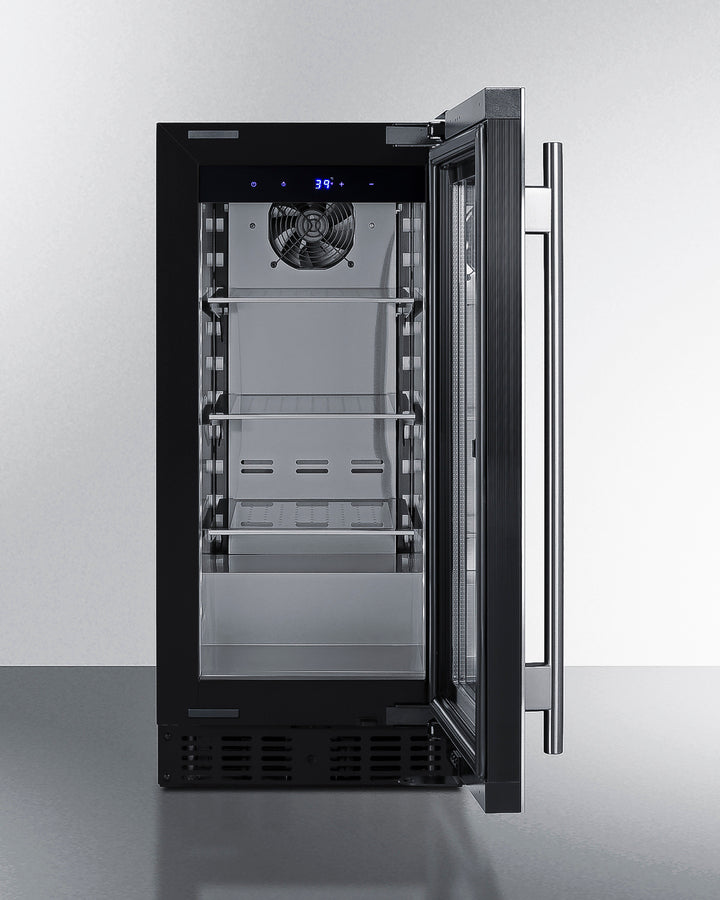

  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

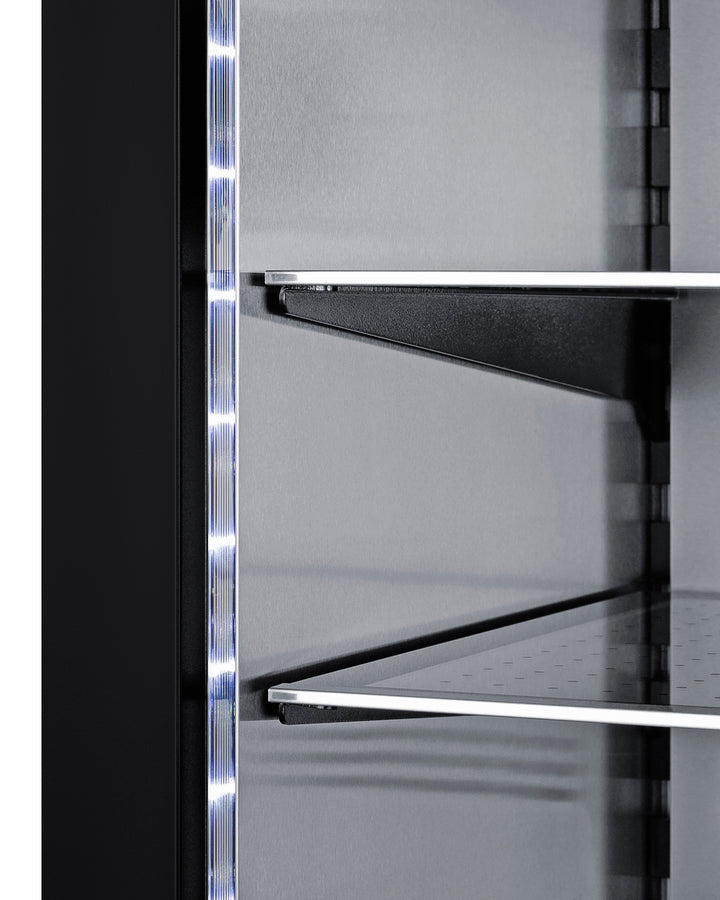

  • Dimmable LED lighting
    Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
  • Internal fan
    Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
  • Cantilevered shelving
    Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
  • Open door alarm
    Alarm sounds if the door is left open for more than 60 seconds
  • High temperature alarm
    Audible alarm sounds if the interior temperature rises out of set range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability
  • Reversible door
    User-reversible door swing on the refrigerator for added flexibility
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Less than 18" deep
    Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • ADA compliant
    Sized at 32" high for use under lower ADA compliant counters
  • Seamless stainless steel door trim
    Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss

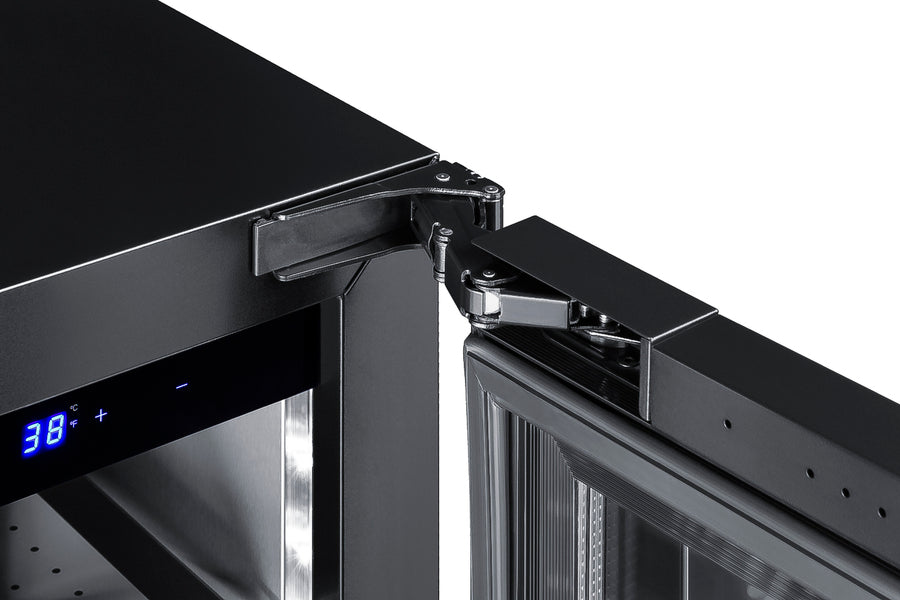

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
