Sale price $2,096.97 Regular price $2,534.97 Save $438.00 / 17% OFF

Product Details for Summit ARS8PV

Technical Details

Refrigerator features

Door Swing RHD
Reversible Yes
Shelf Type Wire

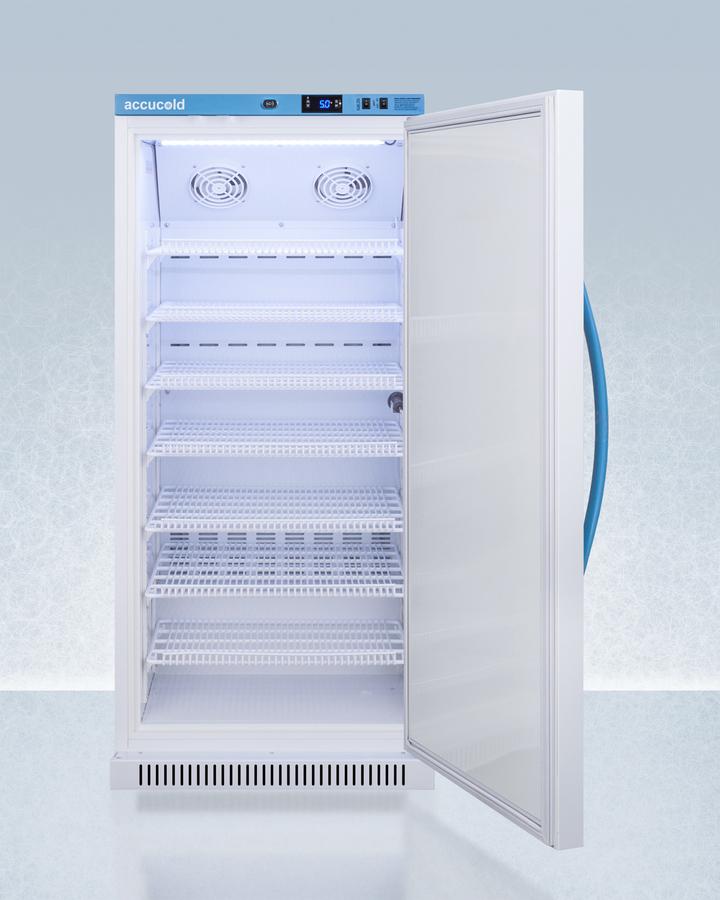

Shelf Qty 7
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.73oz.
Interior Light Yes
Temperature Range 2 to 8ºC

Dimensions

Interior Height 41.25" (105 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

Dimensions & weight

Width 23.38 in.
Height 50 in.
Length 24.38 in.
Weight 161 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 16.49 ft³
Dimensional Weight 205.04 lbs.
Total of Cubes 16.49 ft³
Total of Dimensional Weight 205.04 lbs.

Other

Number of Boxes 1
Source Calculation
Capacity 8.0 cu.ft. (227 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101062570

Description

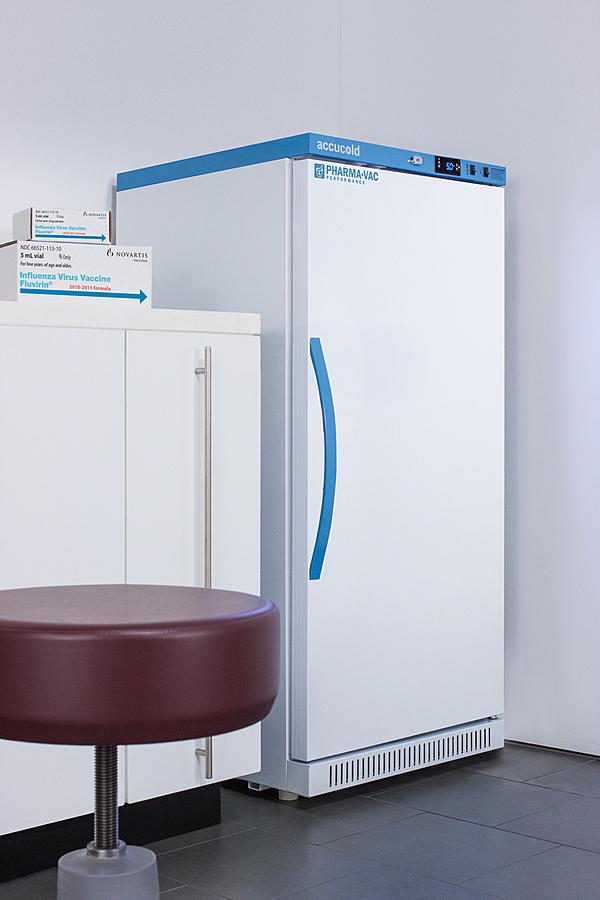

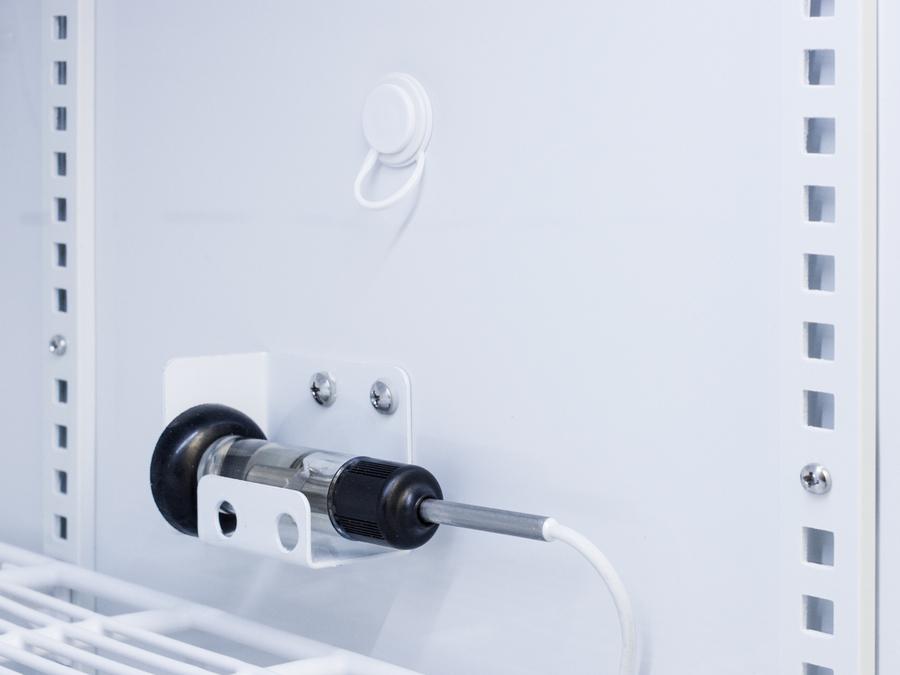

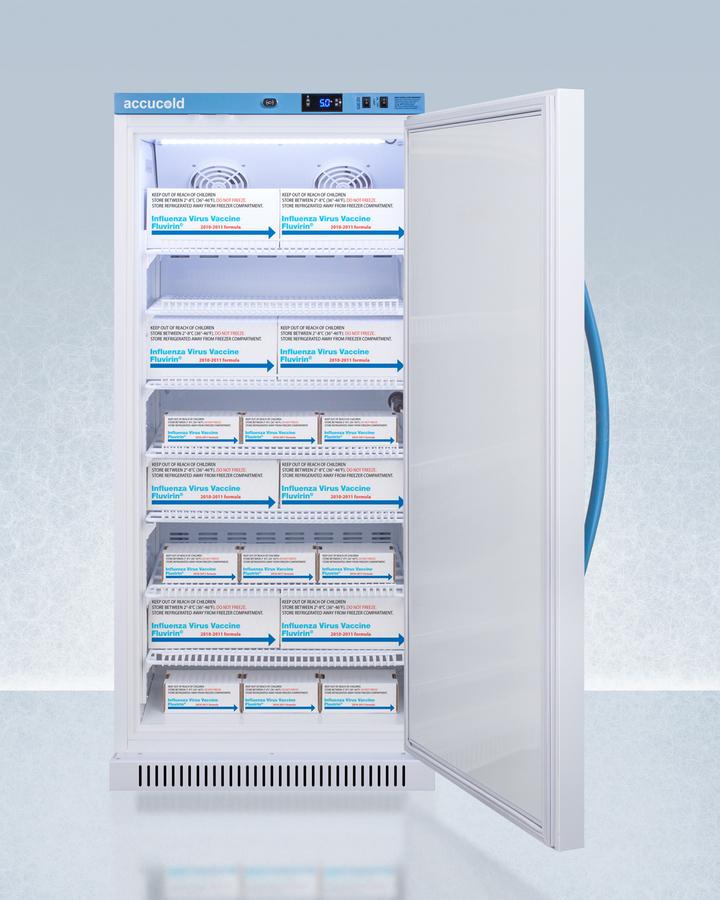

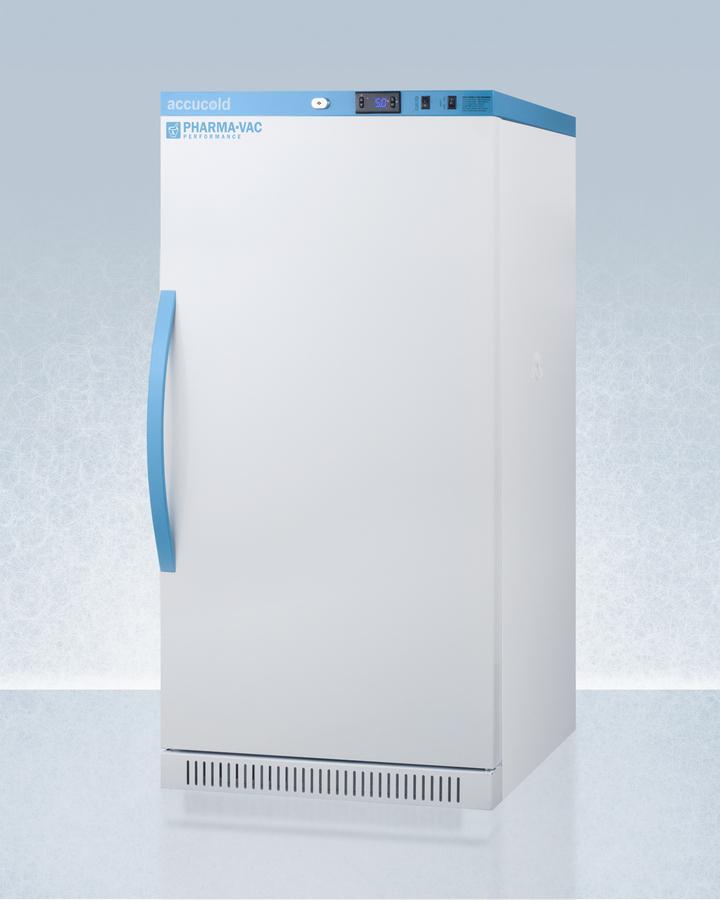

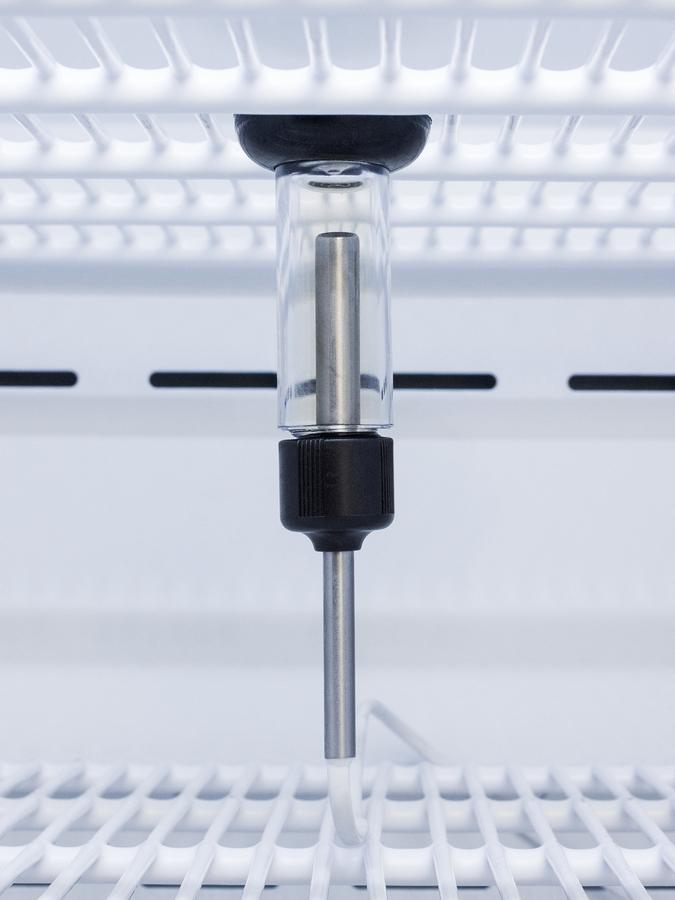

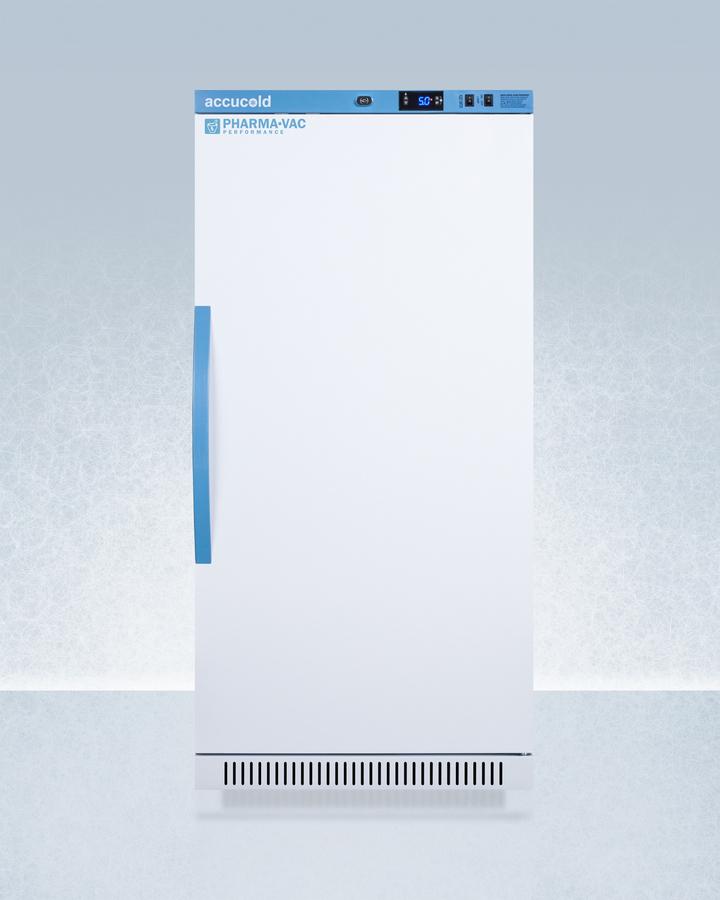

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines, with a powder-coated silver ion handle that helps prevent germ spread. The ARS8PV is an 8 cu.ft. all-refrigerator with an adjustable control range from +2 to +8 C. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Inside, the ARS8PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with two internal fans ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The ARS8PV comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARG8PV provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as glass door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. Units that end in suffix "456" have been certified to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.



Product Features

  • +/-1ºC Variation
    The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
  • Purpose-built design
    Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

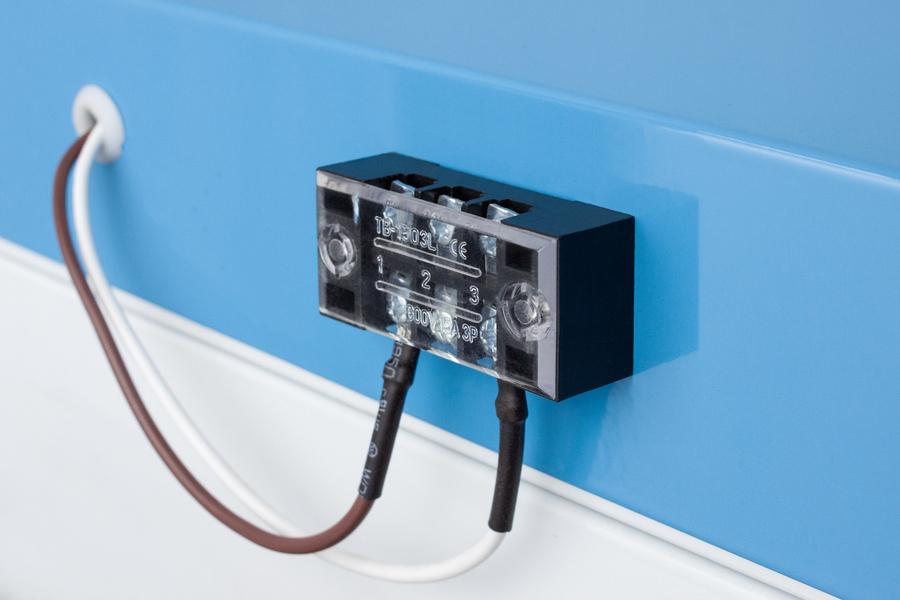

  • Remote alarm contacts
    Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
  • Adjustable temperature
    Intuitive controls let you adjust the interior temperature between +2 to +8ºC

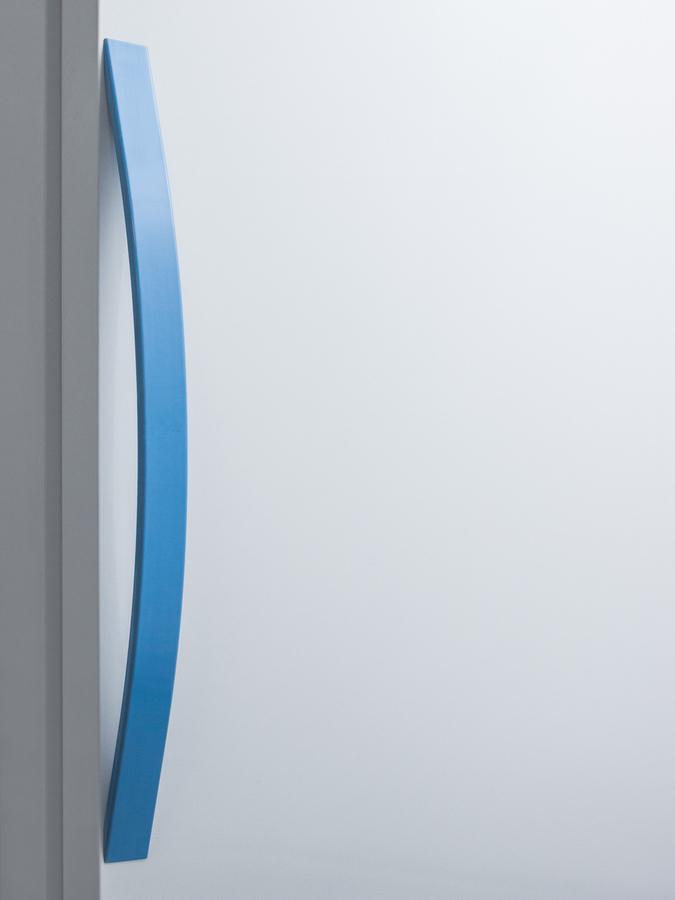

  • Antimicrobial silver ion-coated handle
    Powder-coated handle with naturally occurring silver ions to help reduce germ spread
  • Temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range
  • Automatic defrost with adjustable cycle defrost
    Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

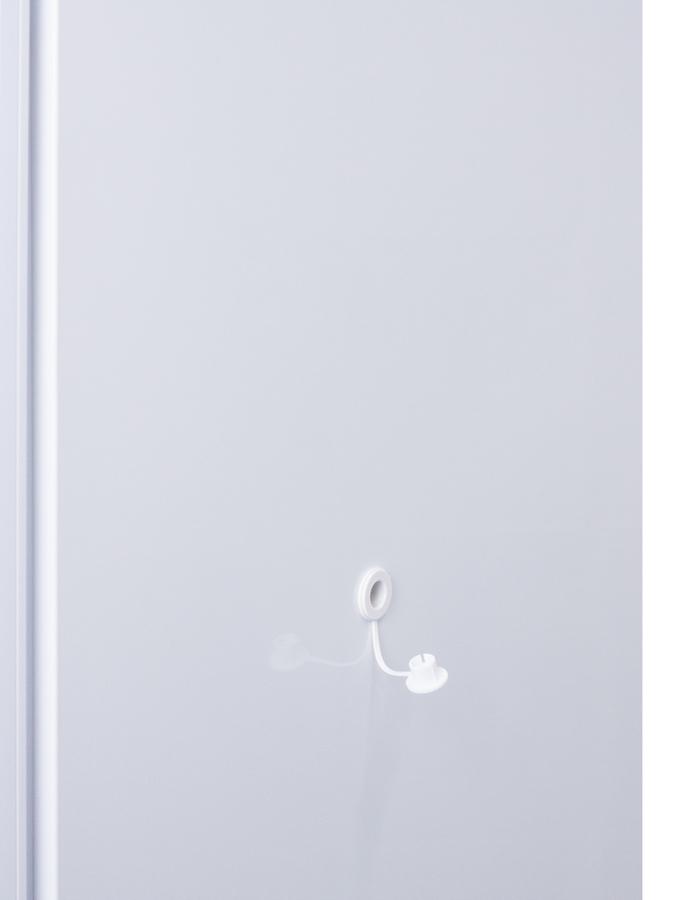

  • Access port
    Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
  • Open door alarm
    Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Audible power failure alarm
    Battery-powered alarm sounds if the power connection is interrupted
  • Sensor failure alarm
    Audible and visual alarm warns if the sensor is disrupted
  • Password protection
    Control panel requires password entry to adjust the parameters beyond the set point

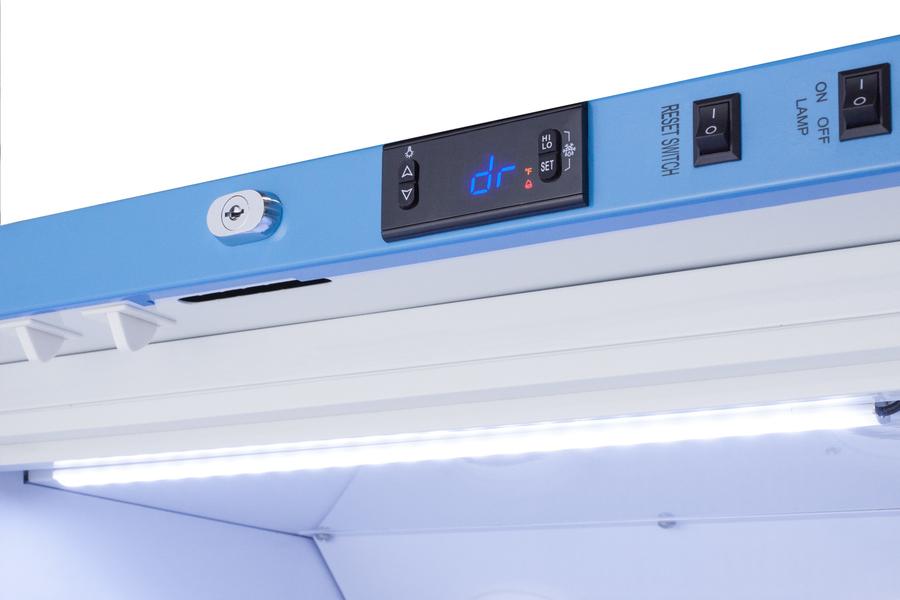

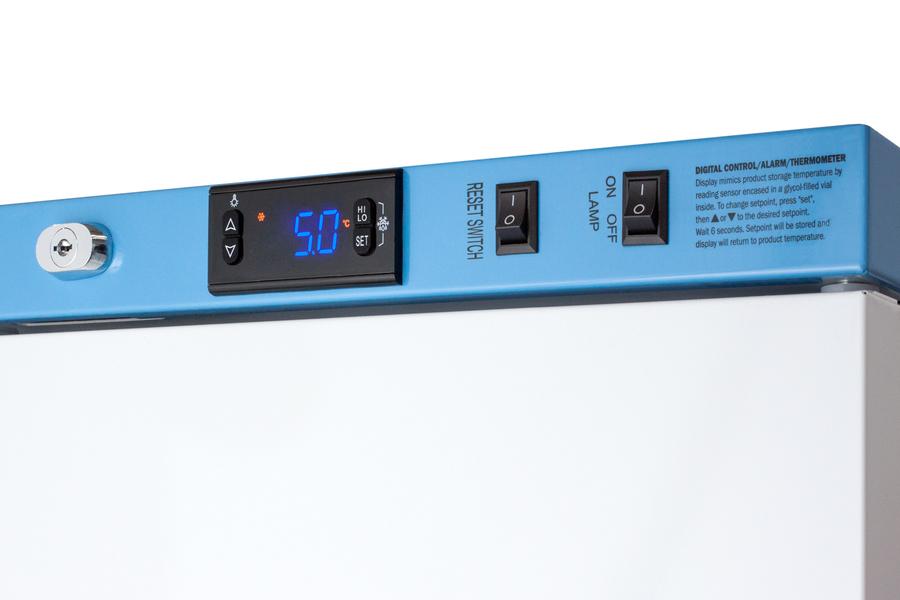

  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Resettable min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments

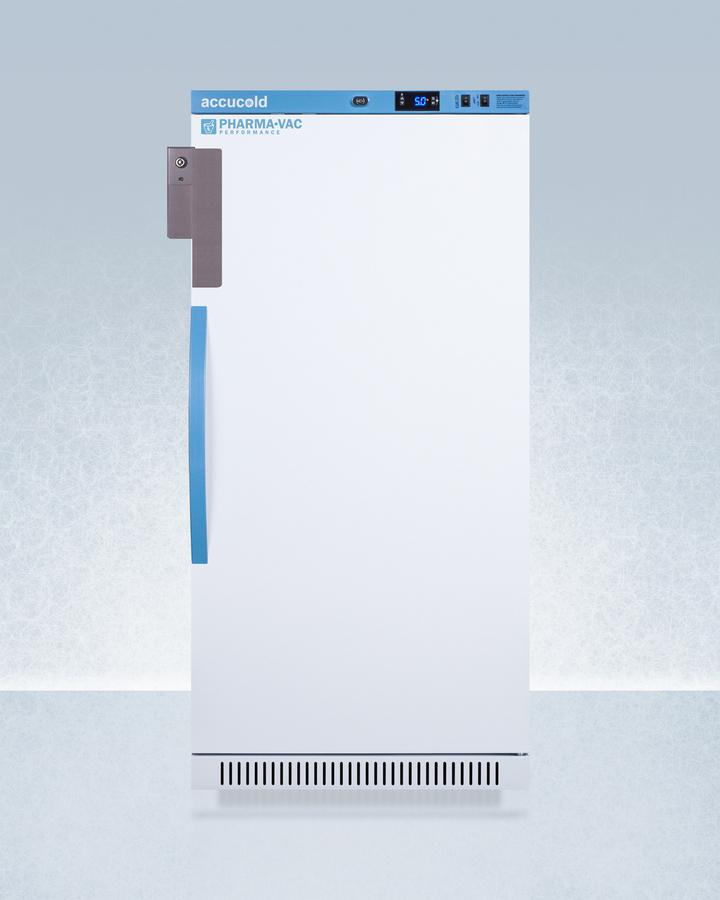

  • Factory-installed lock
    Keyed lock conveniently located towards the top of the door for added security (2 keys included)

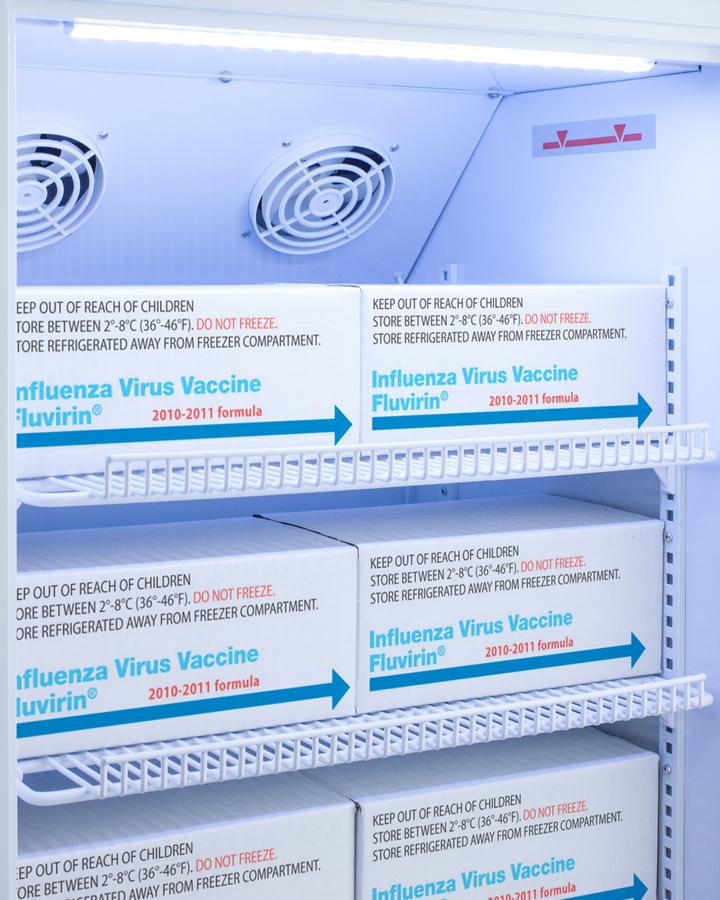

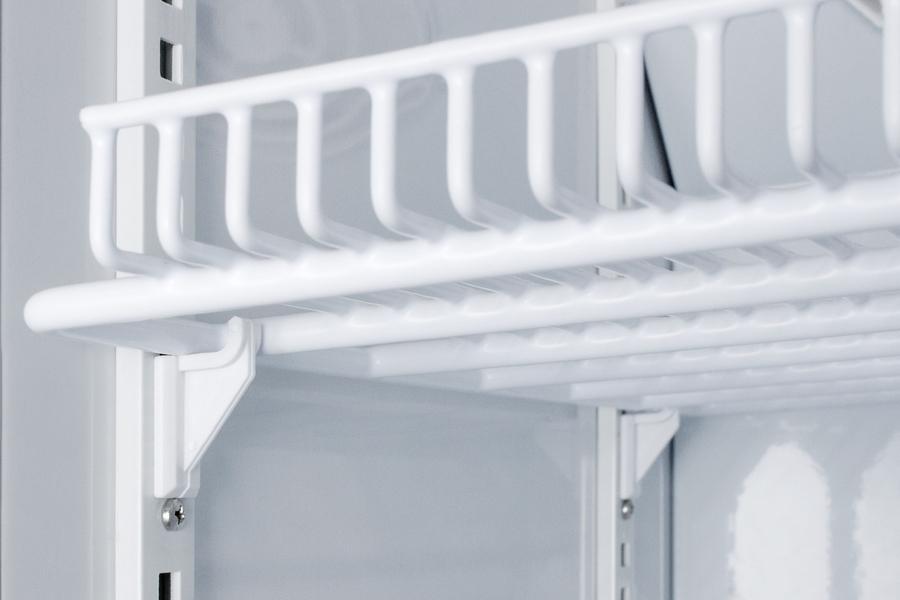

  • Adjustable plastic-coated wire shelves for improved circulation
    Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
  • Durable interior
    Walls are constructed from white powder coated metal for added strength and improved temperature retention
  • Interior light
    Energy efficient LED lighting with internal on/off switch
  • Self-closing door
    Added protection in busy settings
  • Reversible door
    User-reversible door swing for added flexibility
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety
  • Eco-Friendly
    Using environmentally friendly hydrocarbons refrigerants for a greener footprint
  • Usage stickers
    Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
  • Additional choices
    Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
  • Versatile design
    Compatible with Pyxis, Omnicell®, and AcuDose RX®
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
