Product Details for Summit ARS6PVDR

Technical Details

Dimensions & weight

Width 23.38 in.
Height 32.5 in.
Length 24.38 in.
Weight 115 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.72 ft³
Dimensional Weight 133.27 lbs.
Total of Cubes 10.72 ft³
Total of Dimensional Weight 133.27 lbs.

Other

Capacity 6.0 cu.ft. (170 L)
Defrost Type Automatic
Door White
Cabinet White
Canadian Electrical Safety ETL-C
US Electrical Safety ETL
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship Out of stock; ETA 9/29/2020
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Door Swing RHD
Reversible Yes
Shelf Type Drawers
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
Interior Light Yes
Temperature Range 2 to 8ºC
Sound Level 36.4 dB
Number of Boxes 1
Source Calculation

Description

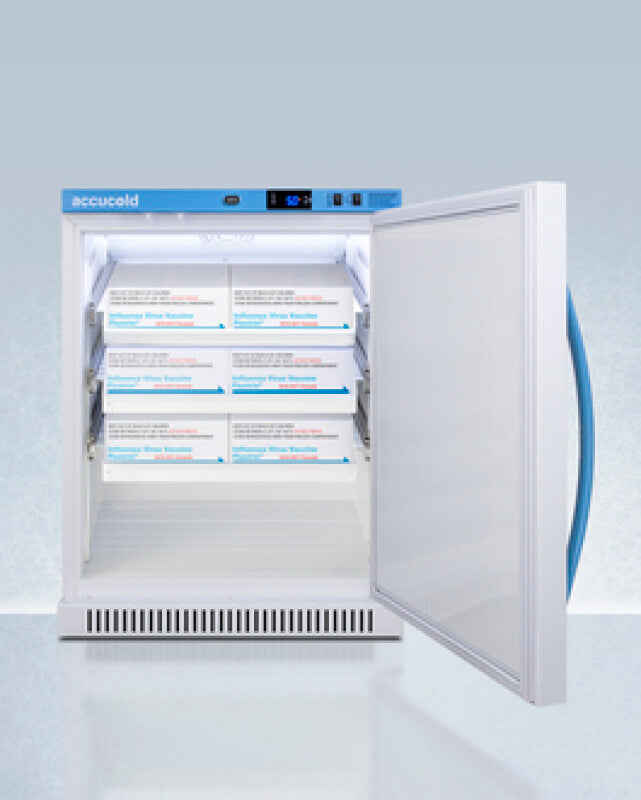

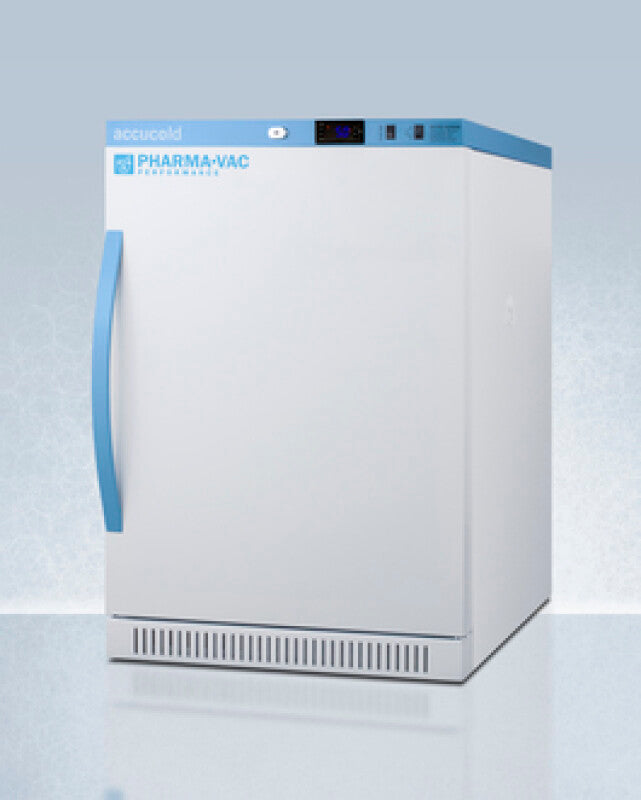

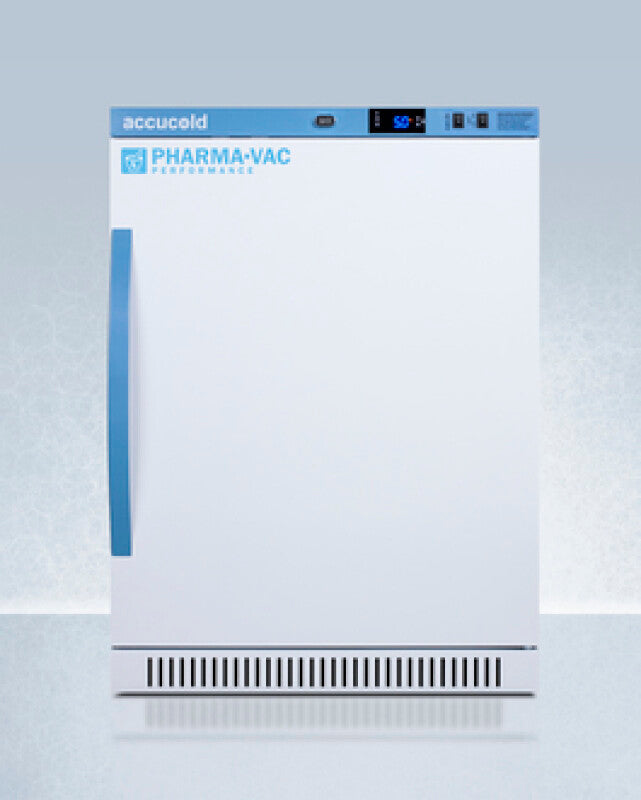

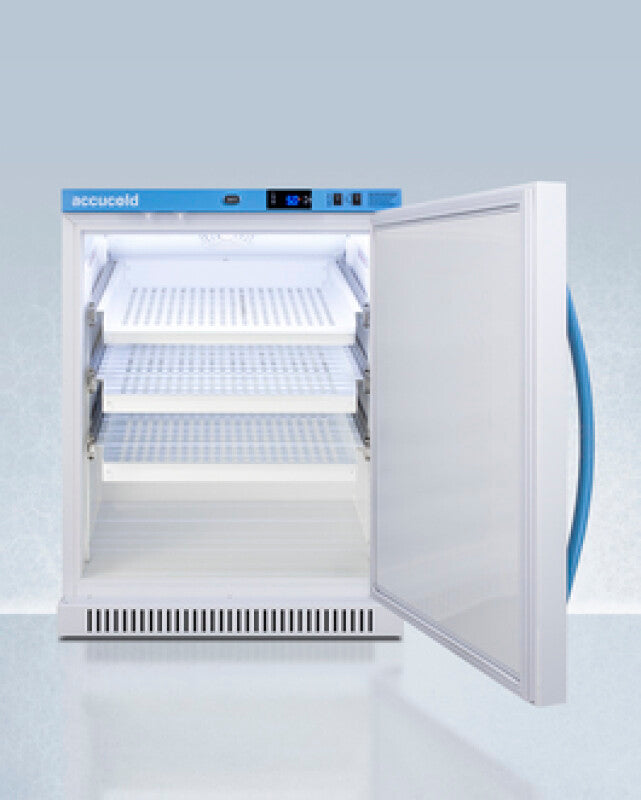

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines, with a powder-coated silver ion handle that helps prevent germ spread. The ARS6PVDR is a 6 cu.ft. all-refrigerator sized at 32.5 inches high for use in most ADA compliant applications. The adjustable control range allows you to manage the temperature between +2 to +8 C. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Inside, the ARS6PVDR utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. Three white powder-coated aluminum drawers provide ample storage and easy organization. Positioned on ball-bearing glides, the drawers offer full-extension for complete product access. Additionally, each drawer is removable allowing for transport of contents as needed. The drawers also lock into place for added security, while the perforated bottom ensures proper ventilation throughout the unit. LED internal lighting with an on/off rocker switch attractively illuminates the interior for easy viewing. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention. The ARS6PVDR comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right-hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ARS6PVDR provides an energy-efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, door options, and units with a combination of standard shelving and drawers are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. Units that end in suffix "456" have been certified to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.



Product Features

  • Purpose-built design
  • +/-1ºC Variation

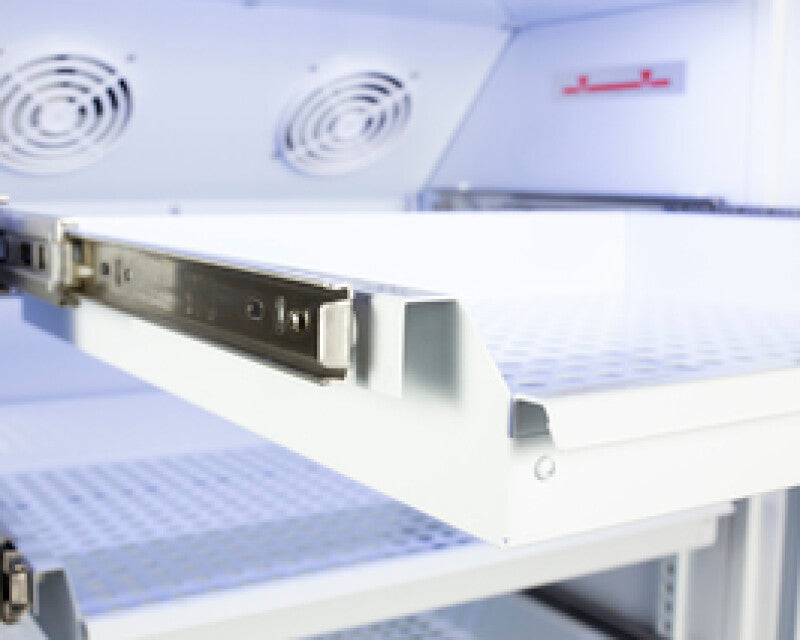

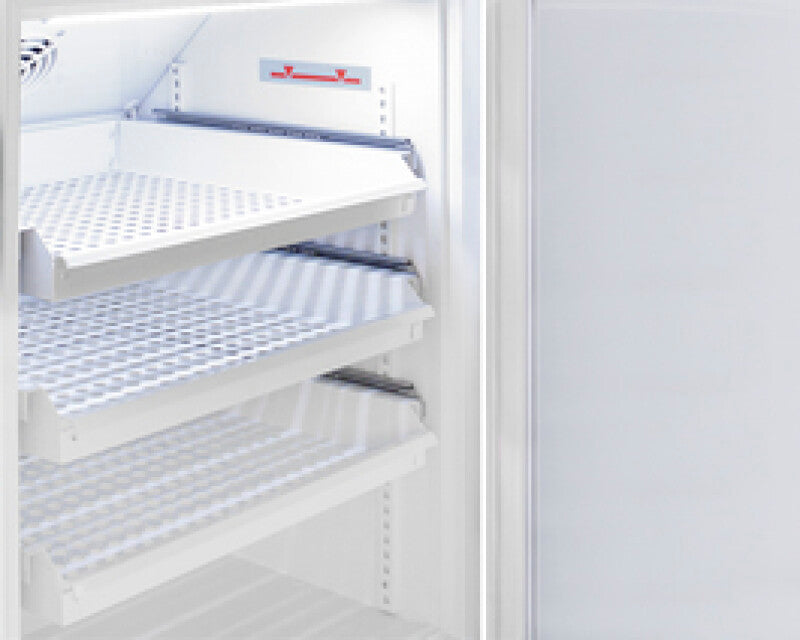

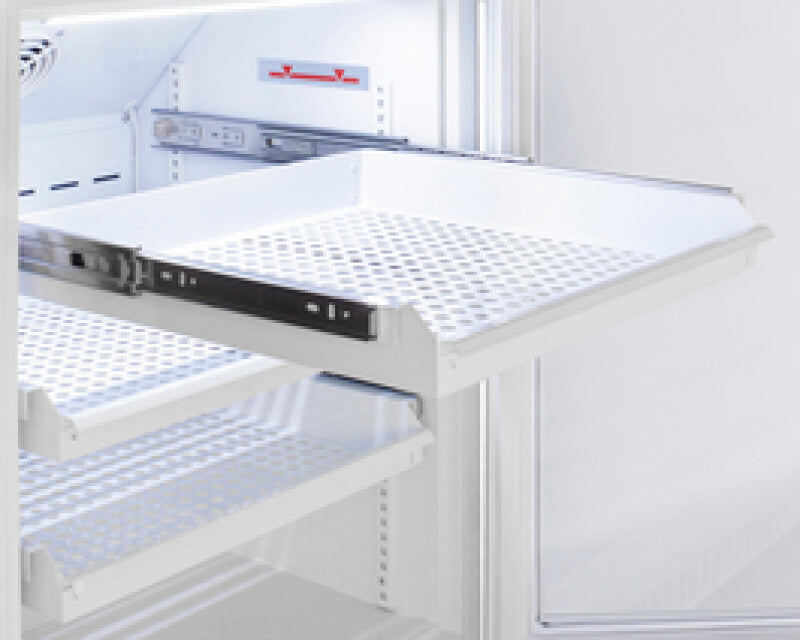

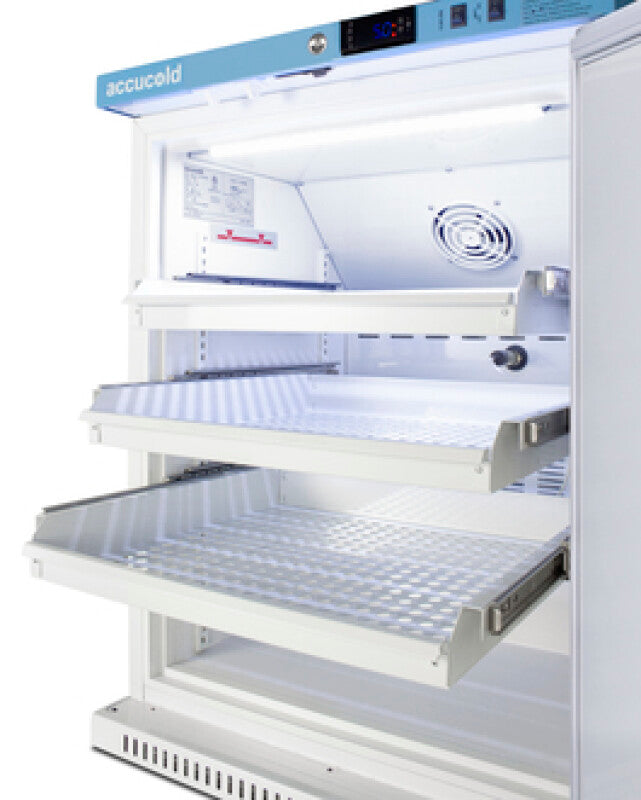

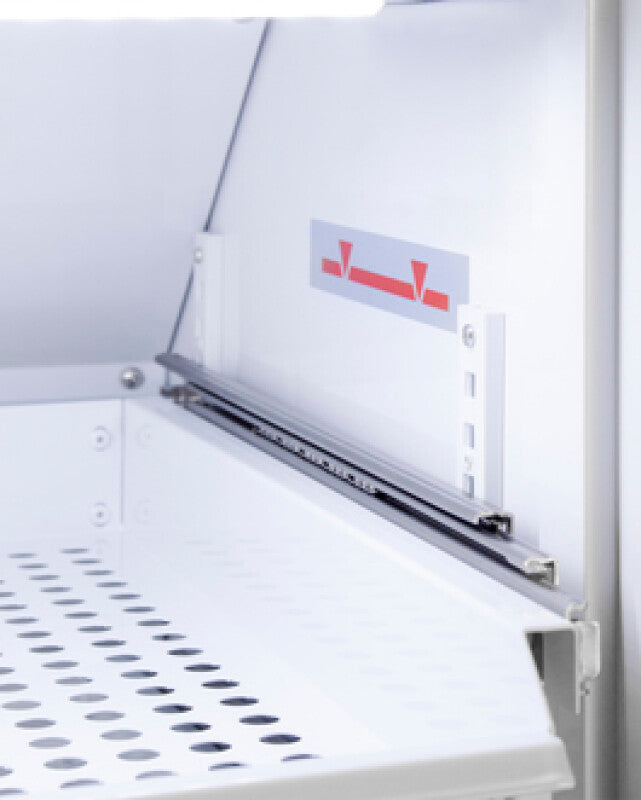

  • Full-extension ventilated drawers

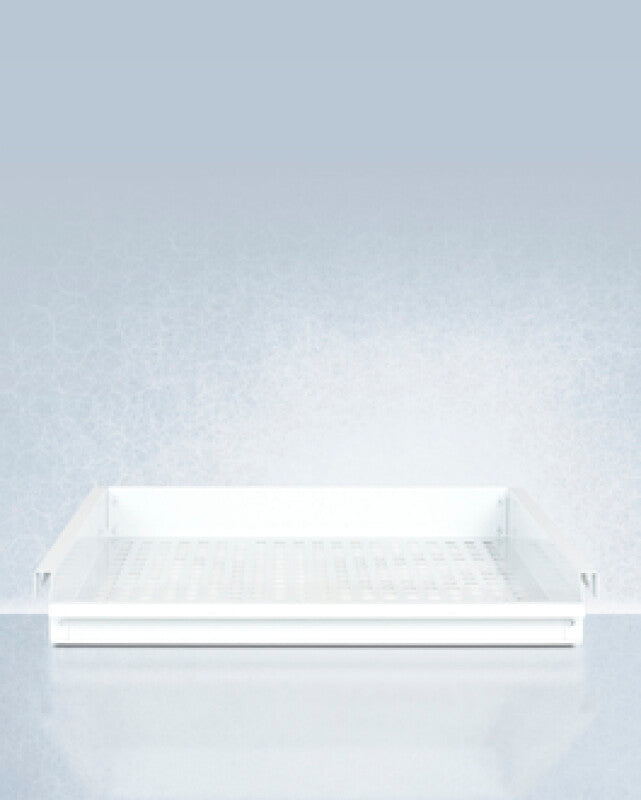

  • Removable drawers
  • Adjustable temperature

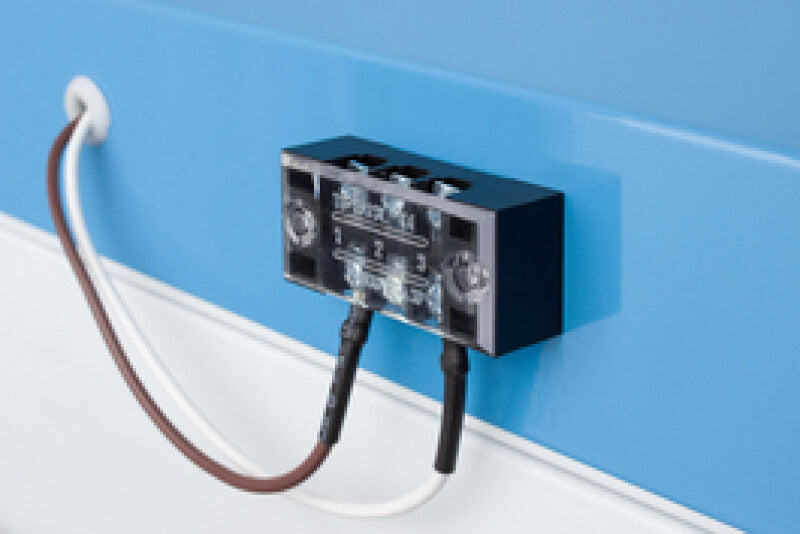

  • Remote alarm contacts

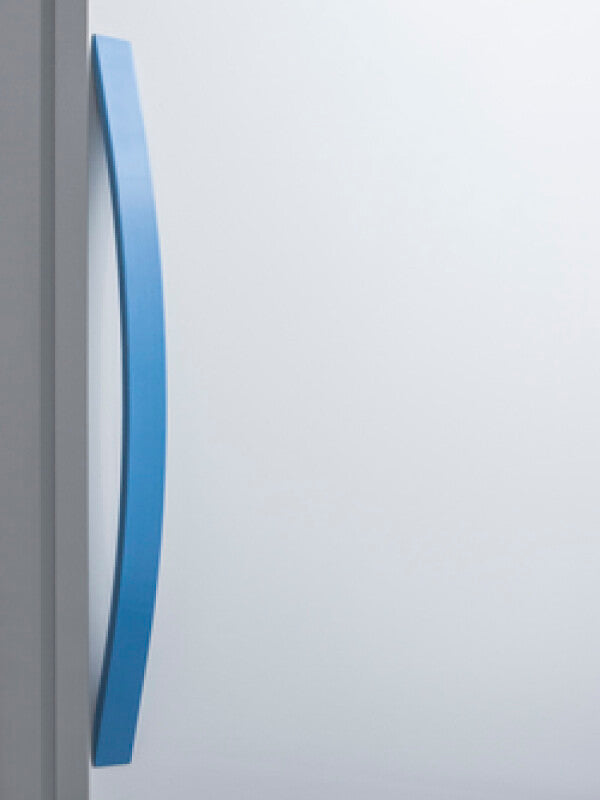

  • Antimicrobial silver ion-coated handle
  • Audible power failure alarm
  • Automatic defrost with adjustable cycle defrost

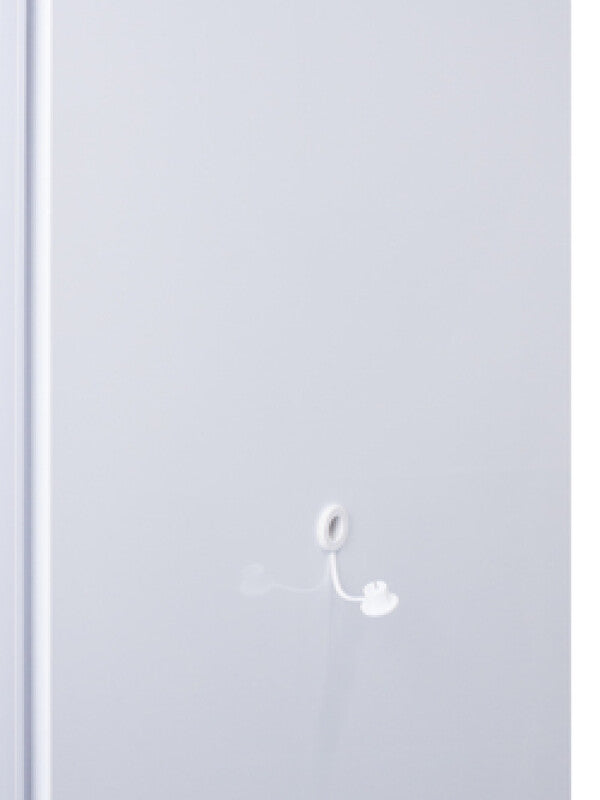

  • Access port
  • Password protection
  • Temperature alarm

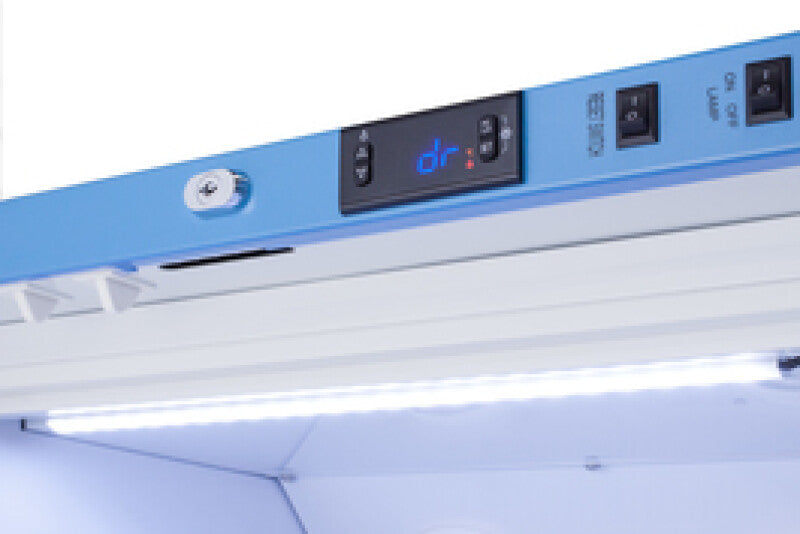

  • Microprocessor control panel
  • Open door alarm
  • Sensor failure alarm
  • Factory-installed lock
  • Hospital grade cord with 'green dot' plug
  • Durable interior
  • Resettable min/max display
  • Self-closing door
  • Magnetic door gasket
  • Reversible door
  • Interior light
  • Eco-Friendly
  • Usage stickers
  • Additional choices
  • Extended warranty
  • ADA compatible height
  • 100% CFC free
  • Versatile design
