Product Details for Accucold ARS32PVBIADAAFZ2PVBIADASTACK
Technical Details
Overview refrigerator-freezer
| Nominal Height | 64.0" (163 cm) |
| Height of Cabinet | 64.0" (163 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 41.25" (105 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101104096 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 24.0" (61 cm) |
| Refrigerator - Interior Width | 16.0" (41 cm) |
| Refrigerator - Interior Depth | 15.0" (38 cm) |
| Refrigerator - Capacity | 2.83 cu.ft |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 4 |
| Refrigerator - Temperature Range | 2 to 8ºC |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 1.41 oz. |
| Freezer - Interior Height | 22.0" (56 cm) |
| Freezer - Interior Width | 14.25" (36 cm) |
| Freezer - Interior Depth | 15.5" (39 cm) |
| Freezer - Capacity | 2.47 cu.ft |
| Freezer - Shelf Type | Wire |
| Freezer - Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Freezer - Temperature Range | -30 to -10ºC |
| Freezer - Refrigerant Type | R290a |
| Freezer - Refrigerant Amount | 1.31 oz. |
Description

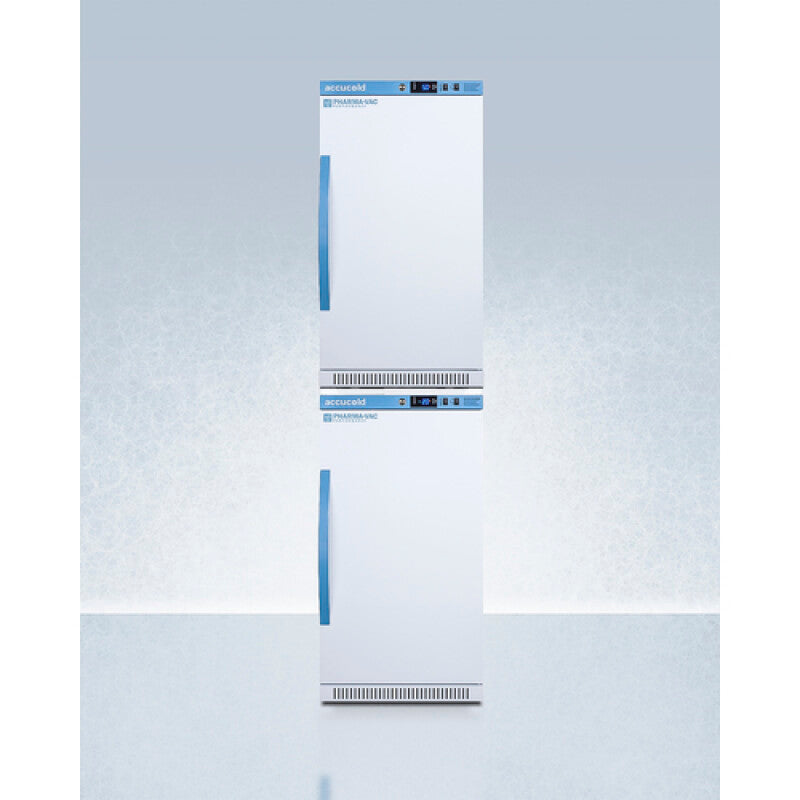

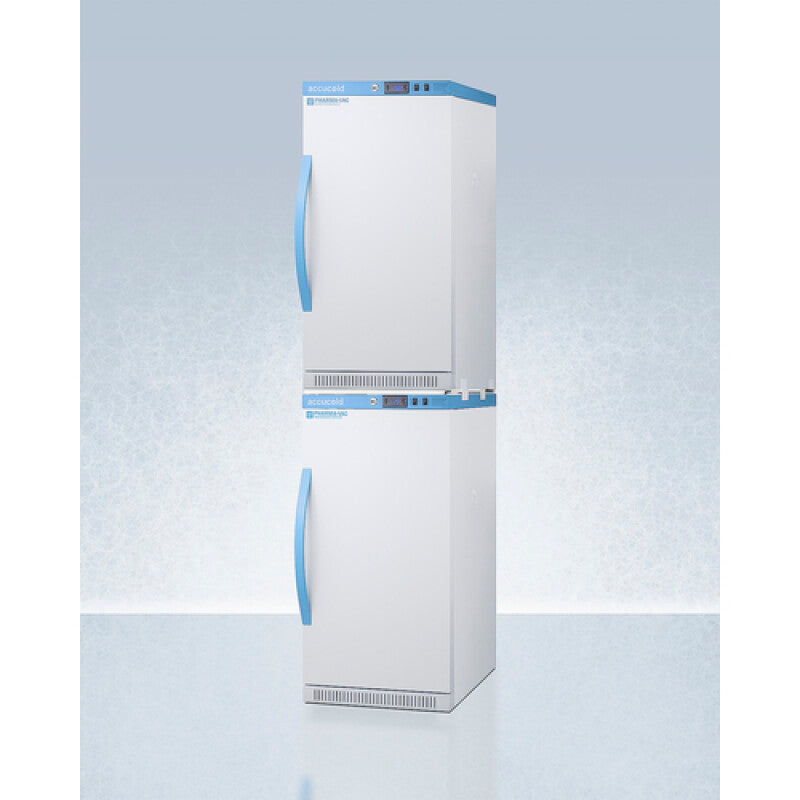

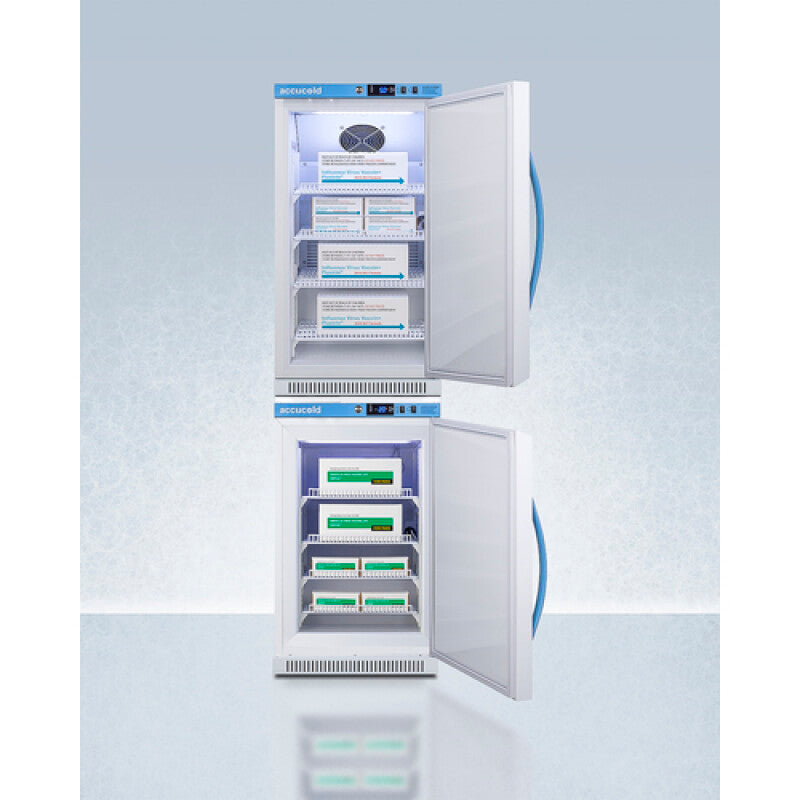

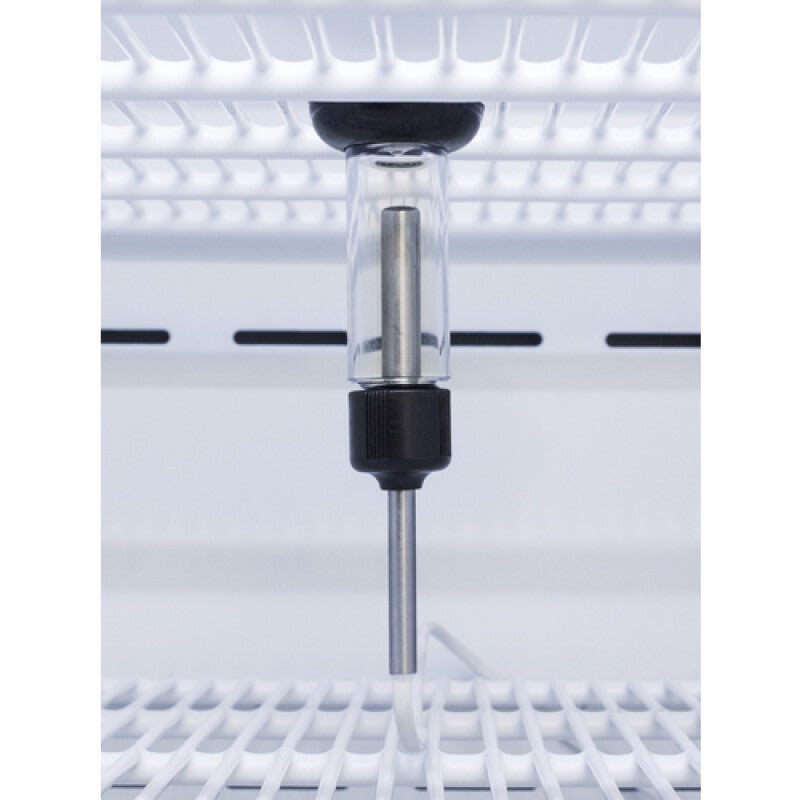

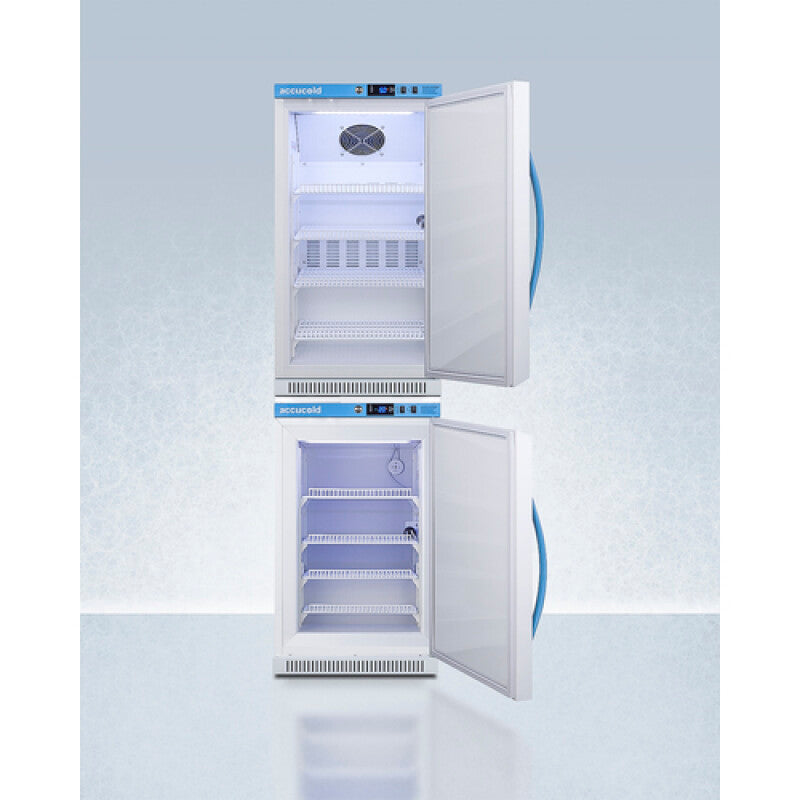

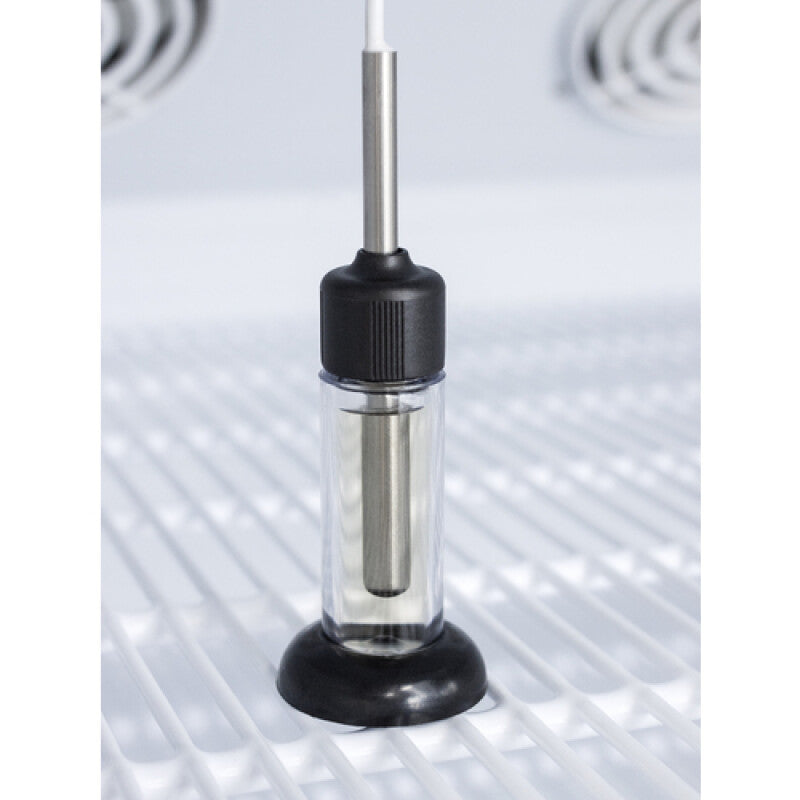

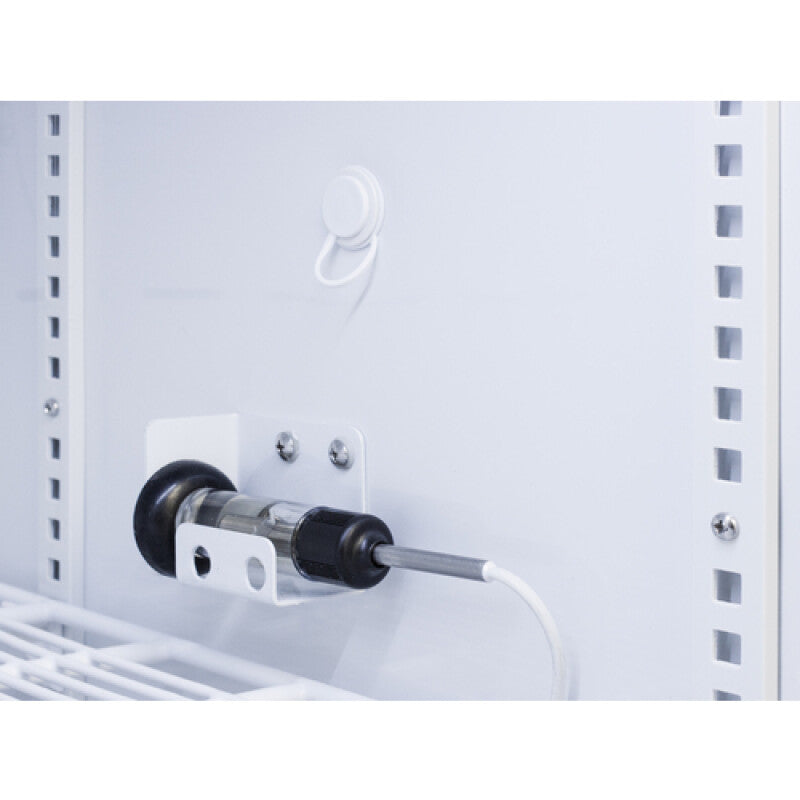

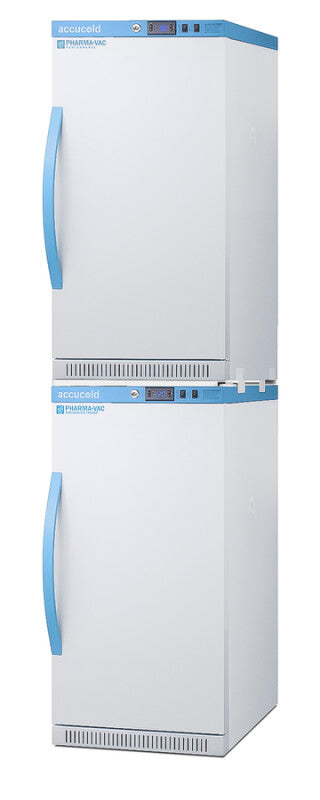

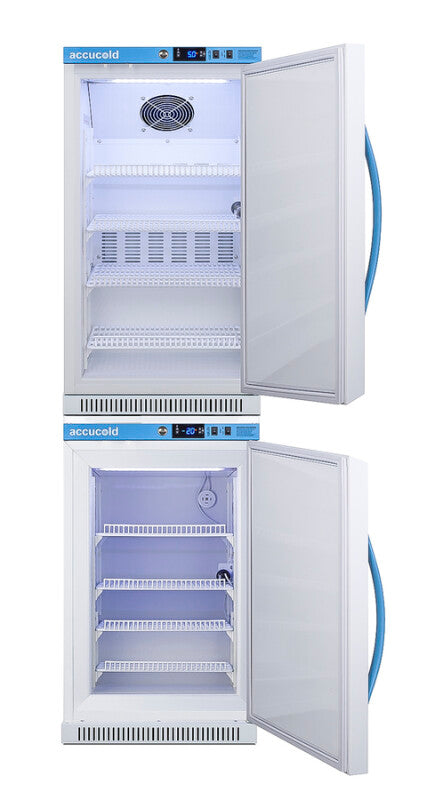

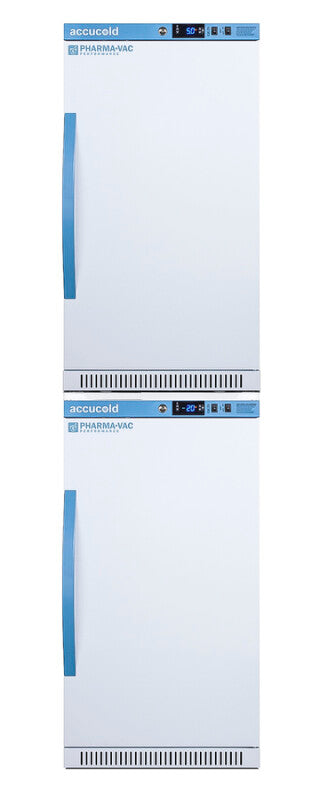

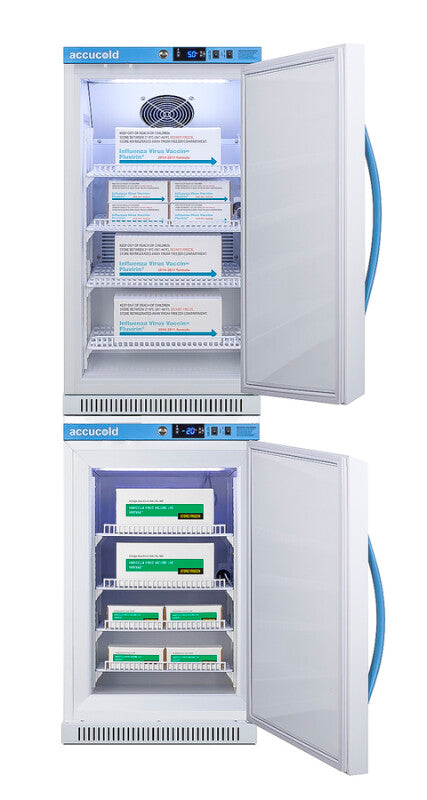

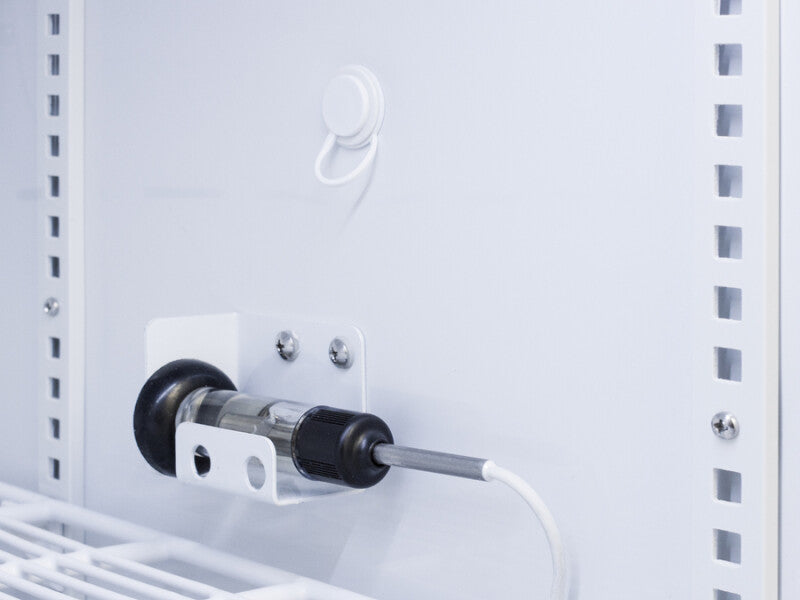

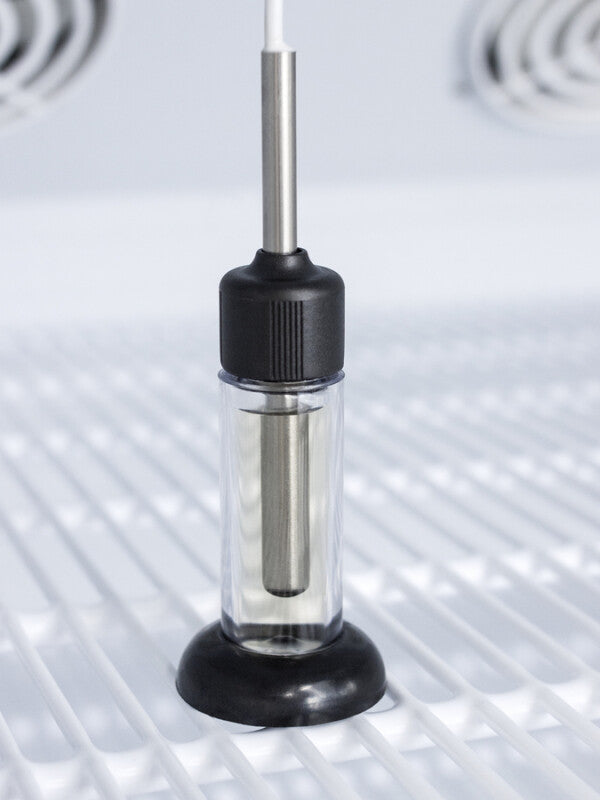

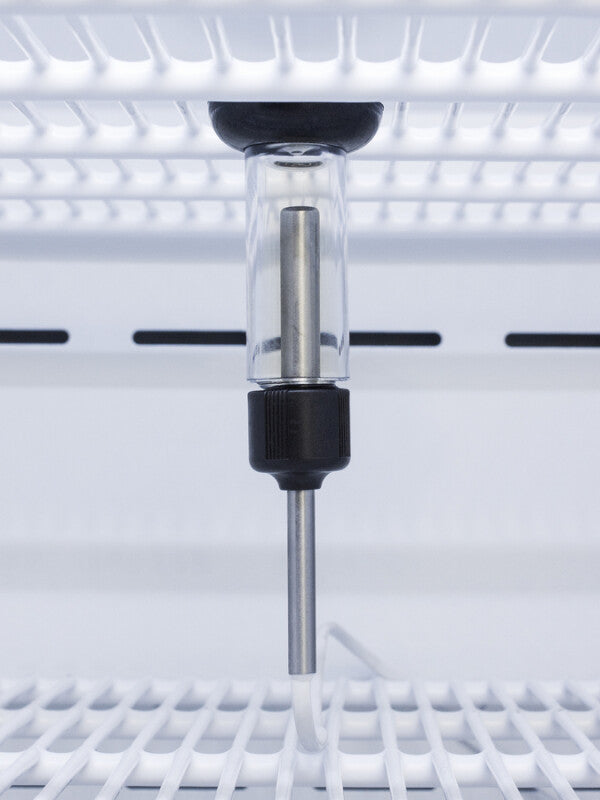

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC/VFA guidelines. Sized just under 20" wide, the ARS32PVBIADA-AFZ2PVBIADASTACK combines the 2.83 cu.ft. ARS32PVBIADA auto defrost all-refrigerator with AFZ2PVBIADA all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units' interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARS32PVBIADA refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the AFZ2PVBIADA, our Performance Series 2.47 cu.ft. all-freezer that utilizes static manual defrost operation. The freezer includes four adjustable plastic-coated wire shelves for flexible storage. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Product Features
-
Performance Series Refrigerator-Freezer Combination
Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications -
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines -
+/-1ºC Variation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period -
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint -
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top -

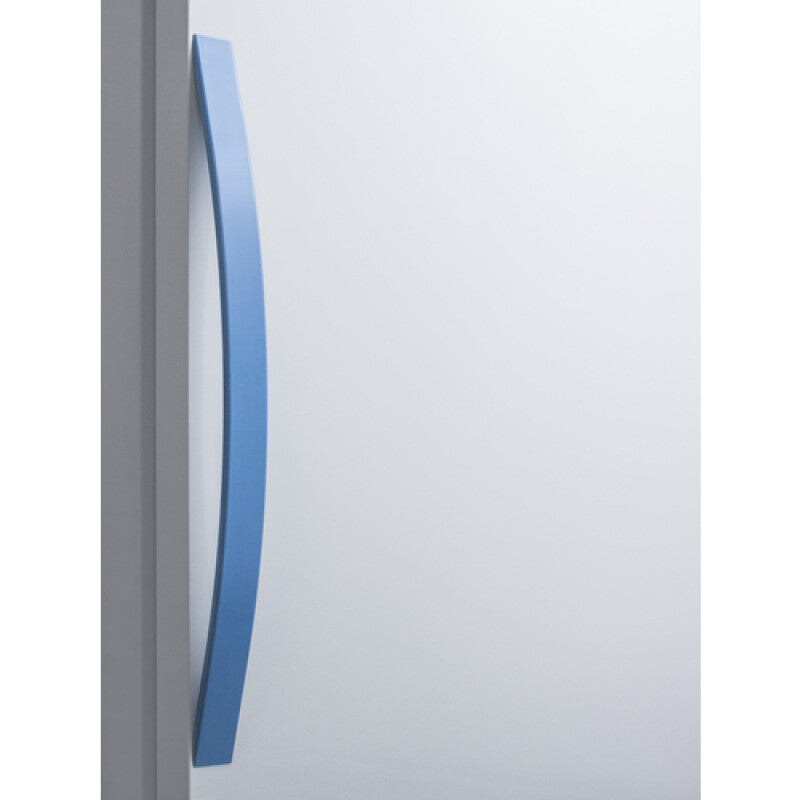

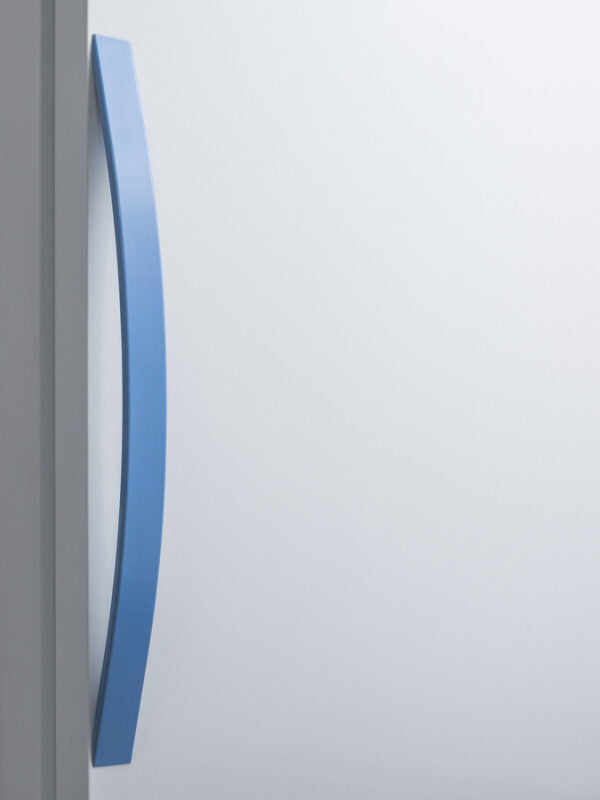

Antimicrobial silver ion-coated handles
Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs -
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer) -
Temperature alarms
Visual and audible alarms alert if the interior temperature rises or falls out of set range -

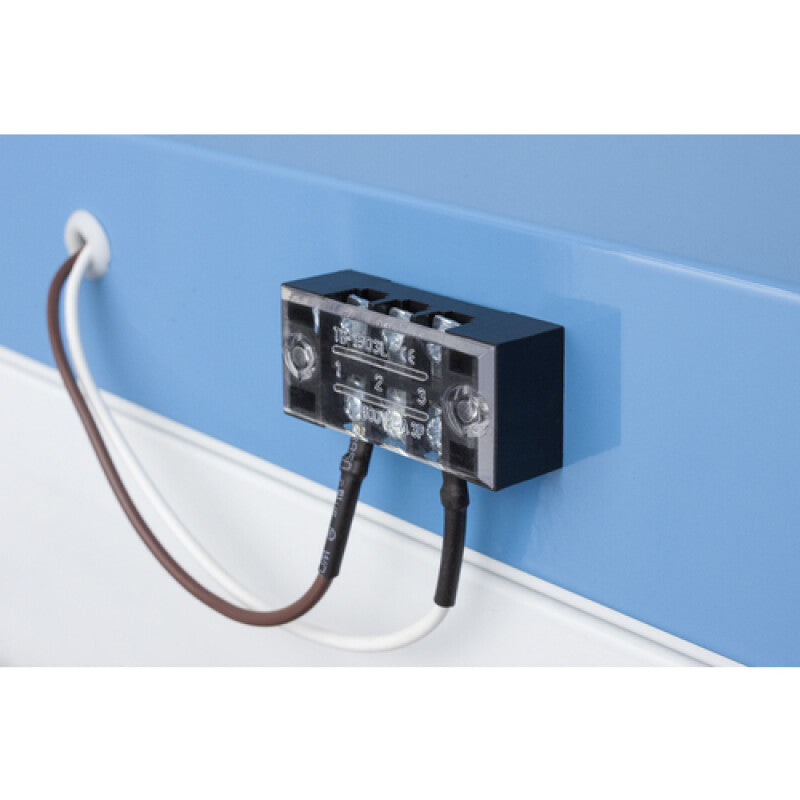

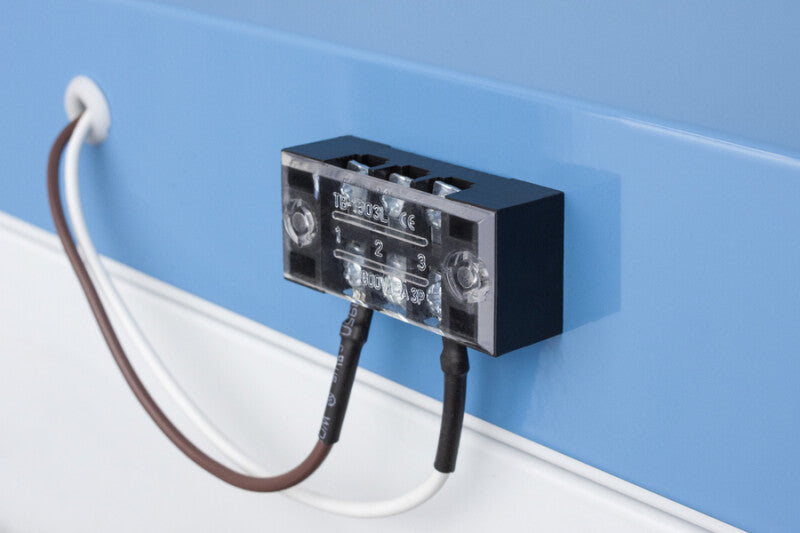

Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit) -
Automatic defrost with adjustable cycle defrost (refrigerator)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup -
Manual defrost (freezer)
Static cooling system for reduced temperature fluctuations -

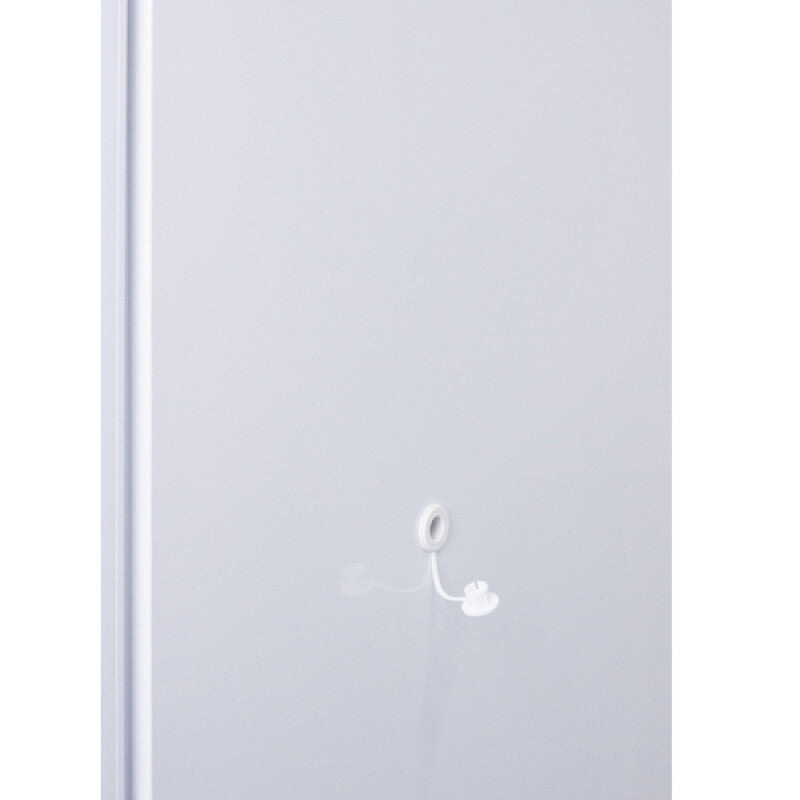

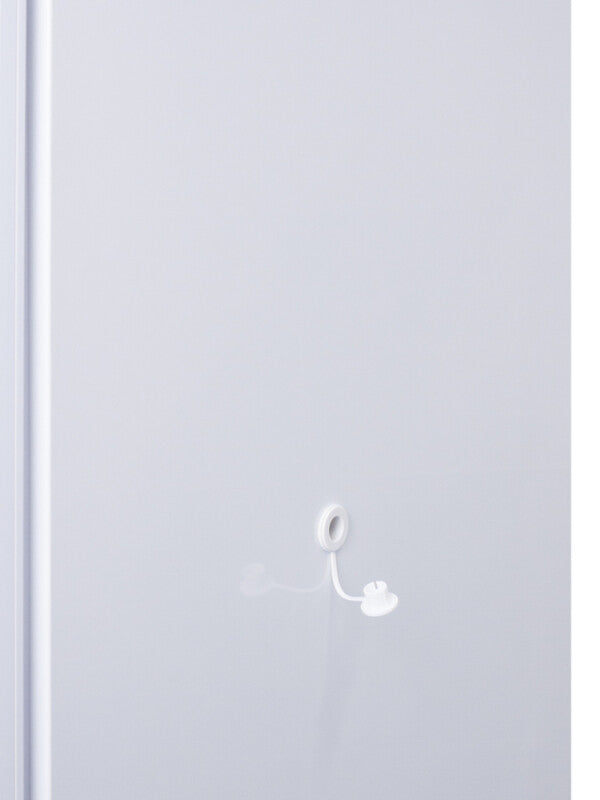

Access ports
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment -
Open door alarms
Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes) -
Audible power failure alarms
Battery-powered alarms sound if the power connection is interrupted -
Sensor failure alarms
Audible and visual alarms warn if the sensor is disrupted -
Password protection
Control panels require password entry to adjust the parameters beyond the set point -

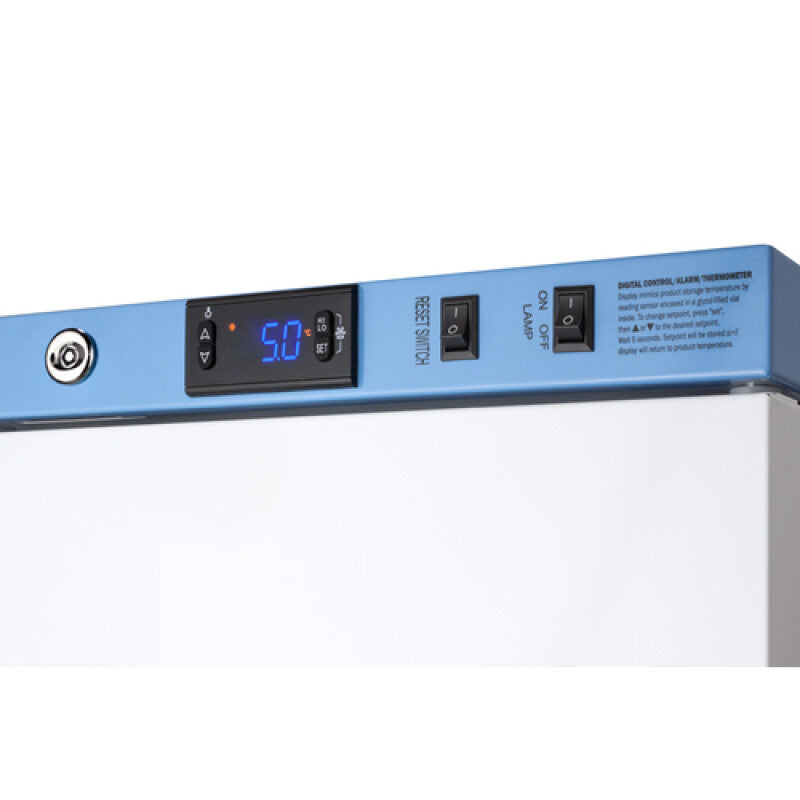

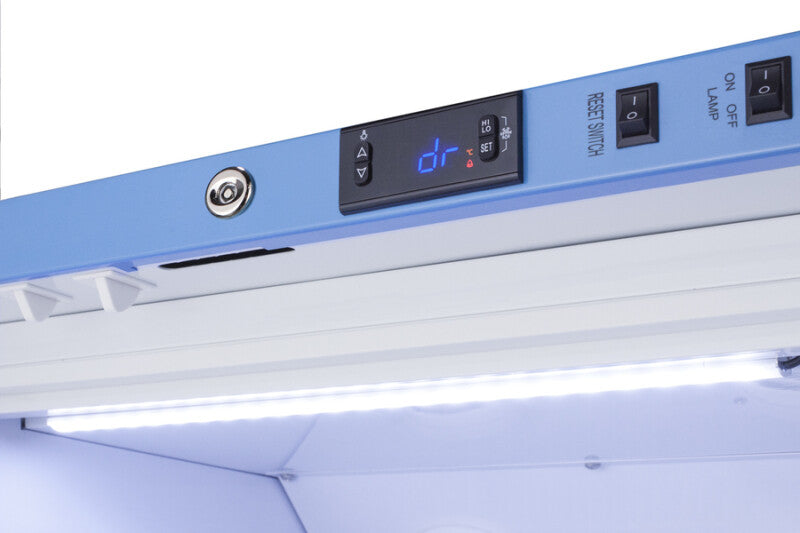

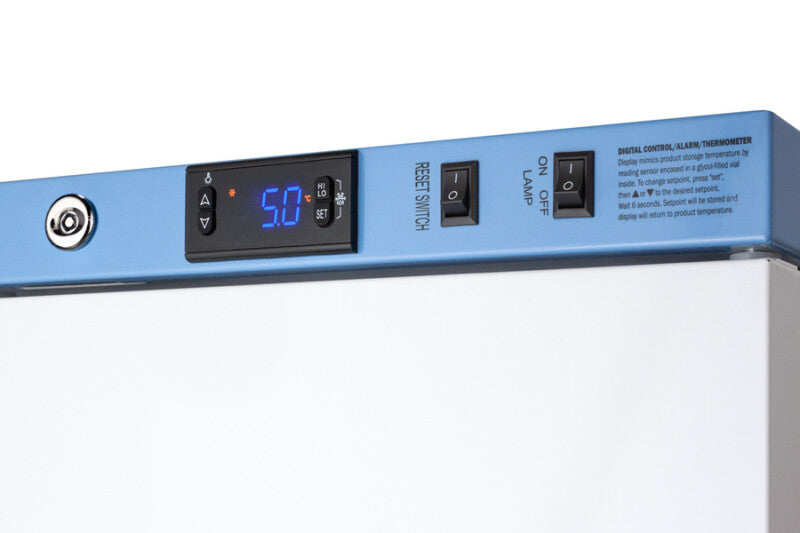

Microprocessor control panels
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management -
Resettable min/max displays
Control panels provide a readout of the low and high temperatures in 15 minute increments -
Factory-installed locks
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit) -

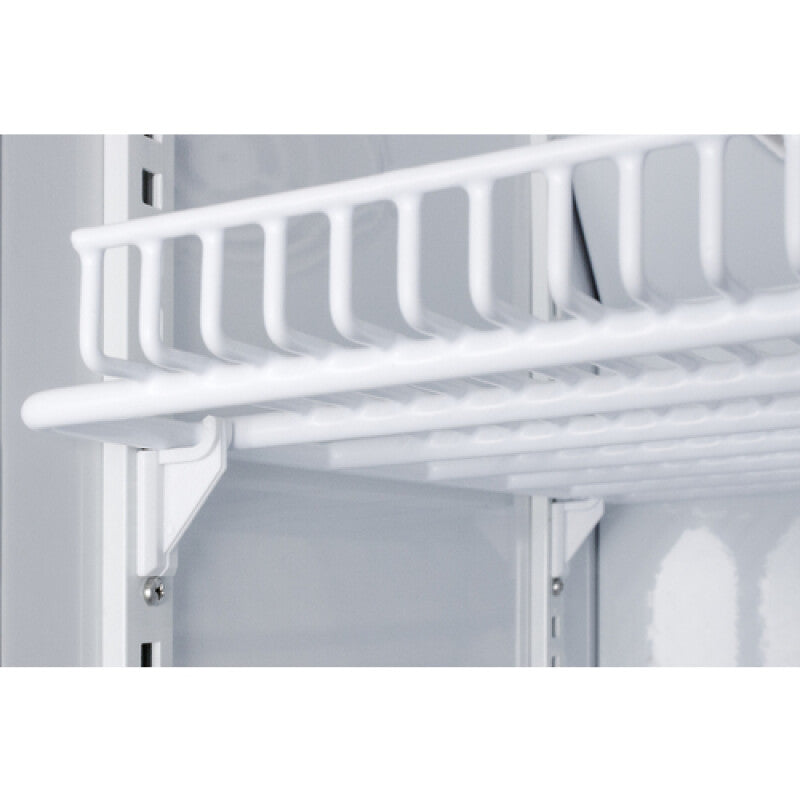

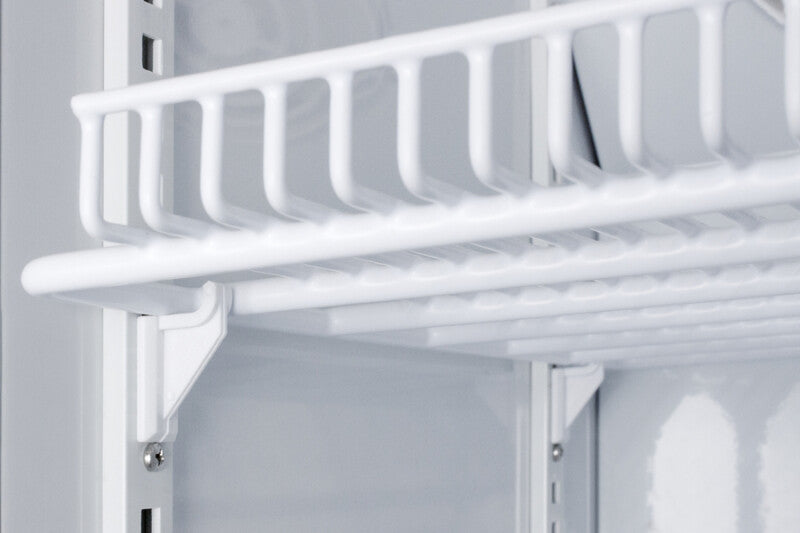

Adjustable plastic-coated wire shelves for improved circulation
Designed to accommodate a variety of sizes for flexible storage -
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety -

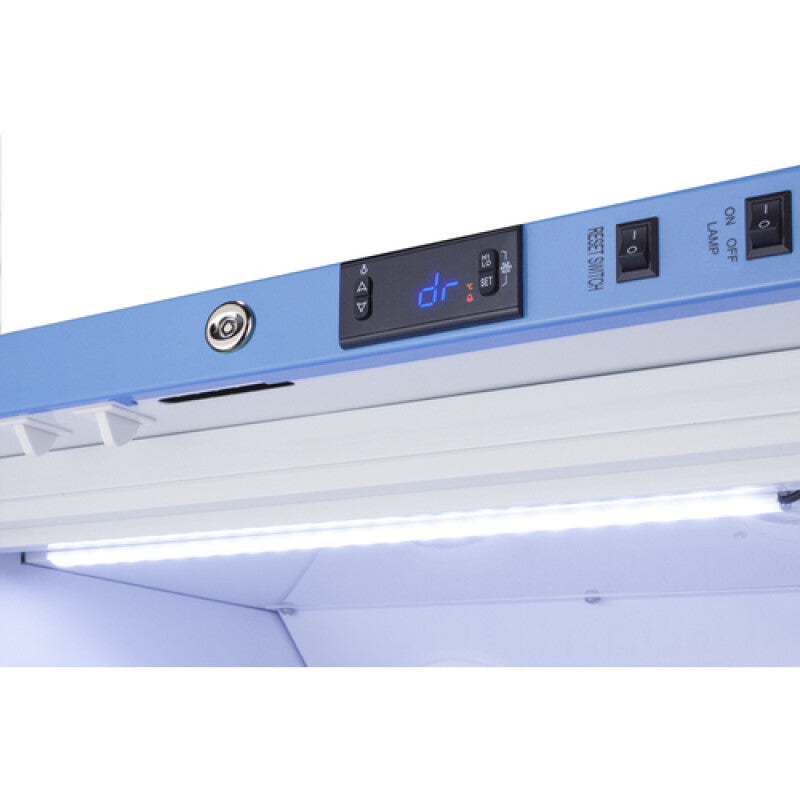

Interior light
Energy efficient LED lighting with internal on/off switch -
Self-closing door
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing -
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance -
Extended warranty
2 years parts and labor/5 years compressor -
Eco-Friendly (refrigerator)
Using environmentally friendly hydrocarbons refrigerants for a greener footprint -
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS" -
Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX® -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
