SKU: ARG12PVFS24LSTACKMED2 | UPC: 761101077680

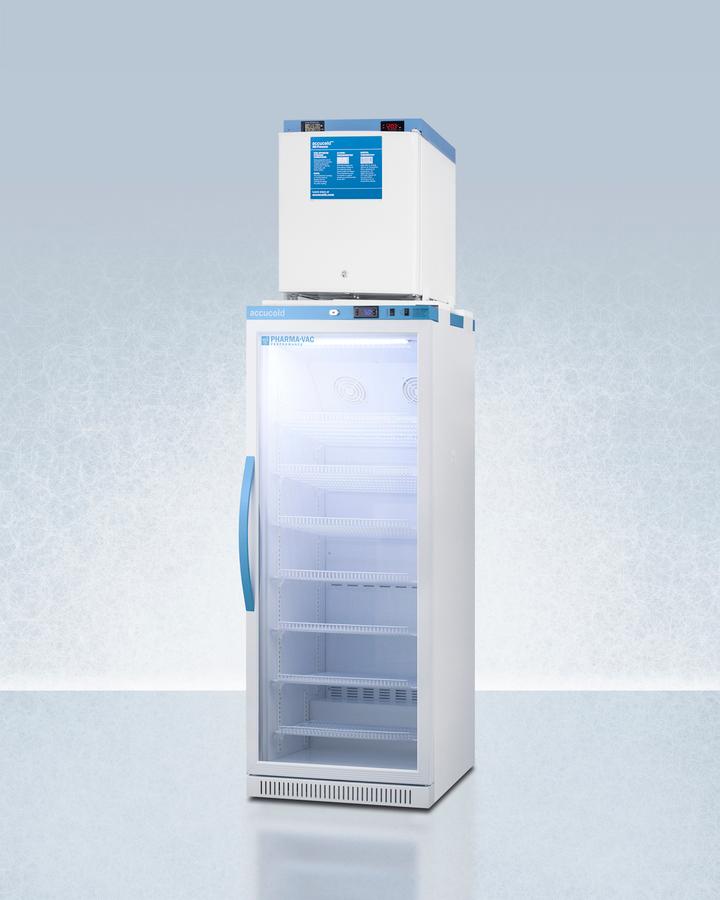

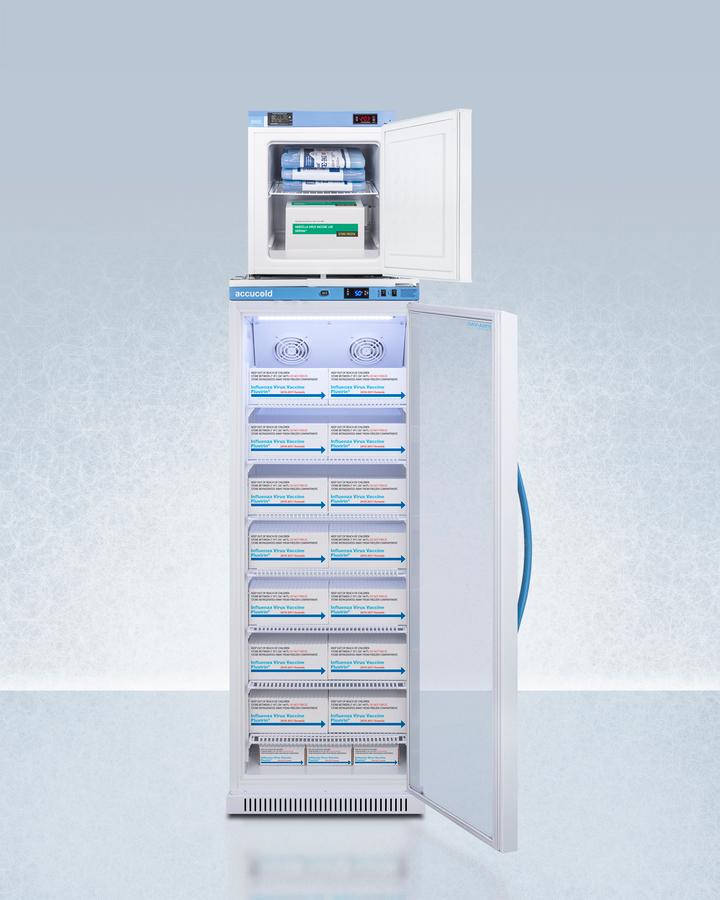

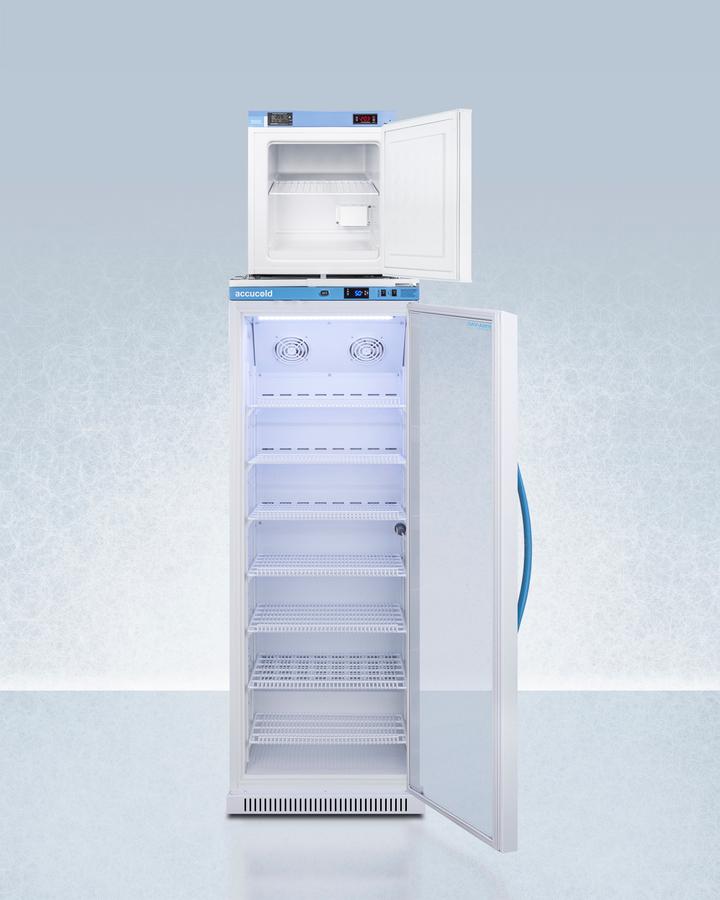

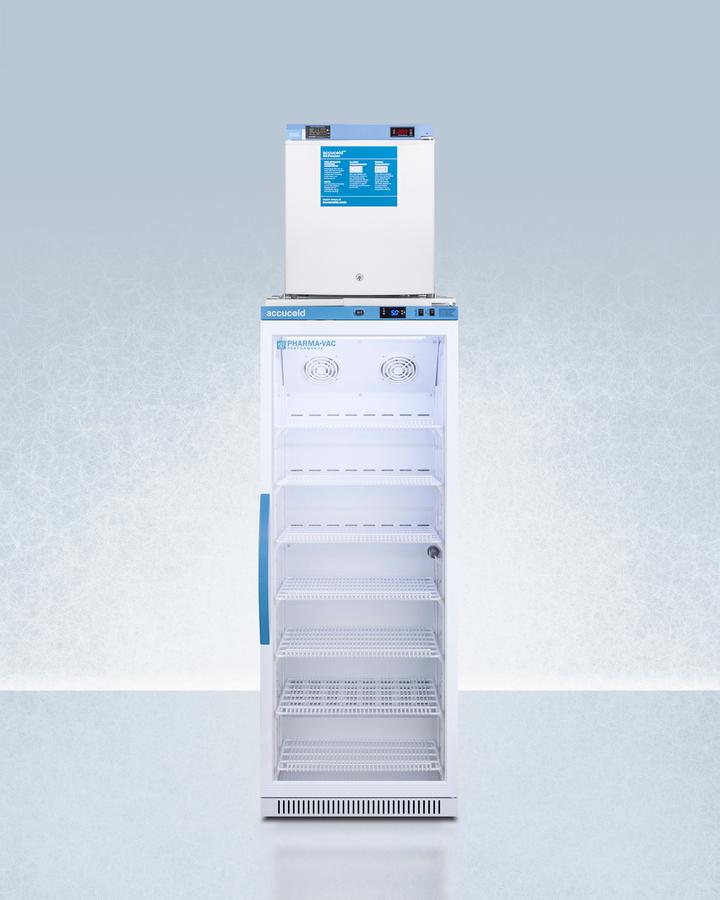

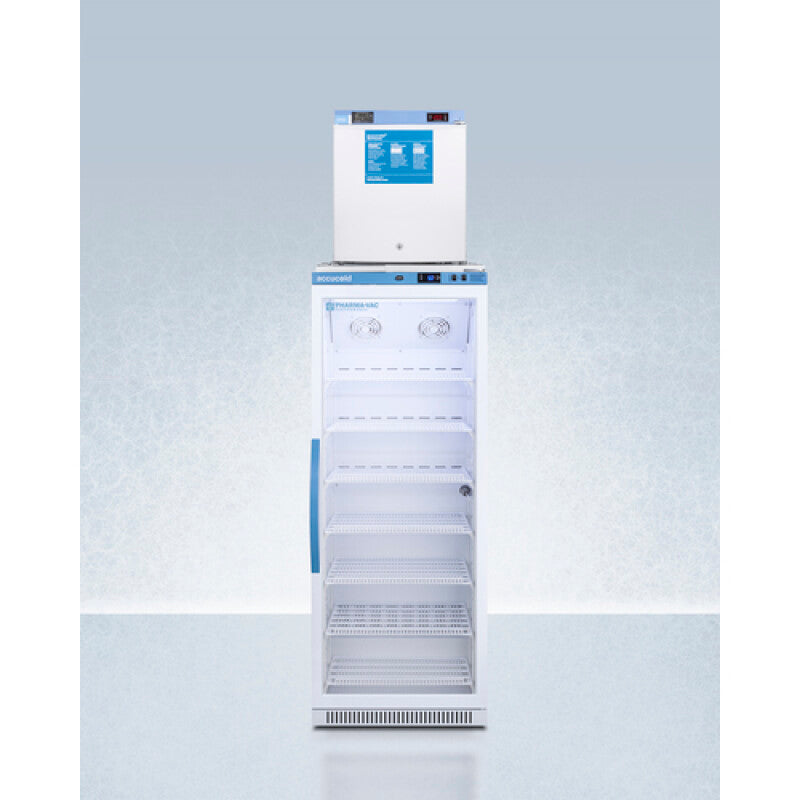

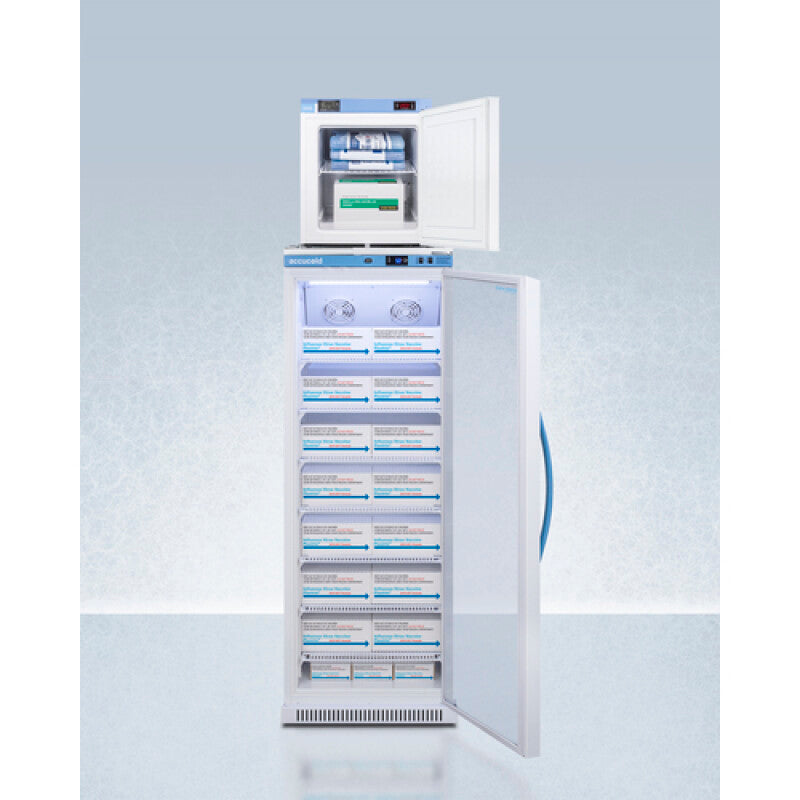

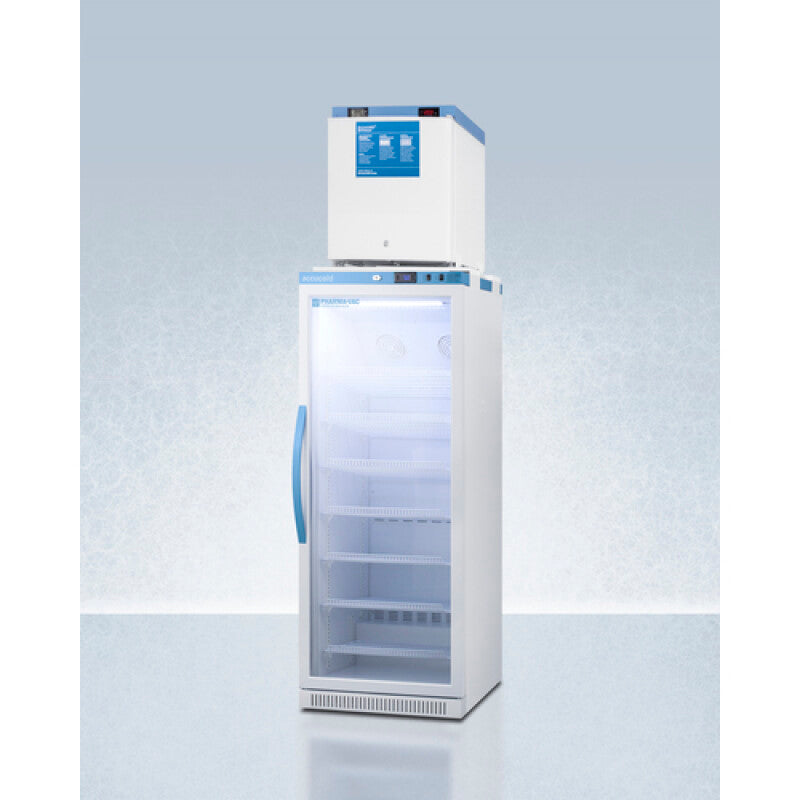

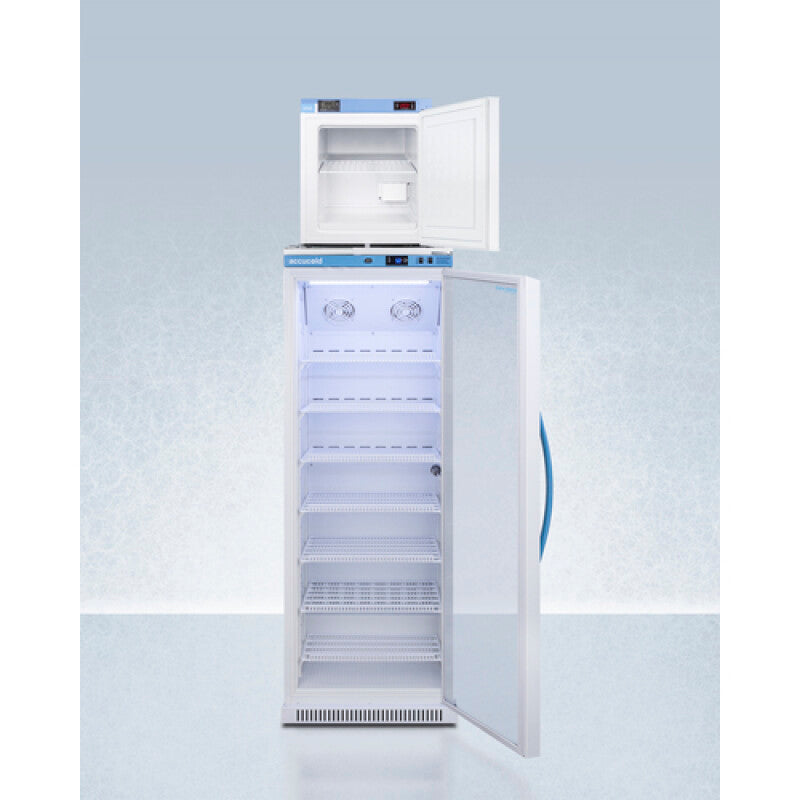

Summit ARG12PVFS24LSTACKMED2 24" Wide All-Refrigerator/All-Freezer Combination White

Quick Specification More details

Width:
23.38" (59 cm)
Depth:
24.38" (62 cm)
Type:
Other Specialty Refrigerators

About this product

Space-saving design
ARG12PV all-refrigerator
FS24LMED2 all-freezer
Easy assembly

Clearance

SKU: ARG12PVFS24LSTACKMED2 | UPC: 761101077680

Summit ARG12PVFS24LSTACKMED2 24" Wide All-Refrigerator/All-Freezer Combination White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.38" (59 cm)
Depth:
24.38" (62 cm)
Type:
Other Specialty Refrigerators

About this product

Space-saving design
ARG12PV all-refrigerator
FS24LMED2 all-freezer
Easy assembly

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Summit ARG12PVFS24LSTACKMED2

Technical Details

Overview refrigerator-freezer

Nominal Height	84.0" (213 cm)
Height of Cabinet	83.5" (212 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Width with Door Open	23.88" (61 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.38" (62 cm)
Depth with Handle	26.13" (66 cm)
Depth with door at 90°	46.5" (118 cm)
Capacity	13.4 cu.ft. (379 L)
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	2.8
Voltage/Frequency	115 V AC/60 Hz
Weight	220.0 lbs. (100 kg)
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
UPC	761101077680
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	53.0" (135 cm)
Refrigerator - Interior Width	20.0" (51 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Capacity	12.0 cu.ft
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	7
Refrigerator - Temperature Range	2 to 8ºC
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	2.11 oz.
Freezer - Interior Height	14.38" (37 cm)
Freezer - Interior Width	13.5" (34 cm)
Freezer - Interior Depth	13.25" (34 cm)
Freezer - Capacity	1.4 cu.ft
Freezer - Shelf Type	Wire
Freezer - Shelf Qty	1
Thermostat Type	Digital
Fan Type	Interior
Freezer - Temperature Range	-20º to -15ºC
Freezer - Refrigerant Type	R600a
Freezer - Refrigerant Amount	0.8 oz.

Description

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC/VFA guidelines. Sized just under 24" wide, the ARG12PV-FS24LSTACKMED2 combines the 12 cu.ft. ARG12PV auto defrost all-refrigerator with the compact FS24LMED2 all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. Refrigerator ARG12PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The ARG12PV comes with a user-reversible door with a factory-installed antimicrobial handle that is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARG12PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with two internal fans ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Designed to be stacked on top of the ARG12PV, the FS24LMED2 freezer utilizes manual defrost operation, with a digital control panel and NIST calibrated thermometer that provides a continuous display of the current and high/low temperature. This unit is also equipped with a temperature alarm and access port to accept additional monitoring equipment. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. Additional stacked combinations are available, including smaller sizes and units with glass doors. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Product Features

Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
ARG12PV all-refrigerator
12 cu.ft. automatic defrost all-refrigerator with digital controls, antimicrobial handle, wire shelving, and keyed lock for added security
FS24LMED2 all-freezer
Compact manual defrost all-freezer with digital thermostat and wire shelving
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
+/-1ºC Variation (refrigerator)
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -20º to -15ºC (freezer)
Antimicrobial silver ion-coated handle (refrigerator)
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Temperature alarms
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Remote alarm contacts (refrigerator)
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost (refrigerator)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Manual defrost (freezer)
Static cooling system for reduced temperature fluctuations
Access ports
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Open door alarm (refrigerator)
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm (refrigerator)
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm (refrigerator)
Audible and visual alarm warns if the sensor is disrupted
Password protection (refrigerator)
Control panel requires password entry to adjust the parameters beyond the set point
Microprocessor control panels
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display (refrigerator)
Control panel provides a readout of the low and high temperatures in 15 minute increments
Hospital grade cord with 'green dot' plug (refrigerator)
Secure three-pronged cord for added unit safety
Factory-installed locks
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
Adjustable plastic-coated wire shelves for improved circulation
Designed to accommodate a variety of sizes for flexible storage
Interior light (refrigerator)
Energy efficient LED lighting with internal on/off switch
Reversible door (refrigerator)
User-reversible door swing for added flexibility
Factory reversible door (freezer)
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly (refrigerator)
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Versatile design (refrigerator)
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Both units utilize eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
