Product Details for SUMMIT ARFG15PV

Technical Details

Overview

Height of Cabinet 29.38
Width 9.25
Width with Door Open 9.45
Depth 9.84
Depth with Handle 10.43
Depth with door at 90(degree) 18.41
Capacity 10.74
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115
Weight 205.0
Parts & Labor Warranty 2
Compressor Warranty 5
UPC 761101156705

Refrigerator-freezer

Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 12.99
Refrigerator - Interior Width 7.68
Refrigerator - Interior Depth 6.89
Refrigerator - Capacity 6.74
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Temperature Range 2
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.3
Freezer - Interior Height 6.99
Freezer - Interior Width 6.0
Freezer - Interior Depth 6.5
Freezer - Capacity 4.0
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Wheels 4
Freezer - Temperature Range -30
Freezer - Refrigerant Type R290a
Freezer - Refrigerant Amount 1.2

Features

  • Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
  • Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
  • The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
  • Triple paned glass on the upper refrigerator section provides a clear view of interior contents
  • Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

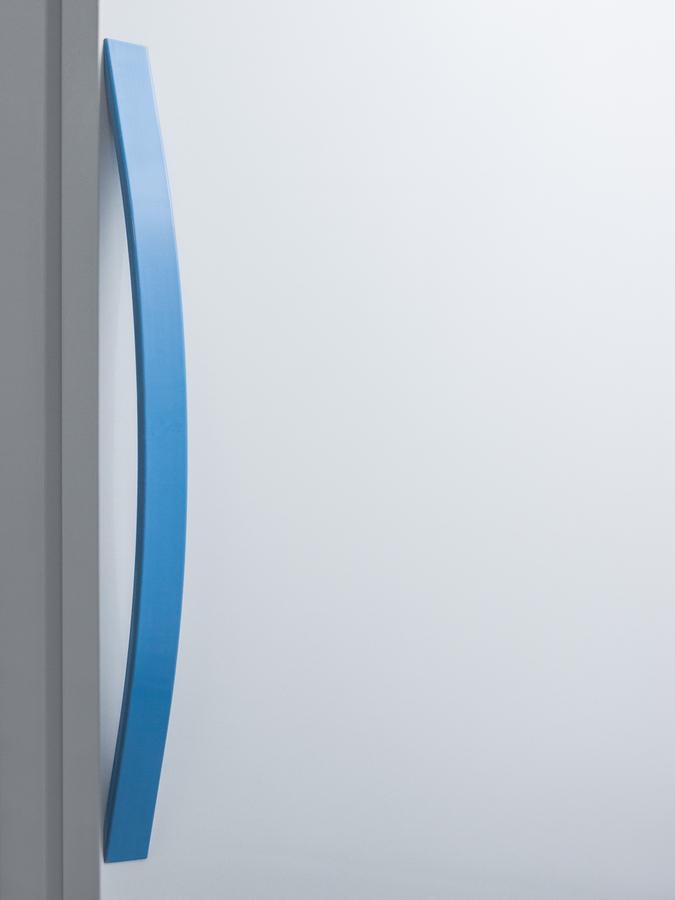

  • Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs
  • Intuitive controls let you adjust the interior temperature between +2 to +8 C (refrigerator) and -30 to -10 C (freezer)
  • Visual and audible alarms alert if the interior temperature rises or falls out of set range

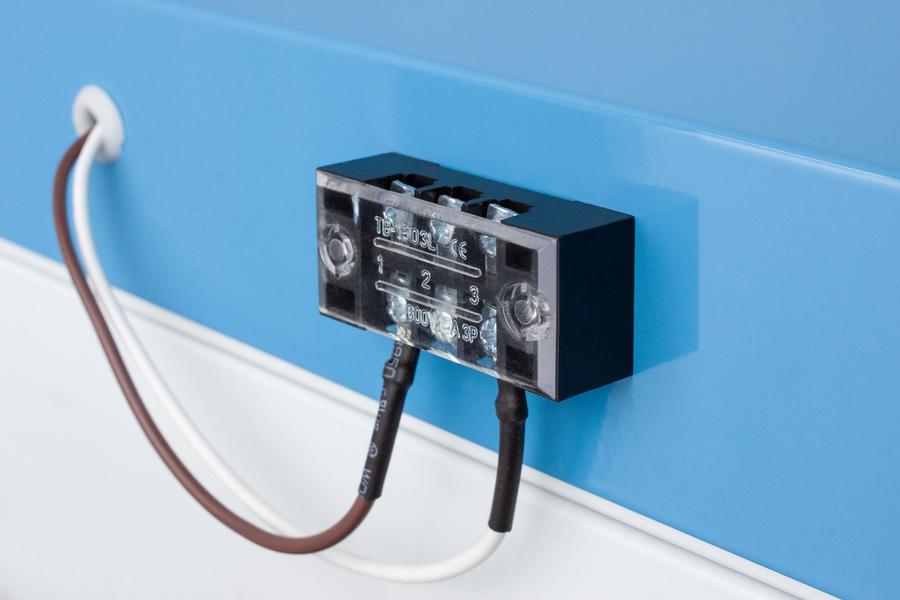

  • Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
  • Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
  • Static cooling system for reduced temperature fluctuations

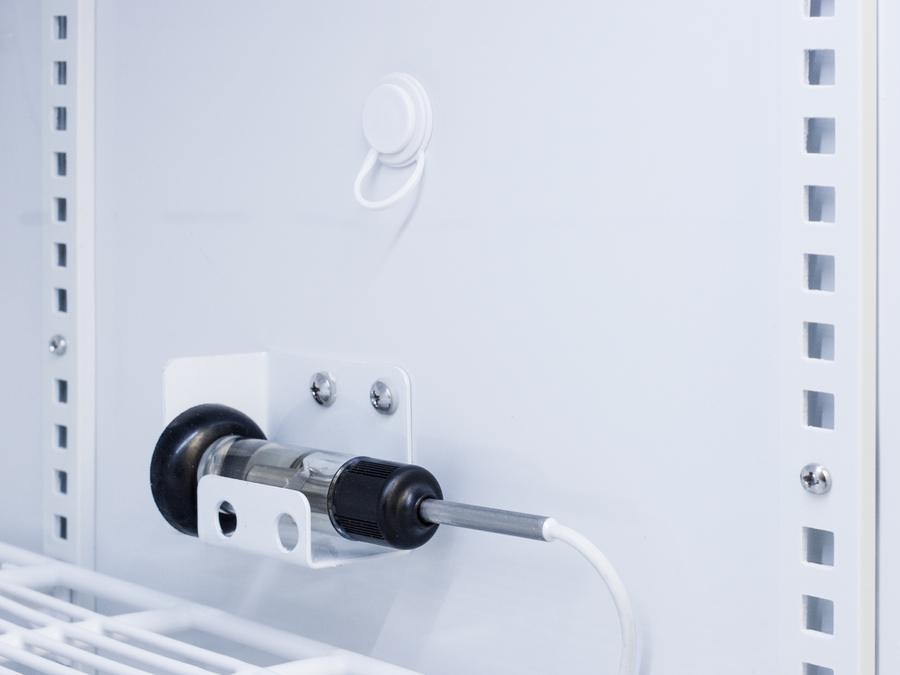

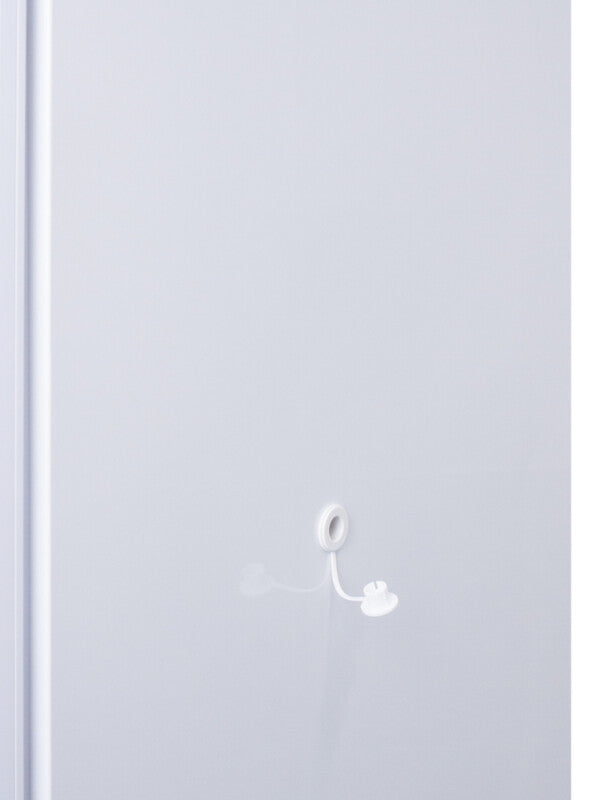

  • Both compartments include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
  • Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Battery-powered alarms sound if the power connection is interrupted
  • Audible and visual alarms warn if the sensor is disrupted
  • Control panels require password entry to adjust the parameters beyond the set point
  • Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Control panels provide a readout of the low and high temperatures in 15 minute increments
  • Keyed locks for each door for facility security
  • Designed to accommodate a variety of sizes for flexible storage
  • Secure three-pronged cord for added unit safety
  • Energy efficient LED lighting with internal on/off switch
  • Added protection in busy settings to ensure the doors are not accidentally left ajar
  • Quality door gaskets ensure a tight seal for energy savings and improved performance
  • 2 years parts and labor/5 years compressor
  • Using environmentally friendly hydrocarbons refrigerants for a greener footprint
  • Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
  • Compatible with Pyxis(R), Omnicell(R), and AcuDose RX(R)
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Environmentally friendly design without ozone-damaging chemicals



Description

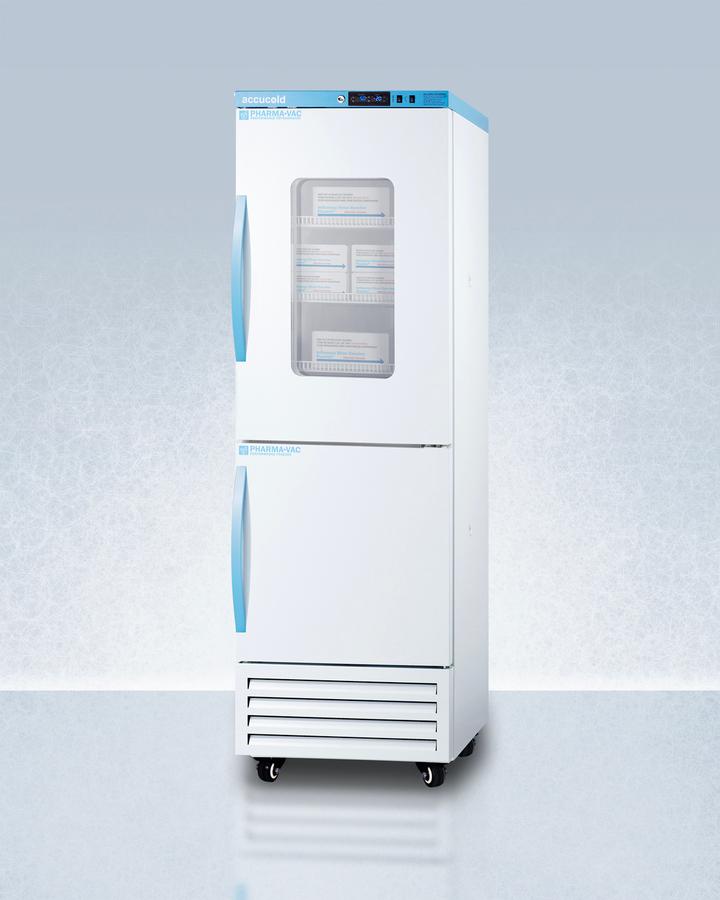

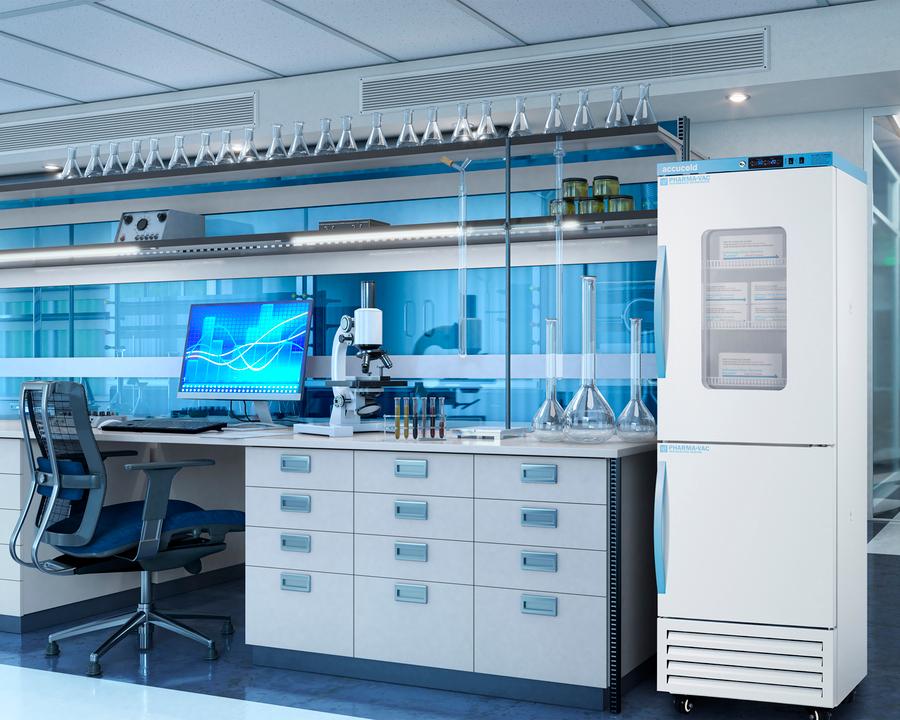

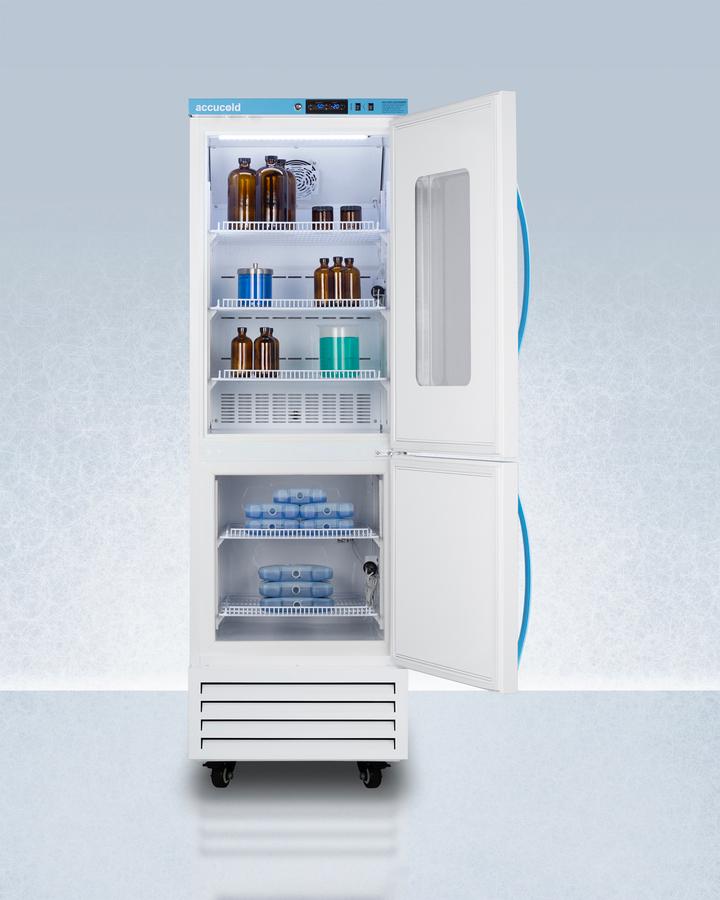

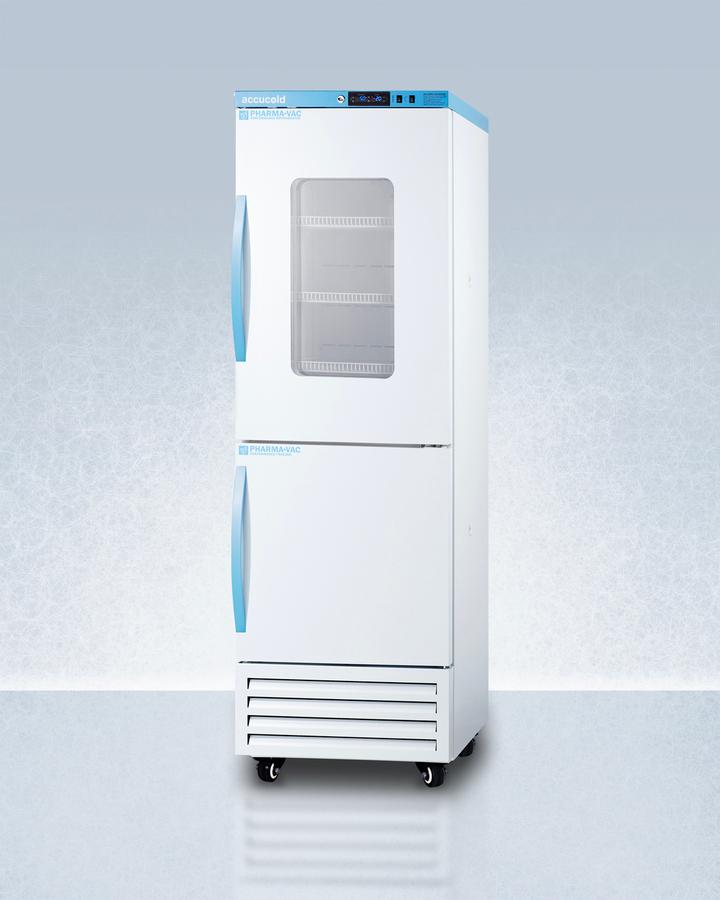

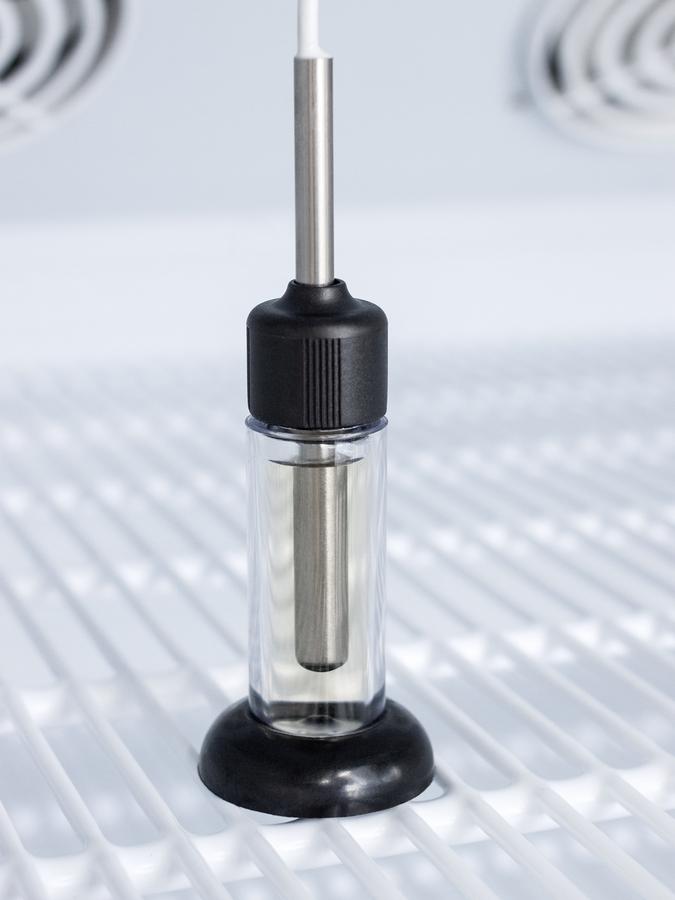

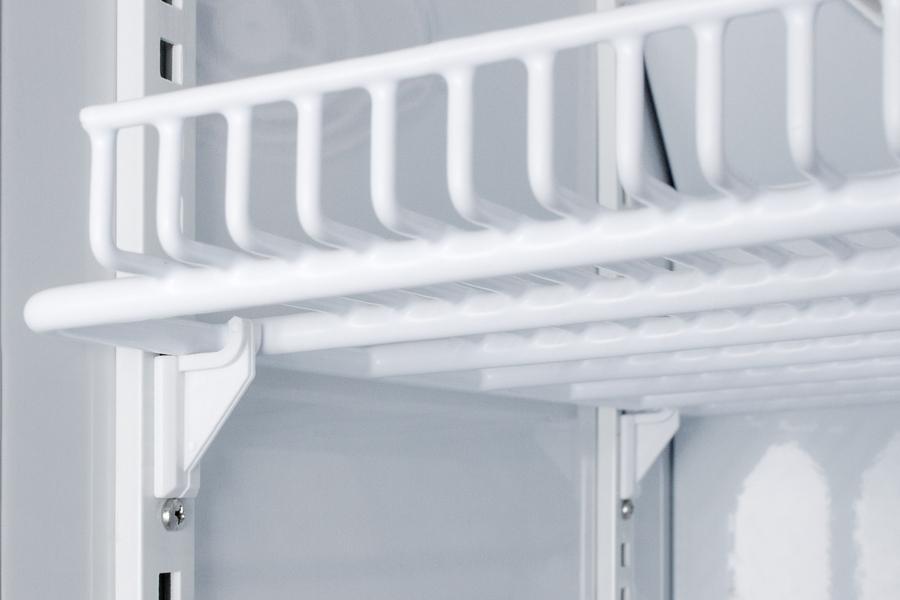

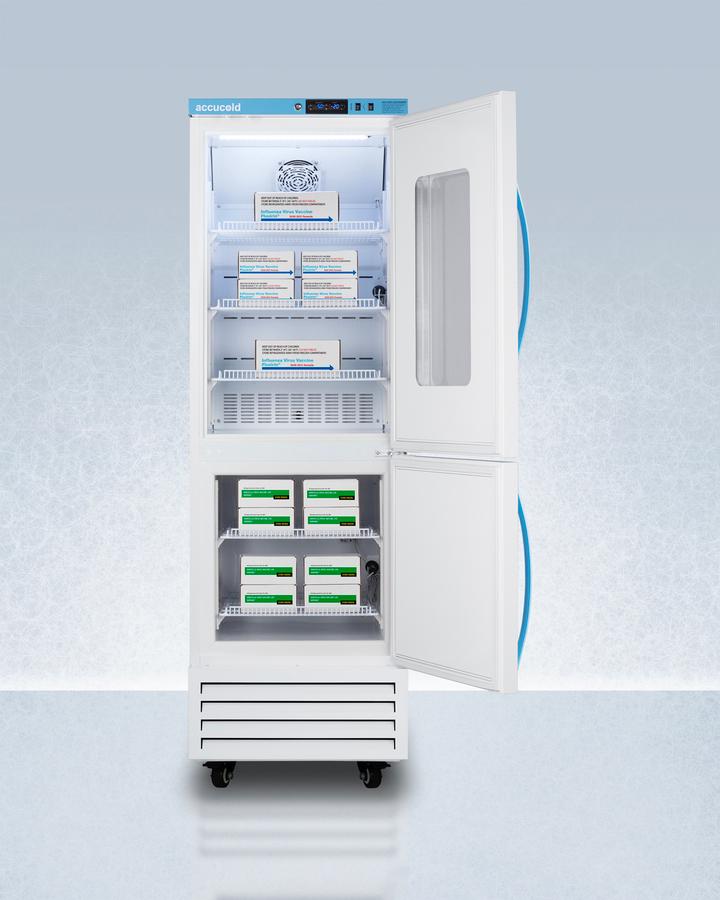

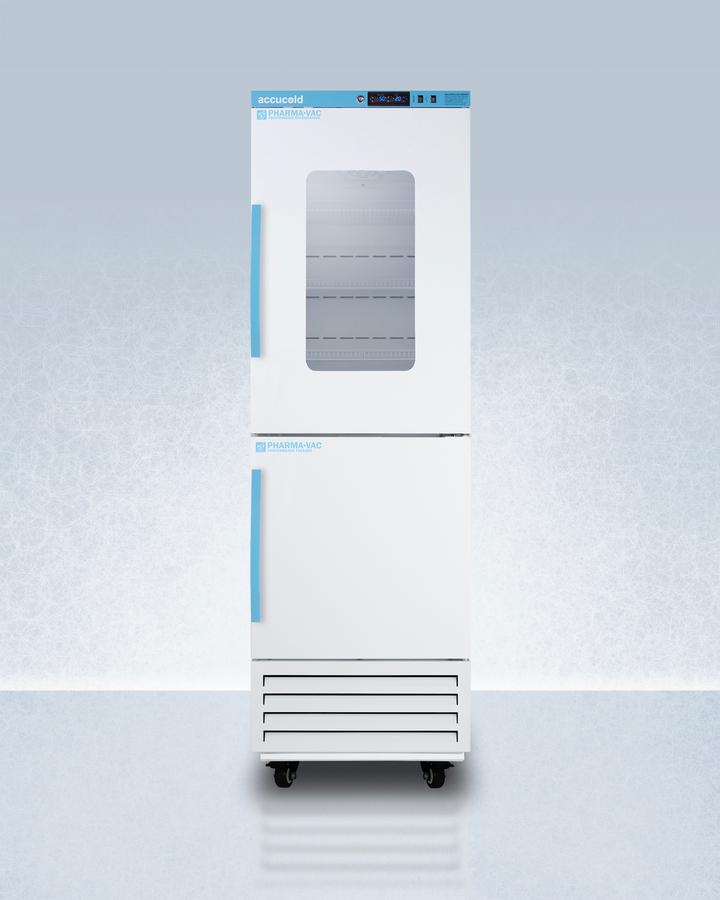

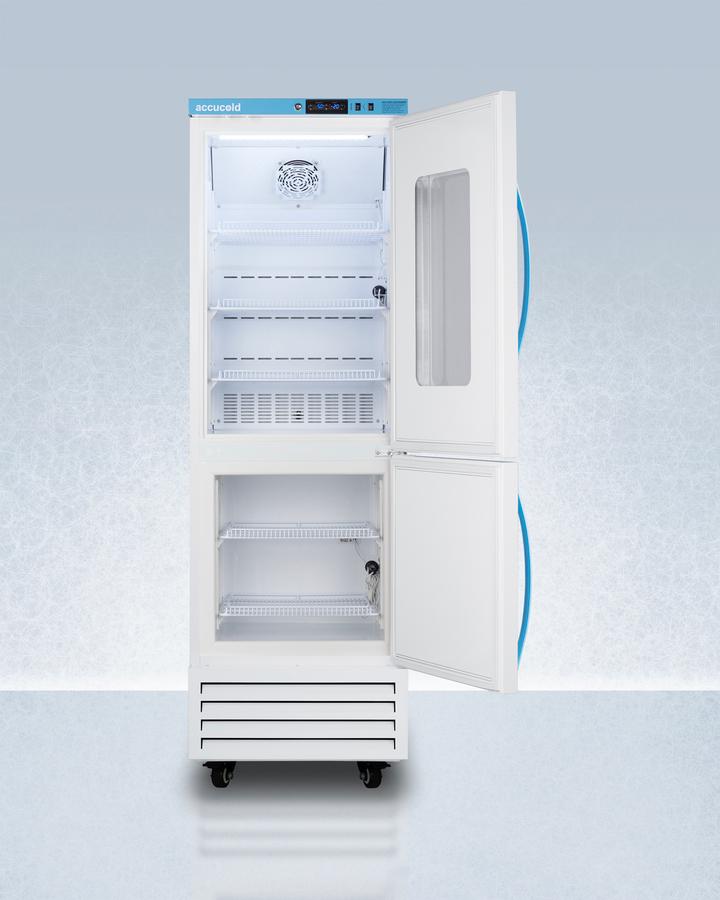

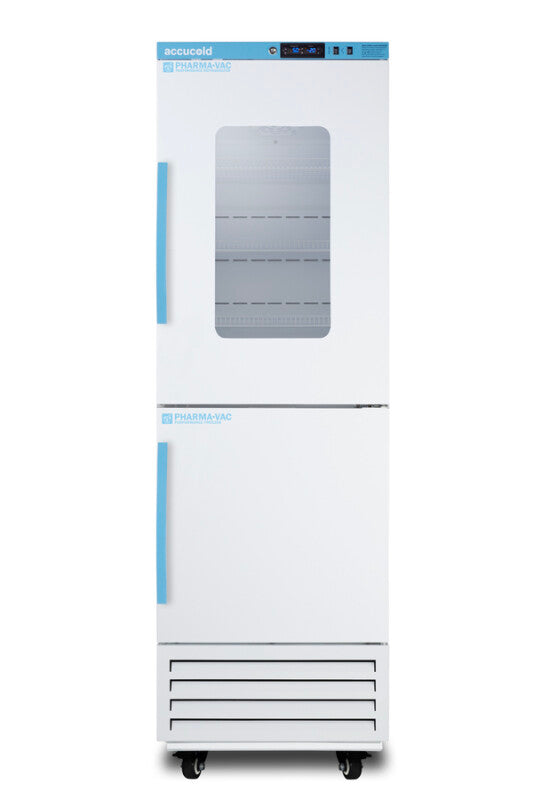

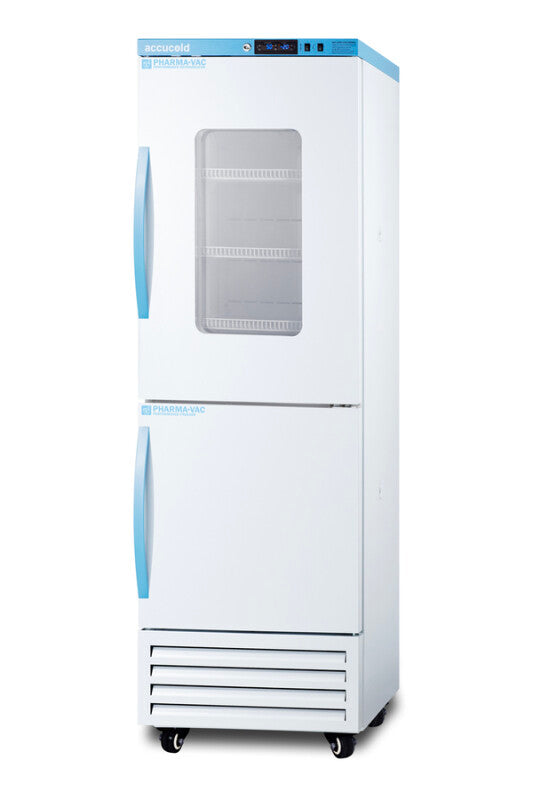

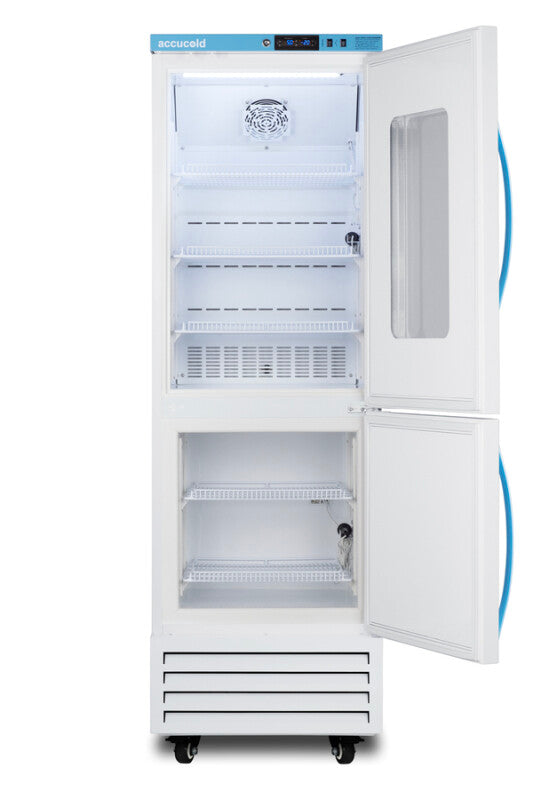

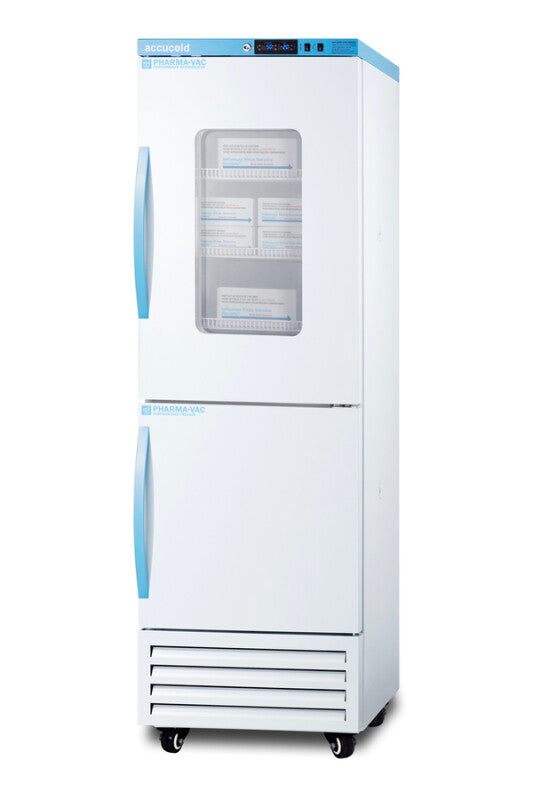

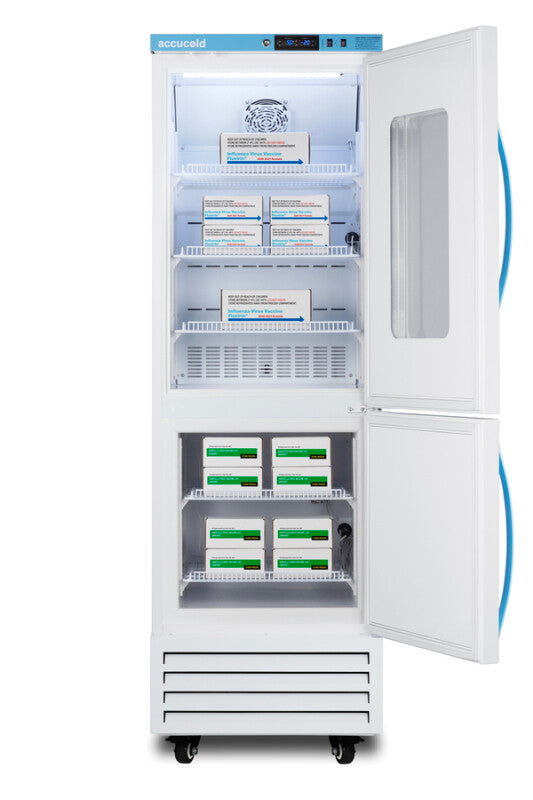

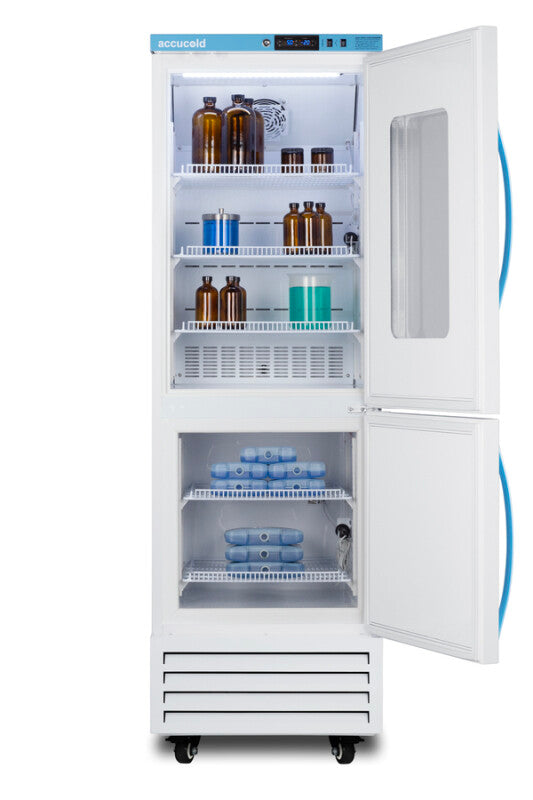

Accucold offers innovative solutions to vaccine and life science storage with the Performance Series dual compressor combination refrigerator-freezers. These units are purpose-built to ensure a stable temperature performance in hospitals, pharmacies, laboratories, and other facilities. Sized just under 24" wide, the ARFG15PV features an upper refrigerator compartment with a small window and independent manual defrost freezer below. Both sections include adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine and life science storage. The ARFG15PV features a dual microprocessor temperature controller (refrigerator range: +2 to +8 C; freezer range: -30 to -10 C). The buffered temperature probes are encased in glycol-filled bottles to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alert system. Both sections are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the upper refrigerator compartment utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The freezer utilizes static manual defrost cooling. Both compartments include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Pre-installed hospital grade casters offer easy mobility as needed, with the front two wheels lockable to keep the unit in place. Additional sizes and styles are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B2 or DLPWRF.

Key Features

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Triple paned glass on the upper refrigerator section provides a clear view of interior contents

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Intuitive controls let you adjust the interior temperature between +2 to +8 C (refrigerator) and -30 to -10 C (freezer)

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Static cooling system for reduced temperature fluctuations

Both compartments include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Battery-powered alarms sound if the power connection is interrupted
