Summit AR5BIF 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) Black
Sale price
$1,282.47
Regular price
$1,664.97
Save
$382.50
/ 22% OFF
In Stock
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Delivery services
?
Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.
For more details, please visit our Delivery and Installation Services page.
-
$110.00
-
$49.99
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,282.47
Regular price
$1,664.97
Save
$382.50
/ 22% OFF
Product Details for Summit AR5BIF
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & weight
| Width | 23.63 in. |
| Height | 32 in. |
| Length | 23 in. |
| Weight | 100 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 10.06 ft³ |
| Dimensional Weight | 125.12 lbs. |
| Total of Cubes | 10.06 ft³ |
| Total of Dimensional Weight | 125.12 lbs. |
Overview refrigerator features dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068787 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
Description
SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24” footprint and 32” height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick. Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. Additional ADA compliant choices are available in a variety of sizes and styles. Browse our website for more options.
Product Features
-
ADA compliant
32" height to fit under lower ADA compliant counters -
Slim undercounter dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit -
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter -

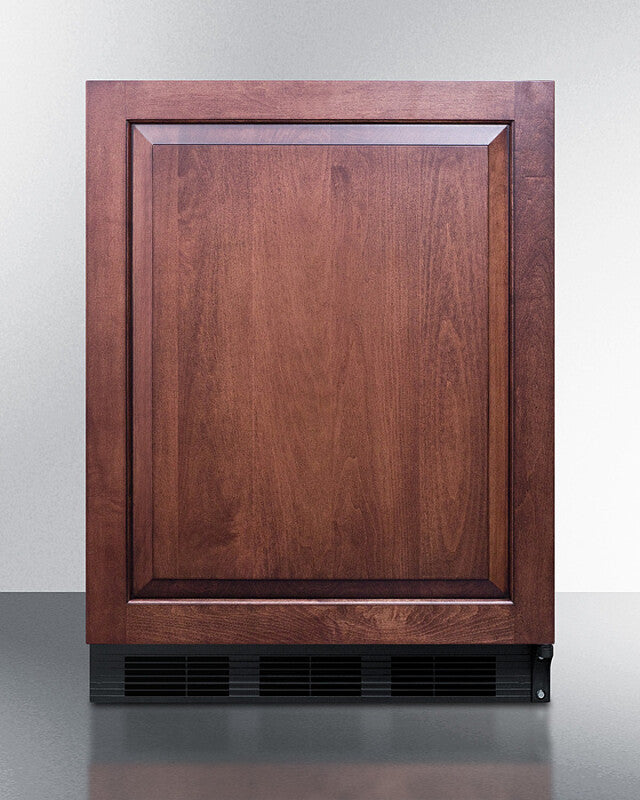

Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.) -
Automatic defrost
Reduced maintenance with auto defrost system -

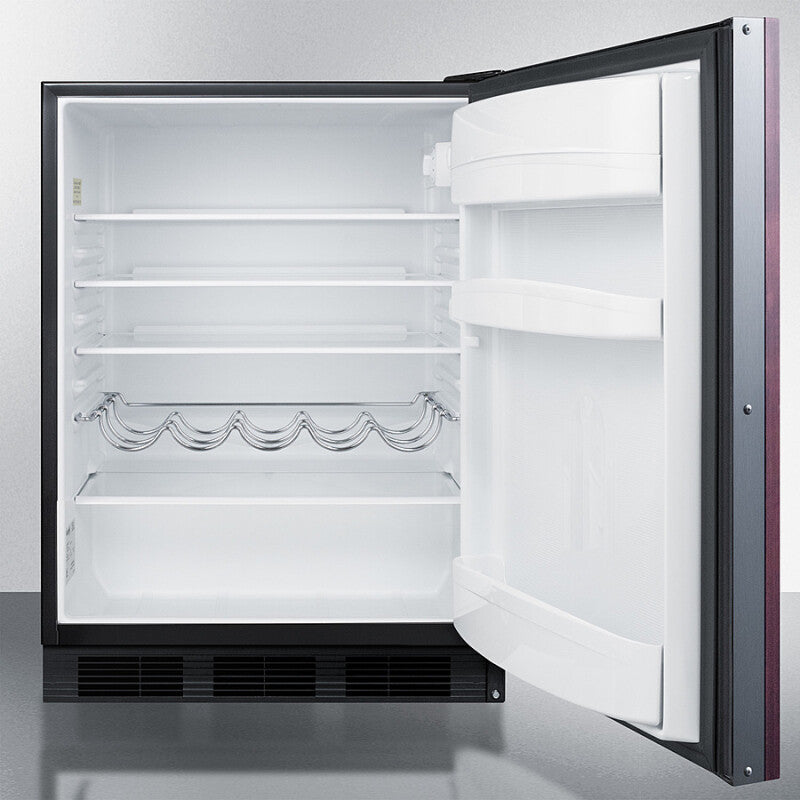

Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up -

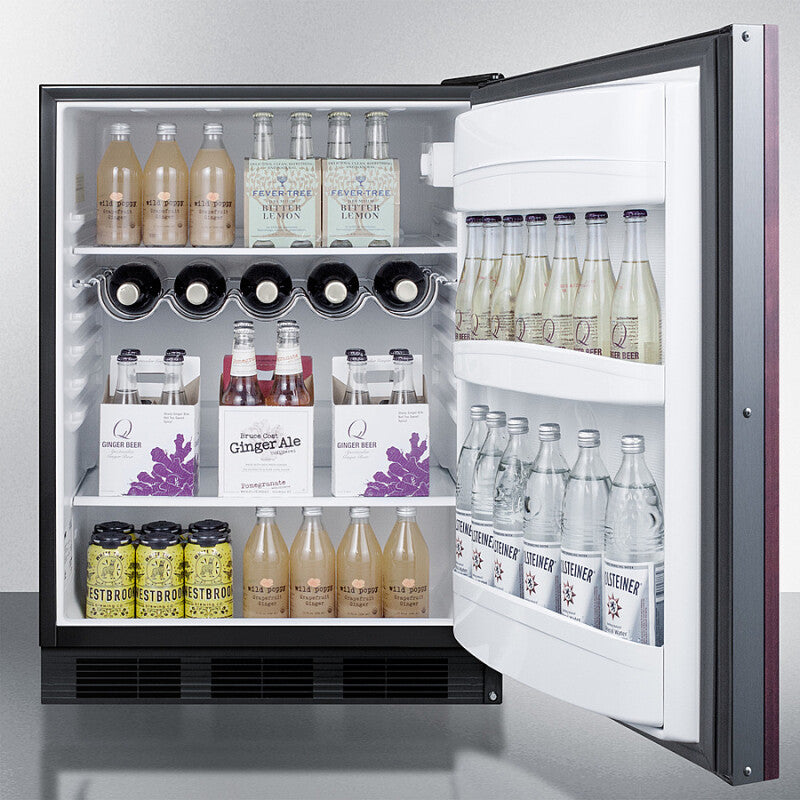

Door shelves
Store tall bottles and condiments right on the door for convenient access -
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles -
Interior light
Automatically illuminates when you open the door -
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices -
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior -

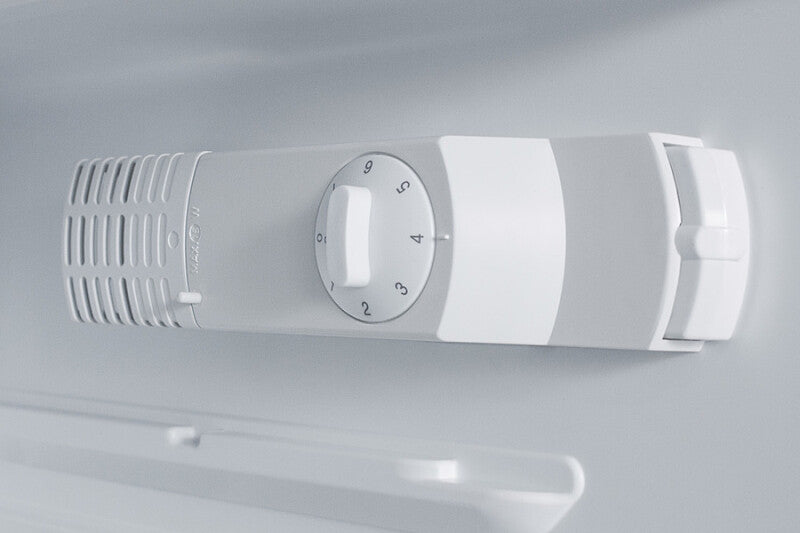

Adjustable thermostat
Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management -
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -

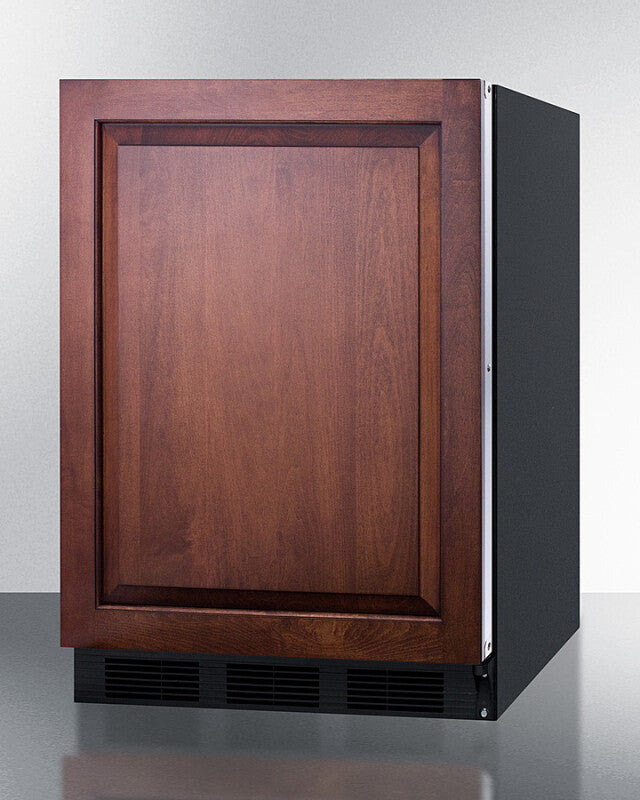

Fully finished black cabinet
Allows the unit to be used freestanding -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
